Wind Tunnel

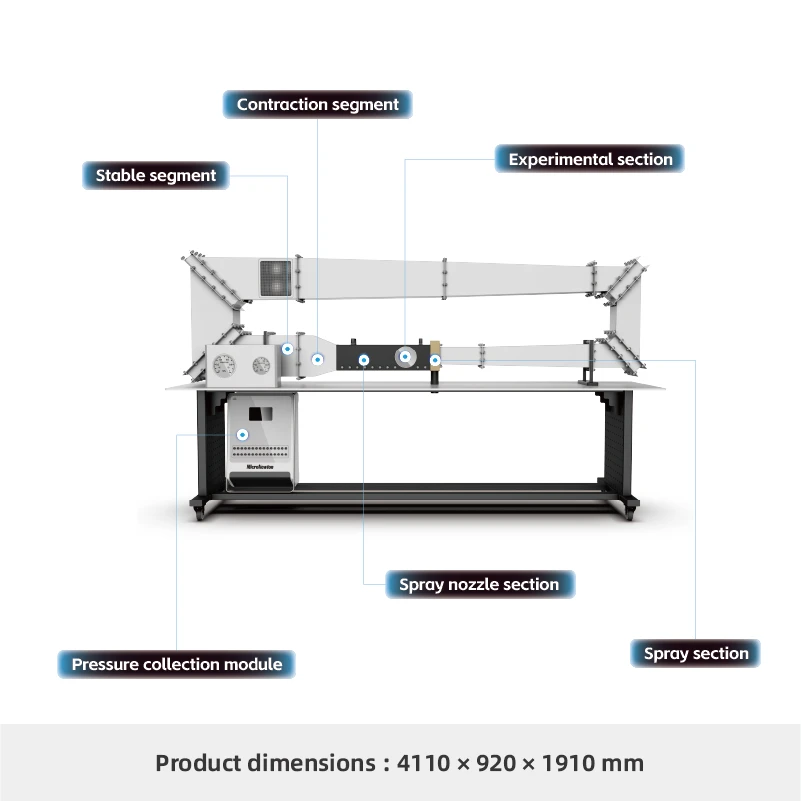

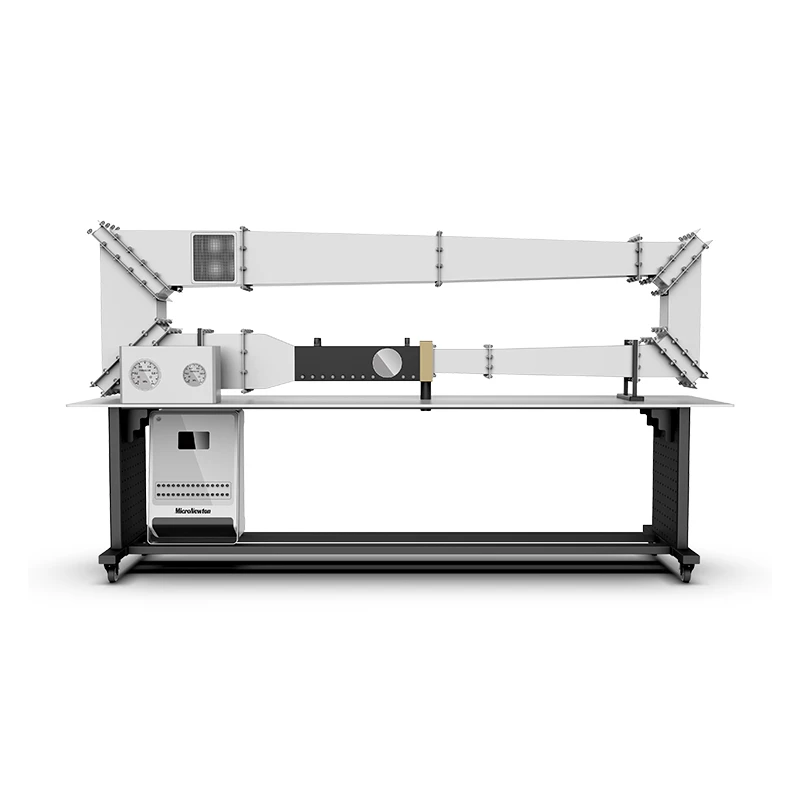

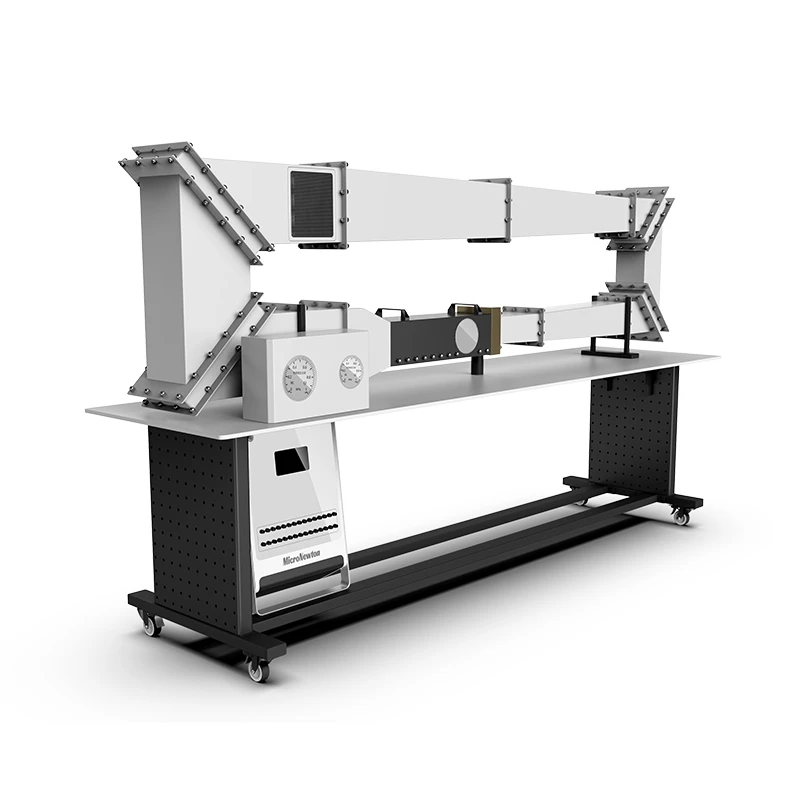

This product is an intermittent supersonic wind tunnel. The experimental air source is compressed air, featuring a compact footprint suitable for most laboratory environments. It is designed for studying the dynamic characteristics of subsonic and supersonic airflow inside a nozzle, as well as the aerodynamic characteristics of two-dimensional models under different flow conditions.
Share:
Added to cart successfully
Experimental Functions
1.Measure and study the pressure distribution inside a Laval nozzle under subsonic and supersonic flow conditions.
2.Compare theoretical pressure distribution values with experimental results.
3.When the airflow reaches supersonic conditions in the wind tunnel, compare the theoretical and measured nozzle contraction ratio (requires 32-channel pressure acquisition system).
4.Measure and study the influence of different model angles on aerodynamic pressure under two-dimensional subsonic and supersonic flow conditions.
5.Measure and study the lift coefficient of the test model under supersonic flow.
6.Observe and study the formation process and principles of shock waves and expansion waves in supersonic flow (requires optional schlieren system).
Product Attributes
|
Product Model |
F380 |
Product Name |
Intermittent Supersonic Wind Tunnel |
|
Main Materials |
Galvanized steel sheet, stainless steel, 6061 aluminum alloy |
Dimensions |
3030 × 805 × 2000 mm |
|
Product Weight |
240 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
Schlieren system |
