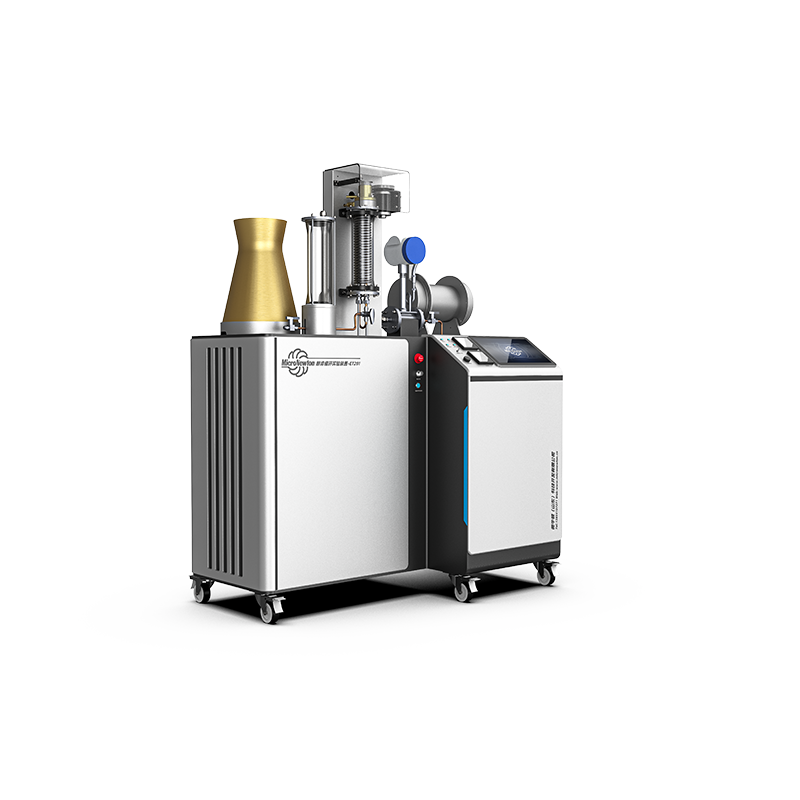

Thermodynamic Cycle
This product is a thermodynamic cycle system that converts thermal energy into mechanical/electrical work. It is used to demonstrate the operating process of steam turbine power generation and to study fundamental thermodynamic processes, including isentropic compression, constant-pressure heat addition, isentropic expansion, and constant-pressure condensation, thereby helping users understand the working principle of the Rankine cycle.
Share:
Added to cart successfully
Product Description
This product is a thermodynamic cycle system that converts thermal energy into mechanical/electrical work. It is used to demonstrate the operating process of steam turbine power generation and to study fundamental thermodynamic processes, including isentropic compression, constant-pressure heat addition, isentropic expansion, and constant-pressure condensation, thereby helping users understand the working principle of the Rankine cycle.

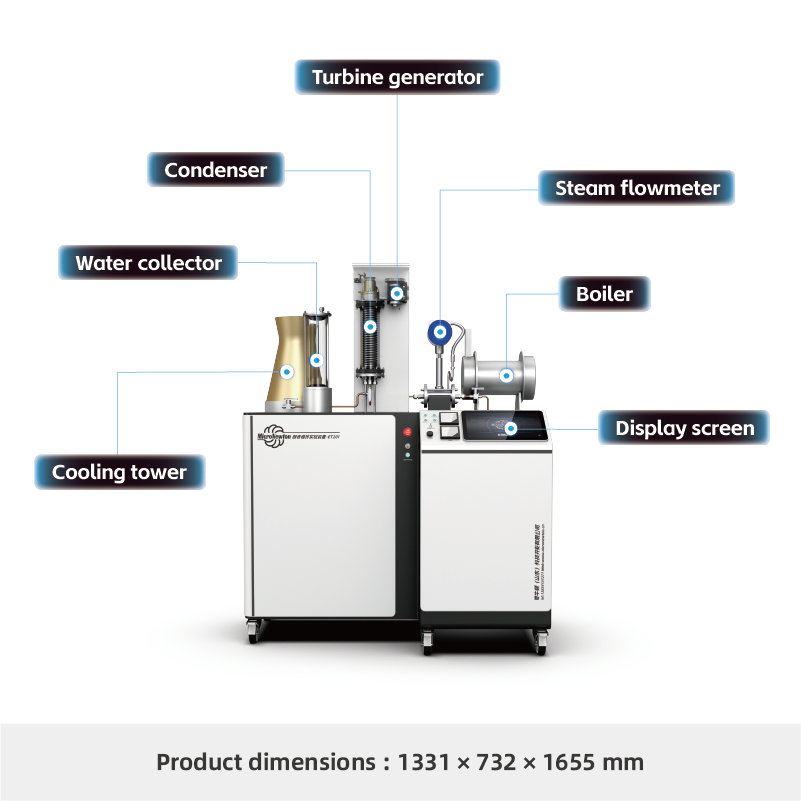

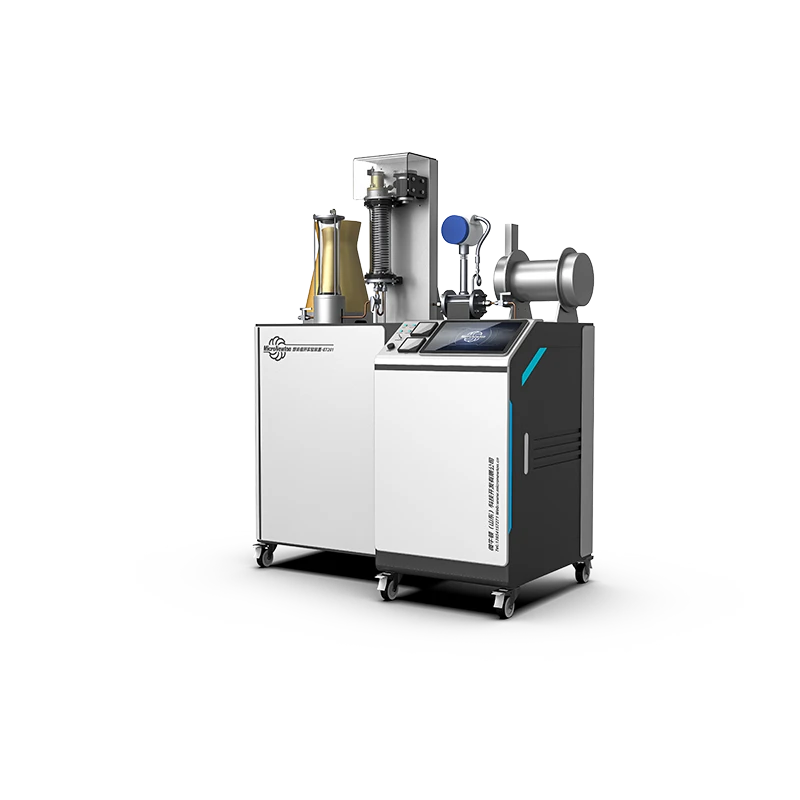

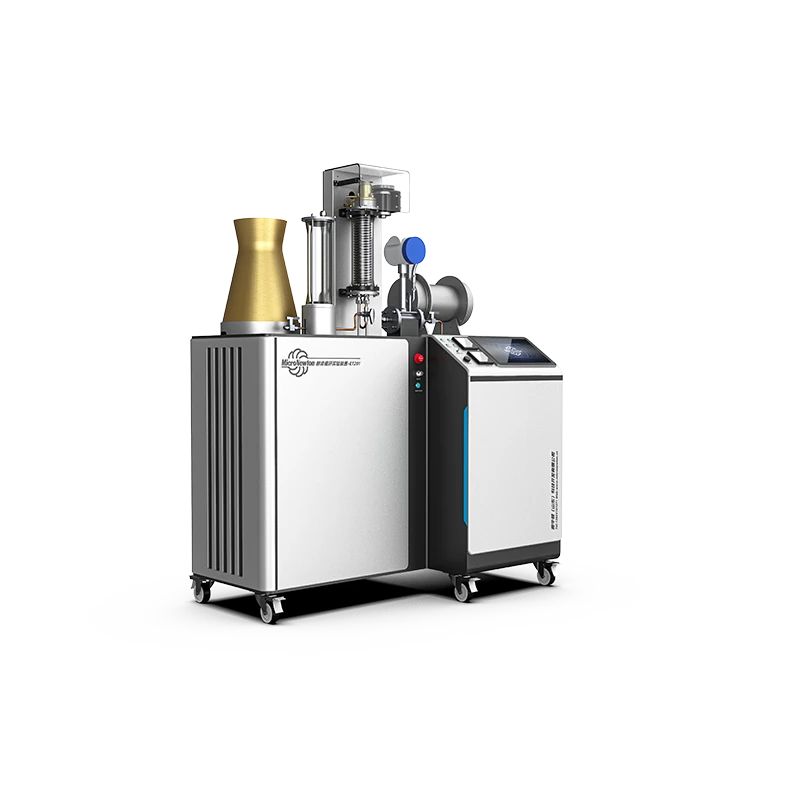

The system mainly consists of a steam boiler, turbine generator, condenser, water supply tank, and water pump. The module is designed based on real industrial products with miniaturization. It supports flexible configuration by allowing single or multiple system connections.
The centralized data acquisition and control module provides data collection and analysis functions. It measures inlet and outlet parameters of each module, including temperature, pressure, and electrical power, and enables operating condition control and real-time status display.
Through innovative design and development, the system ensures efficient, stable, and safe operation while offering good scalability and maintainability. The data system is open and supports user customization, enabling multidisciplinary expansion.

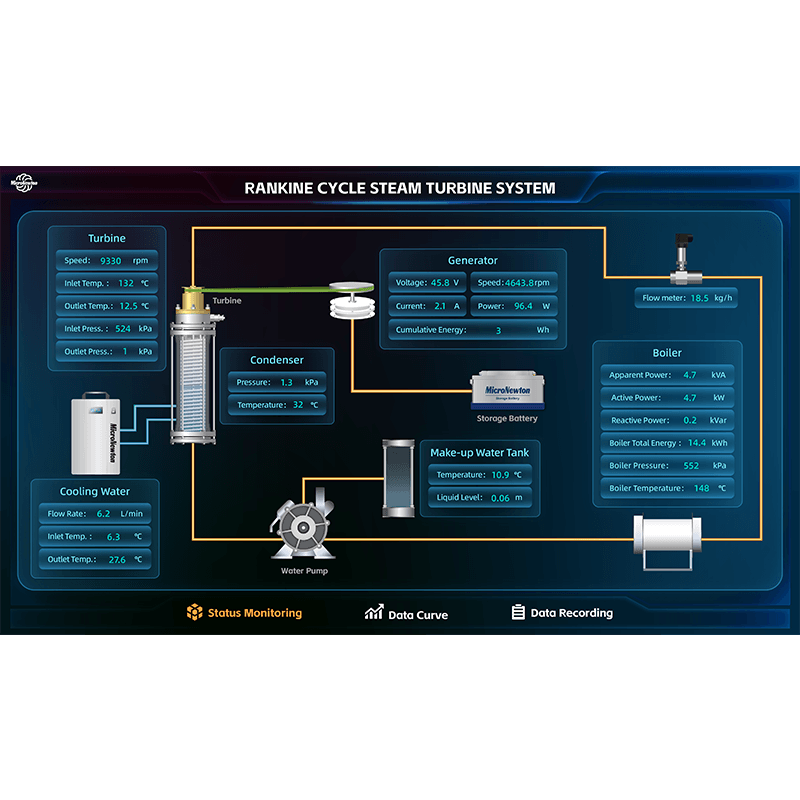

The display unit shows system operation schematics, dynamic curves, and real-time monitoring of all measurement points, including temperature, pressure, condensation pressure, flow rate, operating voltage, current, and power.
Experimental Functions
1
Demonstrate the operation principle and process of a real steam power generation system.
2
Verify the First Law of Thermodynamics.
3
Verify the Second Law of Thermodynamics.
4
Study the structure and performance characteristics of steam turbines.
5
Analyze the thermal efficiency of the steam boiler.
6
Determine the overall system thermal efficiency.
7
Measure the energy conversion efficiency (heat-to-work) under different inlet pressures.
Product Attributes
|
Product Model |
ET201 |
Product Name |
Rankine Cycle Experimental Apparatus |
|
Main Materials |
Galvanized Steel Plate, 304 Stainless Steel |
Specifications |
1350 × 750 × 1660 mm |
|
Product Weight |
180kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85%; Laboratory equipped with water supply and drainage systems |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz 110V ±5%, 50Hz/60Hz |
||
|
Required Modules |
Electromagnetic Steam Generator |
Optional Modules |
None |
FAQ
Is your company a manufacturer or a trading company?
We are a direct source manufacturer with independent R&D, production and quality inspection workshops, and have years of expertise in the university laboratory equipment sector.
What payment methods are supported for overseas orders?
We accept T/T (Telegraphic Transfer) and irrevocable sight L/C (Letter of Credit). Formal commercial or proforma invoices are issued for all orders, with a transparent and traceable process.
What is the production and delivery cycle for the equipment?
Standard models: 45-60 days. Expedited production is available for urgent orders with priority scheduling, and the exact lead time is negotiable.
Do you support product customization?
Customization, OEM and ODM services are available. We can adjust parameters, structure, size and functions as required, and accept private labeling production.
How do you ensure the safe transport of the equipment?
Export-grade triple shockproof and moisture-proof packaging (shockproof foam + thickened carton + plywood wooden case) with warning labels attached.
Does the product come with a warranty? Are spare parts included?
All products come with a 2-year free original factory warranty, and common wearing parts are provided free of charge during the warranty period.
Overseas After-Sales Support：
• 7×24h remote technical support and free operation training with one-on-one engineer guidance;
• Free urgent air shipment of replacement parts for non-human-induced quality defects within the warranty period;
• Lifetime technical consultation and cost-price spare parts supply after warranty;
• Bilingual manuals, operation videos and experiment guides are included for easy use by beginners.
