The MST07 ultra static rigid frame constraint force and displacement testing experimental device is an experimental module specially developed for structural mechanics teaching.
Share:
Added to cart successfully
Product Introduction

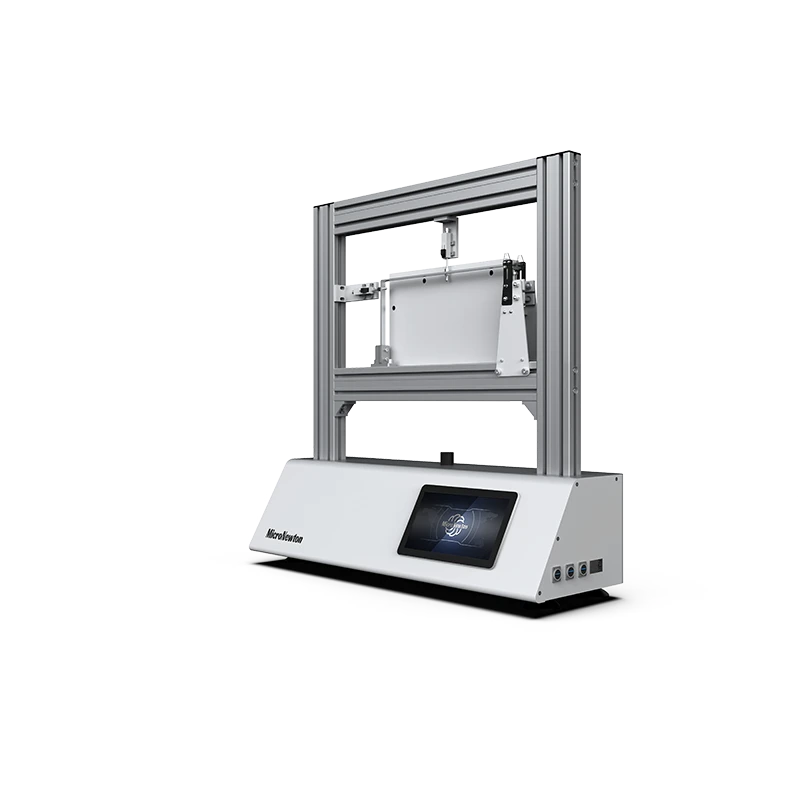

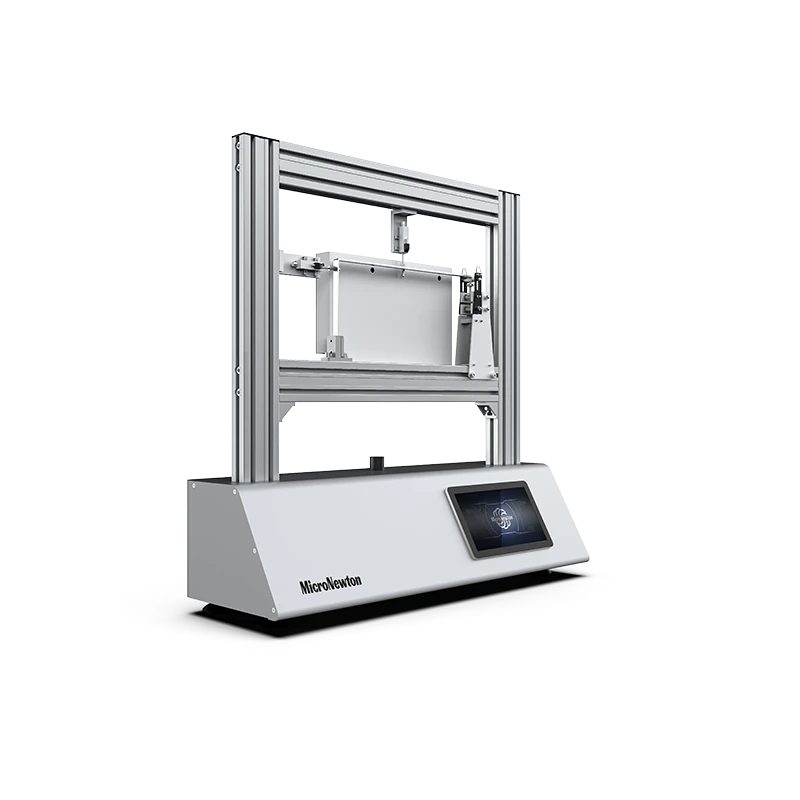

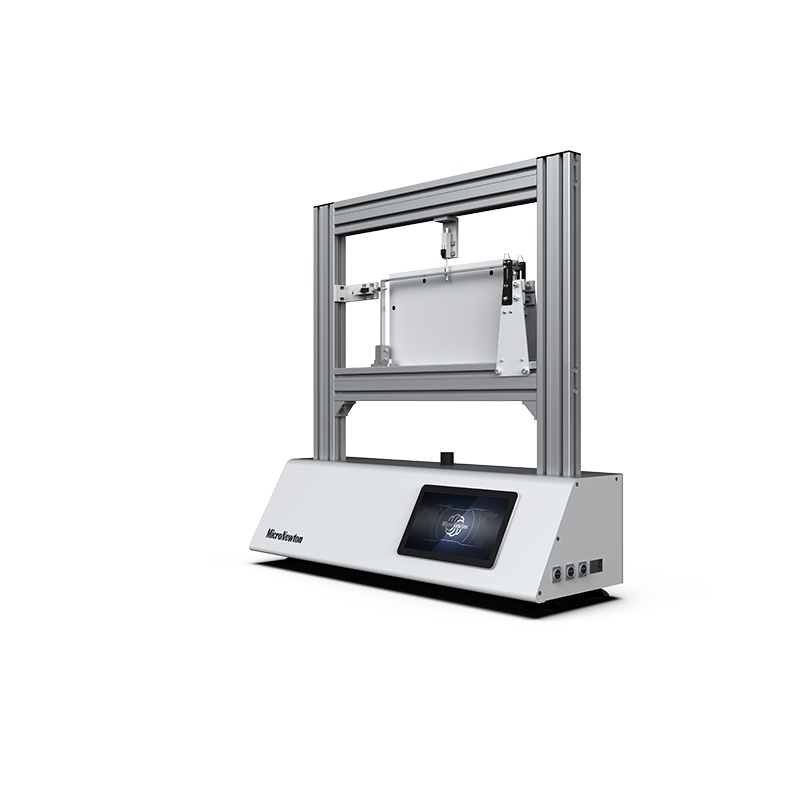

The MST07 ultra static rigid frame constraint force and displacement testing experimental device is an experimental module specially developed for structural mechanics teaching. This device is designed based on the application requirements of civil engineering and mechanical engineering, and consists of a specimen fixing plate, a cantilever rigid frame internal force measurement module, and a touch force sensor. It can accurately simulate the stress state of a statically indeterminate cantilever rigid frame, and measure the horizontal/vertical displacement, support reaction force, and internal forces of the structure under load in real time through high-precision displacementsensorsandstraingauges.Thesystemsupportsintuitivecomparisonbetweenmeasureddataandtheoreticalcalculations using force methods, making it an ideal teaching tool for studying the characteristics ofstatically indeterminate structures and verifying the basic principles of force methods.
Experimental feature
1
A hyperstatic cantilever rigid frame can be constructed to visually demonstrate the basic system and fundamental unknowns of the force method by removing excess constraints
2
Measurement of support reaction force and bending moment: Using the B-end to directly read the excess constraint force, combined with the force arm to calculate the fixed hinge support bending moment, and verify the static equilibrium equation
3
Internal force analysis of members: By using strain gauges attached to the members, bending strain and tensile compressive strain are collected separately, and the section bending moment and axial force are calculated using formulas to verify the principle of section method
4
Deformation displacement monitoring: Integrated dual displacement sensors measure the horizontal displacement of the structure and the vertical deflection of the midpoint of the crossbeam, respectively, to analyze the deformation law of the structure under concentrated loads
Product Attributes
|
Product Model |
MST07 |
Product Name |
Experimental device for testing the constraint force and displacement of statically indeterminate rigid frame |
|
Main Materials |
Stainless steel, aluminum alloy |
Specifications |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
FAQ
Is your company a manufacturer or a trading company?
We are a direct source manufacturer with independent R&D, production and quality inspection workshops, and have years of expertise in the university laboratory equipment sector.
What payment methods are supported for overseas orders?
We accept T/T (Telegraphic Transfer) and irrevocable sight L/C (Letter of Credit). Formal commercial or proforma invoices are issued for all orders, with a transparent and traceable process.
What is the production and delivery cycle for the equipment?
Standard models: 45-60 days. Expedited production is available for urgent orders with priority scheduling, and the exact lead time is negotiable.
Do you support product customization?
Customization, OEM and ODM services are available. We can adjust parameters, structure, size and functions as required, and accept private labeling production.
How do you ensure the safe transport of the equipment?
Export-grade triple shockproof and moisture-proof packaging (shockproof foam + thickened carton + plywood wooden case) with warning labels attached.
Does the product come with a warranty? Are spare parts included?
All products come with a 2-year free original factory warranty, and common wearing parts are provided free of charge during the warranty period.
Overseas After-Sales Support：
• 7×24h remote technical support and free operation training with one-on-one engineer guidance;
• Free urgent air shipment of replacement parts for non-human-induced quality defects within the warranty period;
• Lifetime technical consultation and cost-price spare parts supply after warranty;
• Bilingual manuals, operation videos and experiment guides are included for easy use by beginners.
How do you control product quality before shipment?
Strict three-level quality inspection is carried out before delivery:
1. Raw Material Inspection: Full inspection of core components to control precision;
2. In-Process Inspection: Special personnel monitor each process to avoid defects;
3. Final Shipment Inspection: Power-on testing and precision calibration, with official inspection reports issued; factory inspection and remote inspection are both supported.
