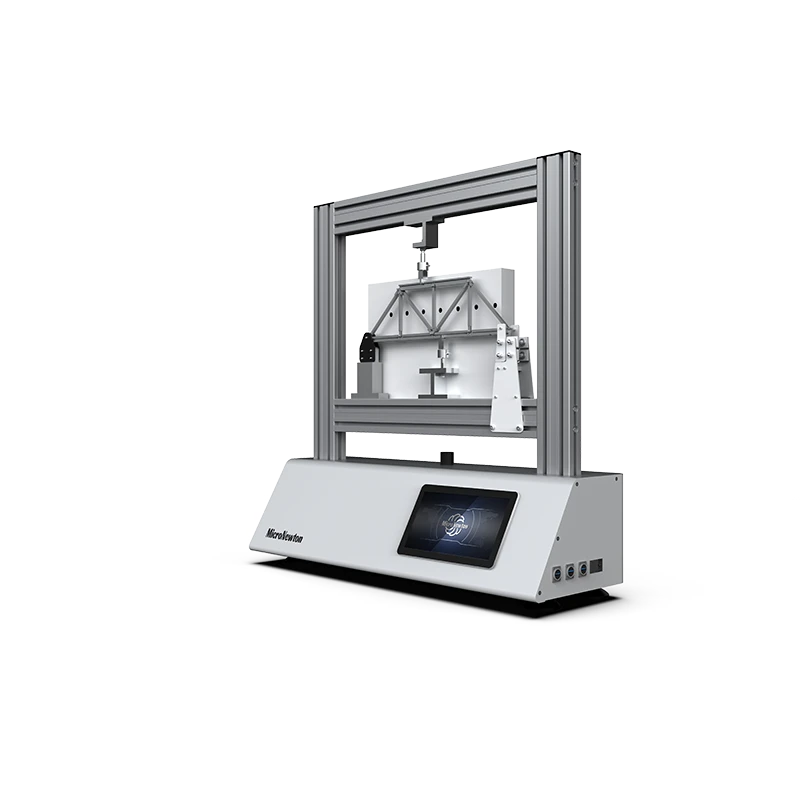

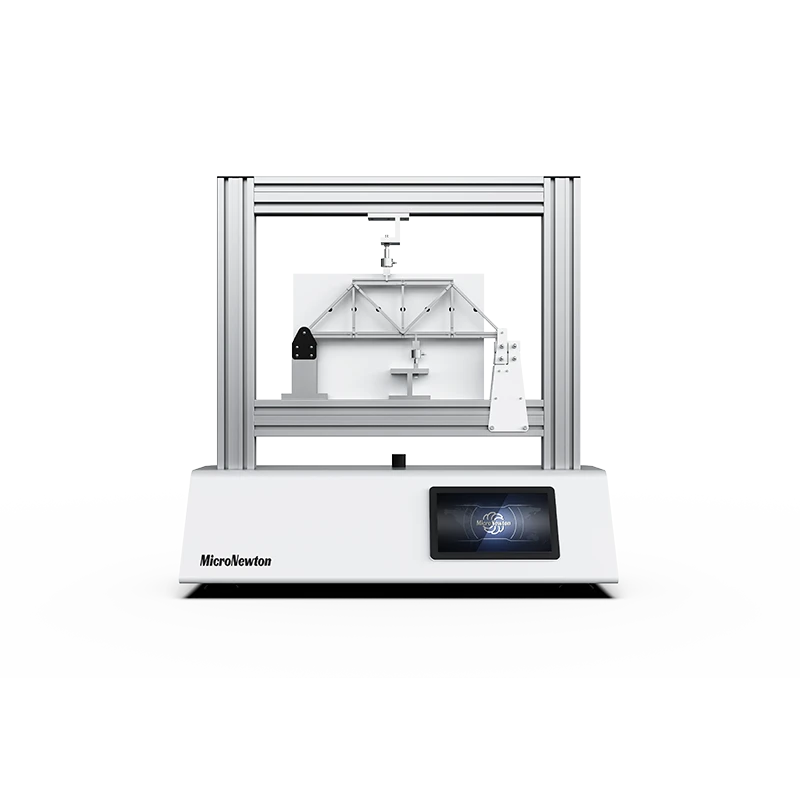

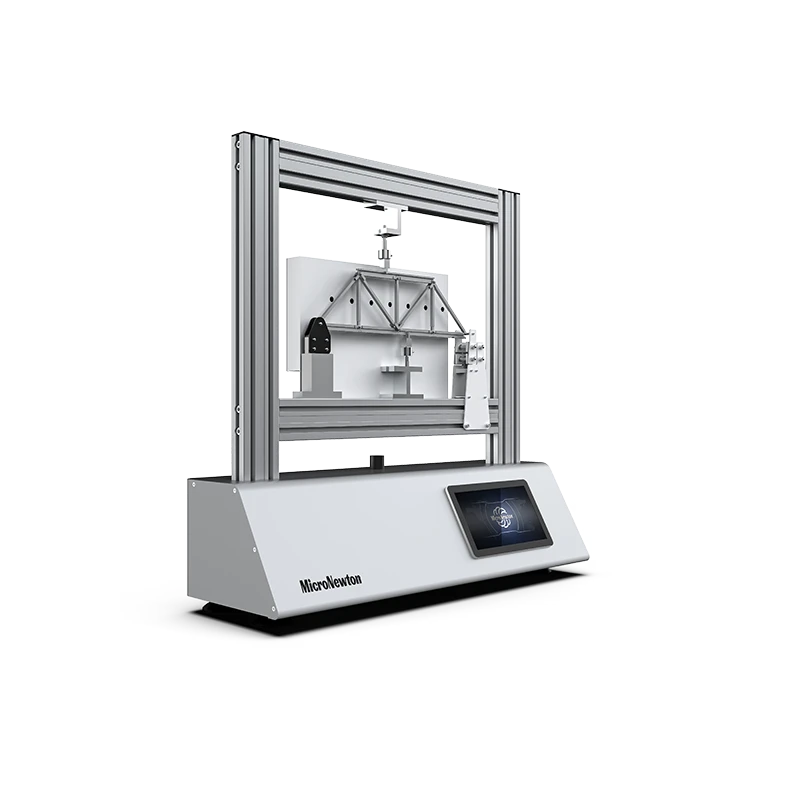

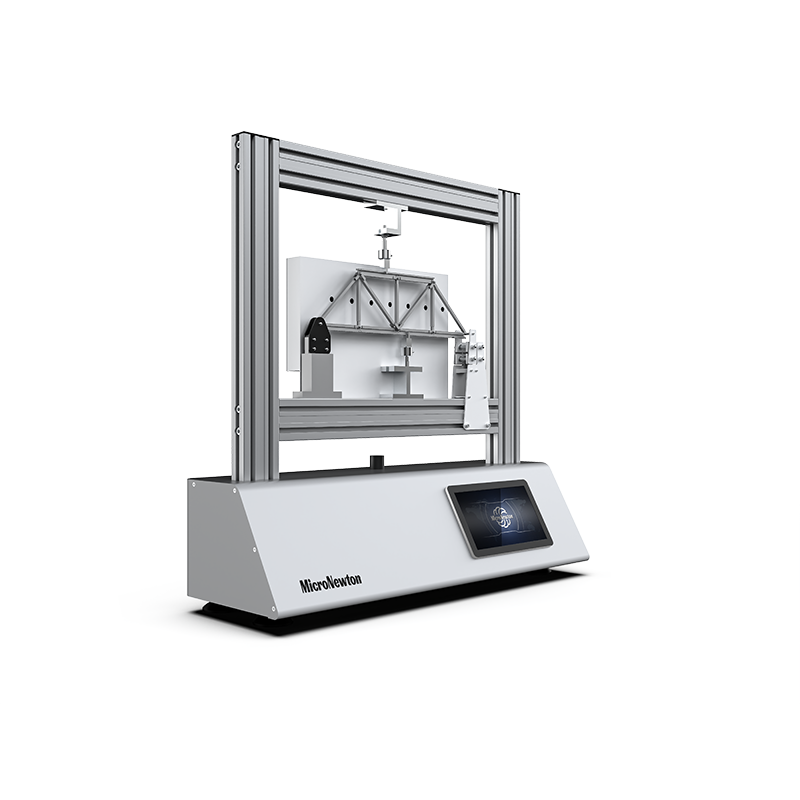

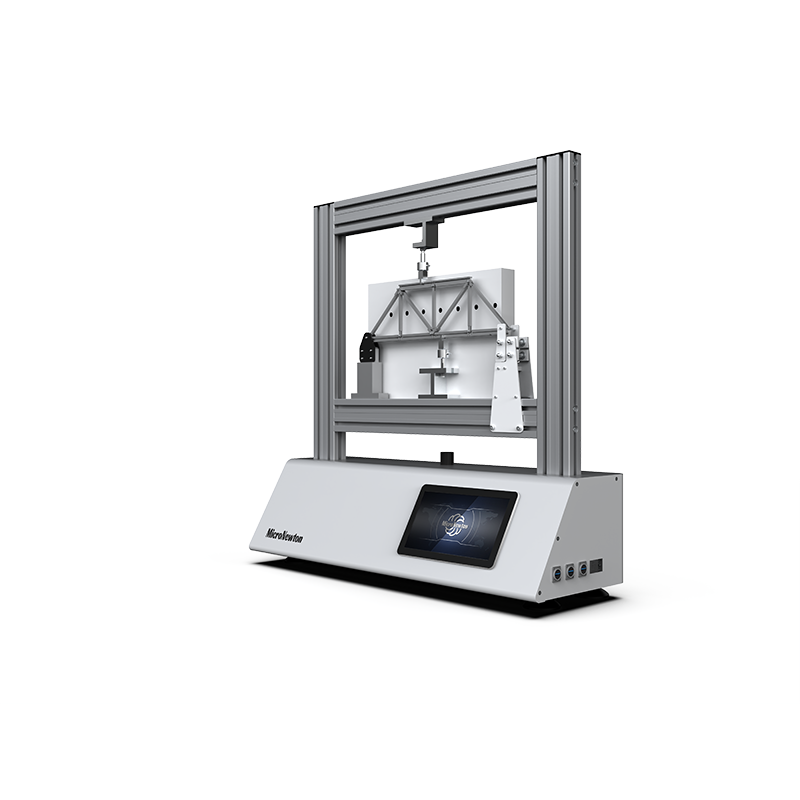

The MST17 truss influence line testing experimental device is a specialized testing equipment used in structural mechanics experiments to study the axial force variation of each member of a planar truss structure under moving loads.
Dynamic load simulation and influence line generation, using a mobile load system to simulate the movement of unit loads along the span of the truss, supporting concentrated loads, uniformly distributed loads, and multi-point loading, adapting to different truss topologies, real-time collection of stress data at each node using electrical measurement method, generating influence line curves, and comparing them with theoretical values.
Share:
Added to cart successfully
Experimental feature
1.Draw the influence line of axial force on truss members
2.Demonstrate the principle of indirect loading
3.Determine the most unfavorable load location
4.Verify the section method and node method
Product Attributes
|
Product Model |
MST17 |
Product Name |
Experimental device for testing the influence lineof truss |
|
Main Materials |
Aluminum alloy, stainless steel |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
