The MST08 two hinge arch constraint force testing experimental device is an experimental module designed specifically for structural mechanics teaching. This device is optimized and designed based on the application requirements of civil engineering and mechanical engineering, consisting of two support supports and a symmetrical bridge arch structure rigidly connected.
Share:
Added to cart successfully
Product Introduction

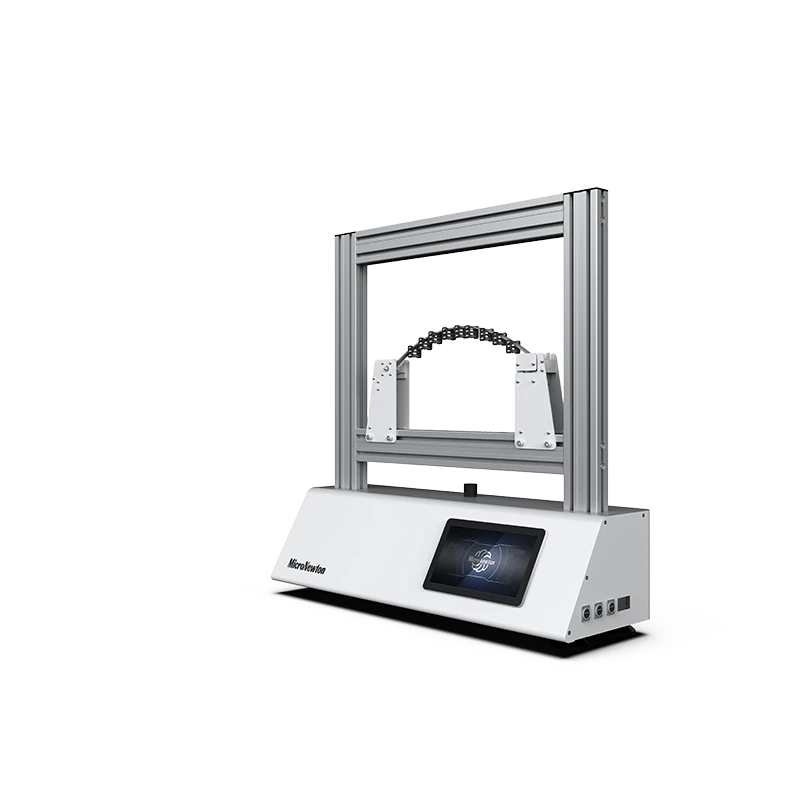

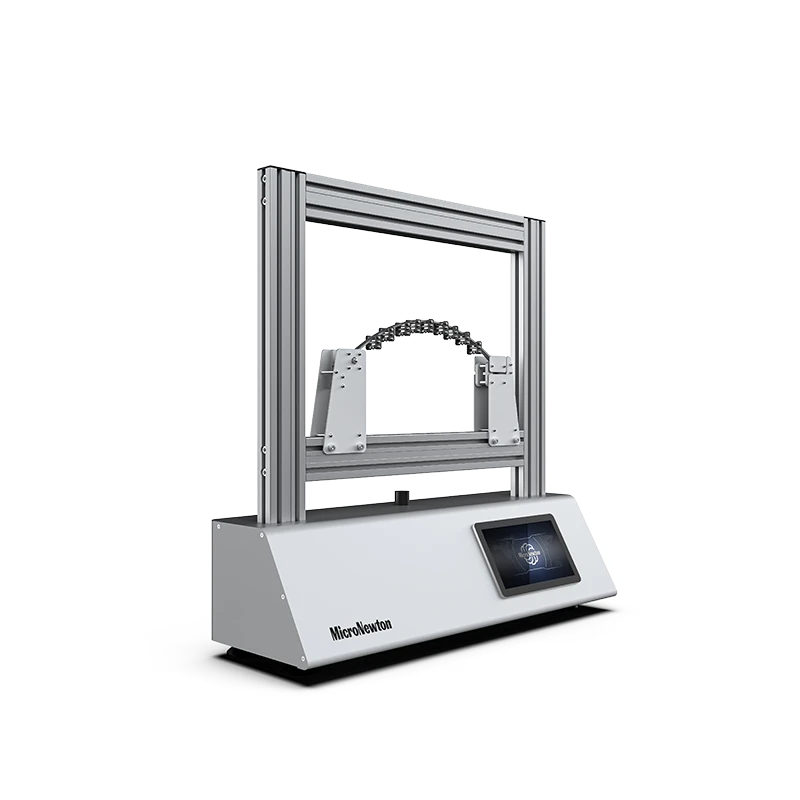

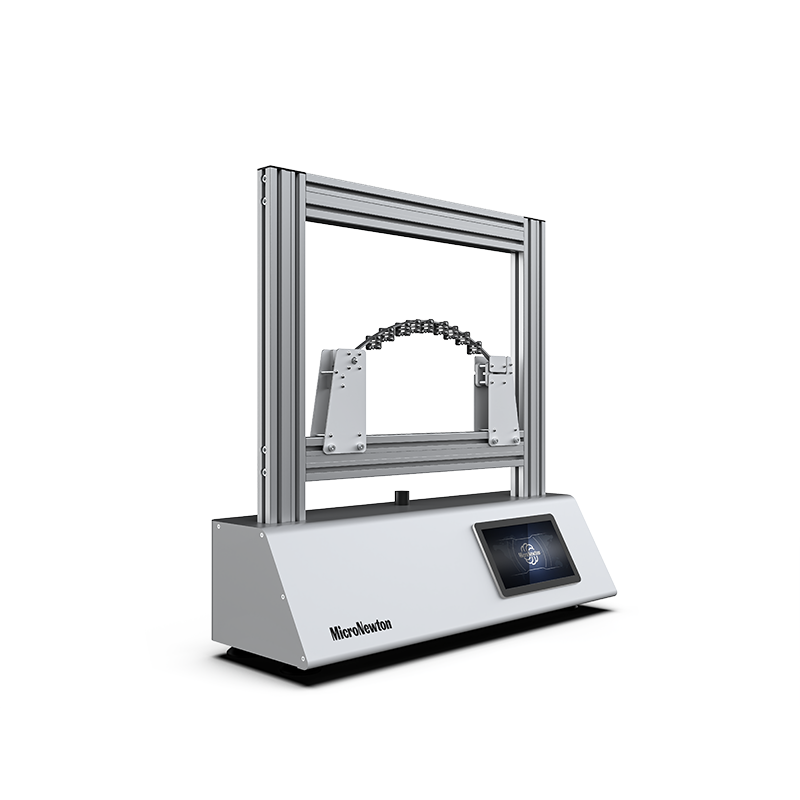

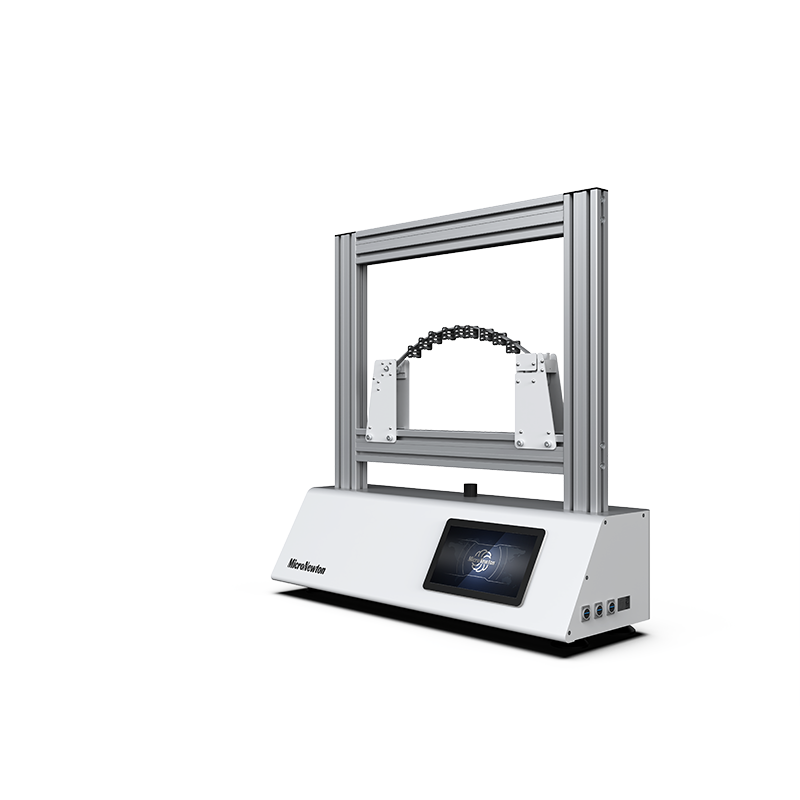

The MST08 two hinge arch constraint force testing experimental device is an experimental module designed specifically for structural mechanics teaching. This device is optimized and designed based on the application requirements of civil engineering and mechanical engineering, consisting of two support supports and a symmetrical bridge arch structure rigidly connected. It can accurately simulate the stress state of two hinged arches under vertical loads (concentrated or uniformly distributed), measure and display the horizontal thrust and support reaction generated by the structure in real time, and intuitively verify the stress difference between the arch structure and the corresponding simply supported beam. It is an ideal teaching tool for understanding the mechanical characteristics of staticallyindeterminate thrust structures.
Experimental feature
1
Horizontal thrust test: Verify the relationship between thrust and arch height, span, and material stiffness in statically indeterminate structures, and compare the stress differences between statically indeterminate and statically indeterminate arch structures
2
Mobile load analysis: By using weights to move and load at different positions on the arch, the curve of horizontal reaction force changing with load position is tested and plotted. The distribution law of internal forces (bending moment, axial force) in the section is analyzed using the principle of force method
3
Uniformly distributed load simulation: Equipped with uniformly distributed load rods of different lengths (long rods/short rods), it can simulate the uniformly distributed forces under actual working conditions such as bridges, measure and compare the measured thrust and force method theoretical calculation values
4
Verification of hyperstatic characteristics: Integrated visual teaching unit, real-time presentation of experimental data and dynamic curves, supporting intuitive comparison between theoretical calculation values and measured data, assisting in understanding the basic system of force method and the concept of solving for excess unknown forces
Product Attributes
|
Product Model |
MST08 |
Product Name |
Experimental device for testing the constraint force of two hinged arches |
|
Main Materials |
Aluminum alloy, stainless steel |
Specifications |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
FAQ
Is your company a manufacturer or a trading company?
We are a direct source manufacturer with independent R&D, production and quality inspection workshops, and have years of expertise in the university laboratory equipment sector.
What payment methods are supported for overseas orders?
We accept T/T (Telegraphic Transfer) and irrevocable sight L/C (Letter of Credit). Formal commercial or proforma invoices are issued for all orders, with a transparent and traceable process.
What is the production and delivery cycle for the equipment?
Standard models: 45-60 days. Expedited production is available for urgent orders with priority scheduling, and the exact lead time is negotiable.
Do you support product customization?
Customization, OEM and ODM services are available. We can adjust parameters, structure, size and functions as required, and accept private labeling production.
How do you ensure the safe transport of the equipment?
Export-grade triple shockproof and moisture-proof packaging (shockproof foam + thickened carton + plywood wooden case) with warning labels attached.
Does the product come with a warranty? Are spare parts included?
All products come with a 2-year free original factory warranty, and common wearing parts are provided free of charge during the warranty period.
Overseas After-Sales Support：
• 7×24h remote technical support and free operation training with one-on-one engineer guidance;
• Free urgent air shipment of replacement parts for non-human-induced quality defects within the warranty period;
• Lifetime technical consultation and cost-price spare parts supply after warranty;
• Bilingual manuals, operation videos and experiment guides are included for easy use by beginners.
How do you control product quality before shipment?
Strict three-level quality inspection is carried out before delivery:
1. Raw Material Inspection: Full inspection of core components to control precision;
2. In-Process Inspection: Special personnel monitor each process to avoid defects;
3. Final Shipment Inspection: Power-on testing and precision calibration, with official inspection reports issued; factory inspection and remote inspection are both supported.
