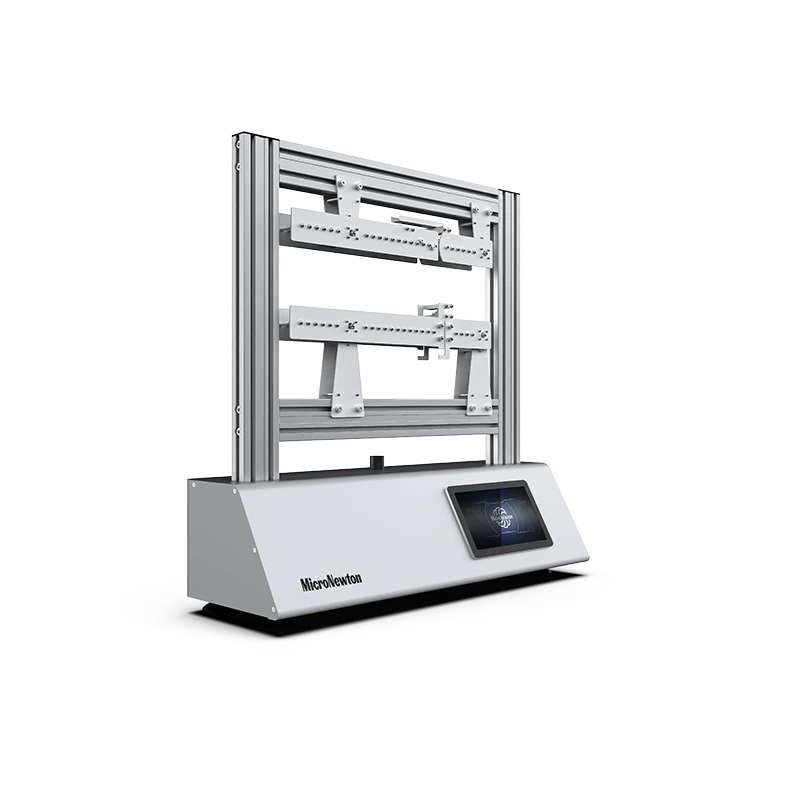

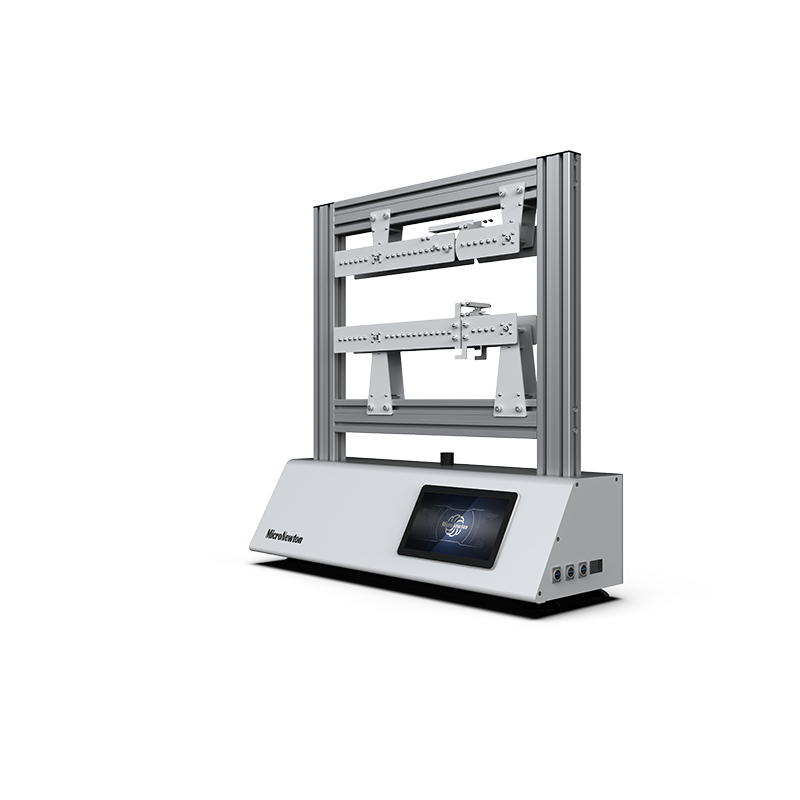

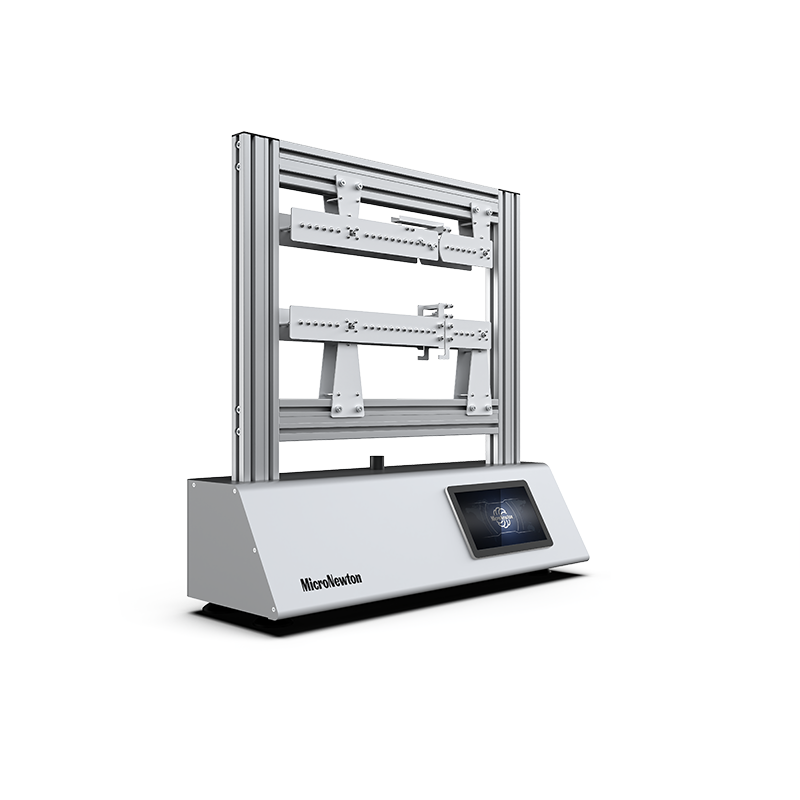

The MST01 static beam section internal force testing experimental device is a precision testing system designed specifically for structural mechanics experiments, including two independent testing modules for shear force and bending moment. Each set of devices consists of a truncated crossbeam, double support seat, and foundation frame. The crossbeam is disconnected at a predetermined cross-section to simulate internal force testing conditions. To ensure structural stability and achieve precise measurement, the device adopts a force arm bridge connection structure, and real-time collection of cross-sectional shear force and bending moment data is achieved through integrated force sensors. The testing module needs to be installed on the MST100 basic testing framework to visually verify the distribution law of internal forces in static beams, providing reliable experimental support for structural mechanicsteaching and research.
Share:
Added to cart successfully
Experimental feature
1.Measure the shear force and bending moment of a static beam at a fixed position section
2.By comparing experimental data with theoretical values, verify the basic idea and static equilibrium conditions of the section method
3.Support single load and double load combination loading at different positions, analyze the variation law of internal force with load position
4.The module acquisition system can be used as an independent data acquisition tool
and has the potential for scientific research expansion
Product Attributes
|
Product Model |
MST01 |
Product Name |
Experimental device for testing internal forces of static beam section |
|
Main Materials |
Aluminum alloy, stainless steel |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
