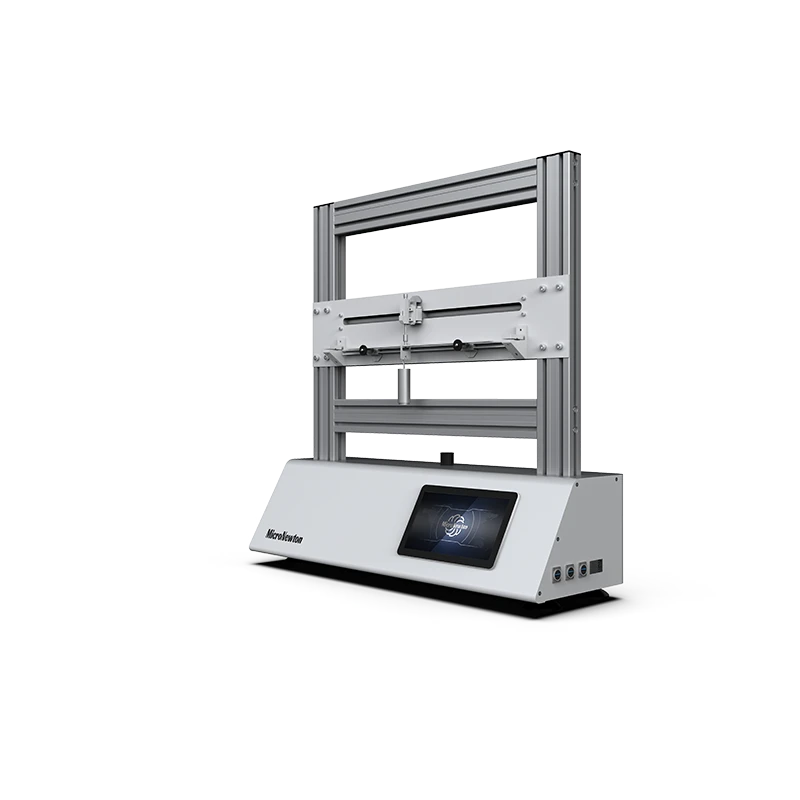

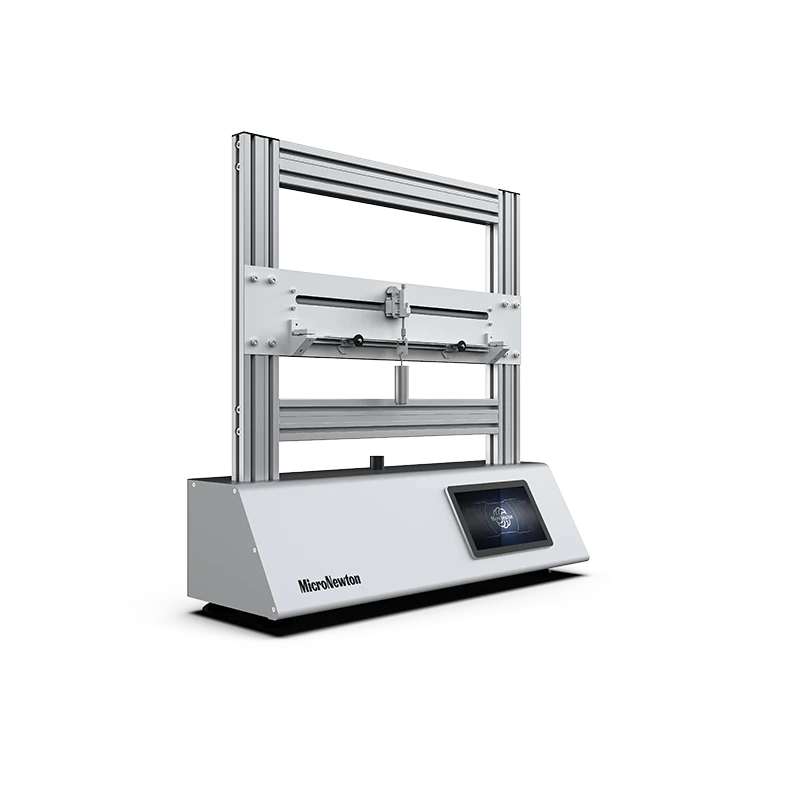

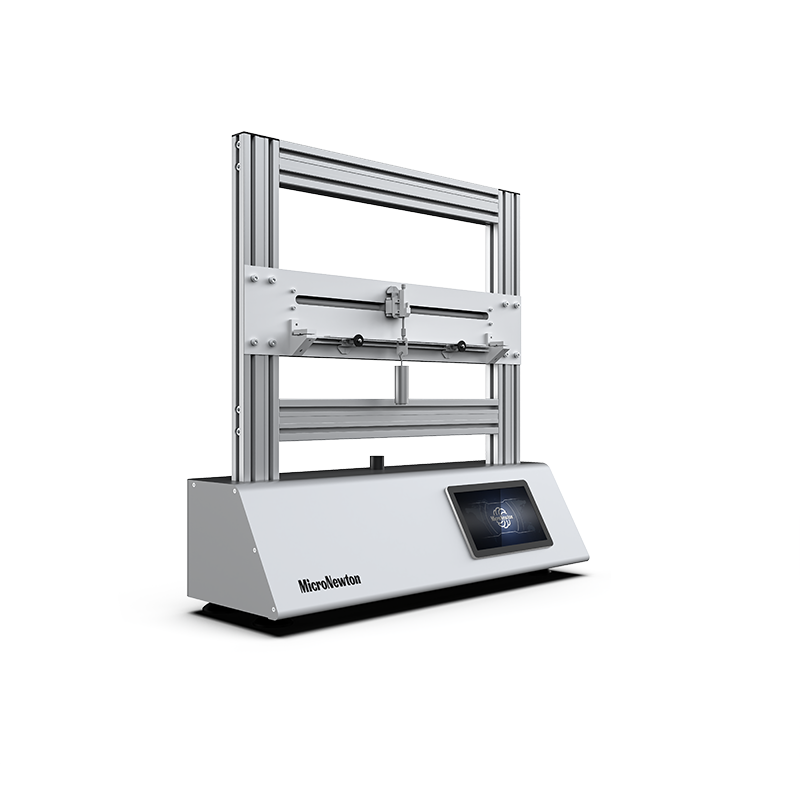

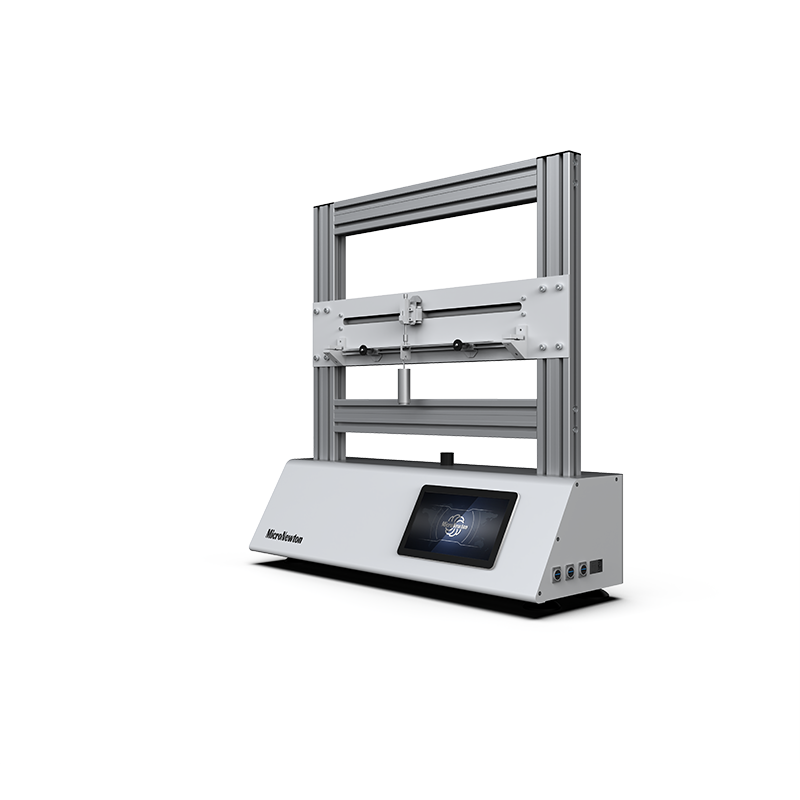

The MST05 single span static beam bending deformation testing experimental device is an experimental module designed specifically for structural mechanics teaching. This device integrates the application requirements of civil engineering and mechanical engineering, consisting of a back plate, a sliding digital indicator, a blade shaped support, and a basic frame. It supports the rapid construction of three typical structural forms: simply supported beams, cantilever beams, and cantilever beams, equipped with beam specimens made of aluminum, copper, and steel materials. The system measures deflection through a high-precision digital micrometer, visually displaying the effects of different loads, spans, and materials on beam bending deformation. It is an ideal platform for theoretical verification of beam deflection and teaching of superposition method.
Share:
Added to cart successfully
Experimental feature
1.Multi form beam structure simulation: By adjusting the position and fixing method of the support seat, three types of single span static beam structures, namely simply supported beam, cantilever beam, and cantilever beam, can be flexibly assembled to meet the mechanical testing requirements of different boundary conditions
2.Material performance comparison test: Provide beam specimens with three different Young's moduli of aluminum, copper, and steel to support the comparison of deflection differences between different materials under the same load, and verify the influence of material properties on structural stiffness
3.Accurate measurement of bending deformation: Using a digital micrometer that can slide along the back plate, accurately measure the static deflection (displacement) and rotation angle of the beam under concentrated load, and visualize the deformation law of the structure
4.Principle verification of superposition method: Supports multi-point loading and graded loading experiments. By comparing measured data with theoretical calculated values, the superposition method principle for calculating bending deformation and the approximate differential equation of deflection curve are intuitively verified
Product Attributes
|
Product Model |
MST05 |
Product Name |
Experimental device for testing bending deformationof single span static beam |
|
Main Materials |
Aluminum alloy, stainless steel |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
