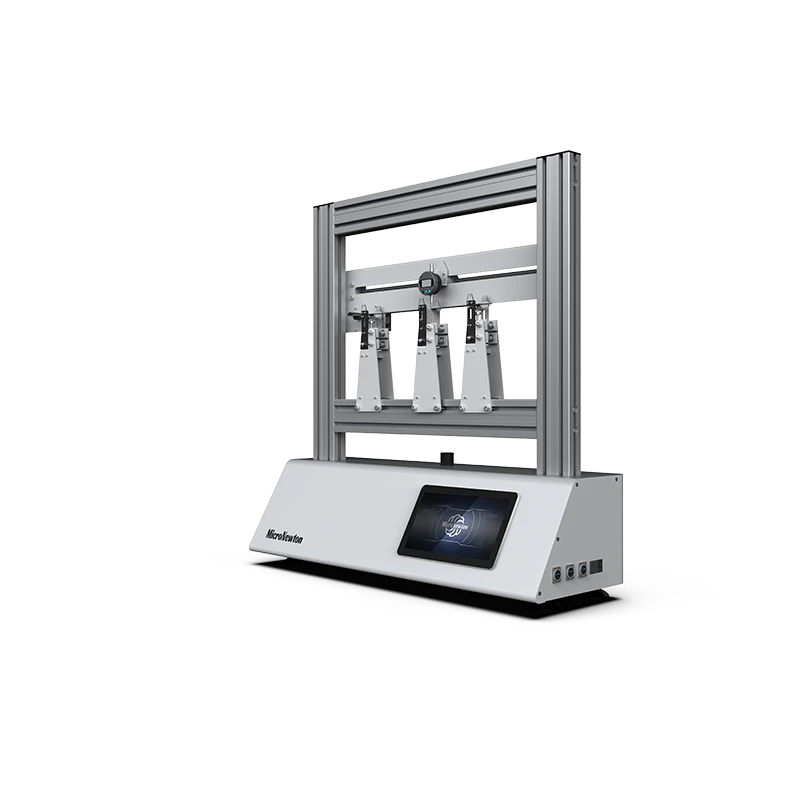

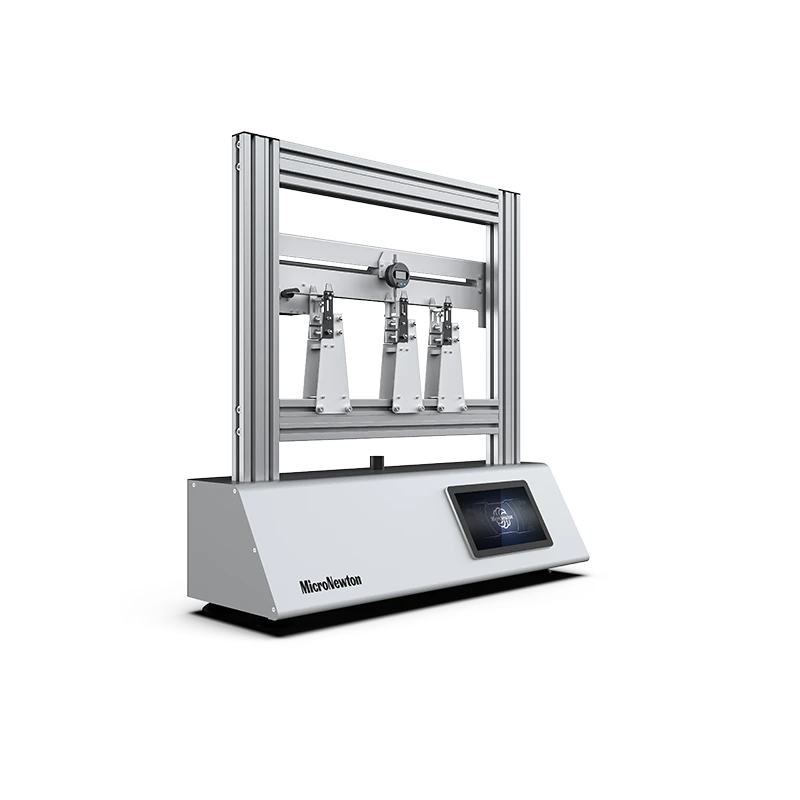

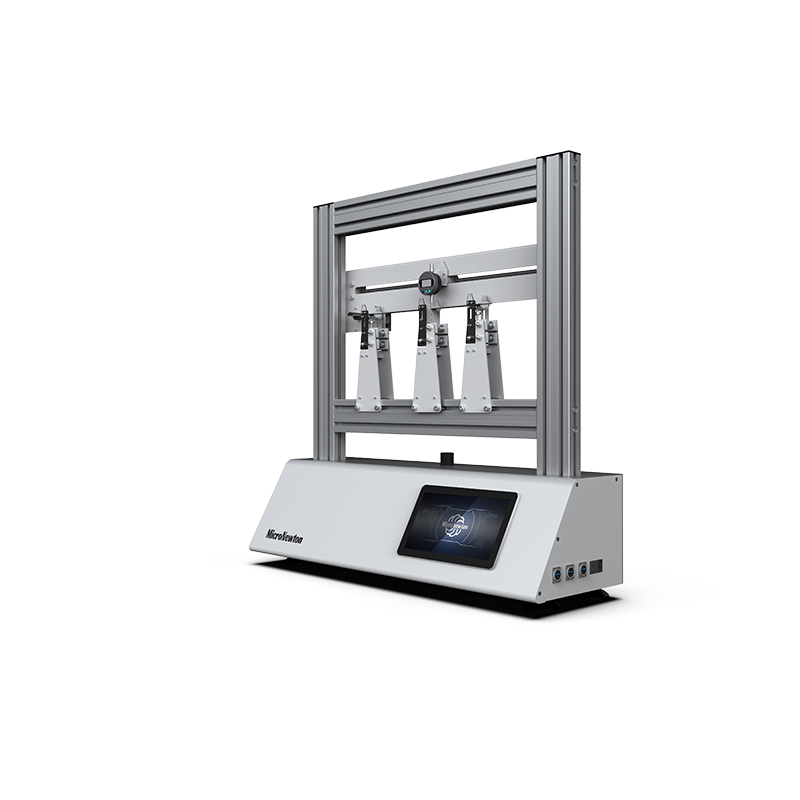

The MST06 multi condition beam mechanical response comprehensive testing experimental device is designed specifically for comprehensive testing of beam structural mechanical properties, supporting multi condition experiments such as static, hyperstatic, and continuous beams. The device is equipped with three vertical force measurement supports and a dedicated beam end fixed moment measurement structure, which can accurately obtain support reaction force and internal force data; Integrate two high-precision displacement sensors to synchronously monitor the deflection changes of the beam body, and also complete the influence line test by moving the load. The device has a stable structureandeasy operation, suitable for teaching and research scenarios in universities, and helps tocomprehensively analyze the mechanical response laws of beams.
Share:
Added to cart successfully
Experimental feature
1.Different materials, different elastic moduli, and differences in excess unknown forces under the same concentrated load conditions
2.Same material, different location of concentrated load, differences in restraining force and excess unknown force of different supports
3.Master and strengthen the basic solutions for hyperstatic structures (such as additional constraint method, basic system selection)
4.Understand the rationality of theoretical assumptions through experimental error analysis, such as material nonlinearity and sensor accuracy
5.Draw the bending moment influence line, shear force influence line, and support reaction influence line for the specified section
6.Accurately measure the numerical value of the target physical quantity when the unit load is located at a specific position
Product Attributes
|
Product Model |
MST06 |
Product Name |
Experimental device for comprehensive testing of mechanical response of multi condition beams |
|
Main Materials |
Stainless steel, aluminum alloy |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
Case Studies
Integrated Thermal Fluids and Energy Laboratory at Zhejiang University of Technology
Flight Demonstration Wind Tunnel at Shandong University
Multi Energy Complementary Experimental Platform at Hebei University
Statically Determinate Beam Section Internal Force Testing Apparatus Delivered to Jining Vocational and Technical College
Self Developed Compression Bar Stability and Stress Testing Apparatus Delivered to Shandong Polytechnic University
