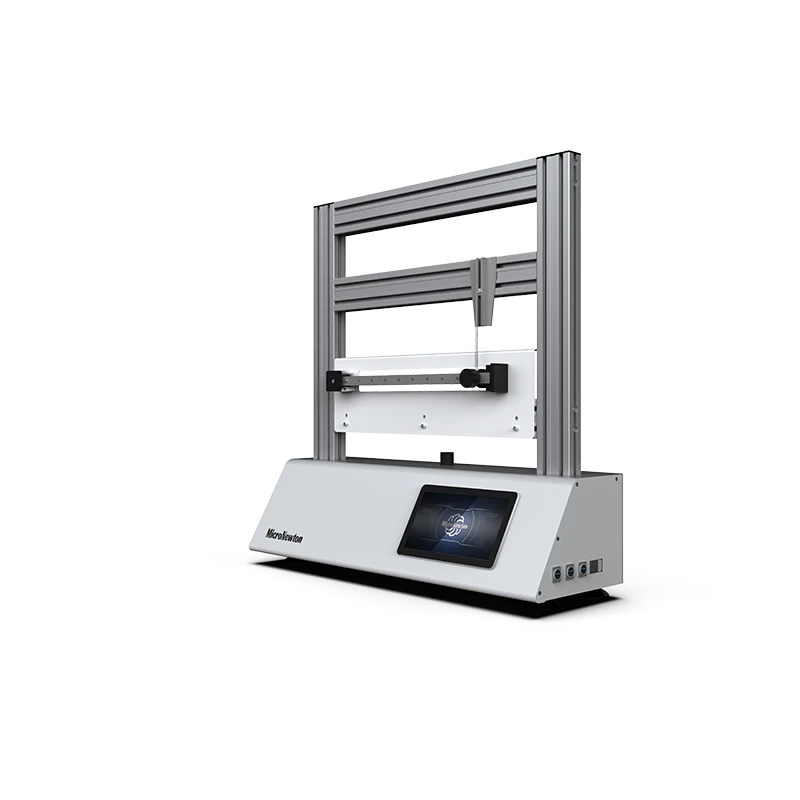

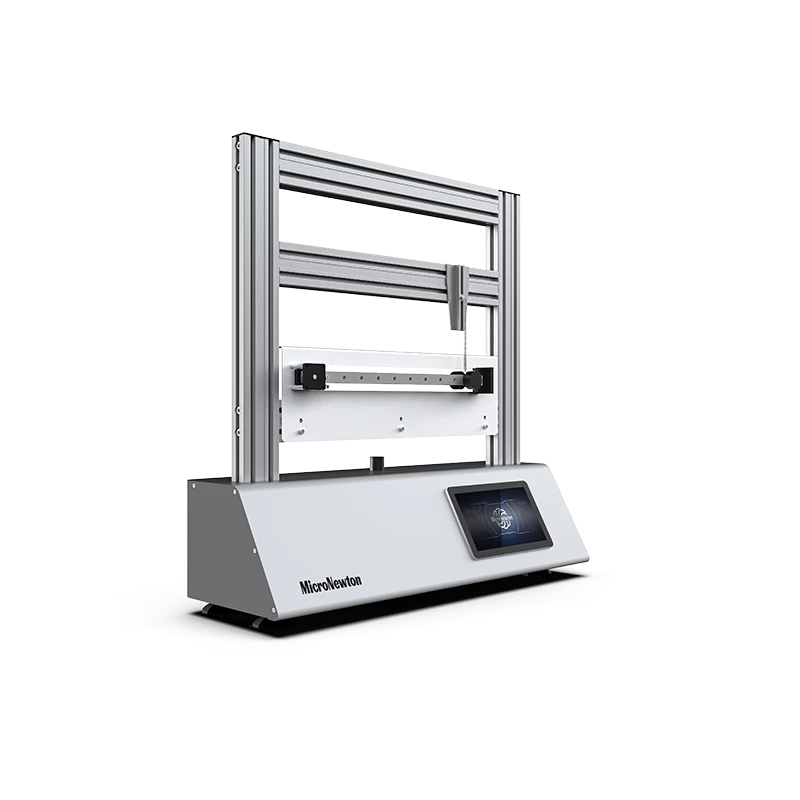

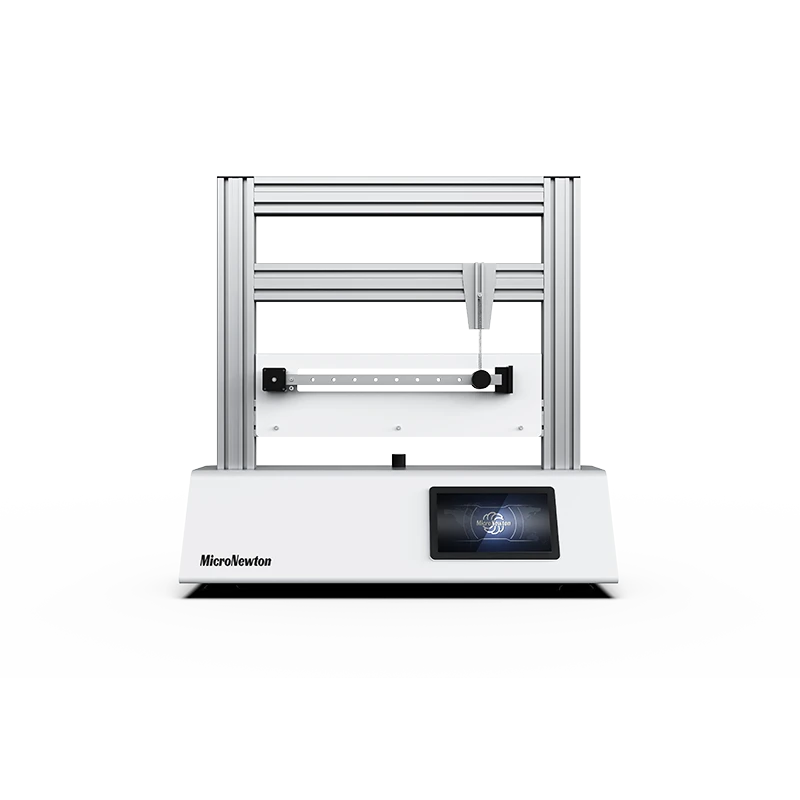

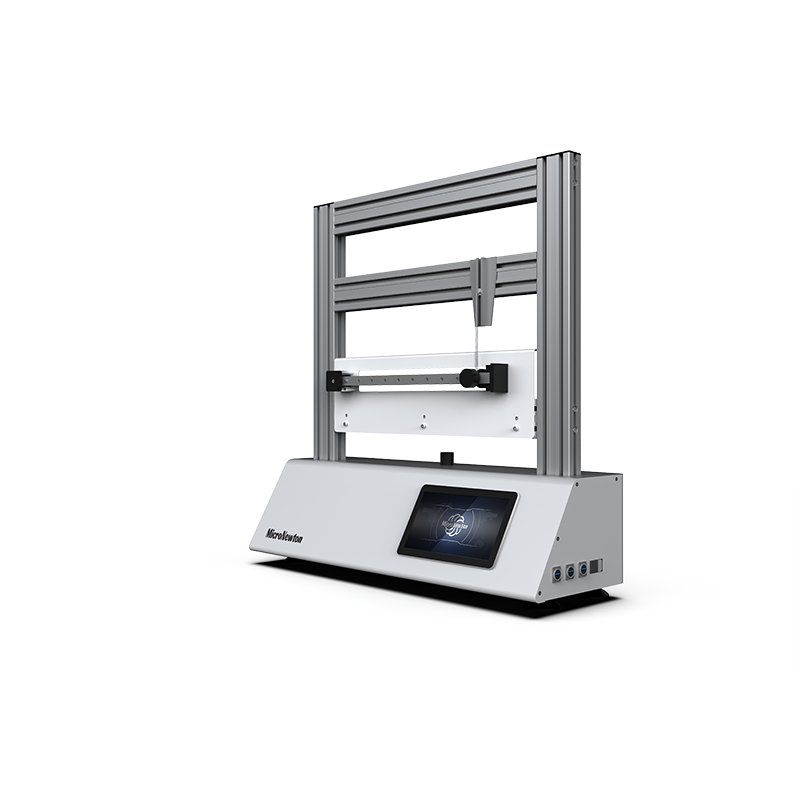

The MST18 Free Vibration and Swing Testing Device is a comprehensive experimental platform developed specifically for teaching structural mechanics and mechanical vibration. The device adopts a modular design, integrating various experimental modules such as single pendulum, compound pendulum, linear pendulum, impact center, mass spring system, torsional vibration, and cantilever beam. It can not only meet the theoretical teaching needs of civil engineering and mechanical majors, but also be used for practical training and scientific research. Through intuitive physics experiments, it helps students master core mechanical concepts such asharmonic motion, moment of inertia, and natural frequency.
Share:
Added to cart successfully
Experimental feature
1.Single pendulum and compound pendulum experiments: Measure the gravitational acceleration g, verify the relationship between the period and the length, mass, and amplitude of the pendulum, and explore the principle of the Kate pendulum
2.Rotational inertia and linear pendulum experiment: Using double line pendulum and three line pendulum to study the influence of object mass distribution on period and verify the parallel axis theorem
3.Impact center determination: Determine the special point (impact center) on the rigid body and analyze the relationship between the impact force and the rotational reaction force
4.Vibration system characteristic analysis: covering free vibration, free torsional vibration, and cantilever beam vibration of mass spring systems, used to determine the natural frequency, stiffness, and damping characteristics of the system
Product Attributes
|
Product Model |
MST18 |
Product Name |
Experimental apparatus for free vibration and swing testing |
|
Main Materials |
Aluminum alloy, stainless steel |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
≤30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
