Refrigeration, Air‑Conditioning & Heat Pump

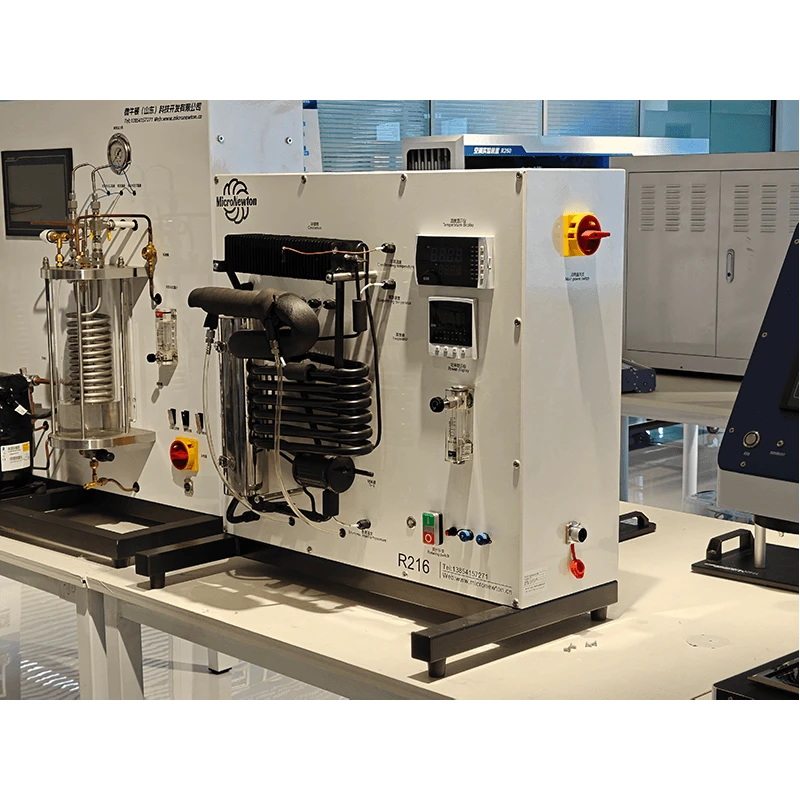

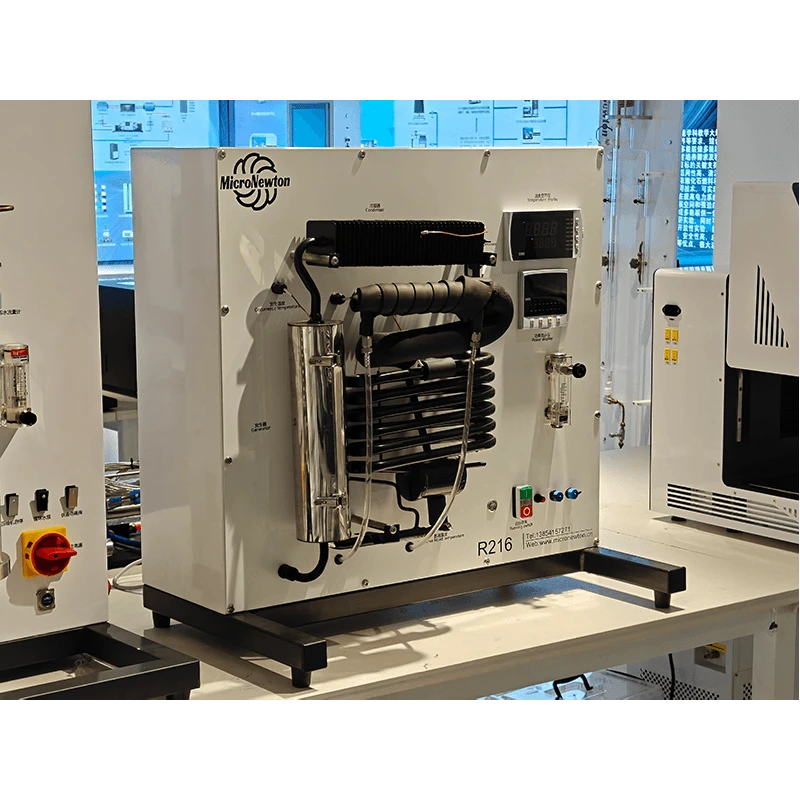

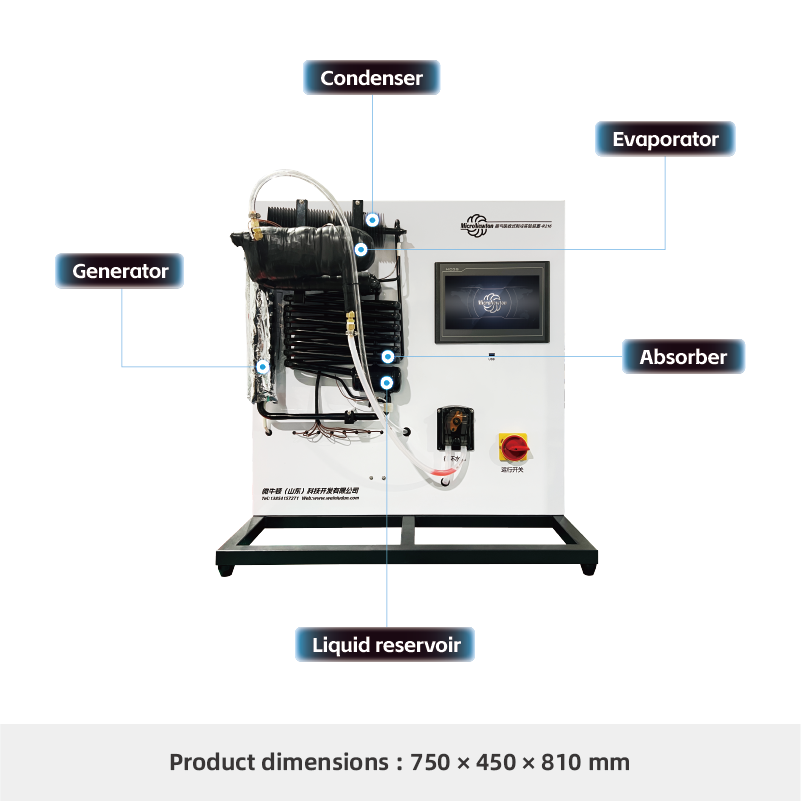

This unit is an experimental teaching device designed to demonstrate the operating process and fundamental principles of absorption refrigeration. During operation, the system consumes electrical power to drive phase changes of therefrigerant, transferring heat to achieve cooling.Its main components include evaporator, absorber, generator, and condenser.
Share:
Added to cart successfully
Experimental Functions
1.Demonstrate the principle of the vapor absorption refrigeration cycle.
2.Study the relationship between generation temperature in the generator and evaporation temperature in the evaporator.
3.Visually demonstrate key processes: absorption, generation, condensation, and evaporation.
4.Learn the calculation method for the efficiency of an absorption refrigeration system.
5.Support experimental research related to waste heat recovery.
Product Attributes
|
Product Model |
R216 |
Product Name |
Vapor Absorption Refrigeration System |
|
Main Materials |
Galvanized Sheet, Stainless Steel |
Dimensions |
750×450×810 mm |
|
Product Weight |
50kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V±5%, 50Hz/60Hz 110V±5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
