Refrigeration, Air‑Conditioning & Heat Pump

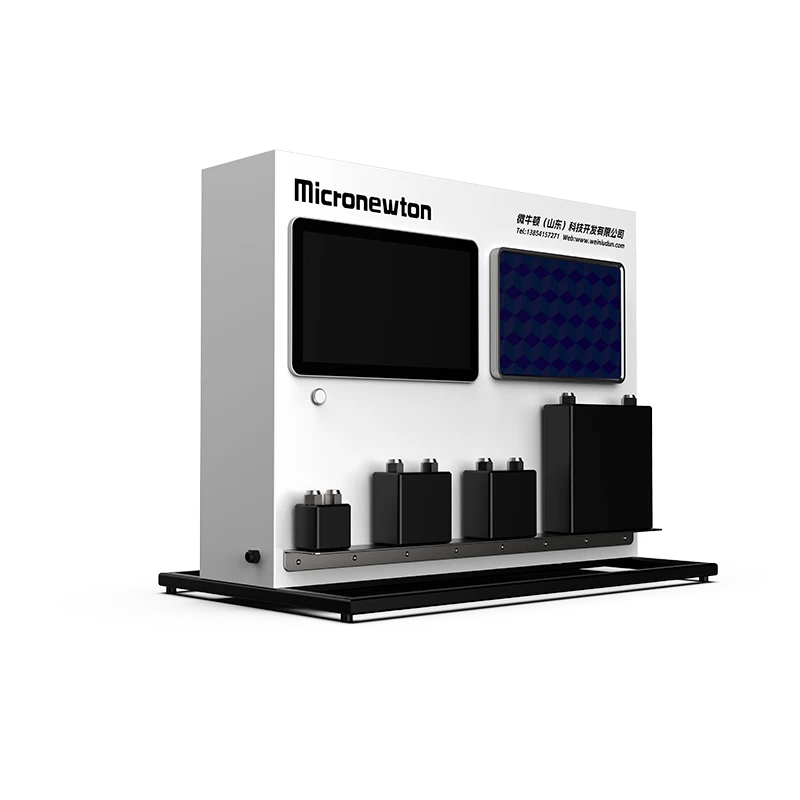

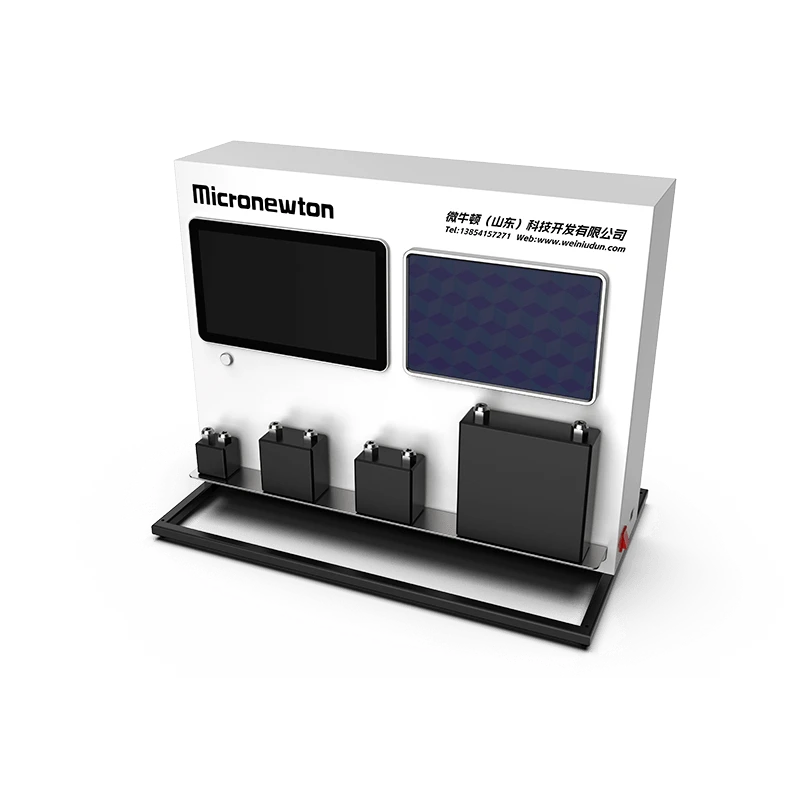

This unit is a thermoelectric cooling device based on the Peltier effect. Using semiconductor cooling materials, it integrates multiple operating modes including solar-driven thermoelectric cooling, DC-driven two-stage parallel connection, and multi-module parallel connection.
It can demonstrate thermoelectric cooling principles and support experimental research on semiconductor cooling plates under variable working conditions and different connection configurations. The unit is equipped with a touchscreen industrial controller that displays the system schematic, real-time temperature, pressure, power, and related characteristic curves.
Share:
Added to cart successfully
Experimental Functions
1.Demonstrate single-stage thermoelectric cooling and calculate the maximum temperature difference and maximum cooling capacity.
2.Demonstrate multi-stage thermoelectric cooling and calculate the maximum temperature difference.
3.Demonstrate solar-driven thermoelectric cooling and calculate the maximum temperature difference.
Product Attributes
|
Product Model |
R108 |
Product Name |
Thermoelectric Refrigeration Experimental Unit |
|
Main Materials |
Galvanized Sheet, Nylon, Red Copper, Brass |

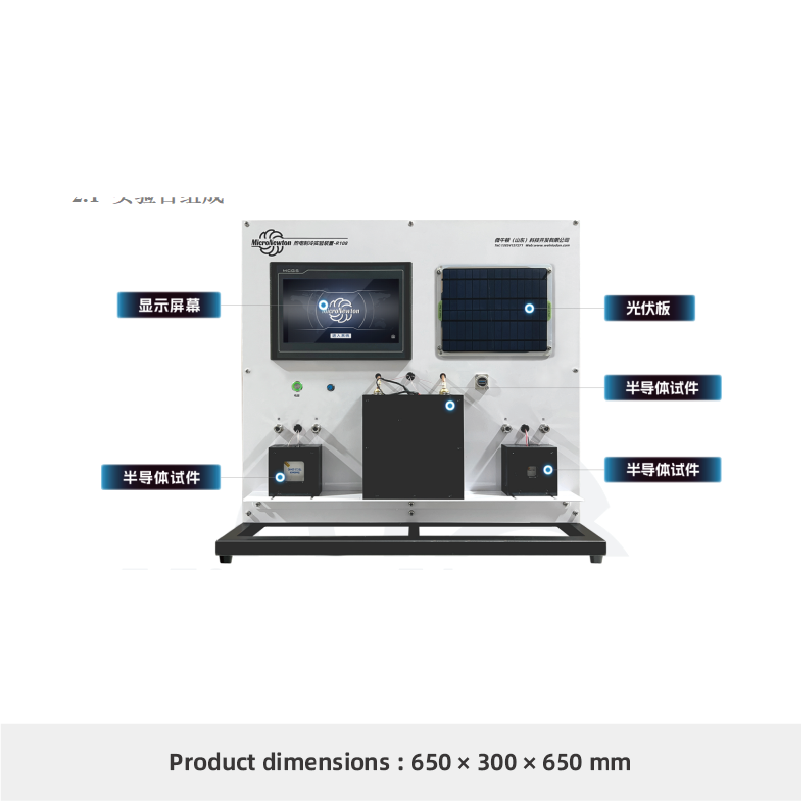

Dimensions |
650×300×640mm |
|
Product Weight |
180kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V±5%, 50Hz/60Hz 110V±5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
