Refrigeration, Air‑Conditioning & Heat Pump

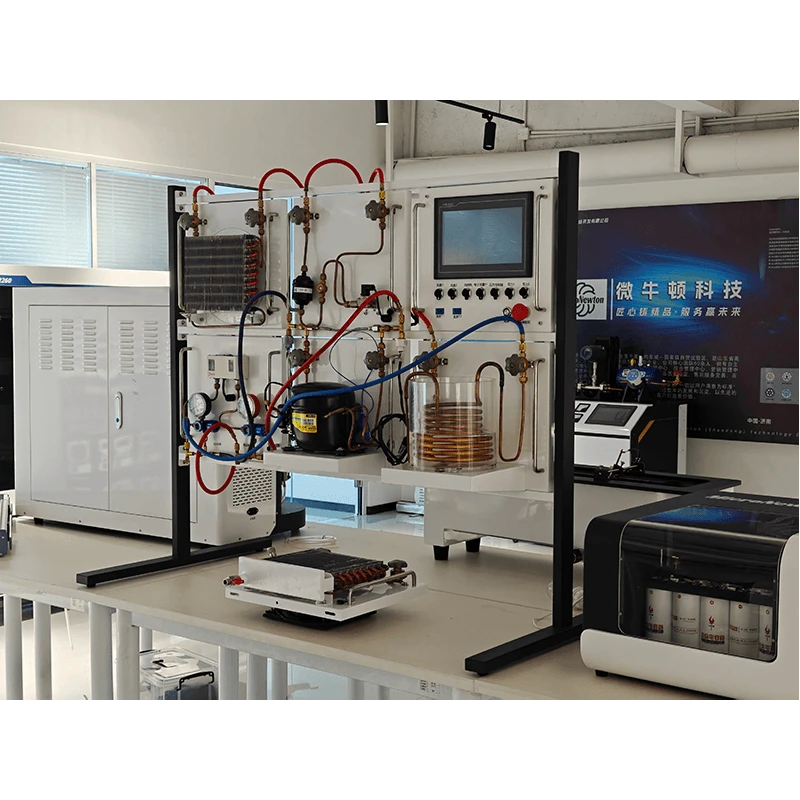

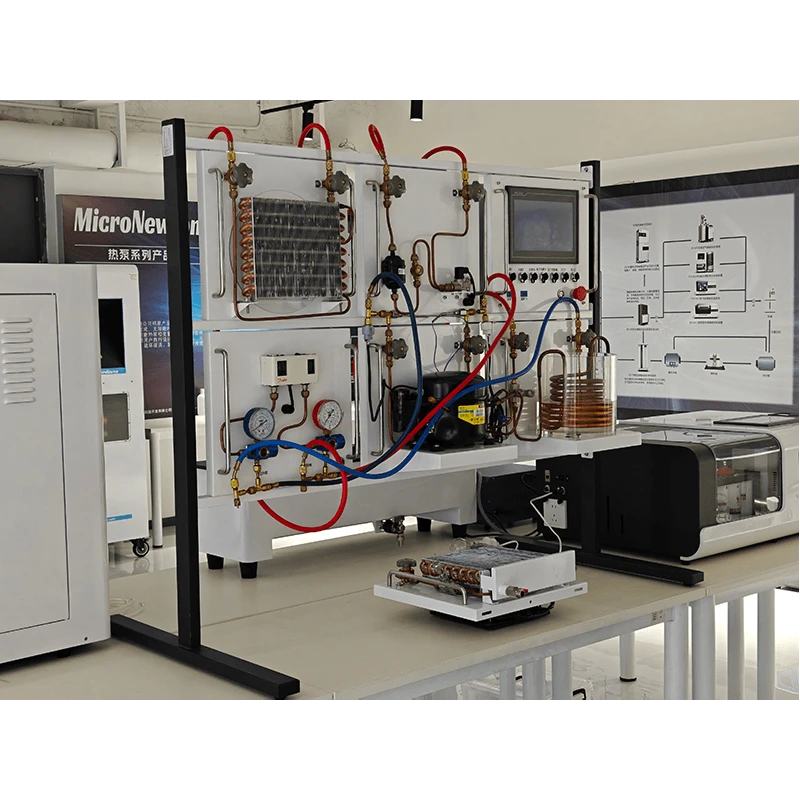

This unit is a modular basic refrigeration training system designed for refrigeration and air‑conditioning programs. Built around industry practices for HVAC system installation, commissioning, and maintenance, it develops students’ practical skills in piping, electrical wiring, pressure testing, leak detection, evacuation, refrigerant charging, and system operation.

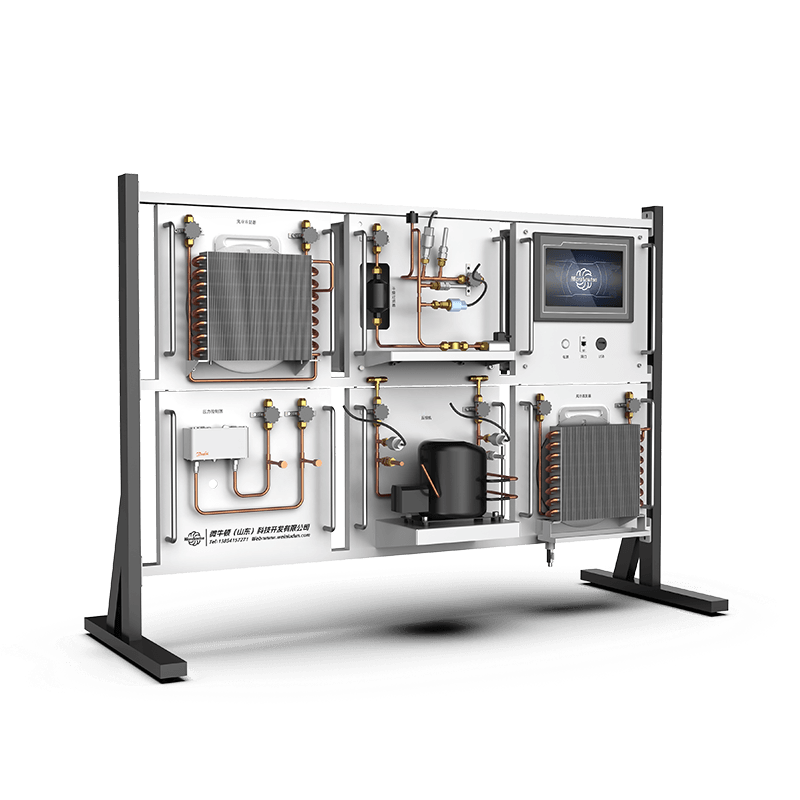

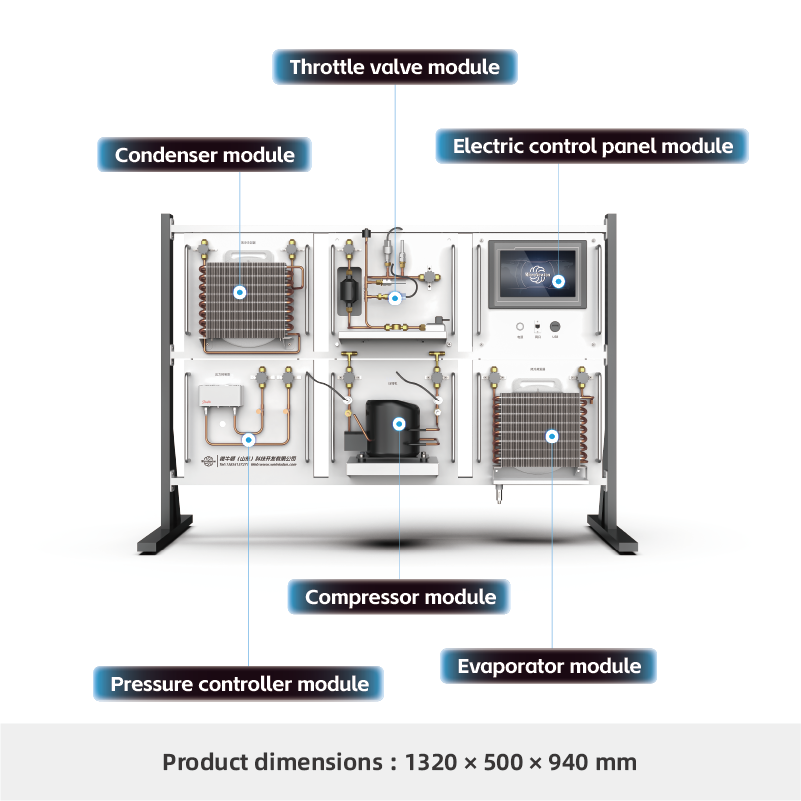

The system comprises 7 modular components: compressor module, condenser module, two evaporator modules, pressure controller module, throttle valve module, and electric control panel module. It is equipped with a touchscreen industrial controller that displays the system schematic, real‑time temperature, pressure, power, and related characteristic curves.
Share:
Added to cart successfully
Experimental Functions
1.Demonstrate the operating principle of a vapor‑compression refrigeration system.
2.Conduct hands‑on training in refrigeration piping, wiring, pressure testing, leak detection, vacuum pumping, refrigerant charging, and system commissioning.
3.Facilitate understanding and plotting of the refrigerant p‑h diagram for real vapor‑compression cycles.
4.Visually demonstrate key processes: compressor discharge, refrigerant condensation, throttling, evaporator evaporation, and compressor suction.
5.Simulate refrigeration system fault alarms and troubleshooting training.
Product Attributes
|
Product Model |
R105 |
Product Name |
Modular Basic Refrigeration Training System |
|
Main Materials |
Galvanized Sheet, Acrylic, Copper |
Dimensions |
1300×700×1600mm |
|
Product Weight |
70kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V±5%, 50Hz/60Hz 110V±5%, 50Hz/60Hz | ||
|
Required Modules |
1 Vacuum Pump, 1 Set of Refrigerant Charging Gauge, 1 Set of Refrigeration Maintenance Tools (Bender, Pipe Cutter, Flaring Tool) |
Optional Modules |
None |
