Refrigeration, Air‑Conditioning & Heat Pump
This test bench can perform air heating, humidification, cooling and dehumidification, and can measure, display, control and regulate air temperature and humidity. It provides intuitive teaching conditions for students to observe and study various heat and humidity effects in air conditioning by simulating an air conditioning system.
The test bench includes:Experimental Functions

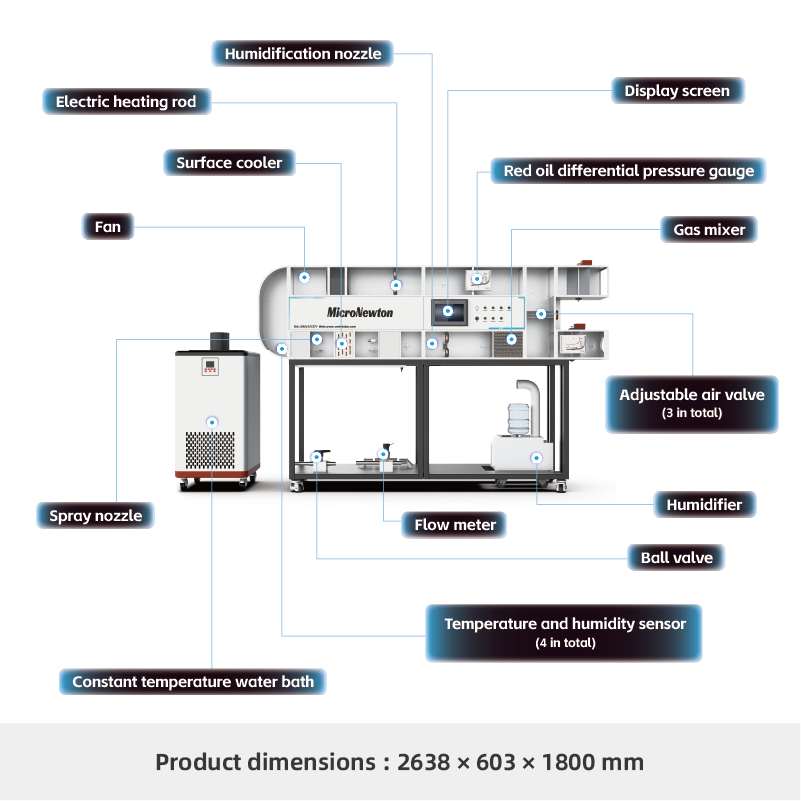

The test bench consists of four systems: constant temperature water system, humidification system, air system, and electrical measurement system.
Share:
Added to cart successfully
Experimental Functions
1.Master the Merkel equation for heat and mass transfer processes.
2.Measure heat transfer rate, heat exchange efficiency and contact coefficient.
Product Attributes
|
Product Model |
R262 |
Product Name |

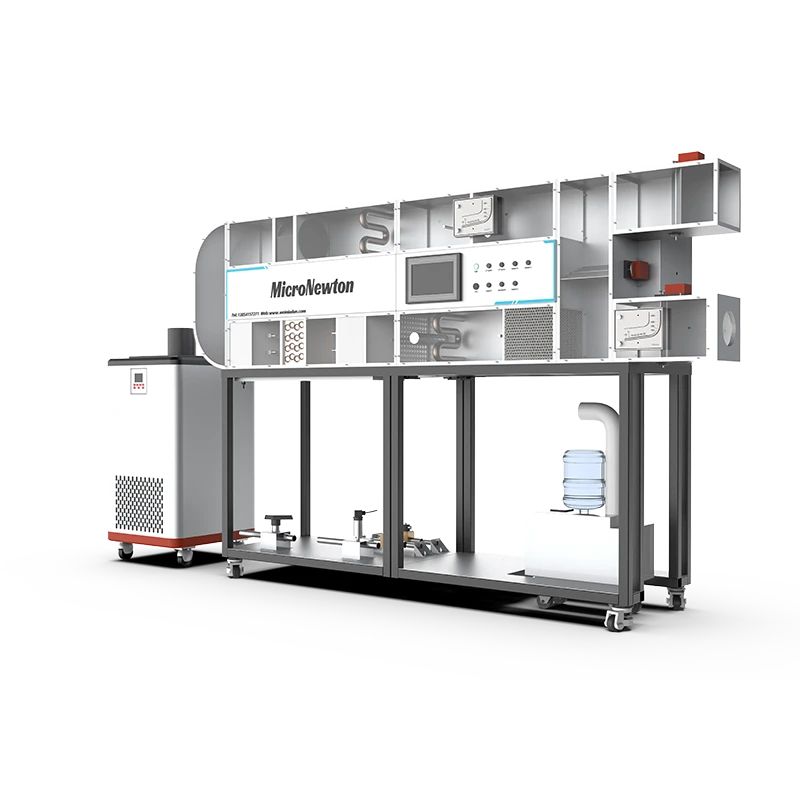

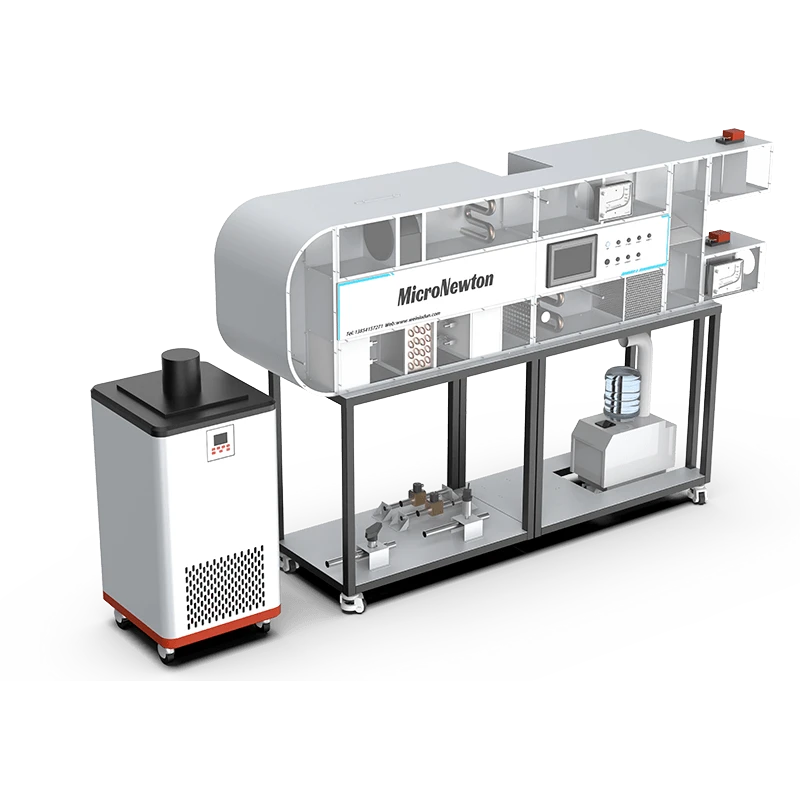

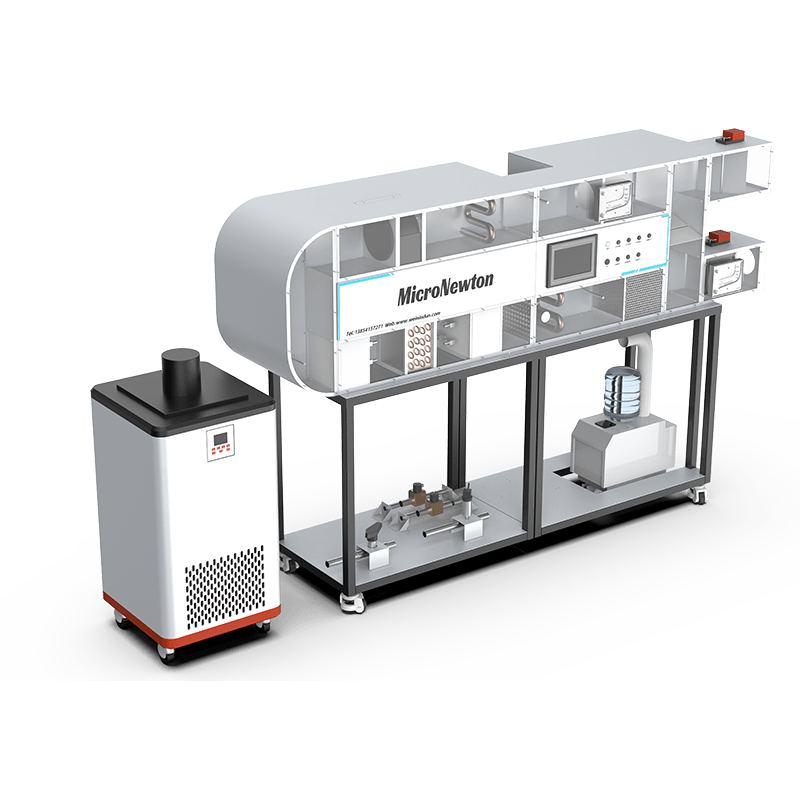

Innovative Heat and Mass Exchanger Performance Testing System |
|
Main Materials |
Galvanized Sheet, Acrylic |
Dimensions |
2750×600×1750mm |
|
Product Weight |
200kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V±5%, 50Hz/60Hz 110V±5%, 50Hz/60Hz | ||
|
Required Modules |
Constant Temperature Water Bath |
Optional Modules |
None |
