Refrigeration, Air‑Conditioning & Heat Pump
This unit is experimental equipment developed for HVAC air-conditioning teaching, used to study the working process and operating principles of air conditioning systems. It can perform air heating, cooling, humidification, and dehumidification.

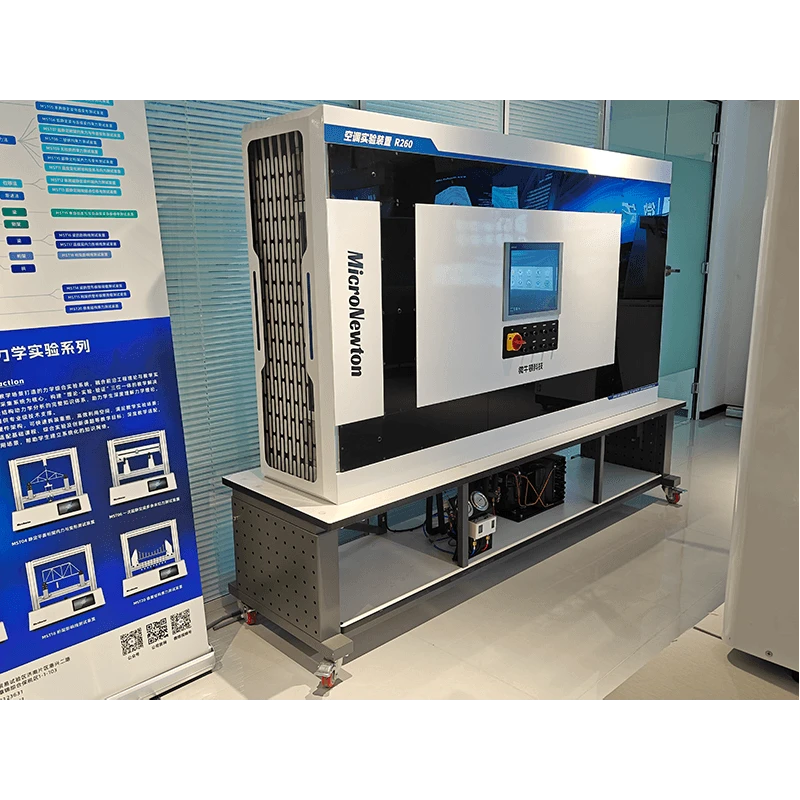

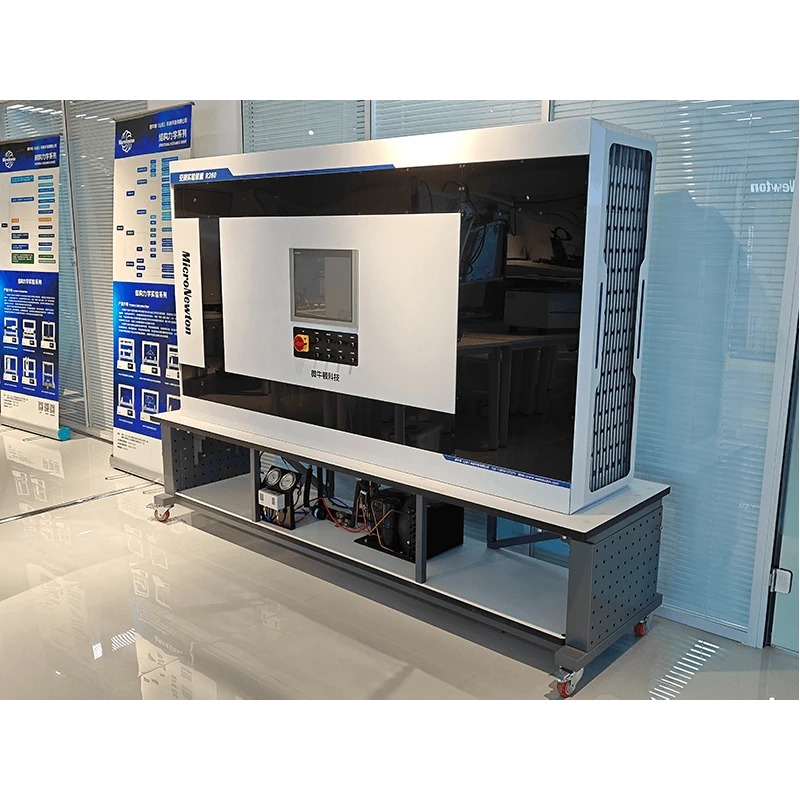

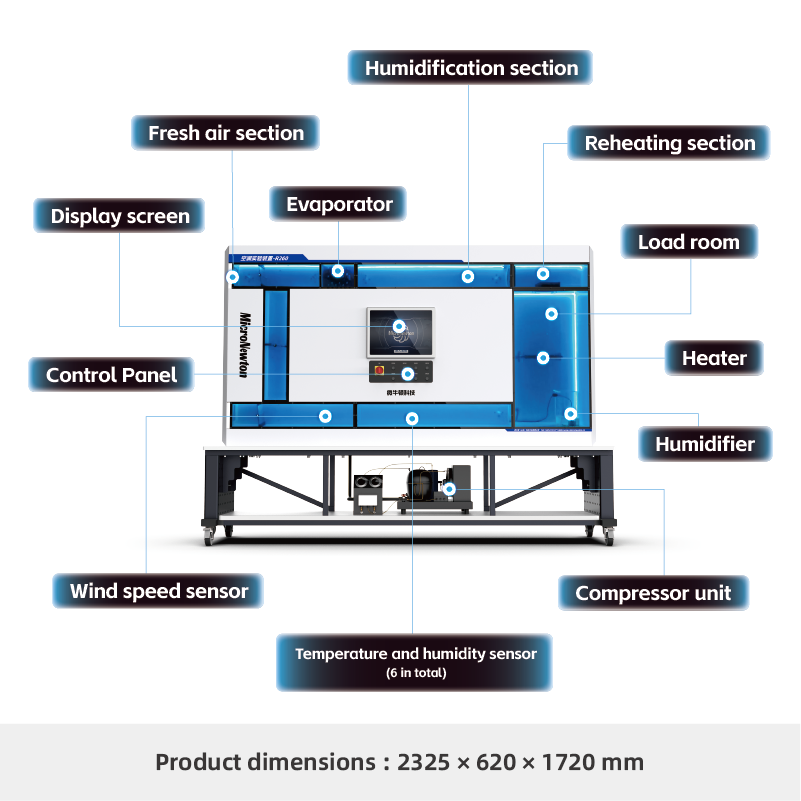

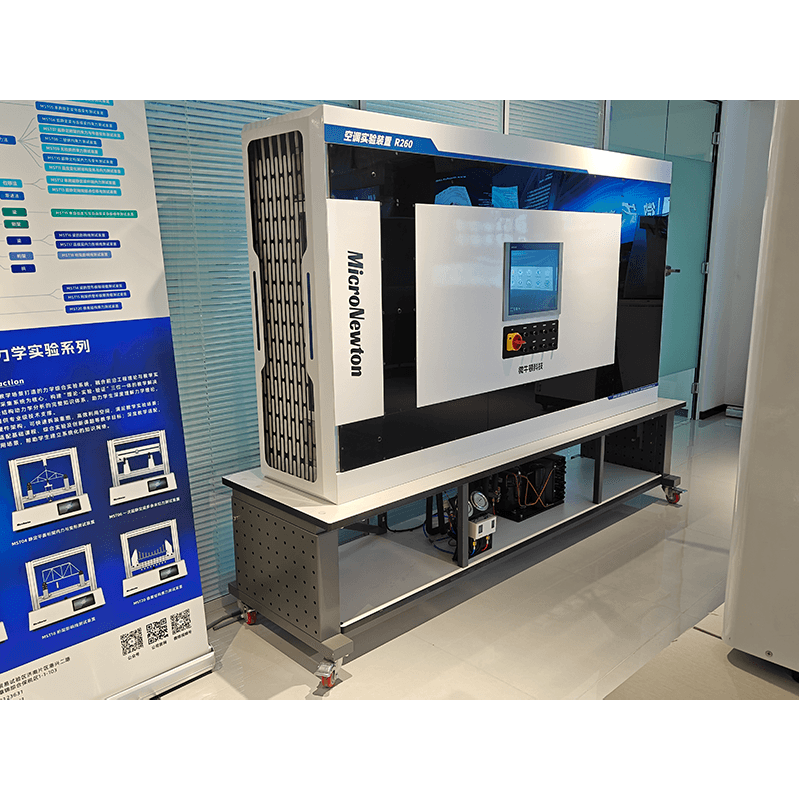

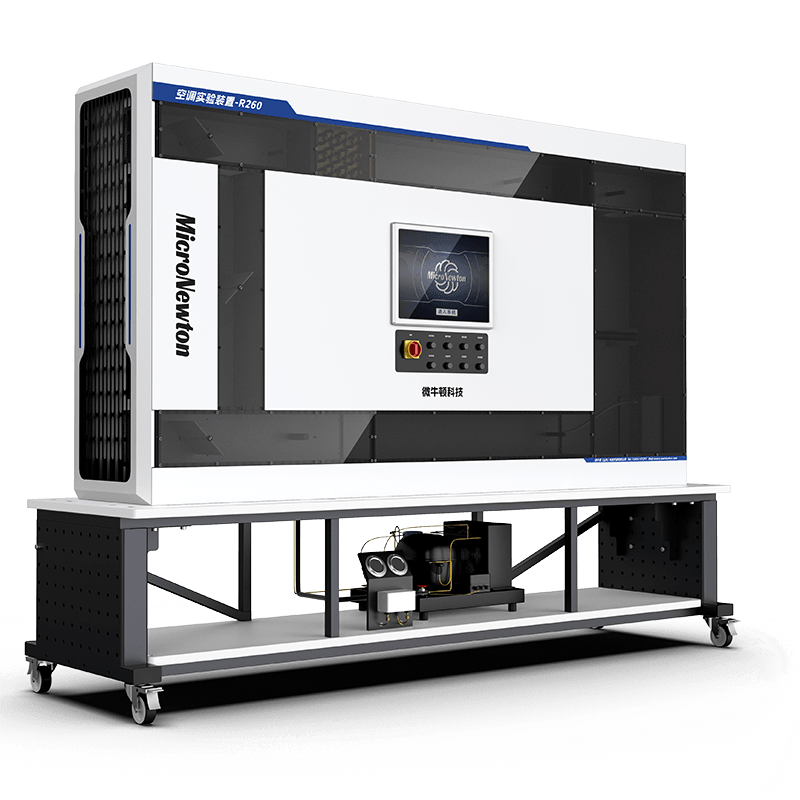

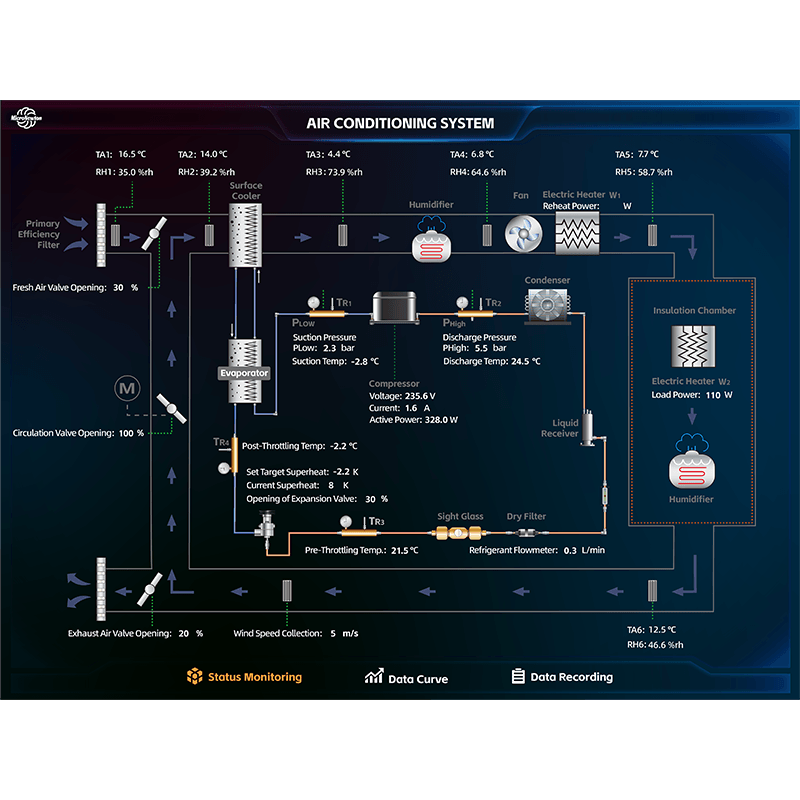

The system includes: touch screen, primary filter, variable-speed fan, square duct, evaporator, humidifier, reheater, temperature & humidity sensor, air damper, anemometer, etc. The touch screen displays real-time experimental data and curves, including air temperature/humidity, heating power, air pressure, refrigerant pressure & flow rate, compressor voltage & current, fan voltage, and more.
Share:
Added to cart successfully
Experimental Functions
1.Demonstrate air heating, cooling, humidification, dehumidification, recirculation, and mixing processes.
2.Study humidification/dehumidification and calculate the steam output of the humidifier.
3.Verify the energy balance of air conditioning processes.
4.Analyze the reheat effect in air conditioning systems.
5.Master air volume measurement methods and practice airflow calculation.
6.Study humidification, dehumidification, and enthalpy change laws in recirculation.
7.Verify air dry-bulb and wet-bulb humidity, and draw air treatment process diagrams.
8.Proficiently use and plot the enthalpy-humidity (psychrometric) chart.
9.Calculate compressor power consumption and refrigeration efficiency.
Product Attributes
|
Product Model |
R260 |
Product Name |
Air Conditioning Experimental Unit |
|
Main Materials |
Galvanized Sheet, Aluminum Alloy 6061 |
Dimensions |
2218×550×1750 mm |
|
Product Weight |
150kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V±5%, 50Hz/60Hz 110V±5%, 50Hz/60Hz | ||
|
Required Modules |
Load Box Humidification Tank and Cover Plate |
Optional Modules |
None |
