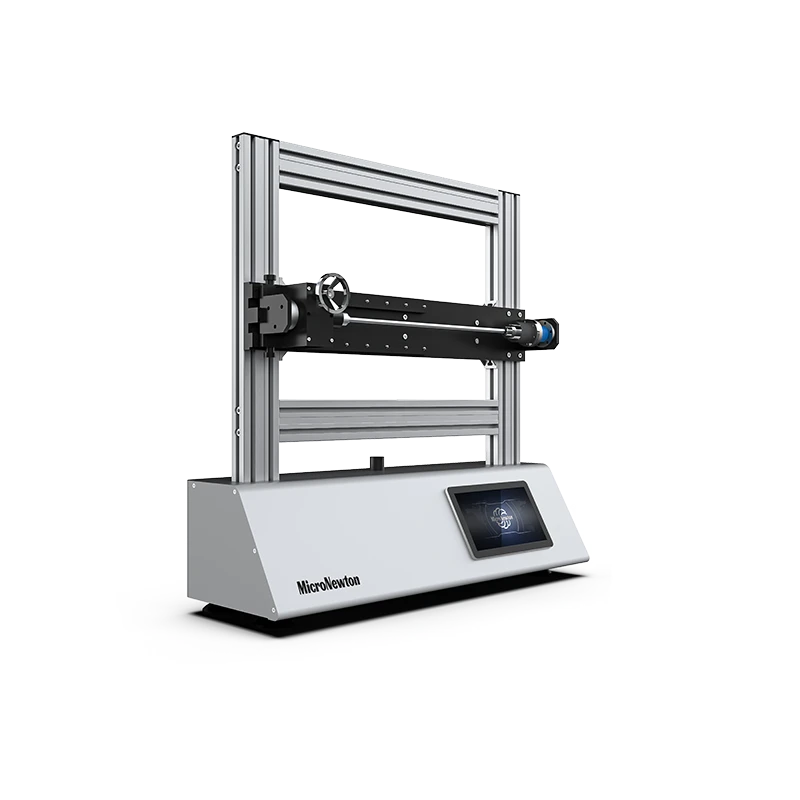

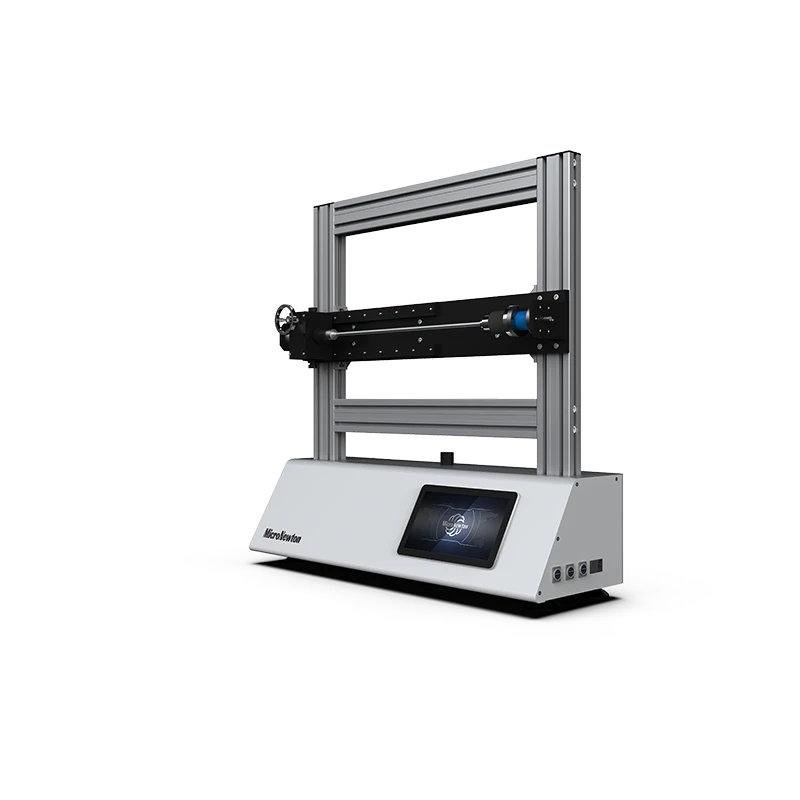

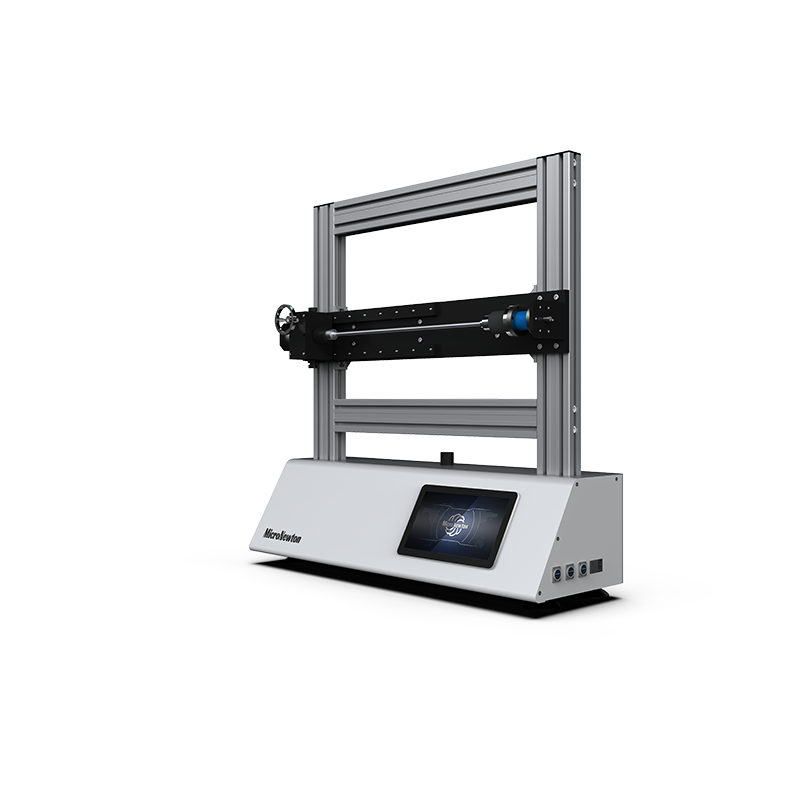

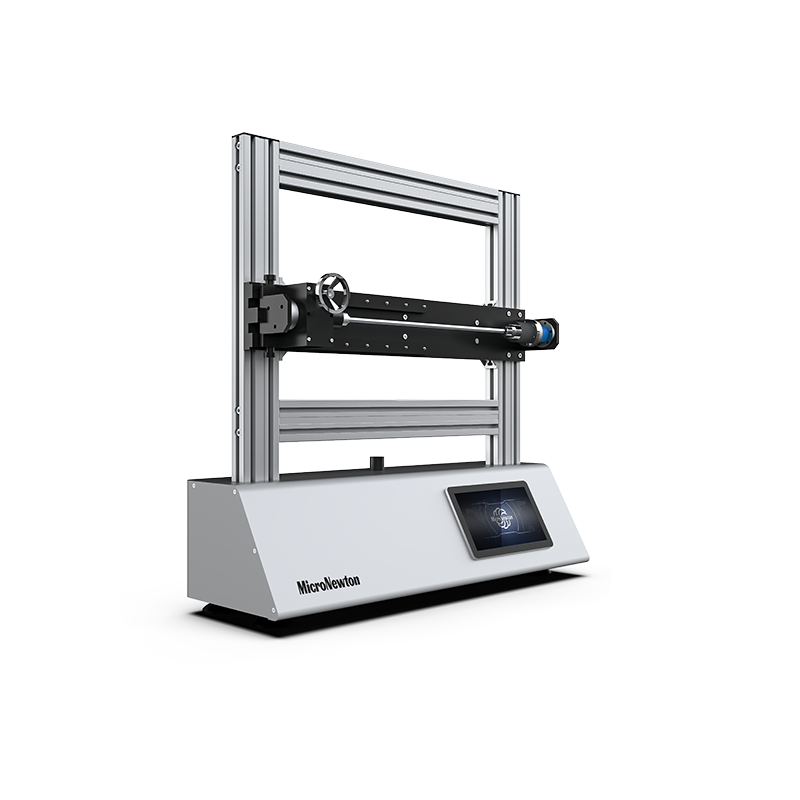

The MS03 torsional rod internal force and deformation testing experimental device is a specialized experimental equipment used in material mechanics experiments to study the stress distribution and deformation laws of circular and non-circular cross-section rods under torsional loads.
The core of this device lies in intuitively verifying the applicability of the shear Hooke's law and plane assumption through high-precision torque measurement and multi-point strain/angle observation, and profoundly revealing the huge differenceintorsionalperformancebetweenopenthin-walledmembersandclosedthinwalledmembers.Itisakeyteachingtoolforunderstandingthedesignofmechanicaltransmissionshaftsandthetorsionalstiffnessofthinwalledstructuressuch as aircraft fuselage and automotive beams.
Share:
Added to cart successfully
Experimental feature
1.Determining the shear modulus of elasticity of materials: calculating the shear modulus of elasticity of materials by applying torque and measuring the torsion angle
2.Verification of Shear Hooke's Law: Using the Relationship between Shear Stress and Shear Strain to Verify the Linear Relationship of Shear Hooke's Law in the Elastic Range
3.Validate the theory of circular axis torsion (plane assumption): Observe the deformation of the longitudinal and circumferential lines on the surface of the circular axis, and verify the assumption that the cross-section remains flat and the radius remains straight
4.Research on the torsional characteristics of non-circular cross-section (warping phenomenon): Comparing the torsional behavior of rectangular cross-section rods and observing the phenomenon of cross-section warping
5.Comparative experiment between open and closed thin-walled members (core highlight): Compare the torsional stiffness of open and closed pipes with the same size and wall thickness
Product Attributes
|
Product Model |
MS03 |
Product Name |
Experimental device for testing torsional internal force and deformation of members |
|
Main Materials |
aluminium pom |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
