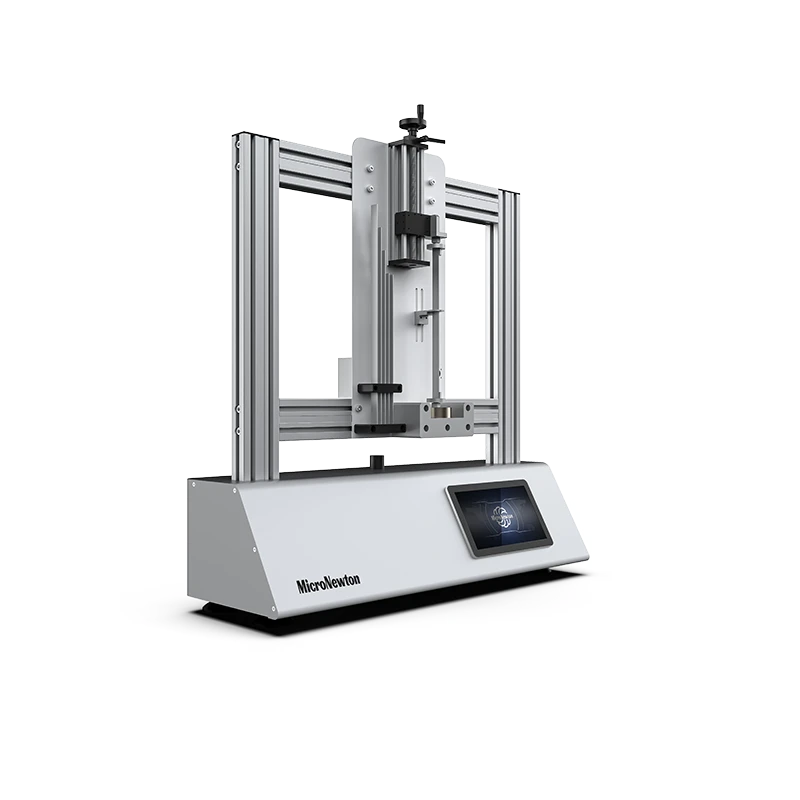

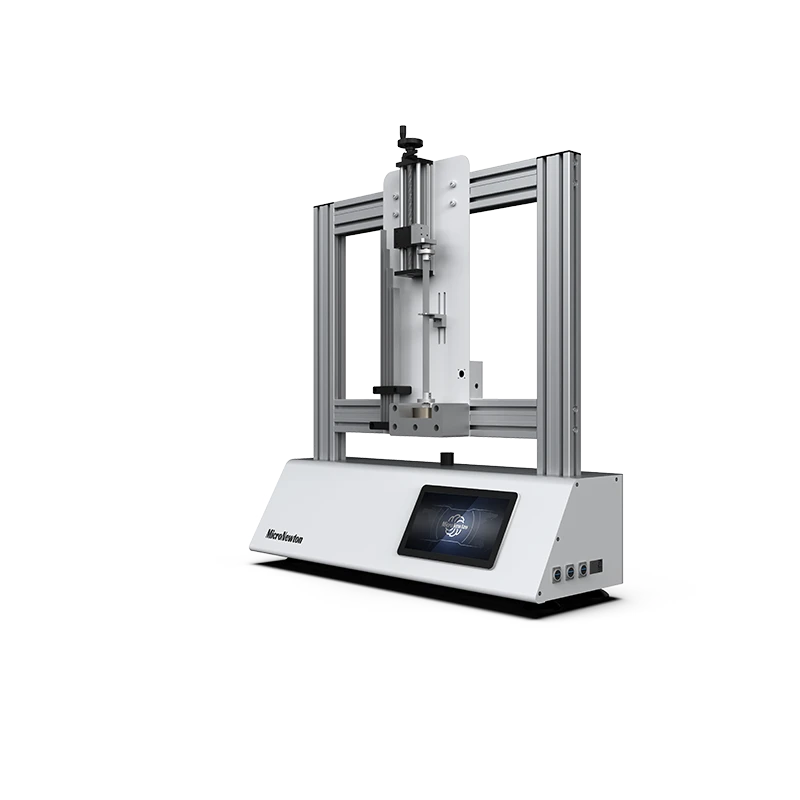

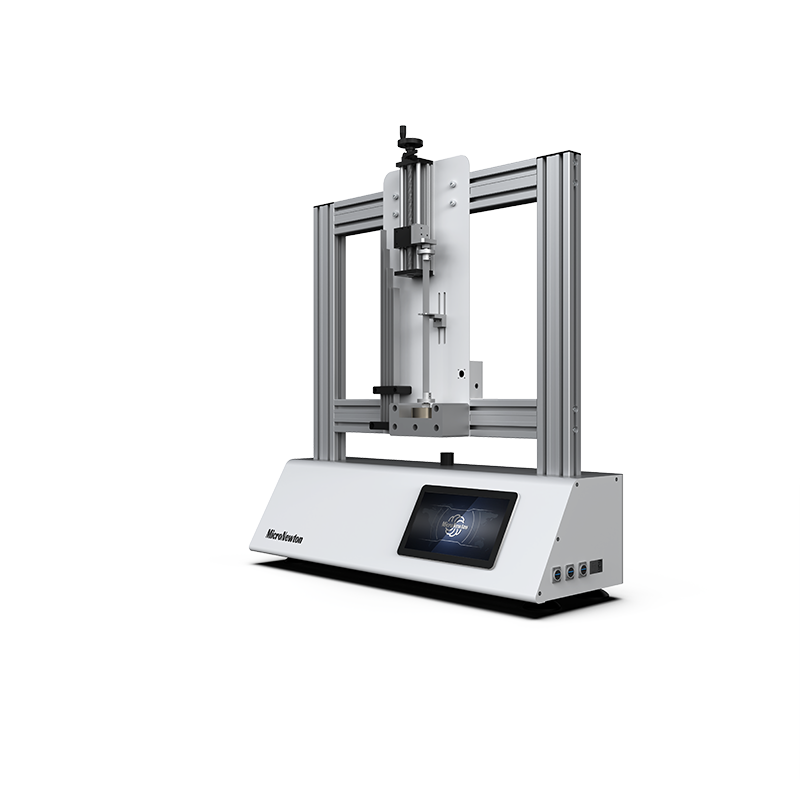

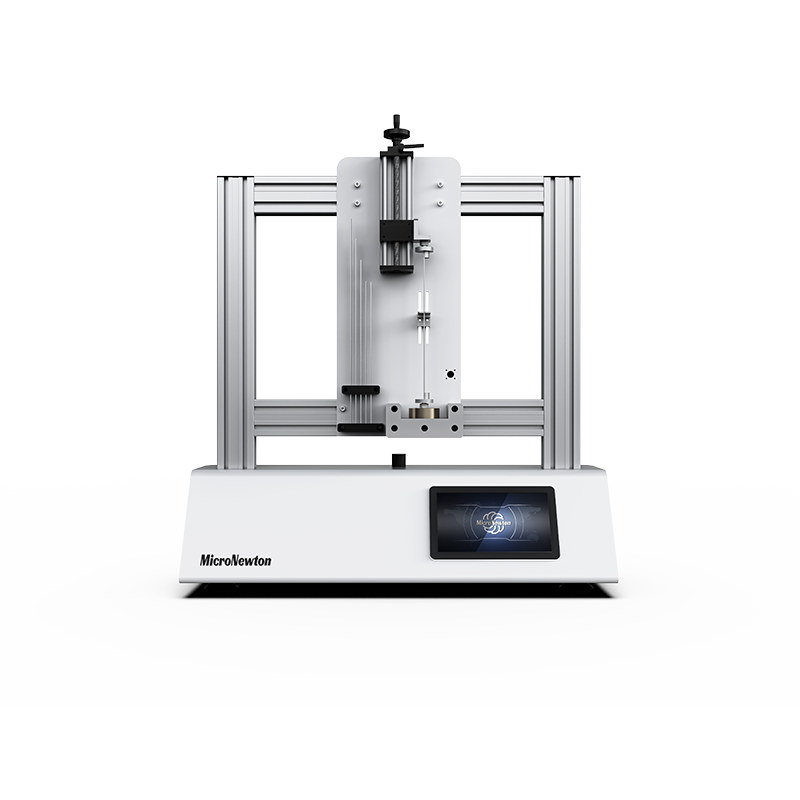

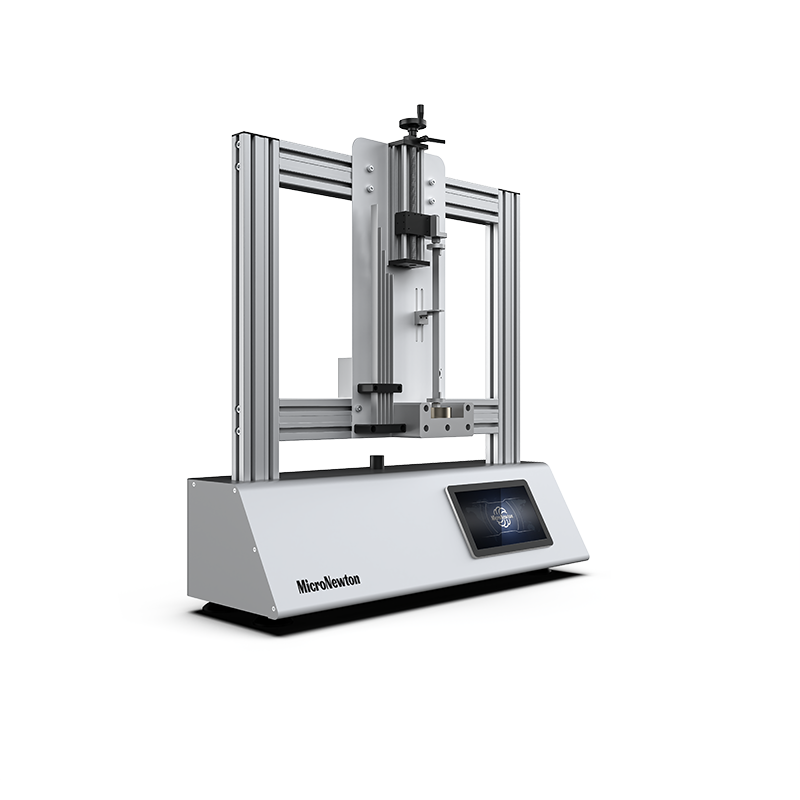

The MS10 compression bar stability critical force and stress testing experimental device is the core equipment used in material mechanics experiments to study the stability of slender compression bars.
This device focuses on whether the slender compression bar experiences sudden lateral instability (stability issue) when the stress is far below the material yield limit. It is a specialized instrument for verifying the Euler formula, studying the influence of boundary conditions on critical forces, and observing post buckling behavior.
Share:
Added to cart successfully
Experimental feature
1.Determination of critical load
2.Validate Euler's formula: Simulate four classical boundary conditions by adjusting the support
3.Observation of buckling behavior after large deflection
4.Stress distribution test (high-end version function)
Product Attributes
|
Product Model |
MS10 |
Product Name |
Experimental device for testing the critical force and stress of pressure bar stability |
|
Main Materials |
aluminium |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
5kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
