Mechanics of Materials

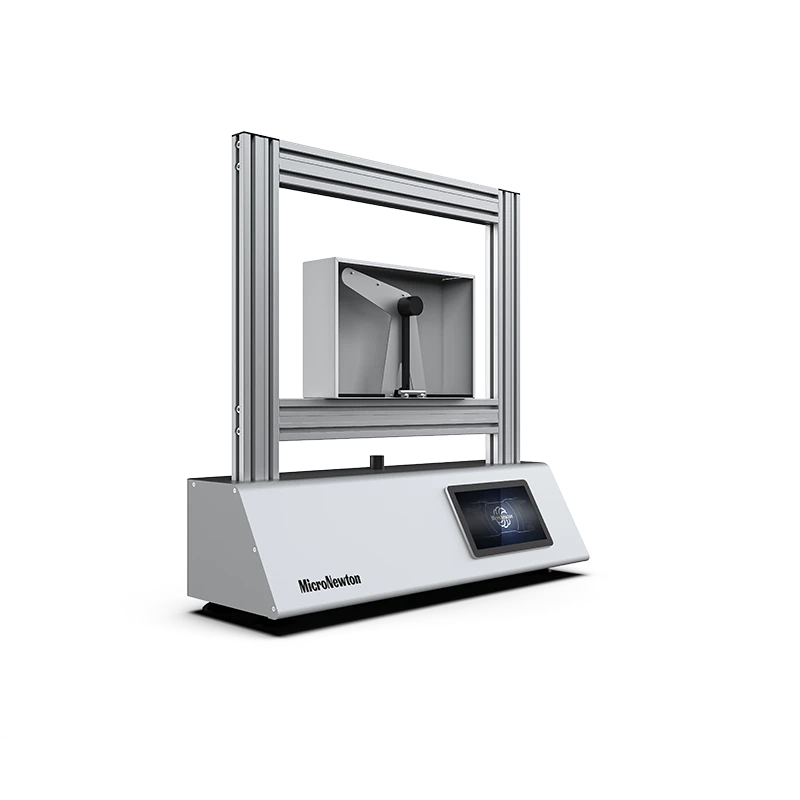

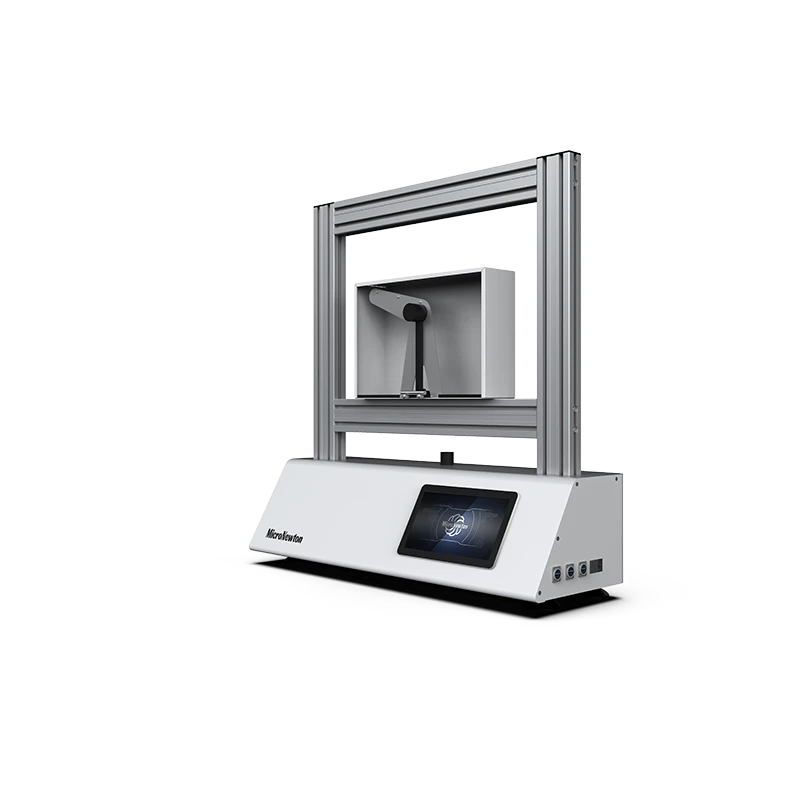

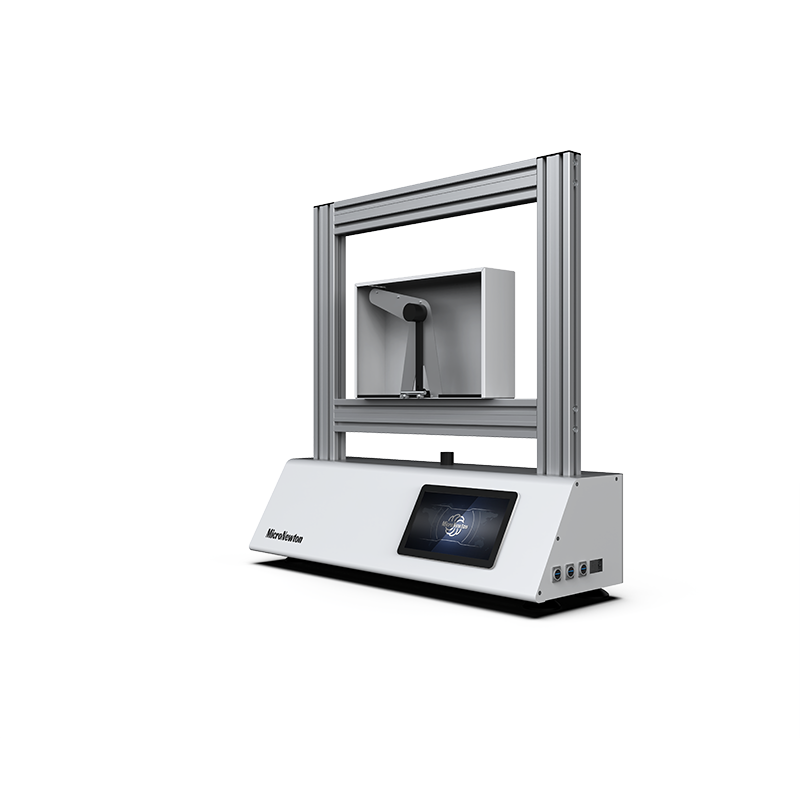

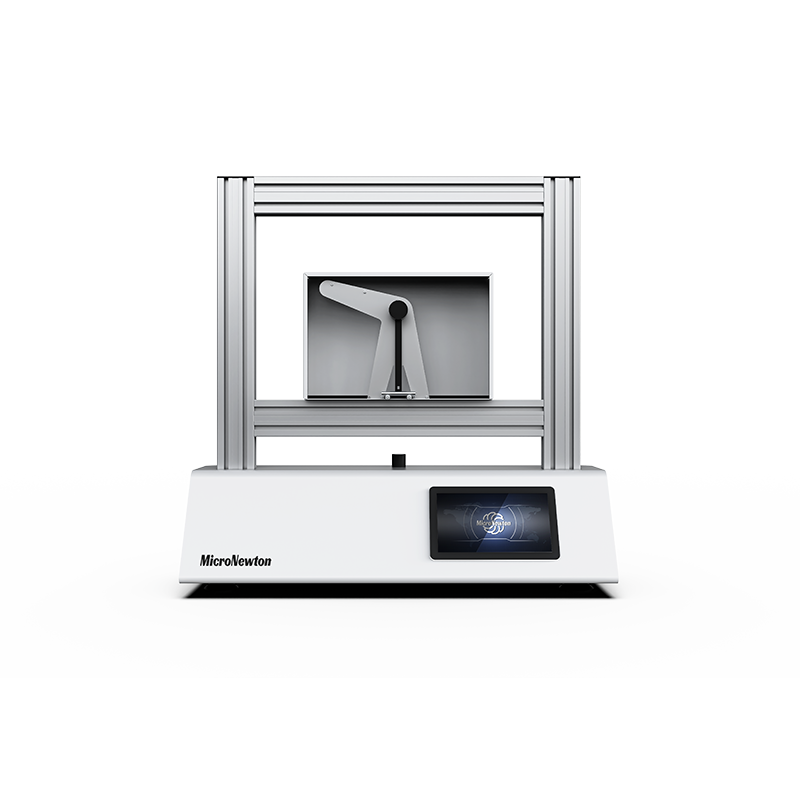

The MS11 impact dynamic load factor testing experimental device is a core equipment specifically used in material mechanics experiments to study dynamic load effects and verify the application of energy methods in impact problems.
Unlike previous static load experiments, MS11 focuses on the inertial effects generated by the structure when the load changes rapidly over time. The core objective is to determine the dynamic load factor, which is the ratio of the maximumresponse(stressordeformation)underimpactloadtothecorrespondingresponseunder static load, and to verify the theoretical formula δd=Kd ⋅ δ ST.
Share:
Added to cart successfully
Experimental feature
1.Determination of dynamic load factor
2.Study on the influence of impact height on dynamic response
3.Research on the Impact of Impact Mass
4.The influence of different boundary conditions and stiffness
5.The impact of the location of the impact point
6.Energy conservation and loss analysis
Product Attributes
|
Product Model |
MS11 |
Product Name |
Experimental device for testing impact dynamic load factor |
|
Main Materials |
aluminium pom | Dimensions | ≤1000×400×1000mm |
|
Product Weight |
30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
