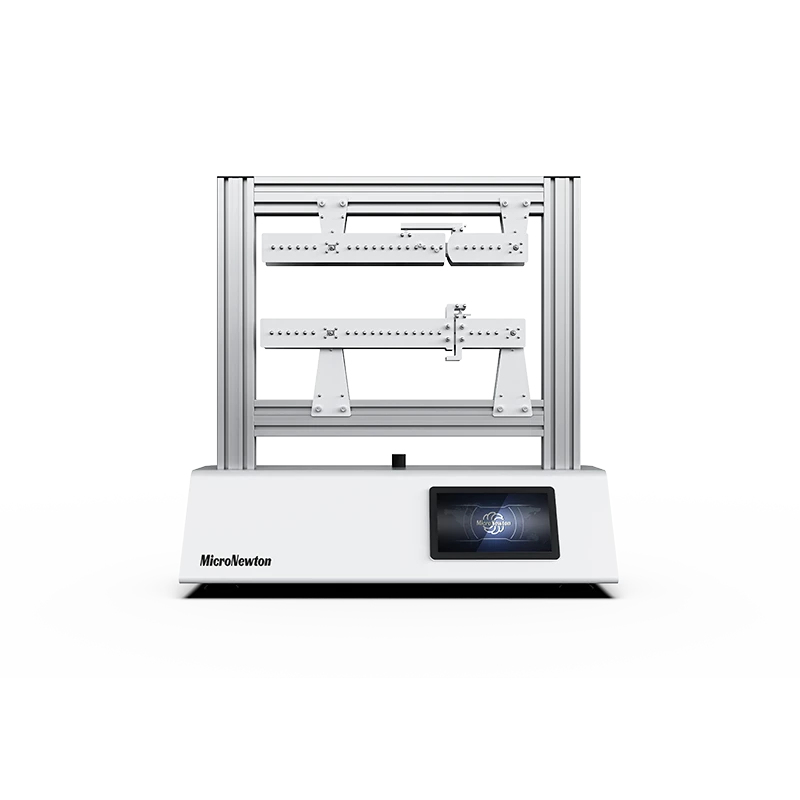

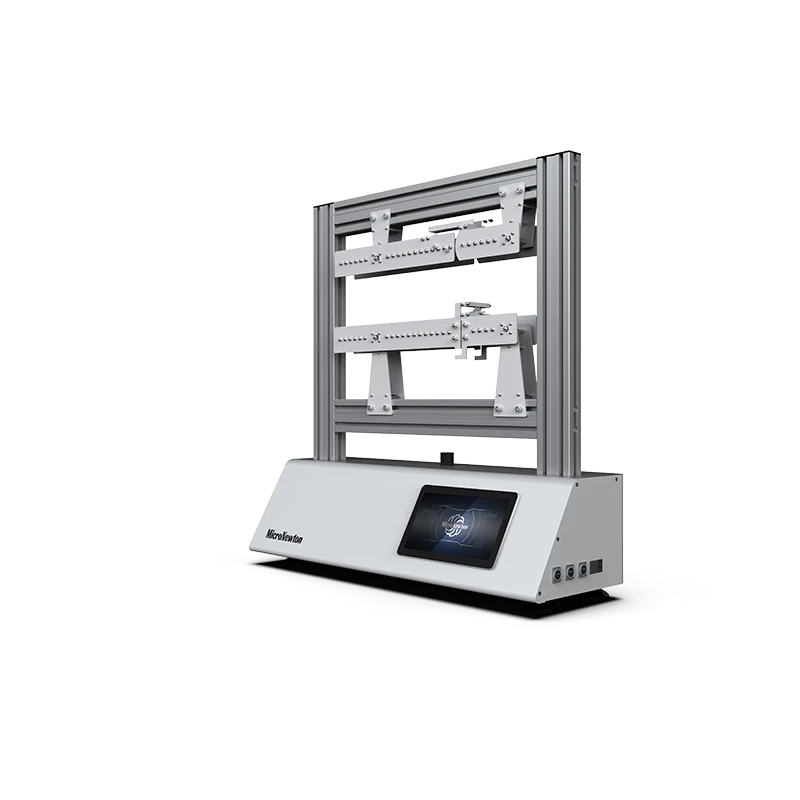

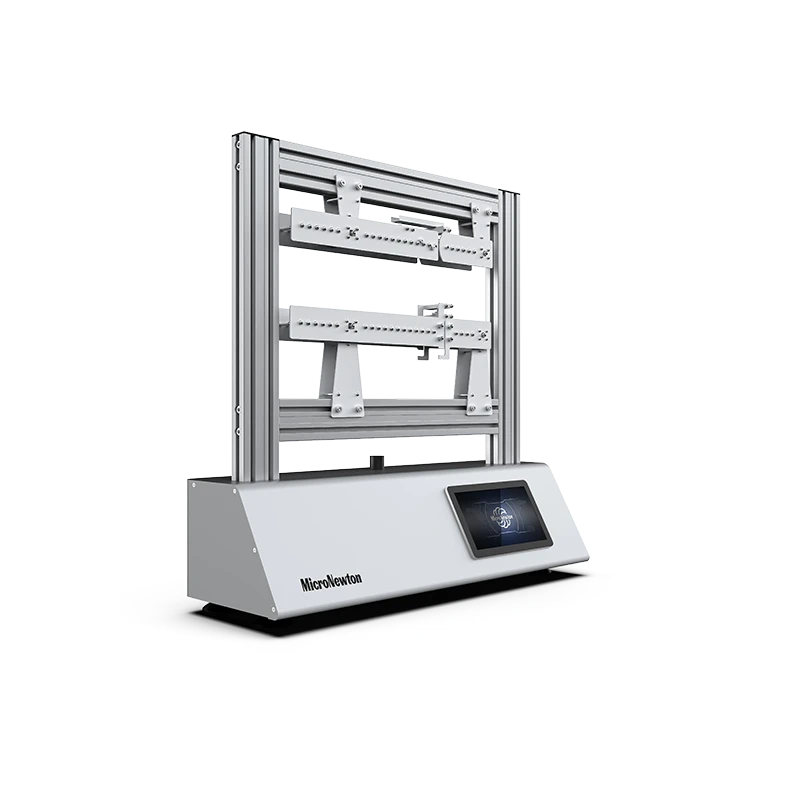

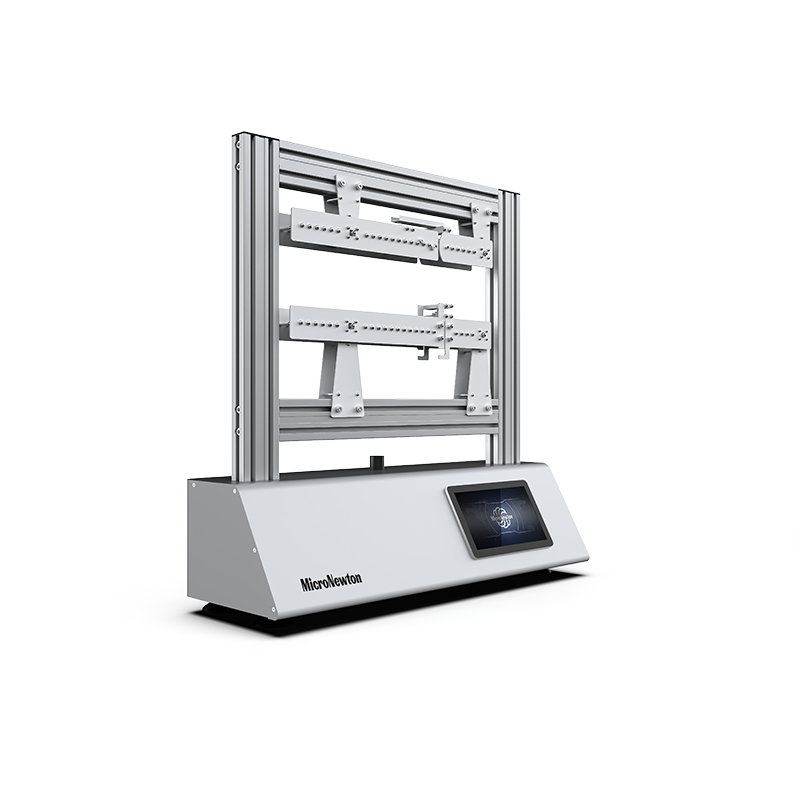

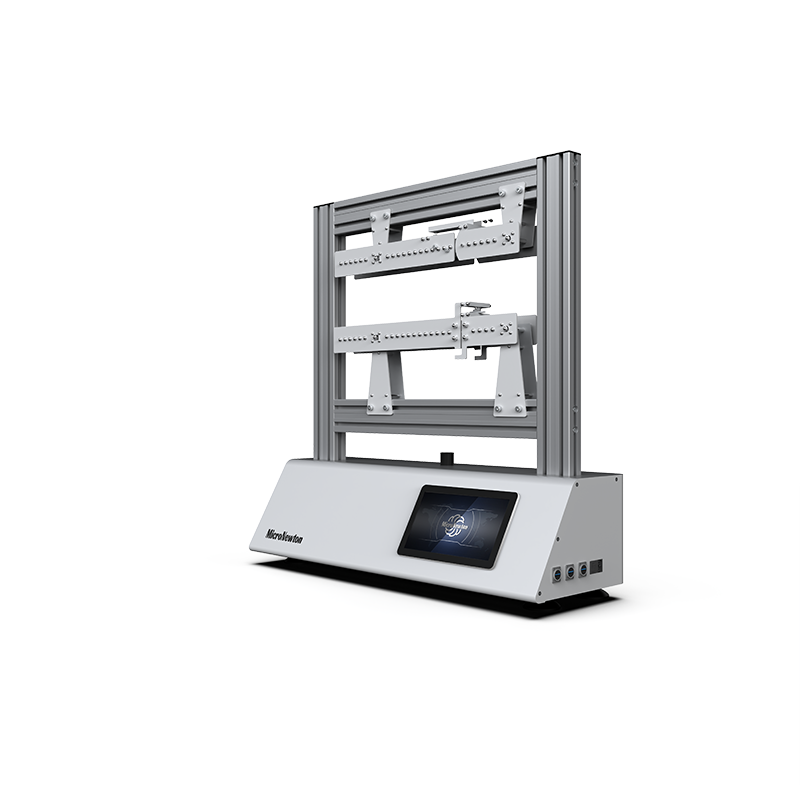

The MS04 single span static beam bending moment and shear testing experimental device is a specialized teaching instrument used in structural mechanics and material mechanics experiments to quantitatively measure the bending moment and shear force of a specific section of a beam under static or moving loads.
The device adopts a more advanced "cut-off" sensor design, which can directly read the internal force values instead of indirectly calculating through strain gauges. It is the core equipment for verifying cross-sectional methods, drawing Influence Lines, and understanding the most unfavorable position of moving loads. The high-end version integrates a forcesensoratthesupport, which can synchronously measure the support reaction force and verify the overallbalance equation
Share:
Added to cart successfully
Experimental feature
1.Measurement of specified section bending moment and shear force under different sizes, positions, and types of loads
2.Influence line experiment (core teaching focus): Scan the entire length of the beam by moving a concentrated load, and record the changes in internal forces of the specified section with the load position
3.Multiple load conditions: single concentrated load: simulating vehicle wheel pressure; Multiple concentrated loads: simulate fleet or multi axle loads to verify the superposition principle; Uniformly distributed load simulation: Simulate distributed forces through dense loading or multiple loading points to verify differential relationships
Product Attributes
|
Product Model |
MS04 |
Product Name |
Experimental device for testing bending moment andshear force of single span static beam |
|
Main Materials |
Aluminum, carbon steel |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
30kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
Single phase three wire, 220V ± 5%, 50Hz/60Hz | ||
|
Required Modules |
None |
Optional Modules |
None |
