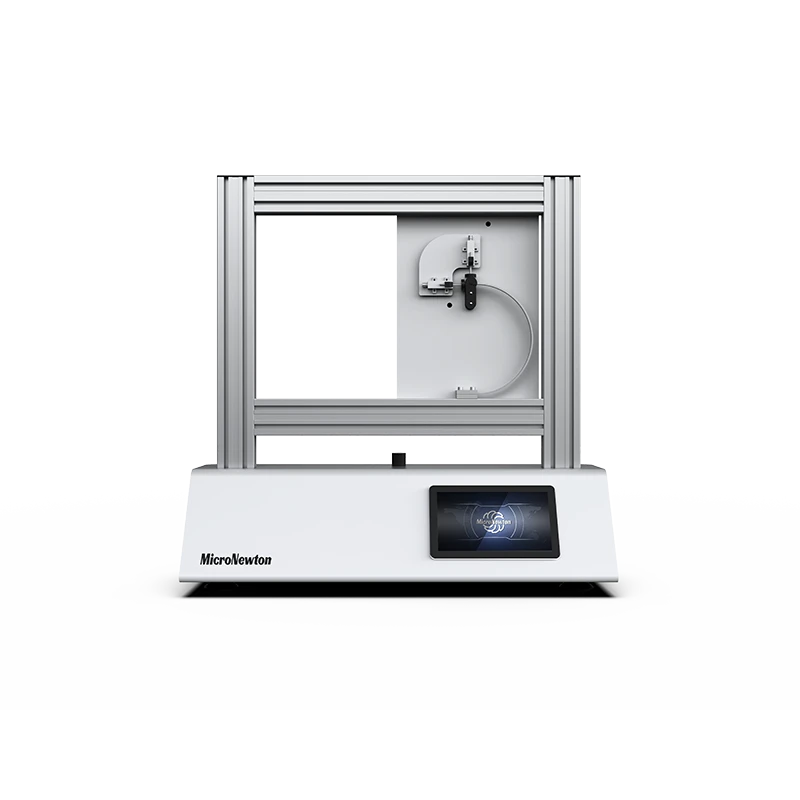

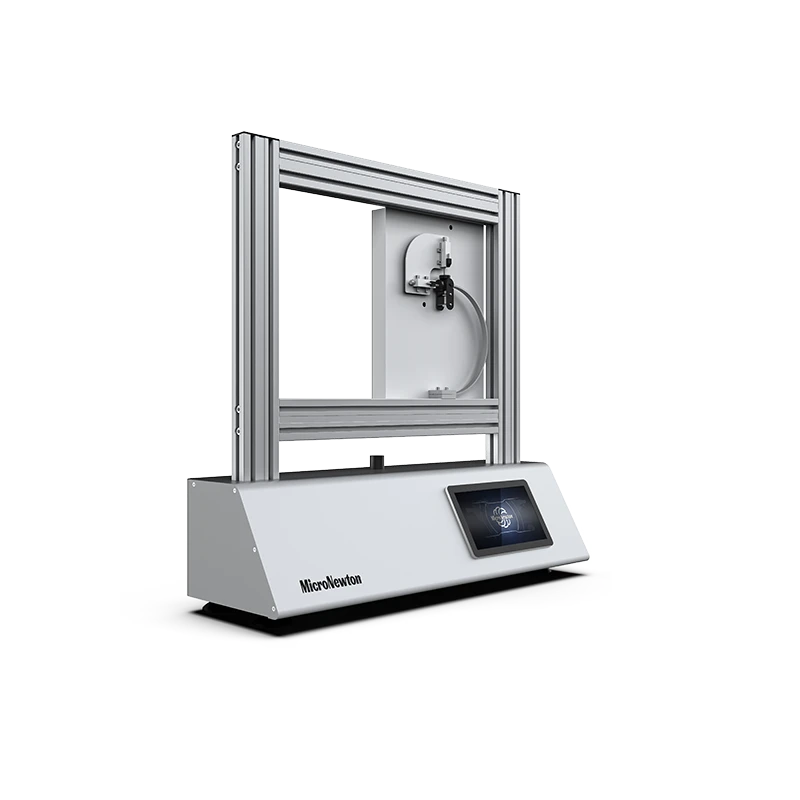

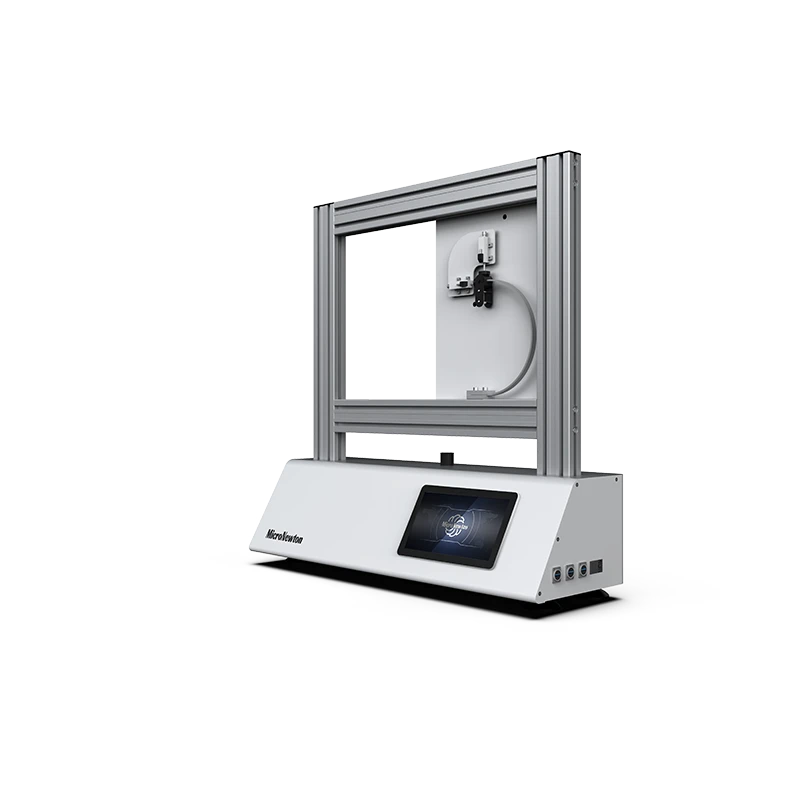

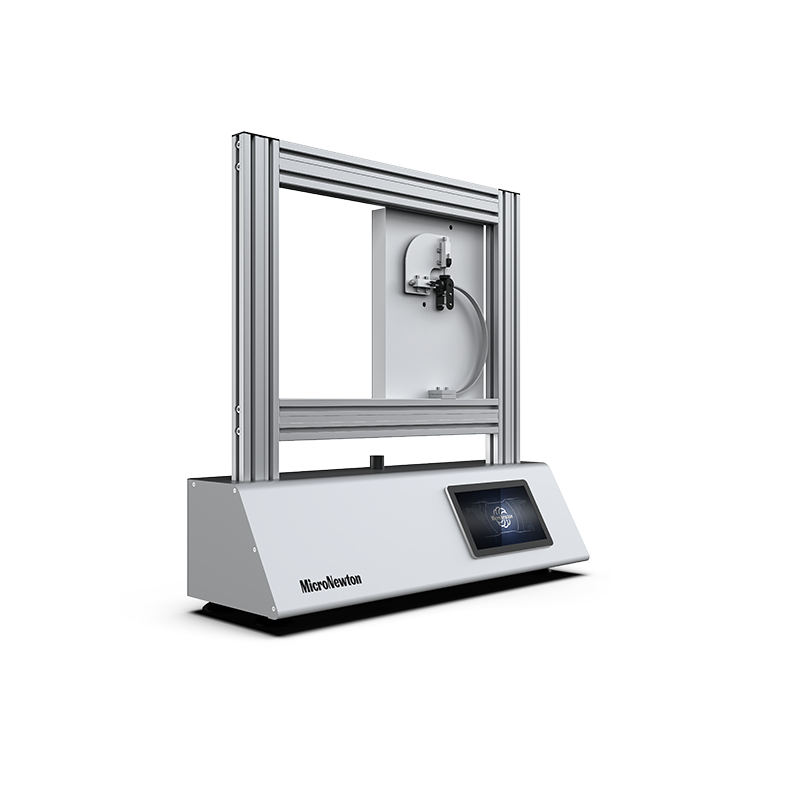

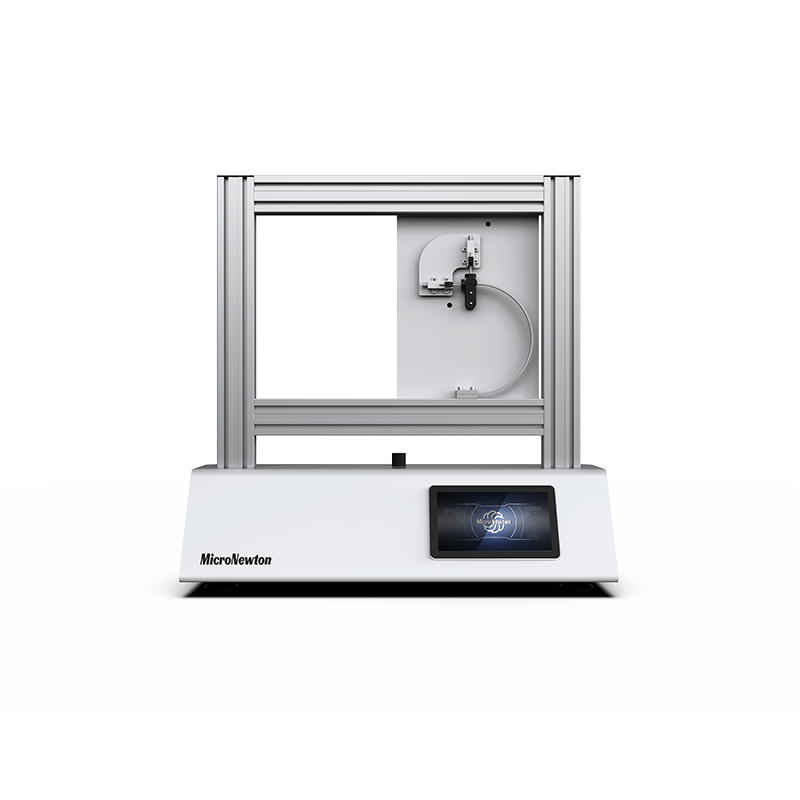

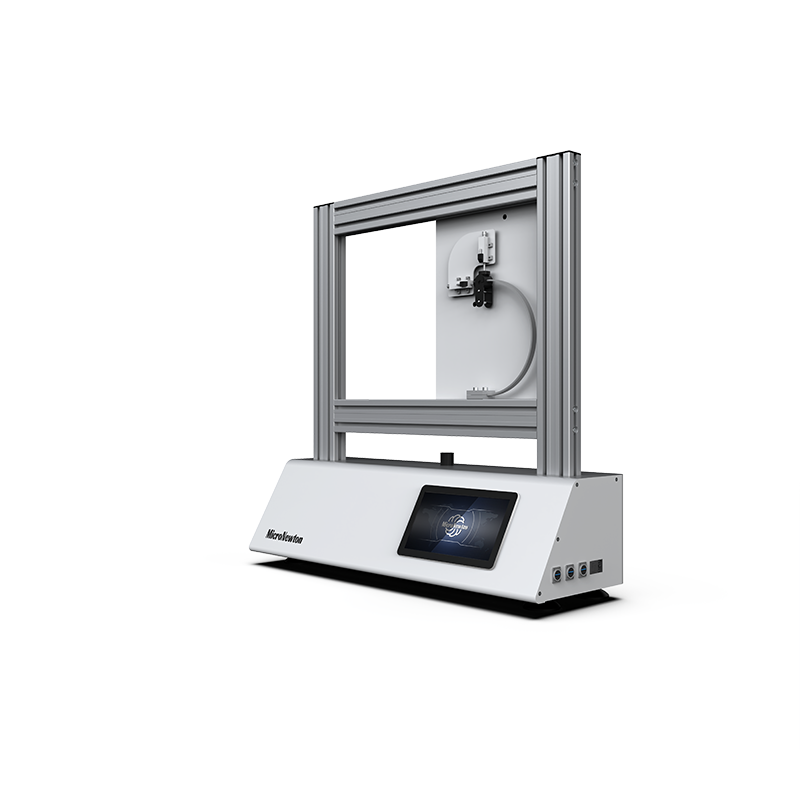

The MS09 curved rod and suspension rod displacement testing experimental device is an advanced teaching tool specifically used in material mechanics experiments to study the influence of curvature on structural deformation.
The core lies in exploring geometric nonlinearity and curvature effects. It is mainly used to verify the application of Karl Fischer's second theorem and the unit load method in curved bars, and visually demonstrate the complex displacement phenomena generated by the coupling of axial force, shear force, and bending moment in curved bars under stress.
Share:
Added to cart successfully
Experimental feature
1.Theoretical verification of curved rod displacement
2.Application of Karl's Second Theorem
3.Research on the influence of curvature on stiffness
5.Collaborative deformation analysis of suspension rod system
Product Attributes
|
Product Model |
MS09 |
Product Name |
Experimental device for displacement testing of curved rods and suspension rods |
|
Main Materials |
aluminium |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
5kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
Case Studies
Integrated Thermal Fluids and Energy Laboratory at Zhejiang University of Technology
Flight Demonstration Wind Tunnel at Shandong University
Multi Energy Complementary Experimental Platform at Hebei University
Statically Determinate Beam Section Internal Force Testing Apparatus Delivered to Jining Vocational and Technical College
Self Developed Compression Bar Stability and Stress Testing Apparatus Delivered to Shandong Polytechnic University
