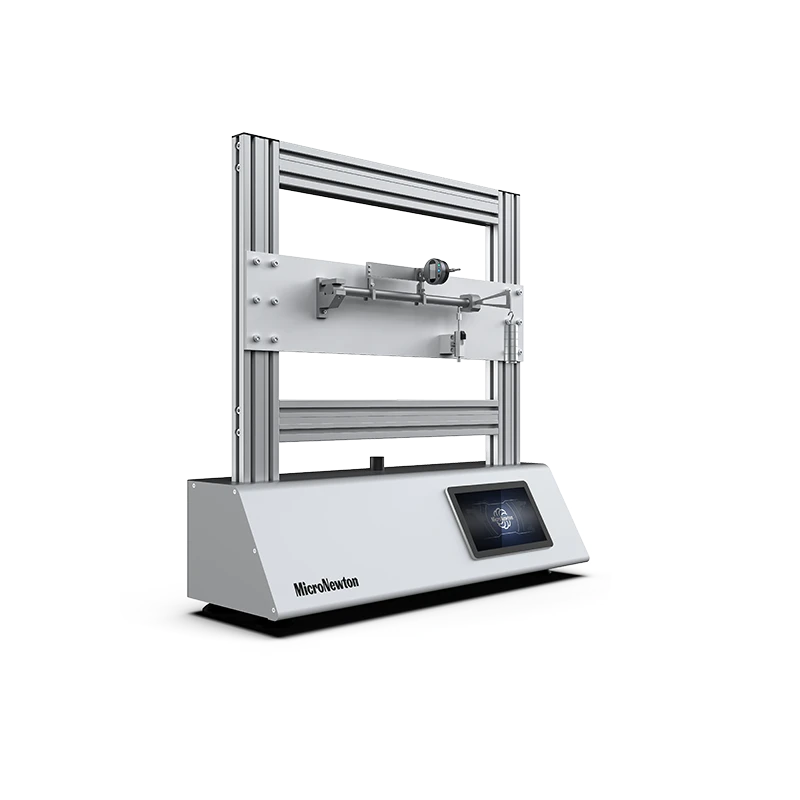

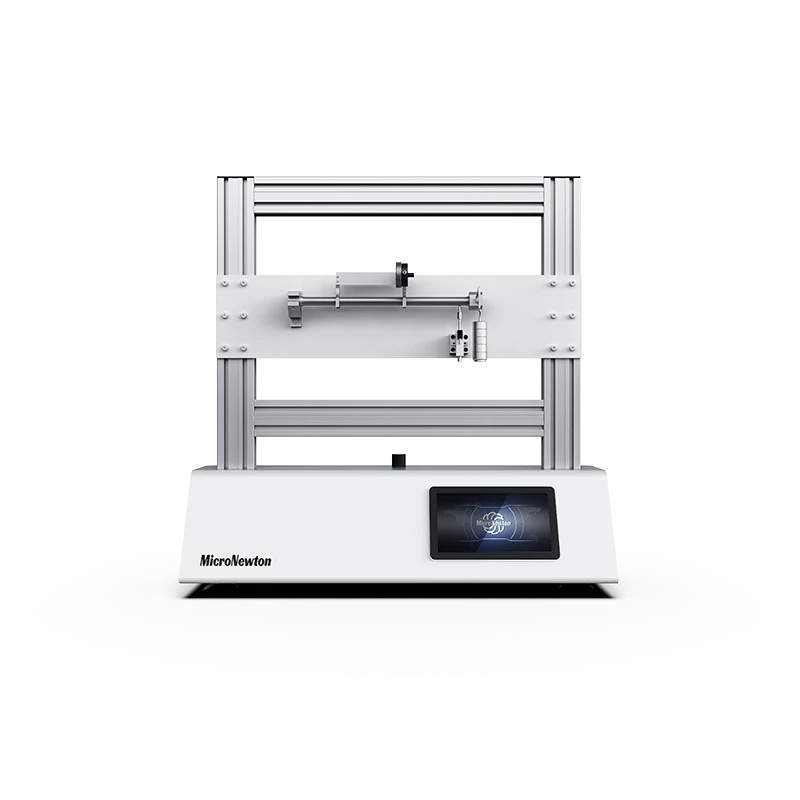

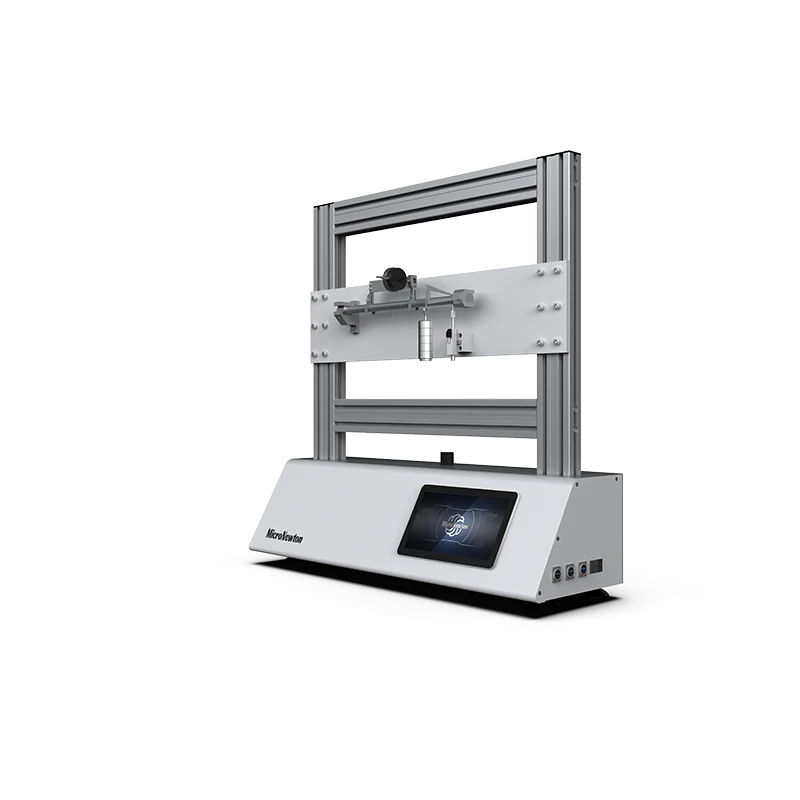

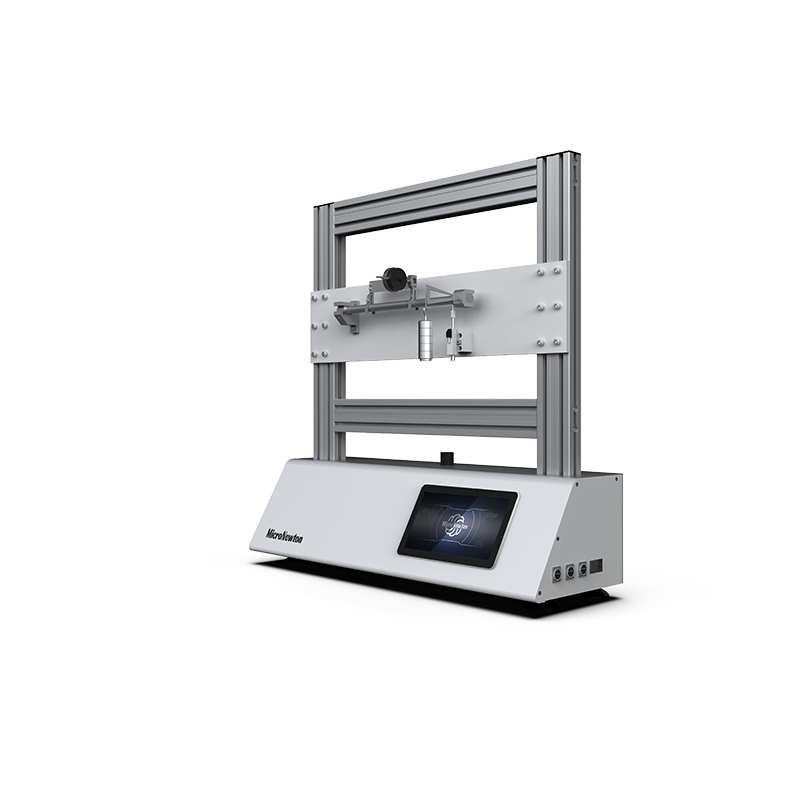

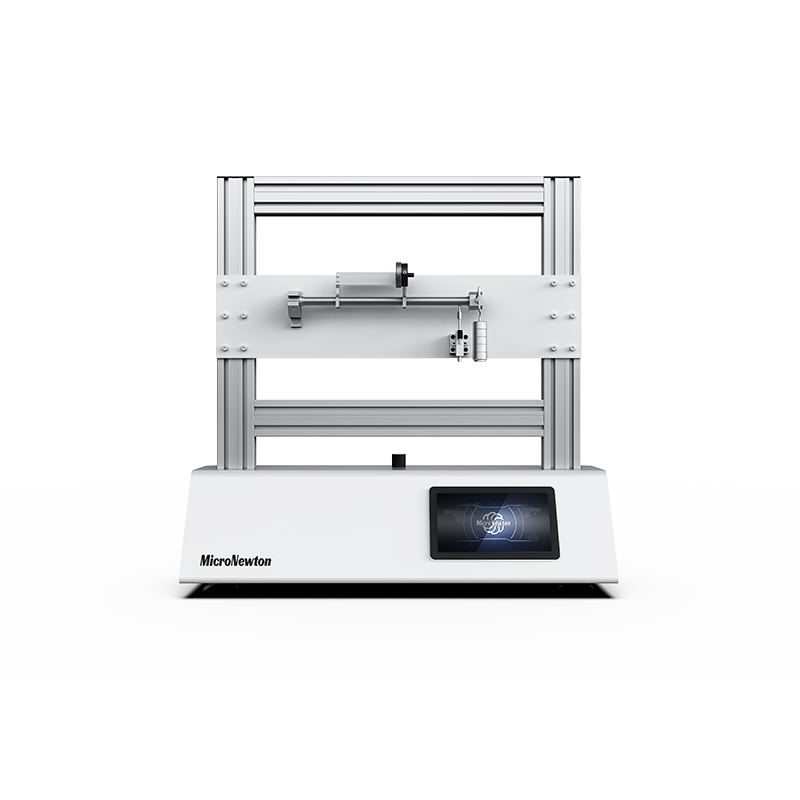

The MS08 bending torsion combined deformation testing experimental device is the core equipment used in material mechanics experiments to study the mechanical behavior of components under the combined action of bending moment M and torsional moment T.
Specially designed for actively applying controllable bending moments and torques to simulate complex working conditions such as transmission shafts, crankshafts, and cantilever beams subjected to lateral forces commonly found in engineering. Its core objective is to validate the strength theory (especially the third and fourth strength theories) and determine the principalstress.
Share:
Added to cart successfully
Experimental feature
1.Analysis of combined bending and twisting stress state
2.Determination of principal stress and principal direction
3.Verification of the relationship between internal force diagram and external force
Product Attributes
|
Product Model |
MS08 |
Product Name |
Experimental apparatus for testing combined bending and twisting deformation |
|
Main Materials |
Carbon steel, aluminum |
Dimensions |
≤1000×400×1000mm |
|
Product Weight |
10kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
