Heat Exchanger

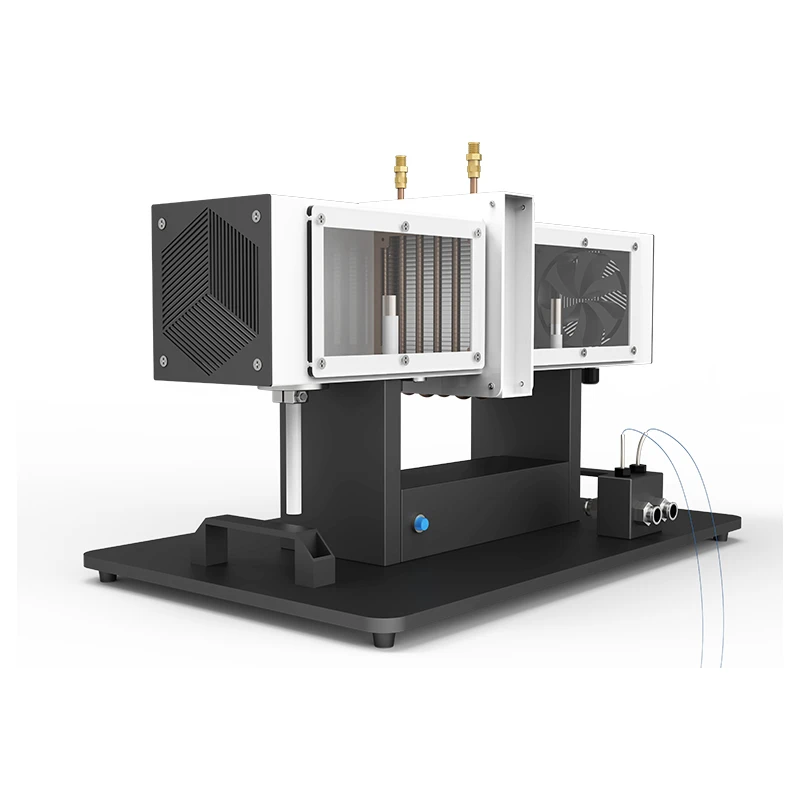

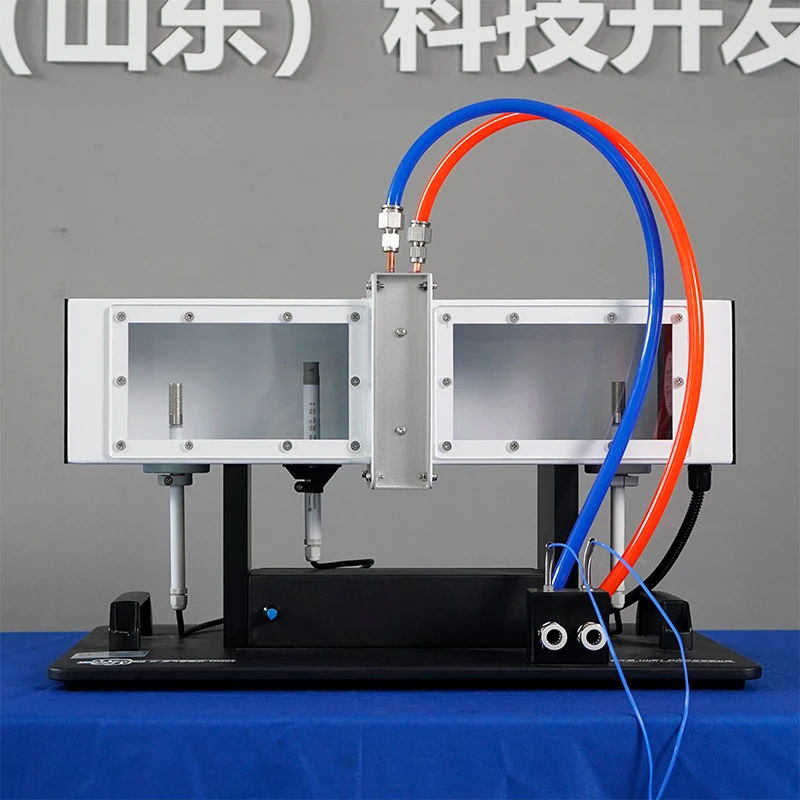

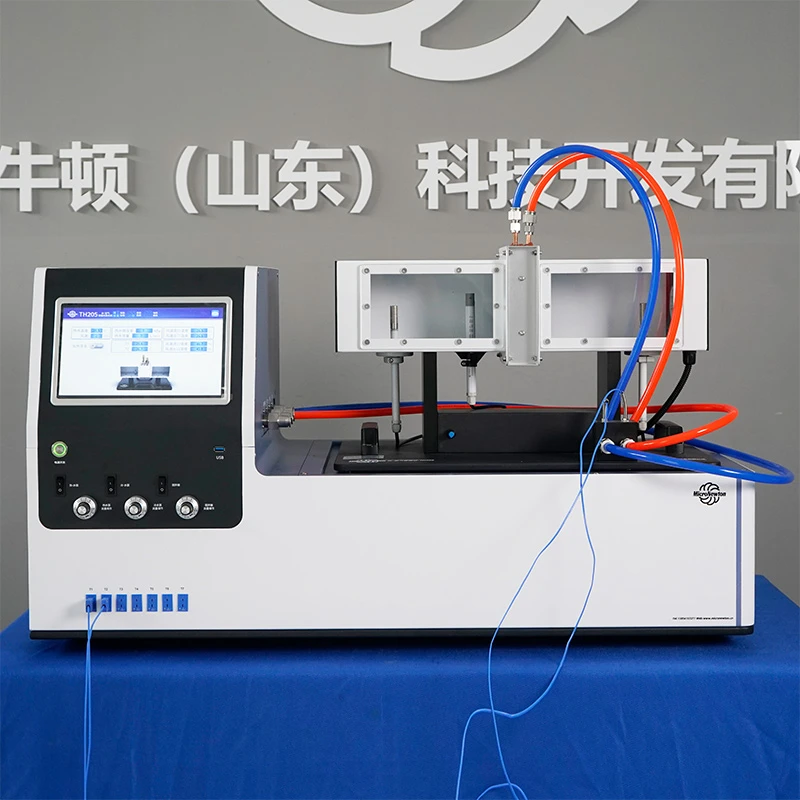

This product is a heat exchanger module designed to work with a basic heat exchanger experimental bench. It enables heat transfer between air and liquid.
The hot fluid flows inside the finned tubes, while air passes through the rectangular channel across the fins. Heat is transferred from the hot fluid to the cold fluid through the tube wall. The presence of fins increases the heat transfer surface area, thereby improving heat exchange performance.
Share:
Added to cart successfully
Experimental Functions
1.Study the principles and process of indirect (separated-wall) convective heat transfer.
2.Investigate the overall heat transfer efficiency of the system under different flow rates.
3.Master the Logarithmic Mean Temperature Difference (LMTD) method for calculating overall heat transfer performance.
Product Attributes
|
Product Model |
TH205 |
Product Name |
Water–Air Fin-and-Tube Heat Exchanger |
|
Main Materials |
Galvanized Steel Plate, POM |

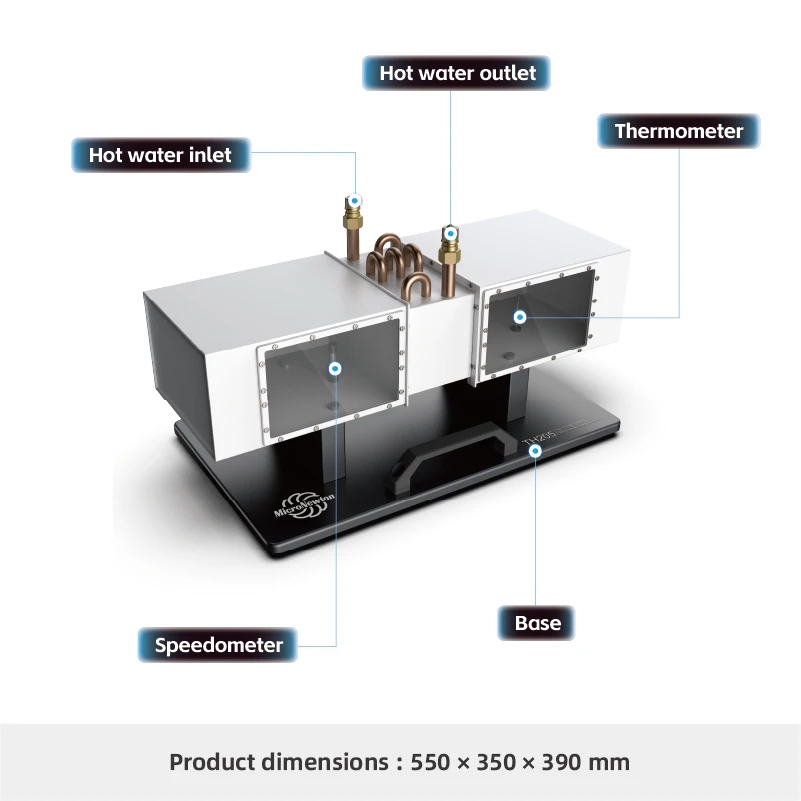

Dimensions |
550 × 350 × 390 mm |
|
Product Weight |
13.2 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Constant-temperature water bath |
Optional Modules |
None |
