Heat Exchanger

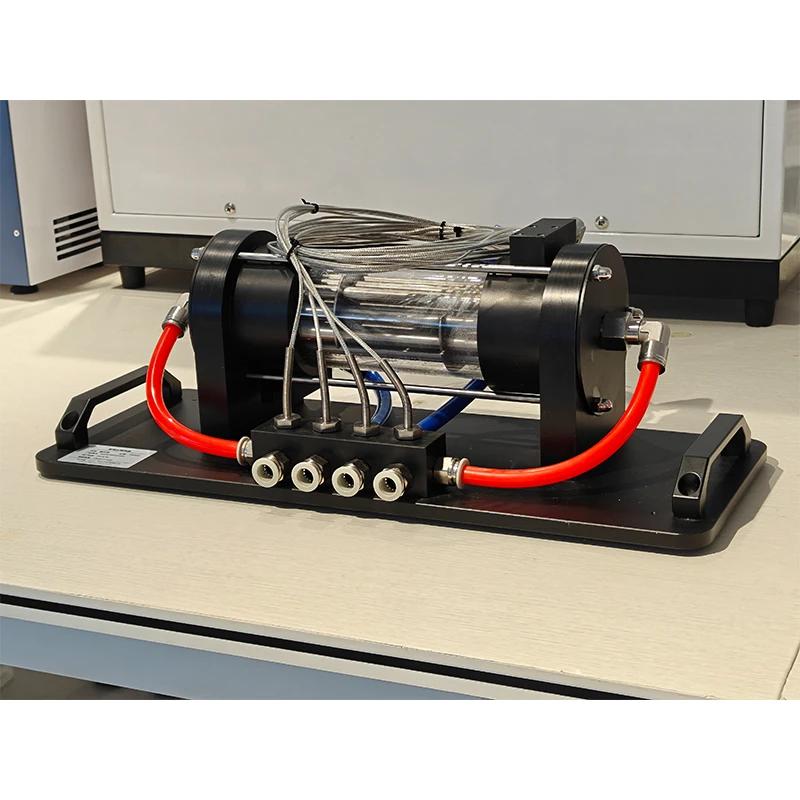

This product is a heat exchanger module designed to work with a basic heat exchanger experimental bench and is used to demonstrate the fundamental principles of a shell-and-tube heat exchanger.

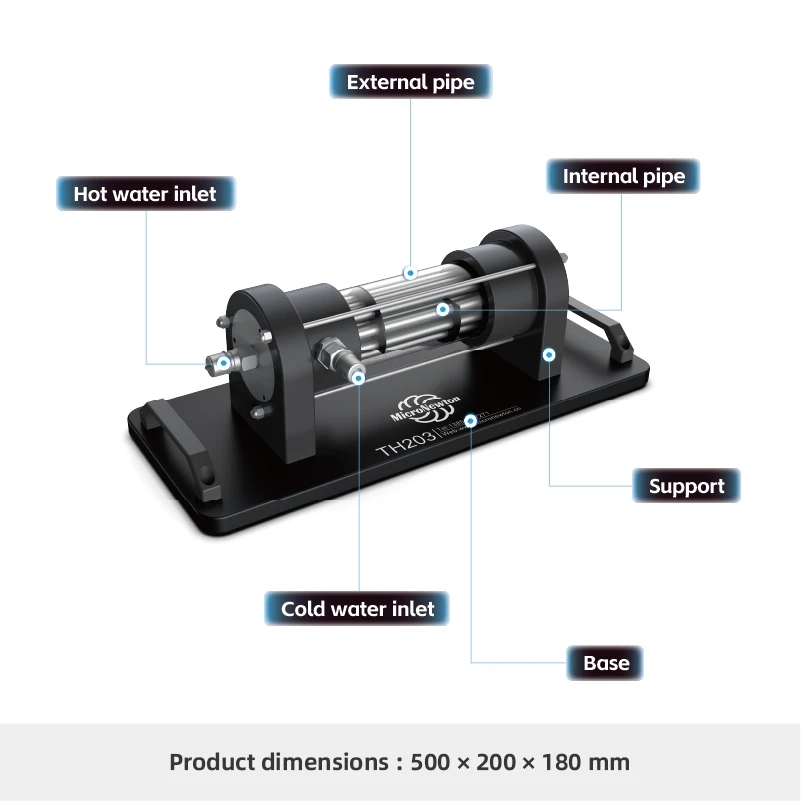

The device consists of two main sections: the shell side and the tube side. The shell side is composed of two supporting structures and a transparent outer shell. The tube side consists of multiple equally spaced stainless steel tubes connected at both ends by internal support plates within the housing.
Share:
Added to cart successfully
Experimental Functions
1.Study the principles and process of indirect (separated-wall) convective heat transfer.
2.Analyze the system energy balance and overall heat transfer efficiency under different flow rates.
3.Compare heat transfer performance and temperature distribution between co-current (parallel flow) and counter-current (counterflow) configurations.
4.Master the Logarithmic Mean Temperature Difference (LMTD) method for calculating overall heat transfer efficiency.
5.Investigate the effect of hot and cold water flow rate variations on heat transfer efficiency.
6.Study the influence of temperature differences between hot and cold fluids on heat transfer performance under co-current and counter-current conditions.
Product Attributes
|
Product Model |
TH203 |
Product Name |
Shell-and-Tube Heat Exchanger |
|
Main Materials |
Galvanized Steel Plate, POM, Stainless Steel |
Dimensions |
500×200×180mm |
|
Product Weight |
7.65kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Constant-Temperature Water Bath |
Optional Modules |
None |
