Heat Exchanger
This product is a heat exchanger module designed to work with a basic heat exchanger experimental bench and is used to demonstrate the fundamental principles of a jacketed heat exchanger.
Share:
Added to cart successfully
Product Description
This product is a heat exchanger module designed to work with a basic heat exchanger experimental bench and is used to demonstrate the fundamental principles of a jacketed heat exchanger.

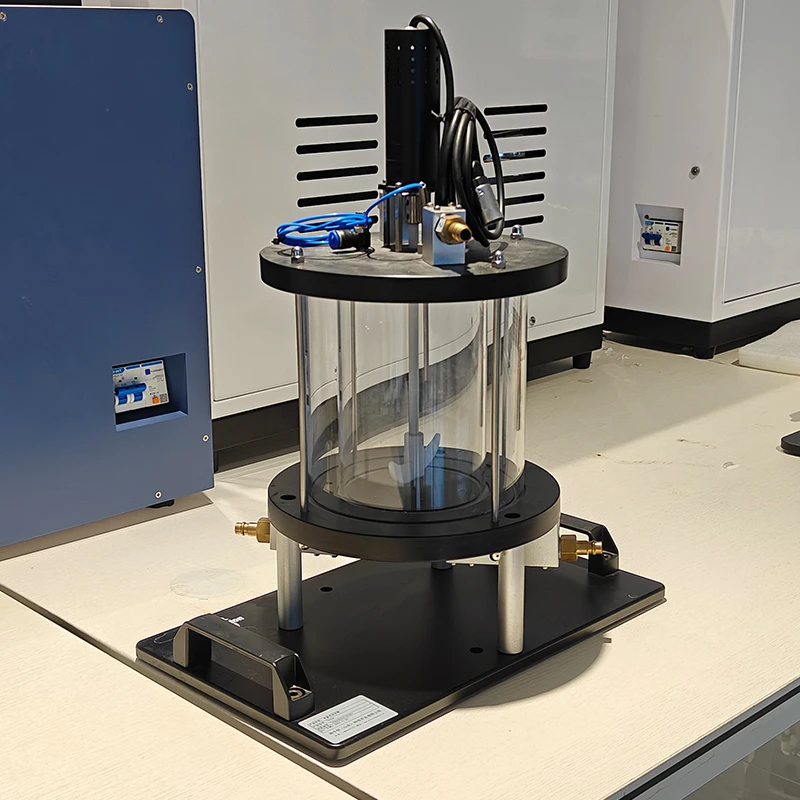

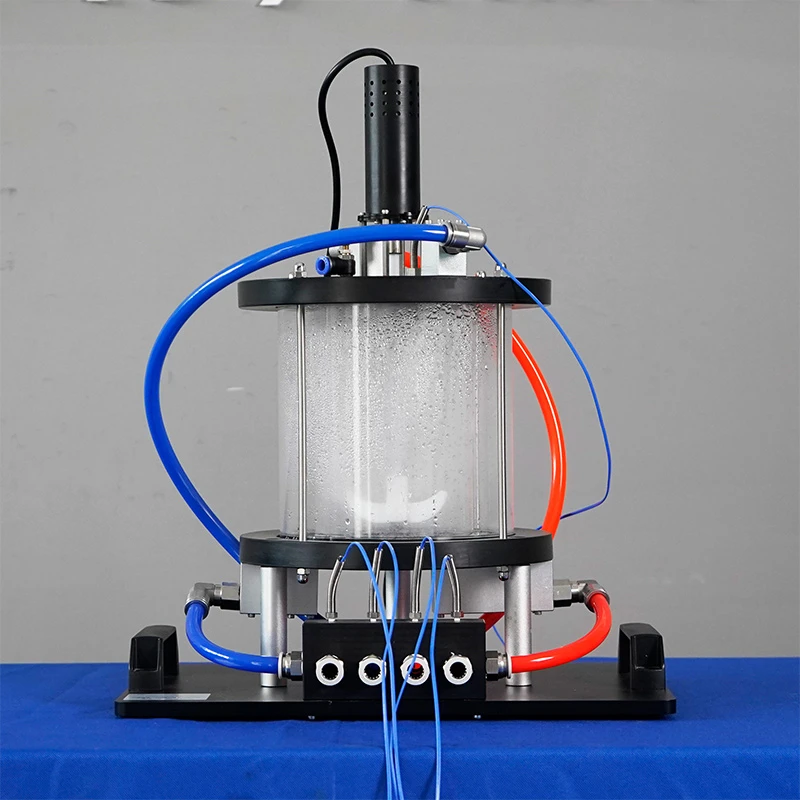

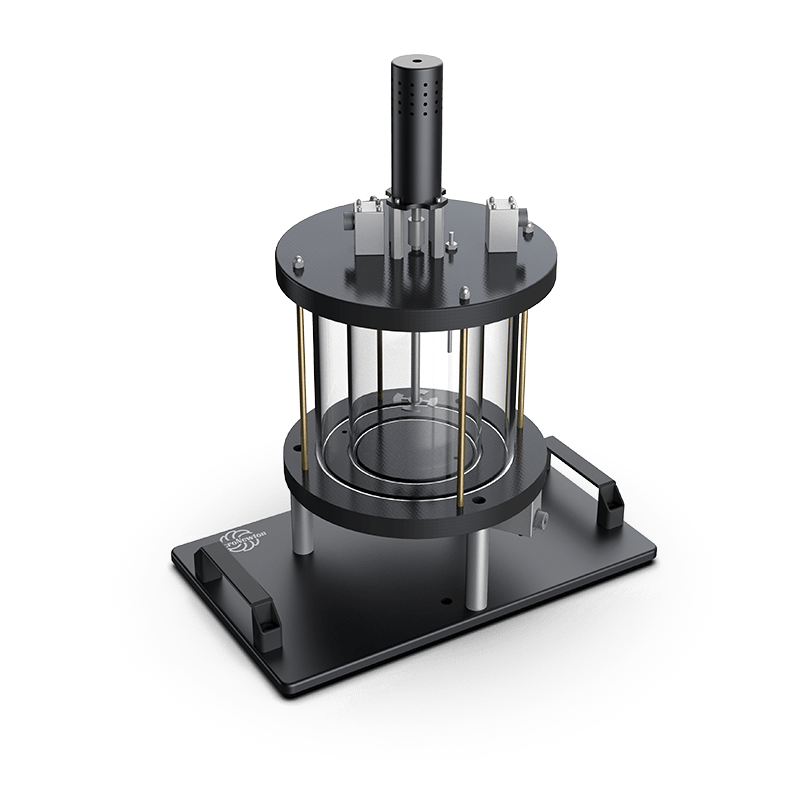

The main body consists of two layers of cylindrical glass and upper and lower end covers. Four water pipe connection ports allow the inner and outer layers of the jacket to be filled with hot and cold fluids. An internal stirrer is installed to enhance heat exchange efficiency between the inner and outer fluids. A built-in thermocouple is used to measure the central temperature of the hot water.
Experimental Functions
01
Study the principles and process of indirect (separated-wall) convective heat transfer.
02
Use the Logarithmic Mean Temperature Difference (LMTD) method to analyze the overall heat transfer coefficient of the system.
03
Study system energy balance and calculate the overall heat transfer coefficient of the jacketed heat exchanger.
04
Investigate the influence of the stirrer on system heat transfer efficiency.
Product Attributes
|
Product Model |
TH204 |
Product Name |
Jacketed Heat Exchanger |
|
Main Materials |
Galvanized Steel Plate, POM, Acrylic |
Specifications |

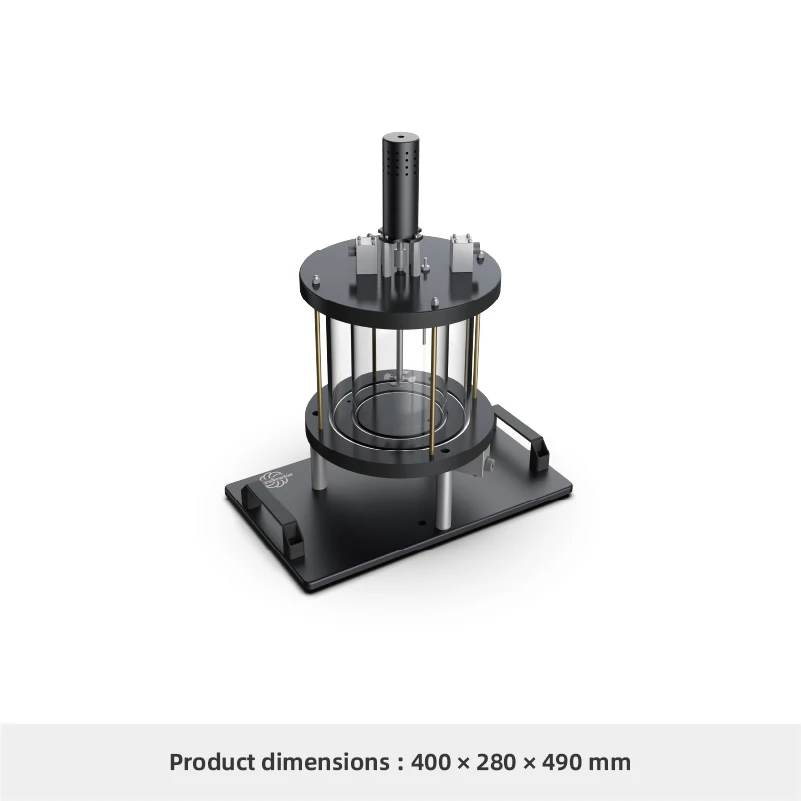

400×280×490mm |
|
Product Weight |
8.6kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |

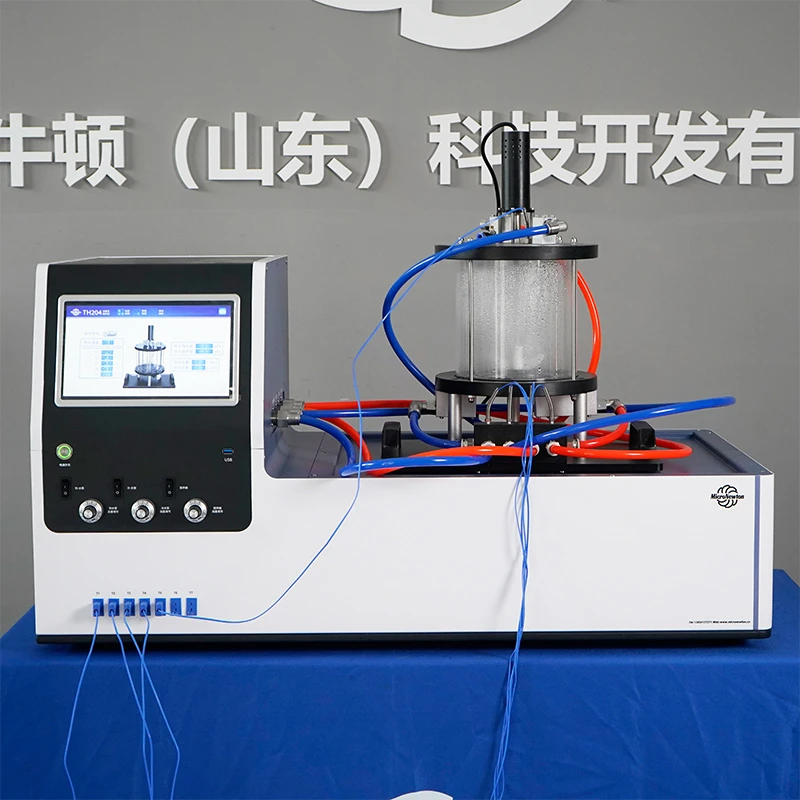

Constant-Temperature Water Bath |
Optional Modules |
None |
