Heat Exchanger

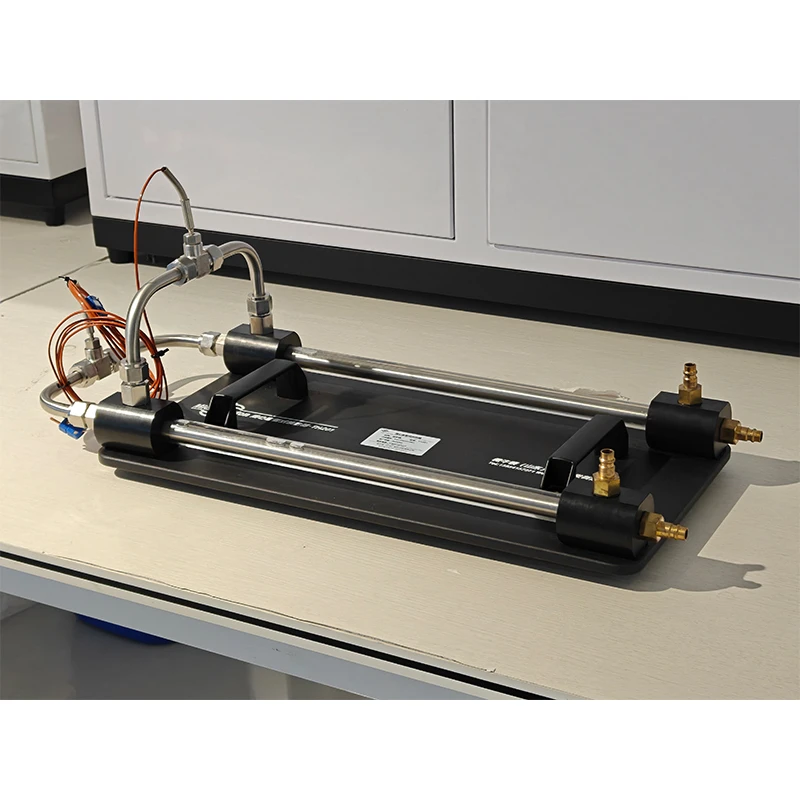

This product is a heat exchanger module designed to work with a basic heat exchanger experimental bench and is used to demonstrate the fundamental principles of a concentric tube heat exchanger.

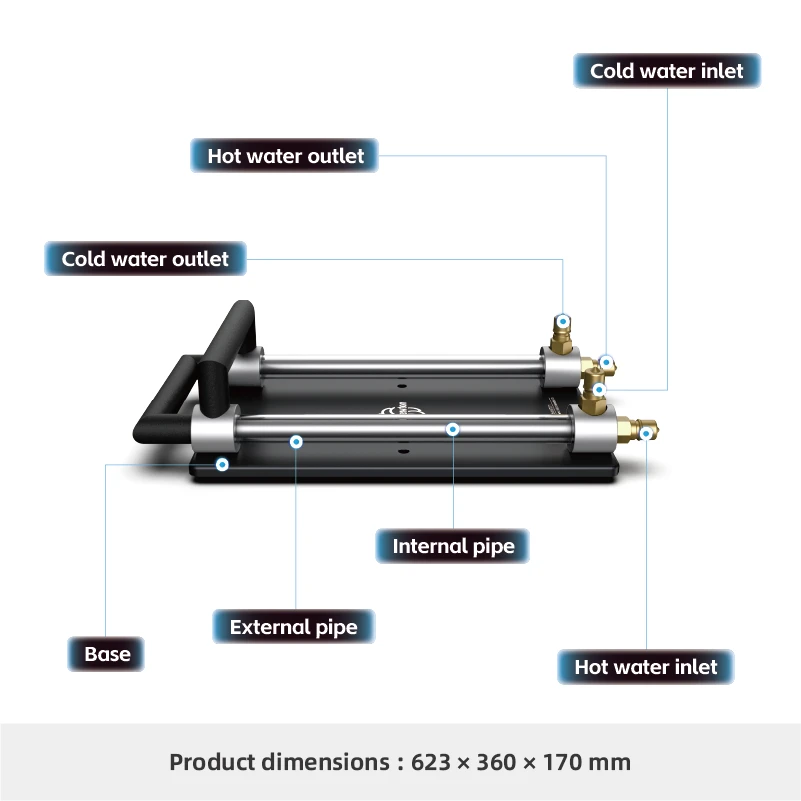

The device mainly consists of two coaxial circular tubes. Heat is transferred between hot and cold water through the wall of the inner tube, enabling the study of indirect (separated-wall) convective heat transfer.
Share:
Added to cart successfully
Experimental Functions
1.Study the principle and process of indirect convective heat transfer.
2.Analyze energy balance within the system and overall heat transfer efficiency under different flow rates.
3.Compare heat transfer performance and temperature distribution between co-current (parallel flow) and counter-current (counterflow) configurations.
4.Master the Logarithmic Mean Temperature Difference (LMTD) method for calculating overall heat transfer efficiency.
5.Investigate the influence of hot and cold water flow rate variations on heat transfer efficiency.
6.Study the effect of temperature differences between hot and cold fluids on heat transfer performance under co-current and counter-current conditions.
Product Attributes
|
Product Model |
TH201 |
Product Name |
Concentric Tube Heat Exchanger |
|
Main Materials |
Galvanized Steel Plate, POM, 304 Stainless Steel |
Dimensions |
623 × 360 × 170 mm |
|
Product Weight |
5.1kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Constant-temperature water bath |
Optional Modules |
None |
