Heat Exchanger
This product is a main control and data acquisition platform for a series of heat exchanger experimental modules, based on the theory of indirect (separated-wall) heat exchangers in Heat Transfer.
It provides circulating hot and cold water for various heat exchanger experimental modules and is capable of collecting parameters such as temperature, pressure, current, voltage, power, and flow rate. The system includes data storage and curve plotting functions, and supports data export via USB to a computer for further analysis.
Share:
Added to cart successfully
Experimental Functions
1.The experimental bench is equipped with a display screen featuring touch control for function adjustment, with audio feedback support.
2.Built-in with five heat transfer experimental module models, each providing schematic diagrams, measurement point distributions, real-time data display, and dynamic curve visualization; supports exporting experimental data to Excel.
3.Supports full-function operation (output, input, data acquisition, and regulation) for all compatible heat exchanger modules.
4.In addition to use with matching heat exchange modules, it can also serve as an expandable data acquisition system for related thermal experiments, including temperature and pressure measurement, data storage, and output.
Product Attributes
|
Product Model |
TH200 |
Product Name |

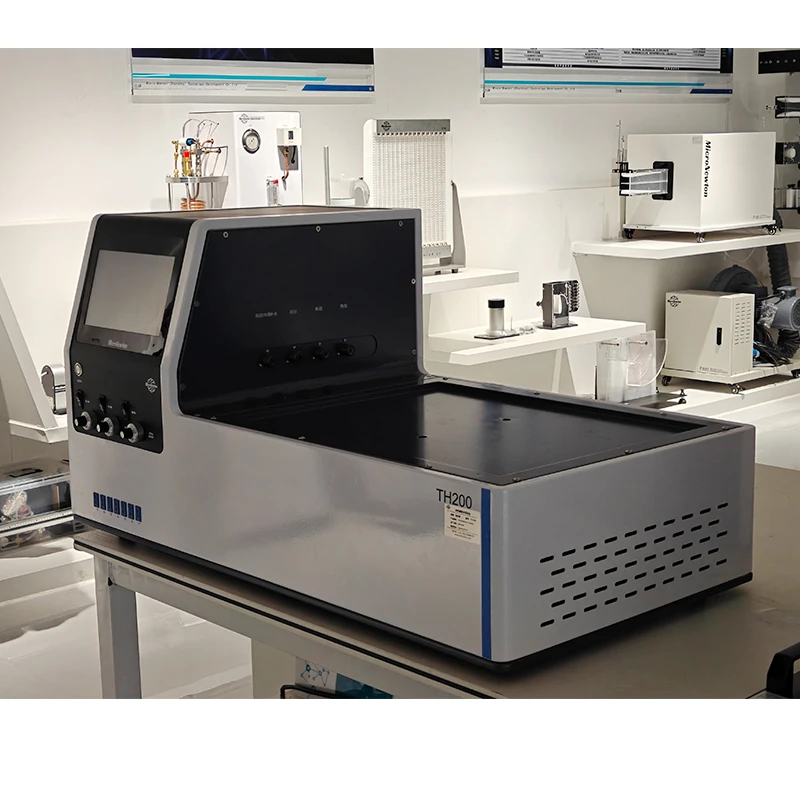

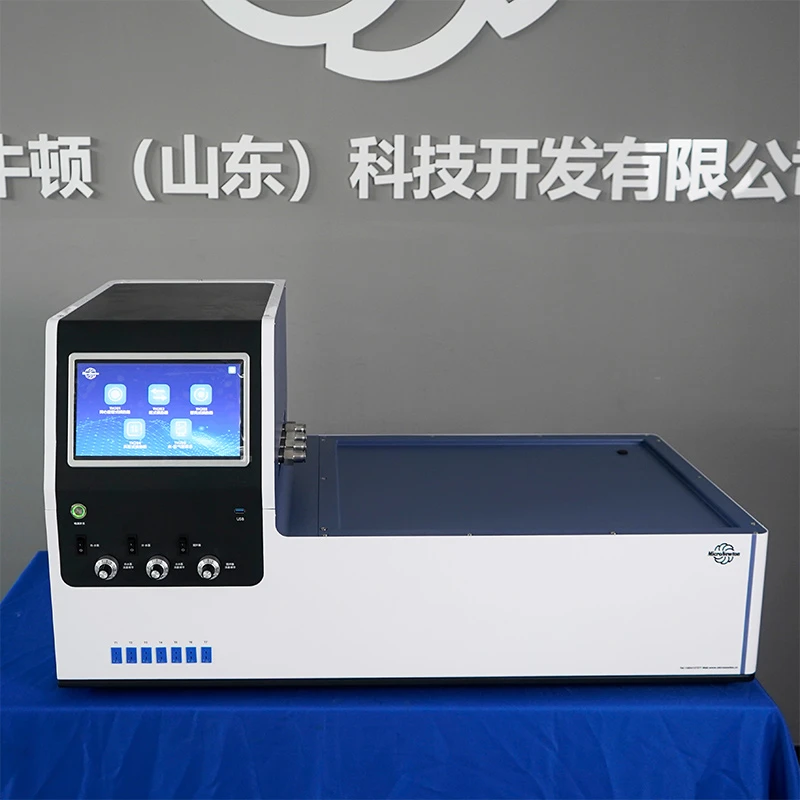

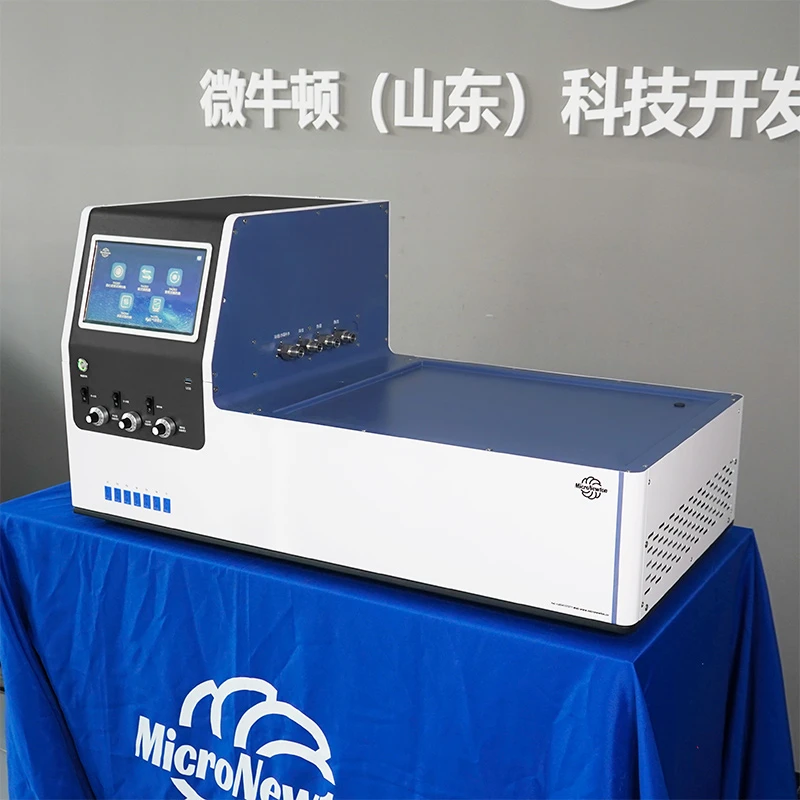

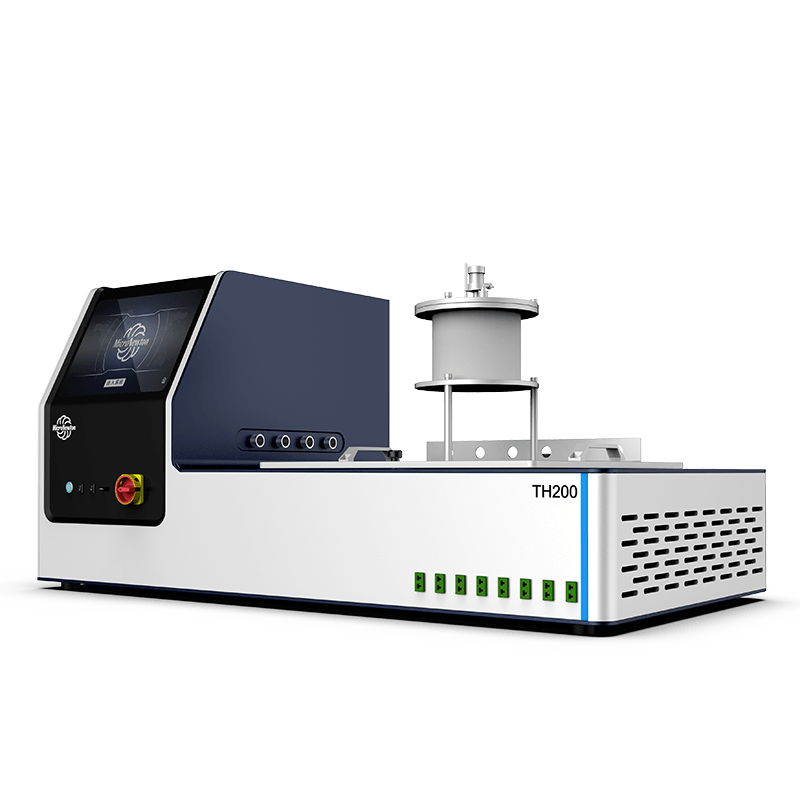

Basic Heat Exchanger Experimental Bench |
|
Main Materials |
Galvanized Steel Plate, 304 Stainless Steel |
Dimensions |

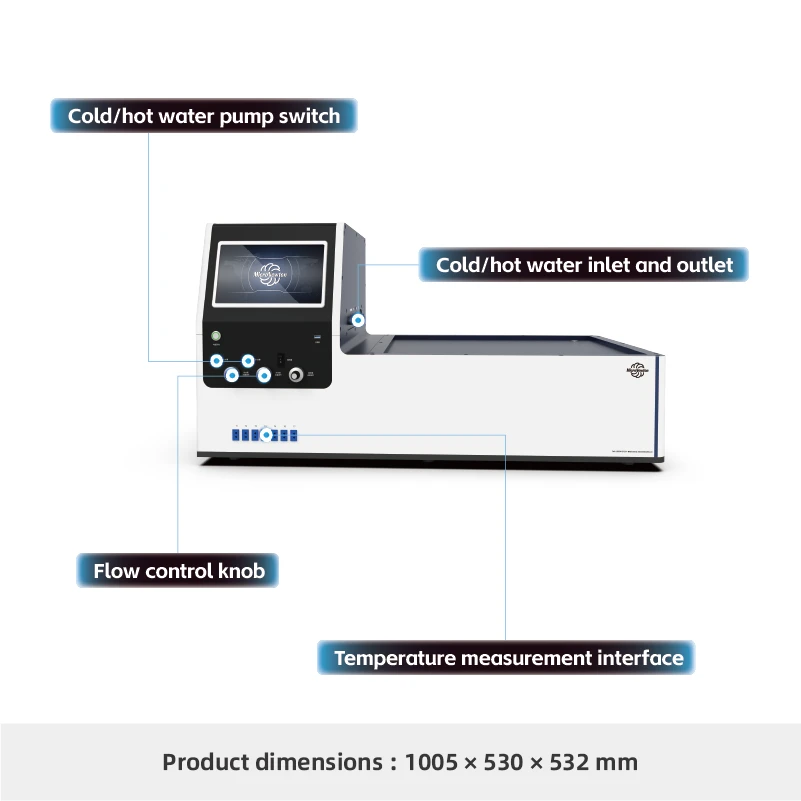

1005 × 530 × 532 mm |
|
Product Weight |
53 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
