Fundamentals of Heat Transfer

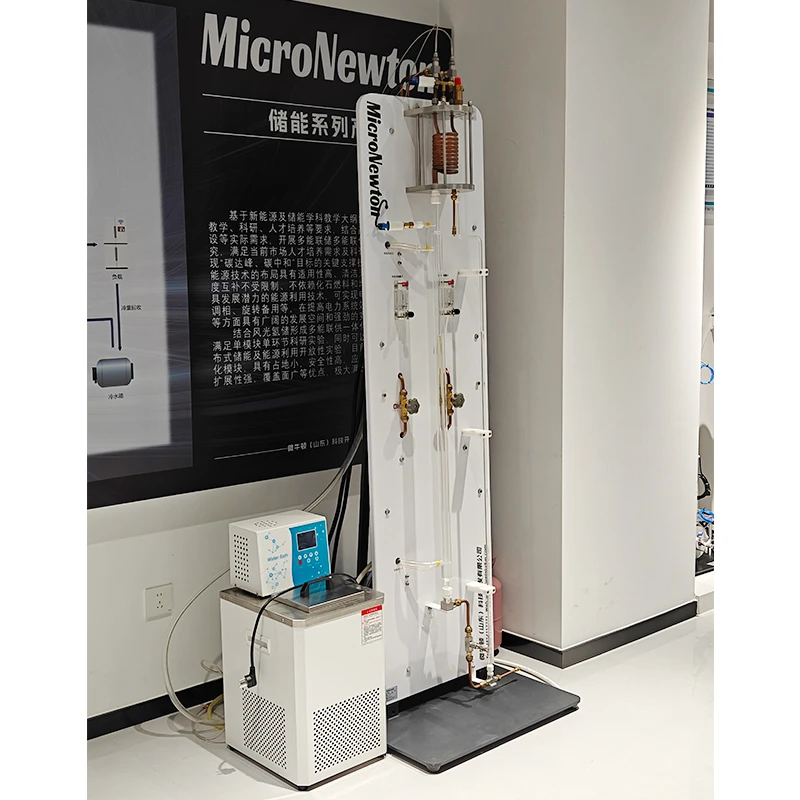

This product is based on the fundamental theory of phase-change convection in heat transfer. It is designed to work with a basic heat transfer experimental bench and is used to study the principles of boiling heat transfer inside a vertical tube, as well as to demonstrate the tube boiling phenomenon.

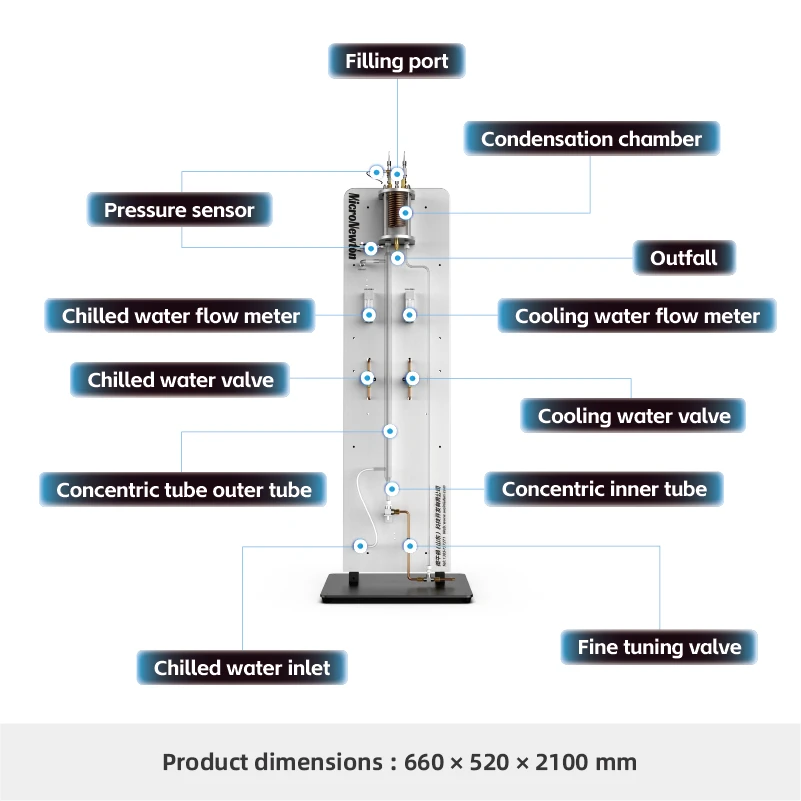

The main structure consists of a concentric-tube heat exchanger made of heat-resistant glass. Heat transferred by hot water in the outer tube causes the solvent inside the inner tube to boil, thereby demonstrating the different stages of liquid boiling inside a vertical tube.
Share:
Added to cart successfully
Experimental Functions
1.Demonstrate the various stages of tube boiling, including single-phase flow, bubbly flow, slug flow, and annular flow.
2.Study the heat transfer rate and overall heat transfer coefficient of in-tube boiling under constant pressure conditions.
Product Attributes
|
Product Model |
TH115 |
Product Name |
Tube Boiling Heat Transfer Experimental Module |
|
Main Materials |
Galvanized Steel Plate, Quartz Glass, 304 Stainless Steel |
Dimensions |
660 × 520 × 2200 mm |
|
Product Weight |
95kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Vacuum pump |
Optional Modules |
None |
