Fundamentals of Heat Transfer

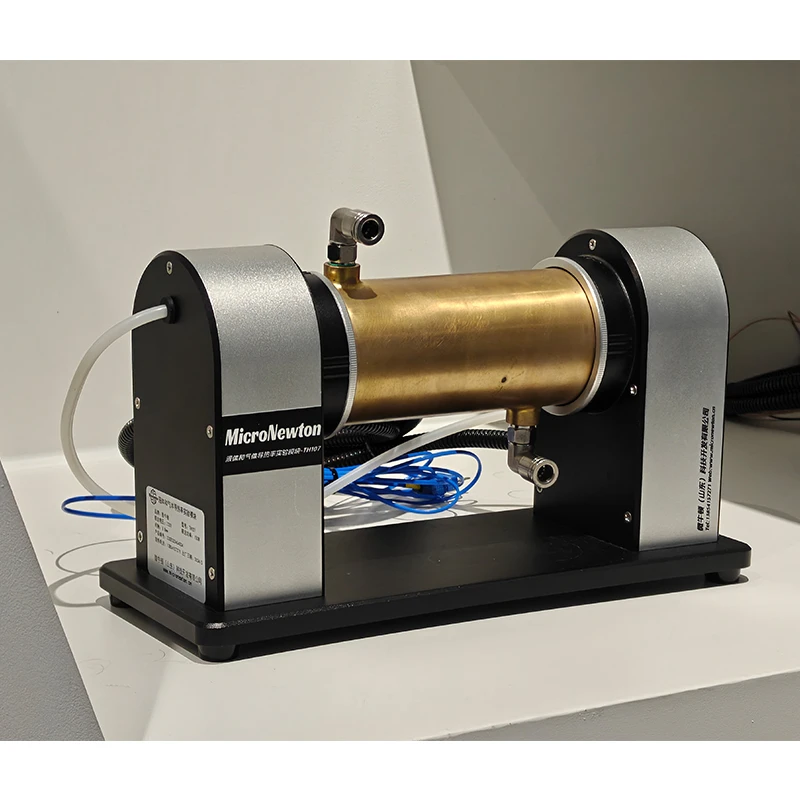

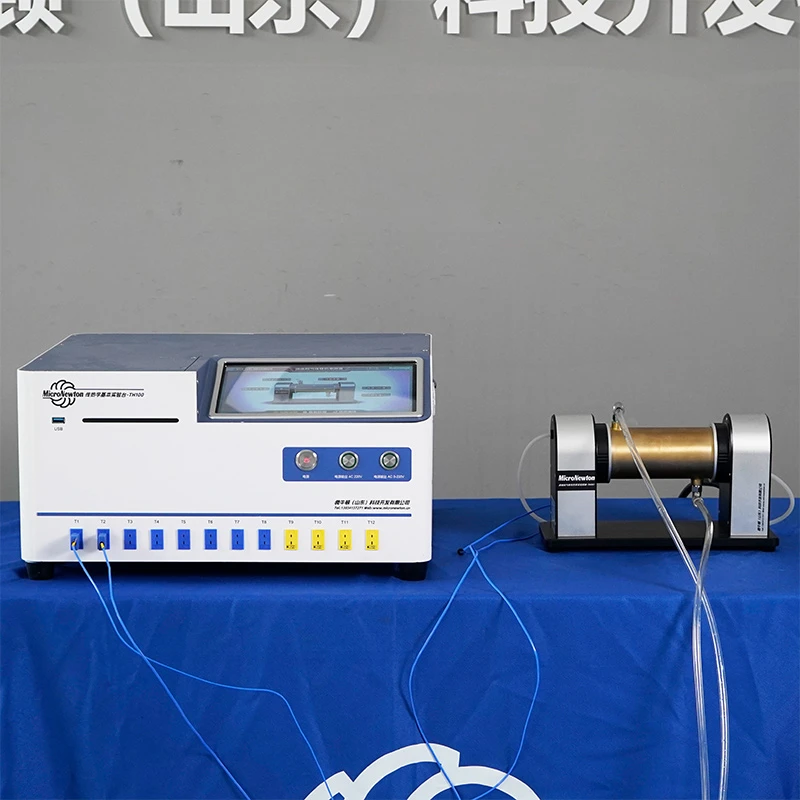

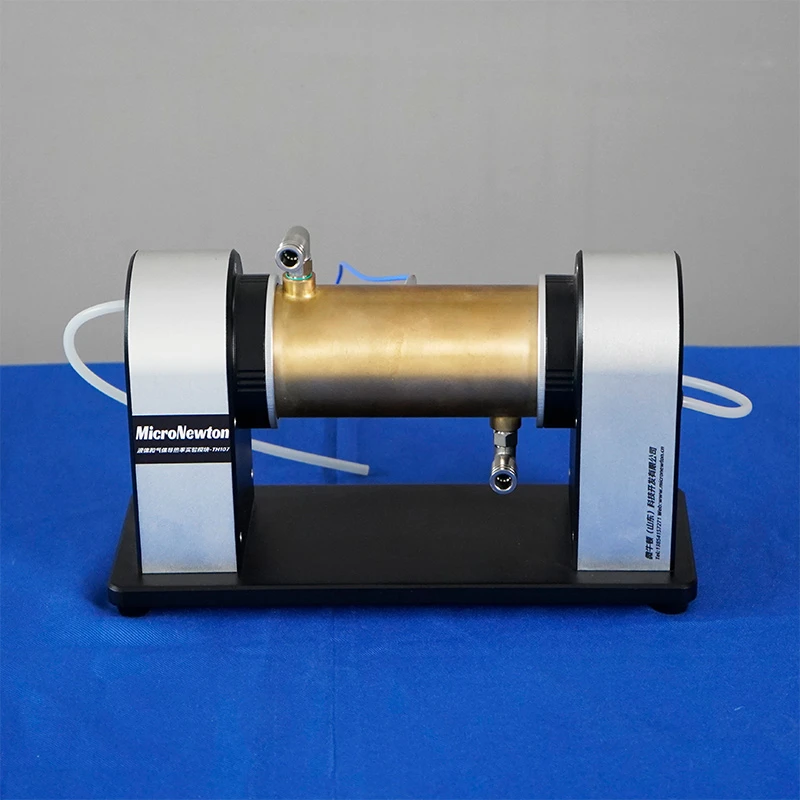

This product is used in conjunction with a basic heat transfer experimental bench for experiments involving the analysis and calculation of one-dimensional steady-state heat conduction in liquids and gases, as covered in Heat Transfer courses.

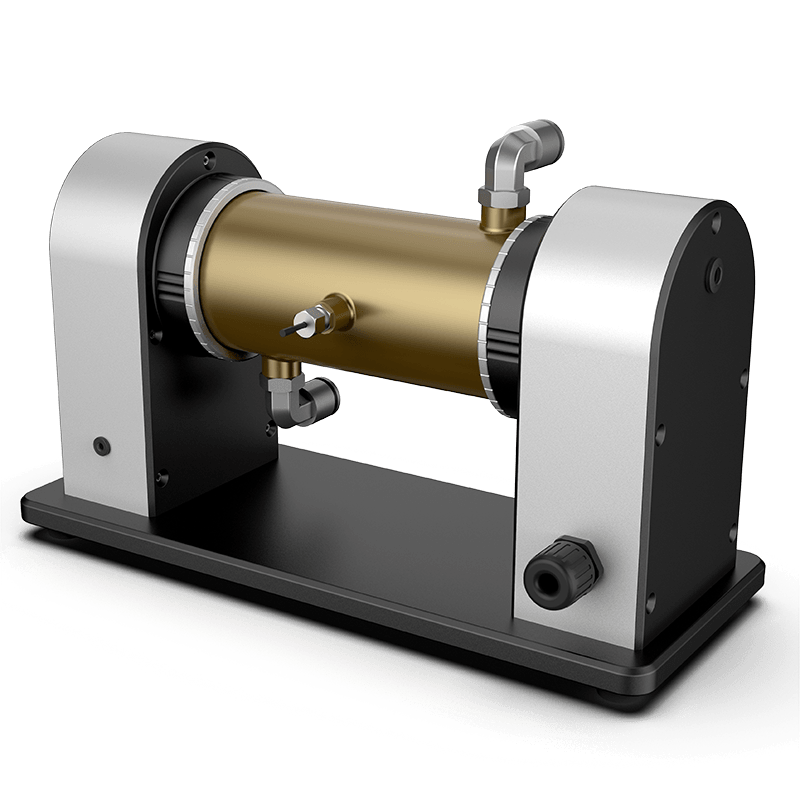

The apparatus is designed as a one-dimensional steady-state radial heat conduction model, consisting of a heating module, sample jacket, and cooling unit. The main body is a jacketed heat exchanger: an electric heating element is located at the center, while constant-temperature cooling water flows through the outer jacket. The space between the walls is filled with the liquid or gas to be tested.
The module can be used to measure the thermal conductivity of non-corrosive liquids (such as alcohol and glycerin) and non-flammable gases (such as air and nitrogen). It is compact and portable, with an intuitive theoretical model, making it convenient for teaching and experimental analysis.
Share:
Added to cart successfully
Experimental Functions
1.Used to understand and analyze Fourier’s law in multi-layer heat conduction.
2.Used to study the principles of one-dimensional steady-state heat conduction.
3.Used to measure the thermal conductivity of compatible gases and liquids with the experimental setup.
Product Attributes
|
Product Model |
TH107 |
Product Name |
Liquid and Gas Thermal Conductivity Experimental Module |
|
Main Materials |
6061 Aluminum Alloy, H58 Brass |

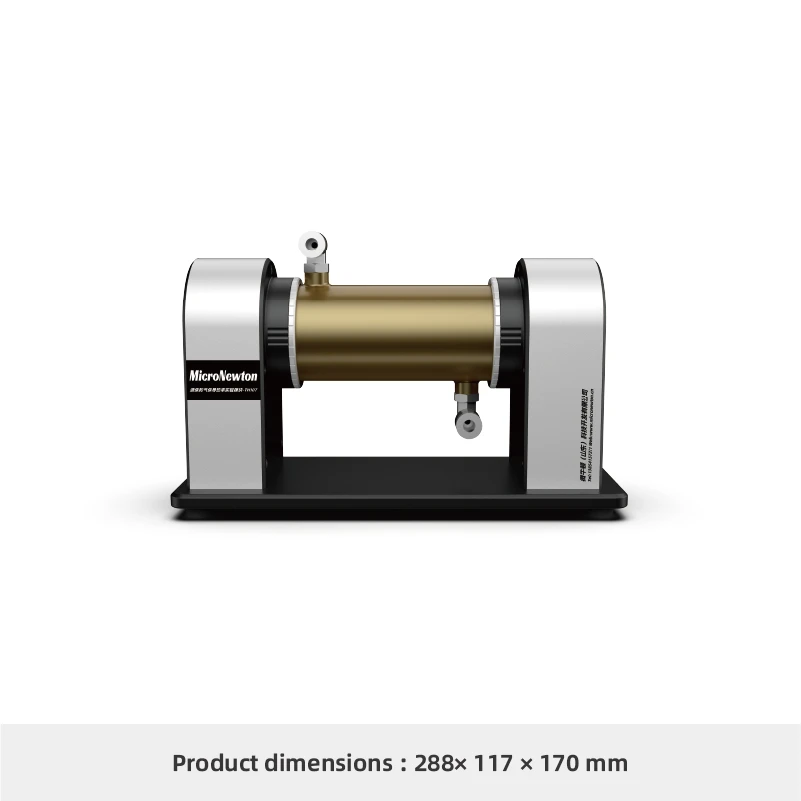

Dimensions |
288 × 117 × 170 mm |
|
Product Weight |
6.5 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
