Fundamentals of Heat Transfer
This product is designed to be used together with the Heat Transfer Basic Experimental Platform to conduct experiments related to the one-dimensional steady-state heat conduction law in Fourier’s Law of Heat Conduction from the course Heat Transfer.

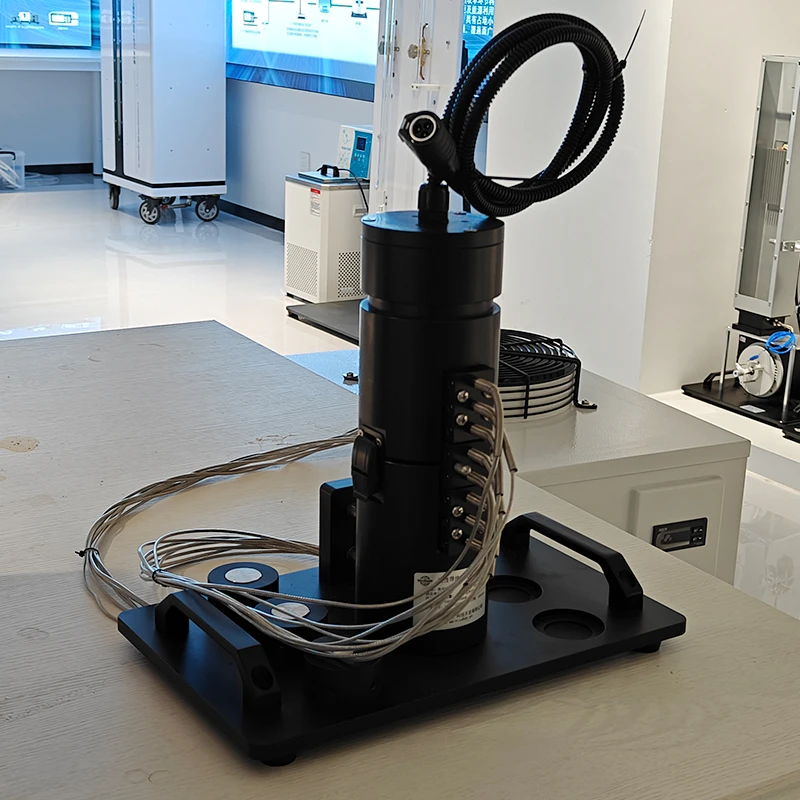

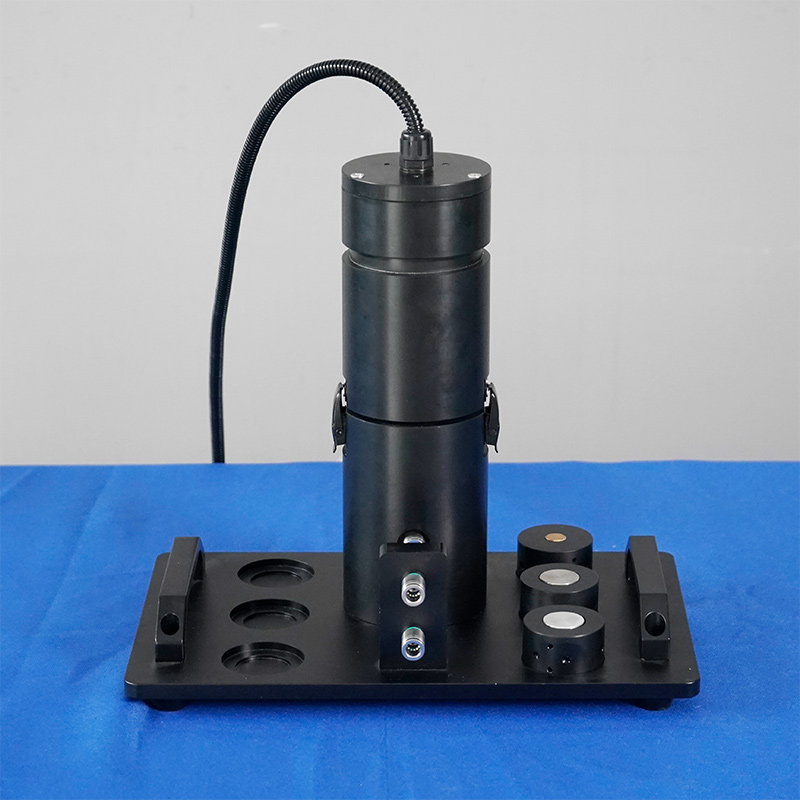

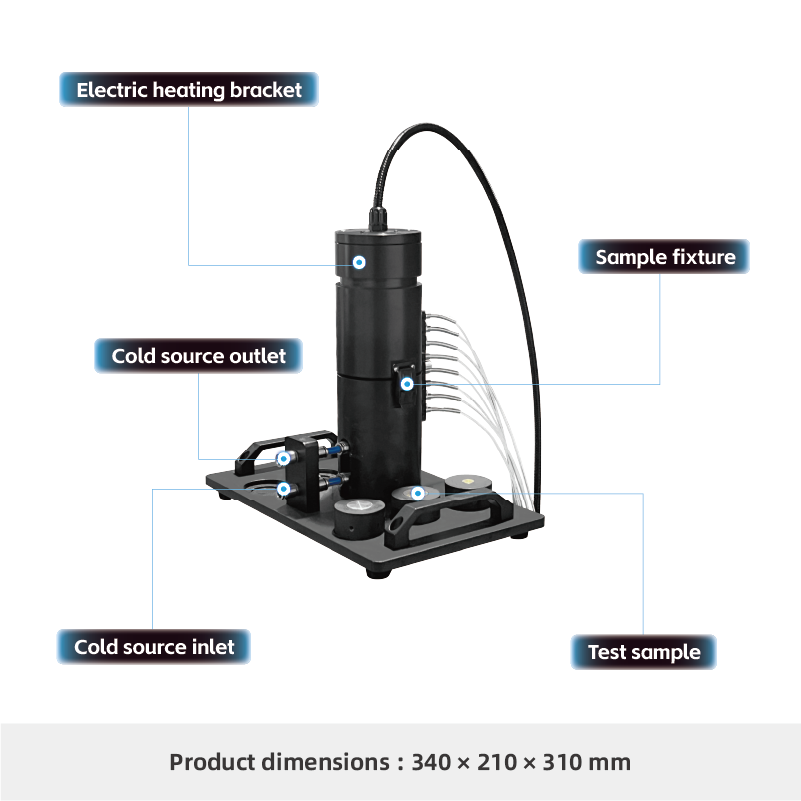

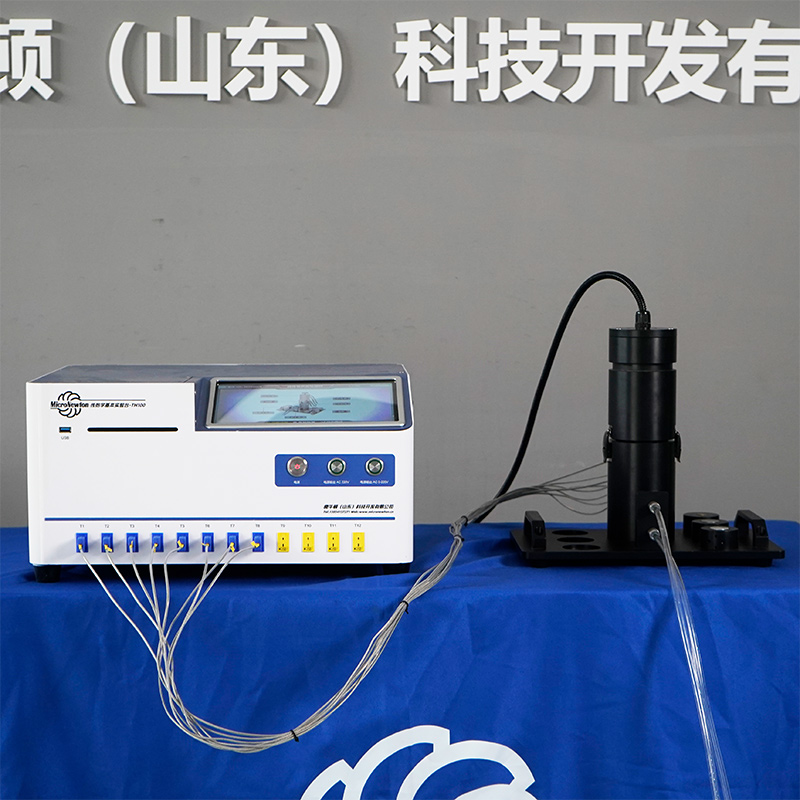

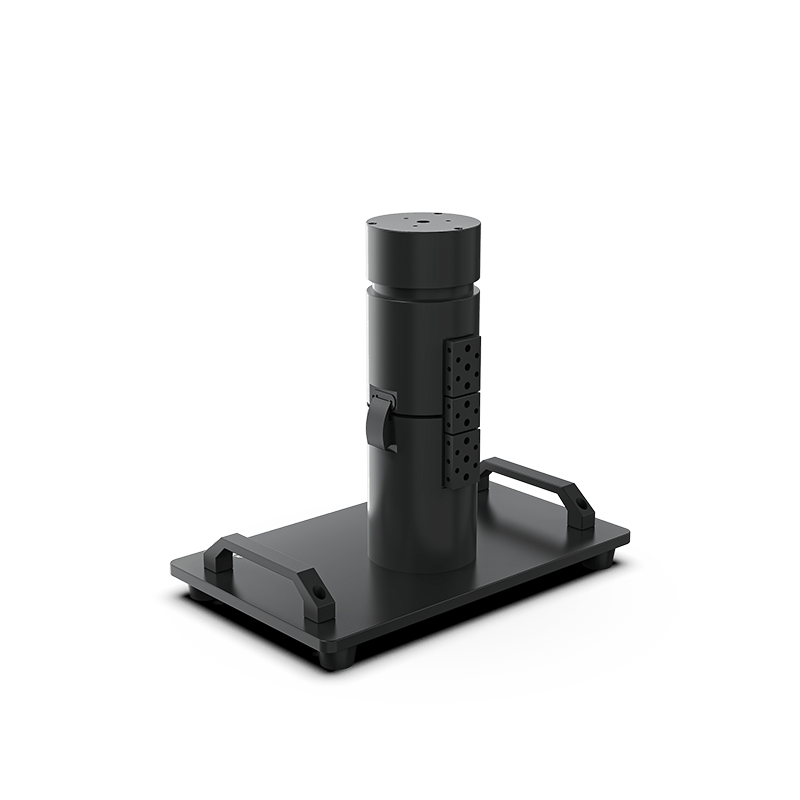

The device consists of a heating section, specimen section, cooling section, and insulation body, forming a one-dimensional steady-state axial heat conduction experimental model. The specimen section can be easily replaced, and temperature measurement points are evenly distributed in each section. Experimental data are collected and transmitted to the heat transfer experimental platform.
The apparatus is mainly used to analyze the temperature variation of cylindrical solid materials along the heat flow direction, enabling users to scientifically understand and visually verify Fourier’s Law of Heat Conduction and calculate the thermal conductivity of specimens.
It supports specimen replacement with different materials and cross-sections, as well as user customization, and can be extended for research applications involving insulation materials and thermal conductive materials.
Share:
Added to cart successfully
Experimental Functions
1.Used to study and verify the principle of one-dimensional steady-state heat conduction, and analyze the axial heat transfer process and temperature distribution in cylindrical materials.
2.Helps understand Fourier’s Law of Heat Conduction and calculate the thermal conductivity of solid materials.
3.Measures the temperature distribution differences in single and composite solid materials under steady-state heat transfer.
4.Measures, calculates, and compares the thermal conductivity of different materials.
5.Measures the temperature drop and contact thermal resistance at the interface of composite plate materials.
6.Measures the temperature distribution when the heat conduction cross-section of cylindrical metal materials decreases during steady heat transfer.
7.Generates time–temperature curves and power curves for heat conduction of different material samples.
8.Can be extended for research and comparative analysis of insulation materials, thermal insulation materials, and thermal conductive materials, including measurement of their thermal conductivity in practical applications.
Product Attributes
|
Product Model |
TH101 |
Product Name |
Linear Heat Conduction Experimental Apparatus |
|
Main Materials |
POM, Aluminum Alloy 6061, Copper |
Dimensions |
340×210×310mm |
|
Product Weight |
7.4 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz |
||
|
Required Modules |
Equal-diameter brass specimen, reduced-diameter brass specimen, stainless steel specimen, aluminum alloy specimen, constant-temperature water bath |
Optional Modules |
None |
