Fundamentals of Heat Transfer
This product is used in conjunction with a basic heat transfer experimental bench to study convective heat transfer in heat exchangers with different surface structures, as covered in Heat Transfer courses.
Share:
Added to cart successfully
Product Description
This product is used in conjunction with a basic heat transfer experimental bench to study convective heat transfer in heat exchangers with different surface structures, as covered in Heat Transfer courses.
Based on classical models of extended surfaces such as flat plates, pin fins, and fins, the module enables experimental analysis and calculation of heat transfer performance under both natural convection and forced convection conditions.

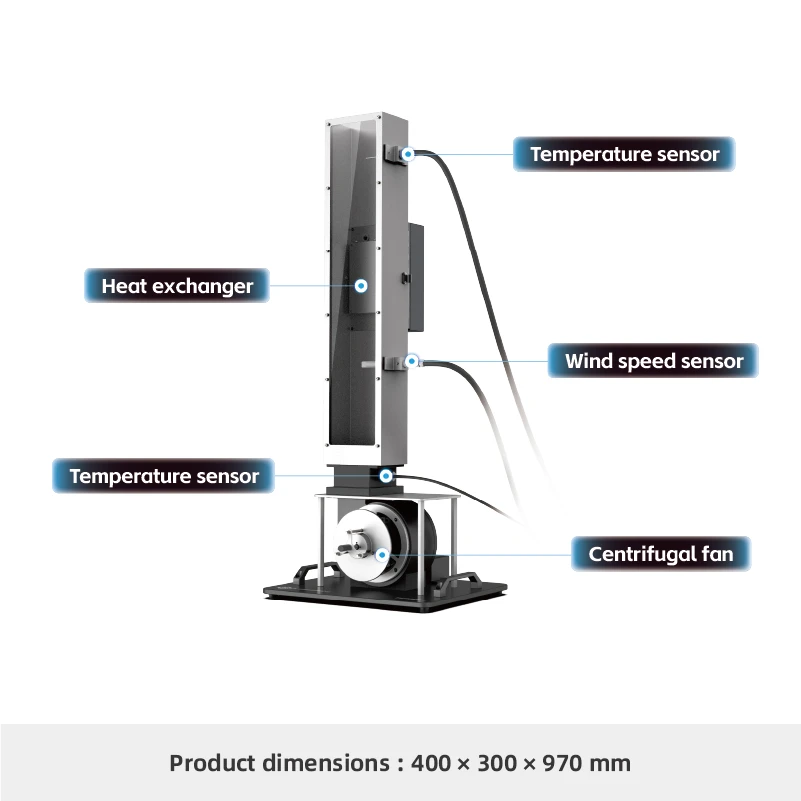

The system features a transparent airflow channel with adjustable wind speed, equipped with a centrifugal fan, airflow velocity sensor, thermocouples, and interchangeable test specimens (flat plate, fins, and pin fins). Experimental data is collected and recorded through the basic heat transfer experimental platform. The specimens are also expandable for further studies.
Experimental Functions
01
Study the variation of surface temperature with heating power for flat plates, pin fins, and finned surfaces under natural convection conditions.
02
Study the variation of surface temperature with heating power for flat plates, pin fins, and finned surfaces under forced convection conditions.
03
Understand the basic principles for measuring heat transfer coefficients in natural and forced convection.
04
Compare and analyze the heat dissipation performance of pin fins in inline and staggered arrangements.
05
Investigate the effect of extended surface area on heat transfer performance.
06
Measure the temperature distribution over extended surfaces.
Product Attributes
|
Product Model |
TH110 |
Product Name |
Flat Plate, Pin Fin, and Finned Surface Convective Heat Transfer Experimental Module |
|
Main Materials |
6061 Aluminum Alloy, 304 Stainless Steel |
Specifications |
400 × 300 × 970 mm |
|
Product Weight |
20 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |

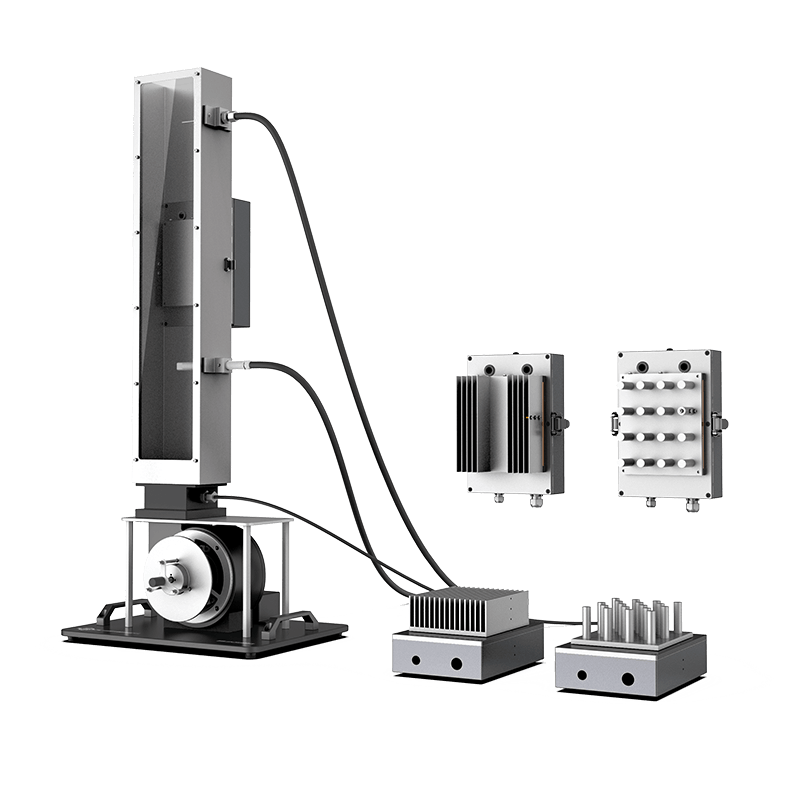

Flat plate, pin fins (inline and staggered arrangements), finned specimens |
Optional Modules |
None |
