Fundamentals of Heat Transfer
This product is used in conjunction with a basic heat transfer experimental bench to study the heat transfer process of rod-shaped materials under the combined effects of natural convection and radiation, as well as the temperature distribution under steady-state conditions, as covered in Heat Transfer courses.
Based on the cylindrical fin conduction model, the system enables comprehensive calculation of the thermal conductivity of rod-shaped metal materials. It represents a typical integrated application case in the field of heat transfer.
This apparatus helps deepen the understanding of excess (relative) temperature and verifies numerical solution methods for second-order nonhomogeneous differential equations in heat conduction analysis. It also familiarizes users with iterative numerical computation techniques.
Share:
Added to cart successfully
Experimental Functions
1.Measure the temperature distribution along the surface of the rod and compare it with theoretical analysis results.
2.Perform heat transfer calculations for the rod surface under combined natural convection and radiation, and compare with theoretical results.
3.Measure the thermal conductivity of rod-shaped materials and understand excess temperature concepts and numerical methods for solving the heat conduction differential equation.
Product Attributes
|
Product Model |
TH105 |
Product Name |

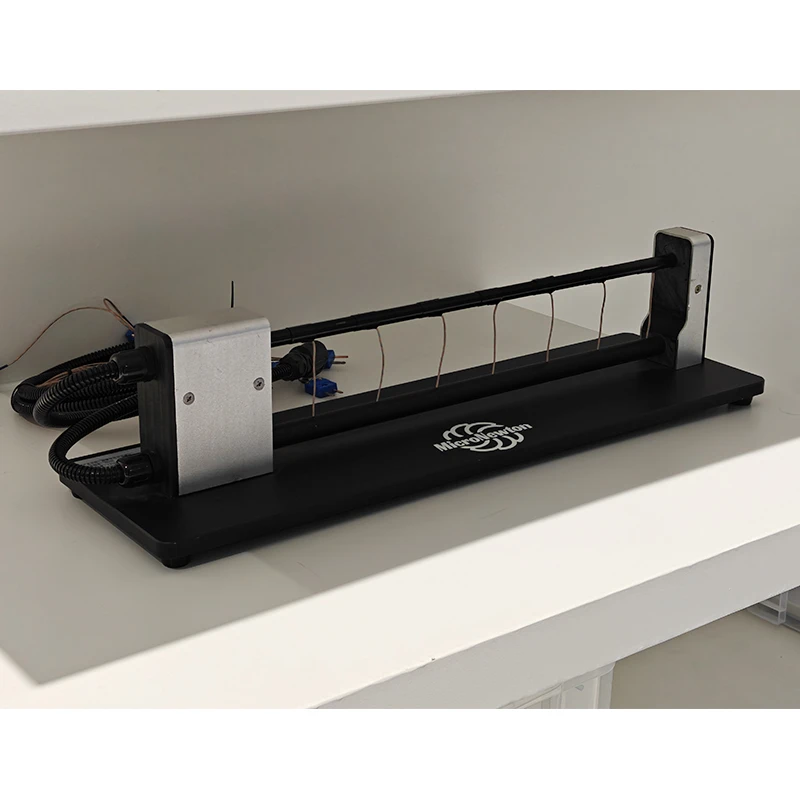

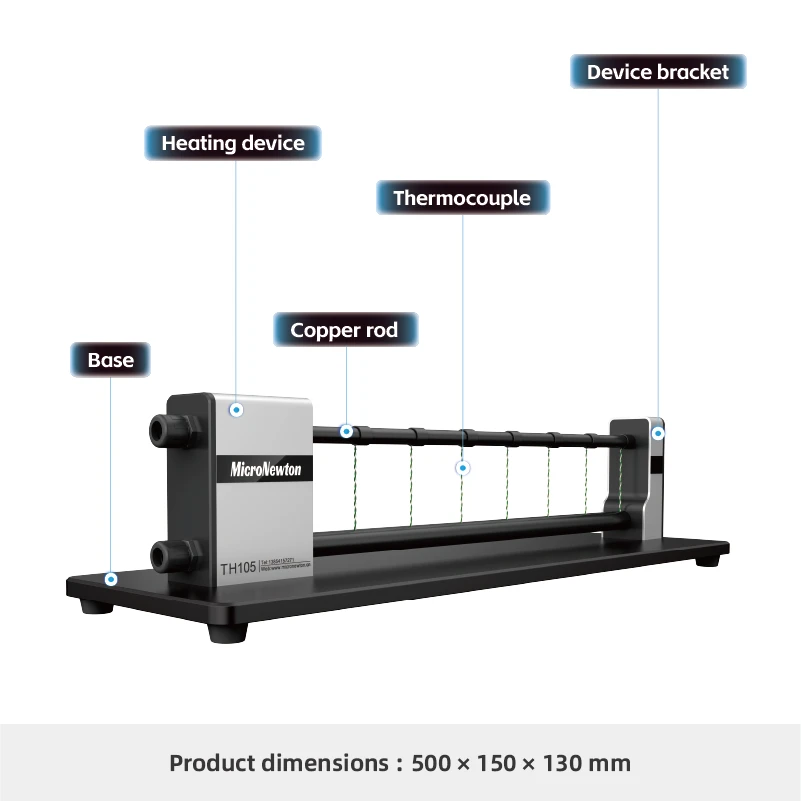

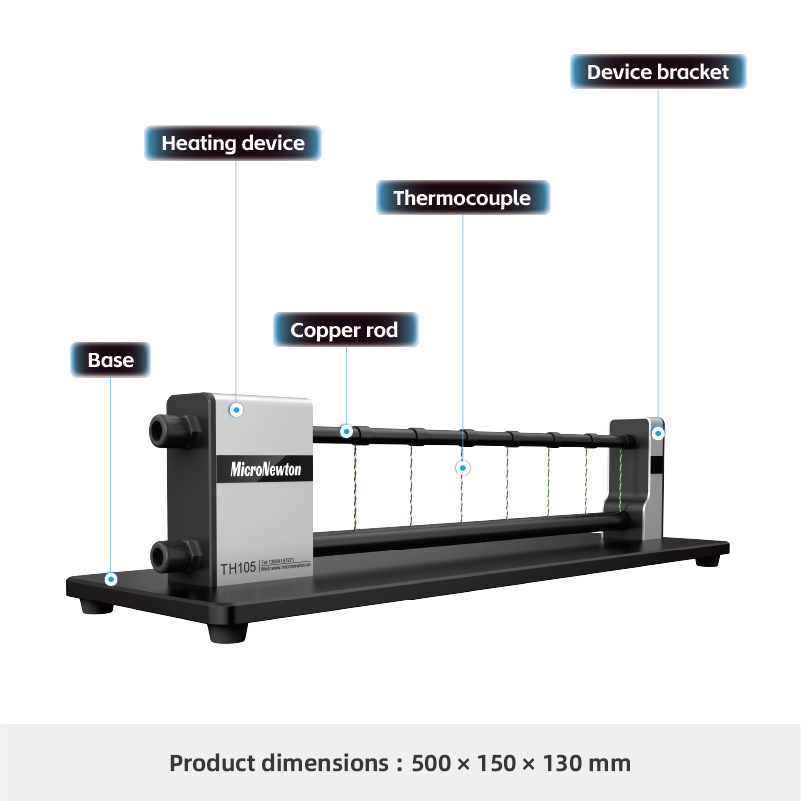

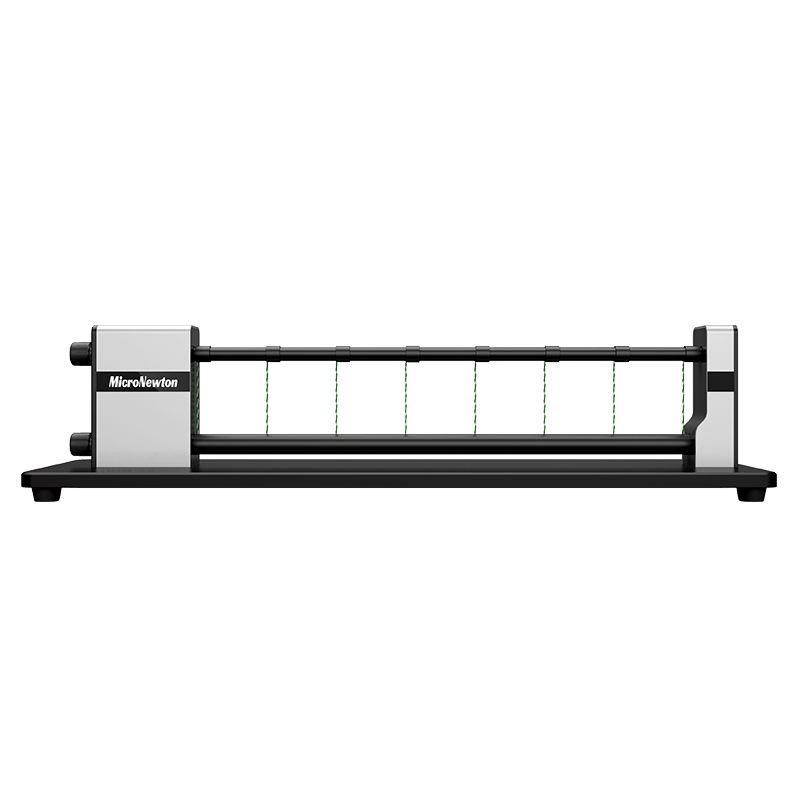

Finned Surface Heat Transfer Experimental Apparatus |
|
Main Materials |
Polytetrafluoroethylene (PTFE), H62 Brass |
Dimensions |
500 × 150 × 130 mm |
|
Product Weight |
3.1 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
