Fundamentals of Heat Transfer

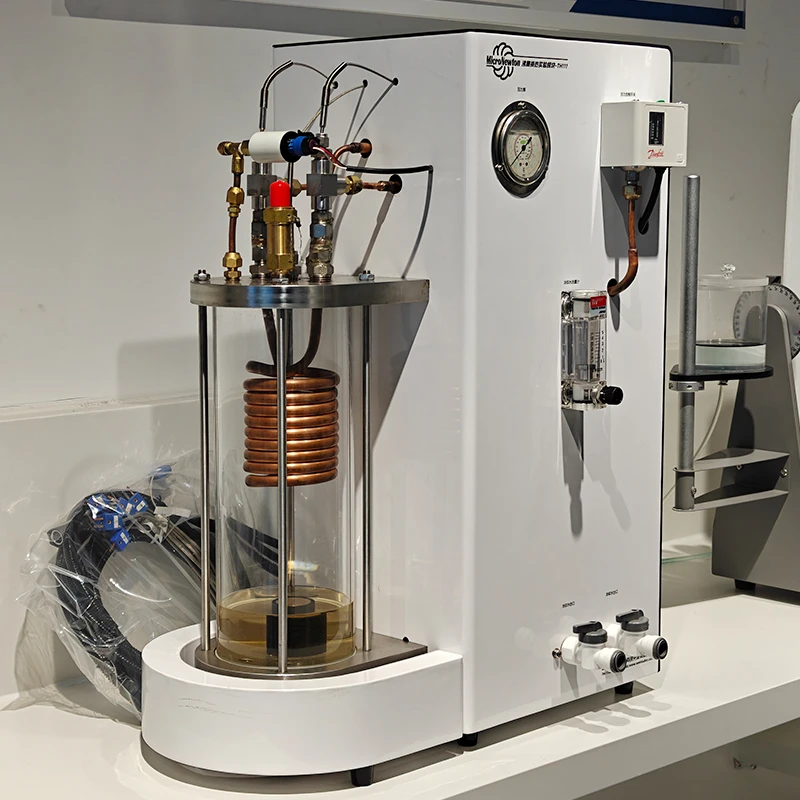

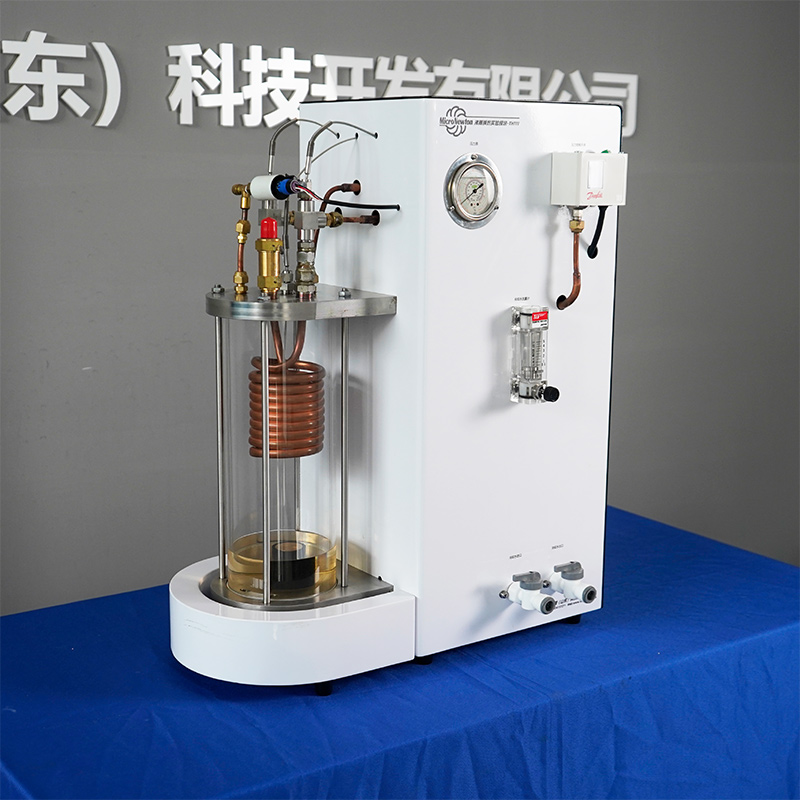

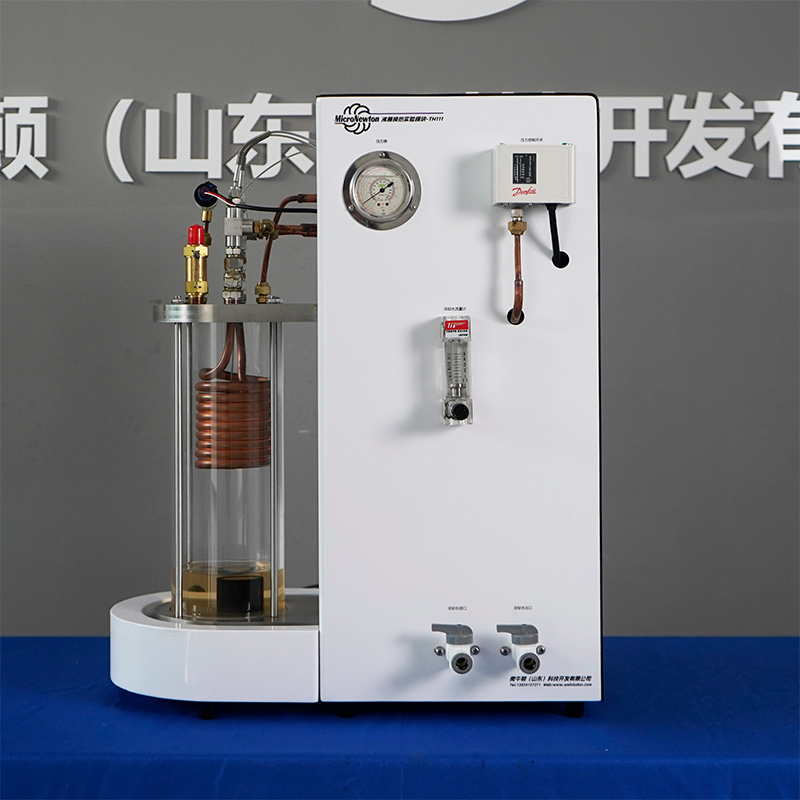

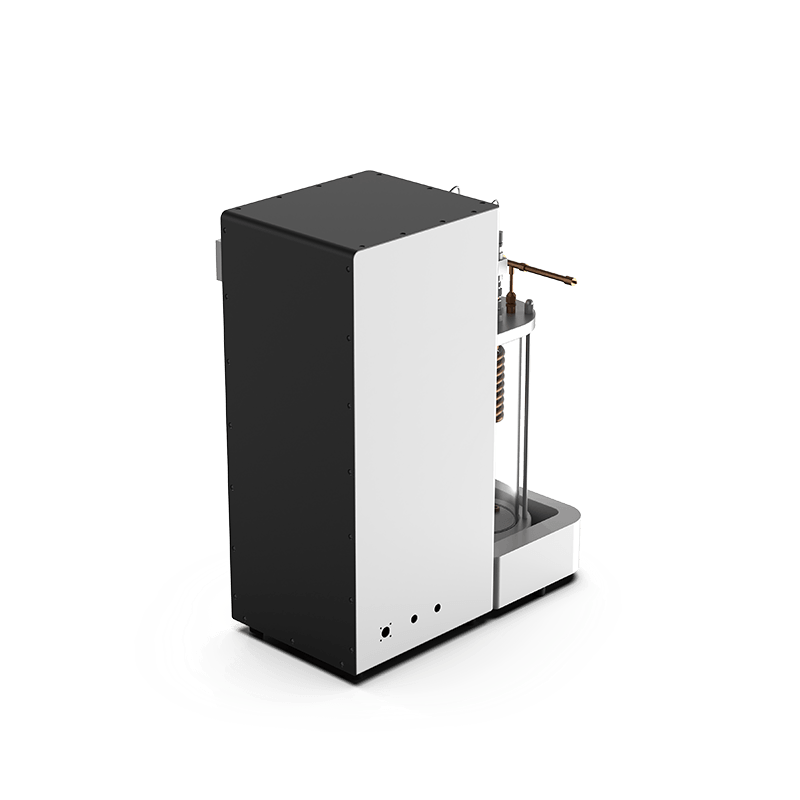

This product is designed based on the fundamental concepts of boiling heat transfer in Heat Transfer and is used together with the Heat Transfer Basic Experimental Platform. It is an experimental device for studying the principles and processes of natural convection boiling, nucleate boiling, and transition boiling.

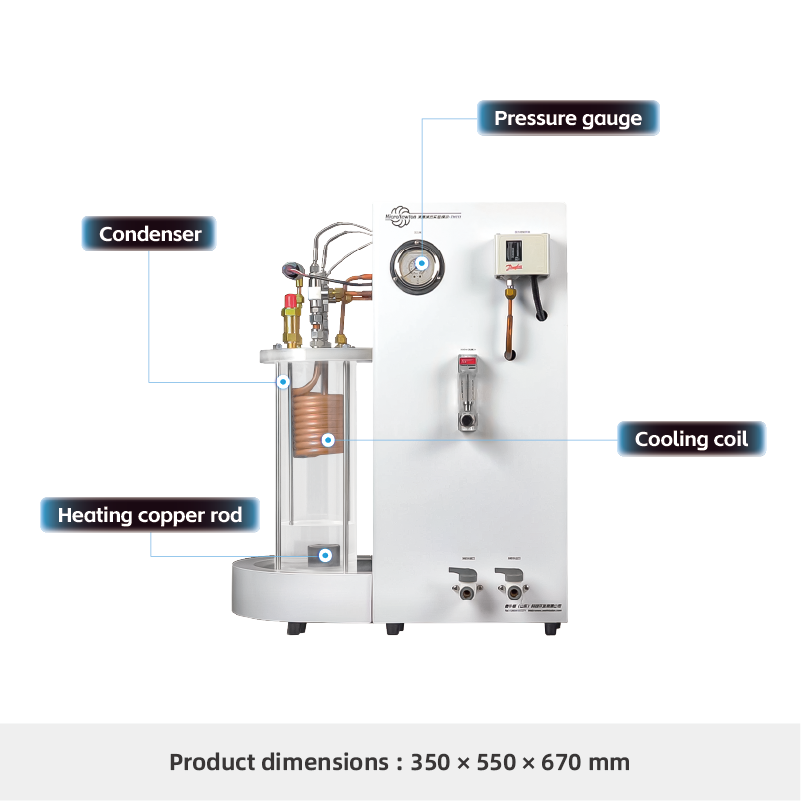

The main structure consists of a transparent quartz glass container. The bottom is equipped with an electric heating device, while the top features a water-cooling system. The container is filled with a certain amount of low-boiling-point organic working fluid, and a constant-temperature water bath provides cooling water. Relevant experimental parameters are measured and recorded through the experimental platform.
Share:
Added to cart successfully
Experimental Functions
1.Provides visual demonstration of convection boiling, nucleate boiling, and transition boiling phenomena.
2.Enables the study of heat flux density and surface heat transfer coefficient under constant pressure.
3.Investigates the effect of pressure on critical heat flux density.
4.Supports the measurement and analysis of the overall heat transfer coefficient.
Product Attributes
|
Product Model |
TH111 |
Product Name |
Boiling Heat Transfer Experimental Module |
|
Main Materials |
Galvanized Steel Plate, 304 Stainless Steel, Quartz Glass |
Dimensions |
270 × 550 × 670 mm |
|
Product Weight |
58kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
|
||
|
Required Modules |
Chiller Unit |
Optional Modules |
None |
Case Studies
Integrated Thermal Fluids and Energy Laboratory at Zhejiang University of Technology
Flight Demonstration Wind Tunnel at Shandong University
Multi Energy Complementary Experimental Platform at Hebei University
Statically Determinate Beam Section Internal Force Testing Apparatus Delivered to Jining Vocational and Technical College
Self Developed Compression Bar Stability and Stress Testing Apparatus Delivered to Shandong Polytechnic University
