Fundamentals of Fluid Mechanics
This product is designed to be used together with the Basic Fluid Mechanics Experimental Bench for experimental study of the liquid relative equilibrium theory in Fluid Mechanics.

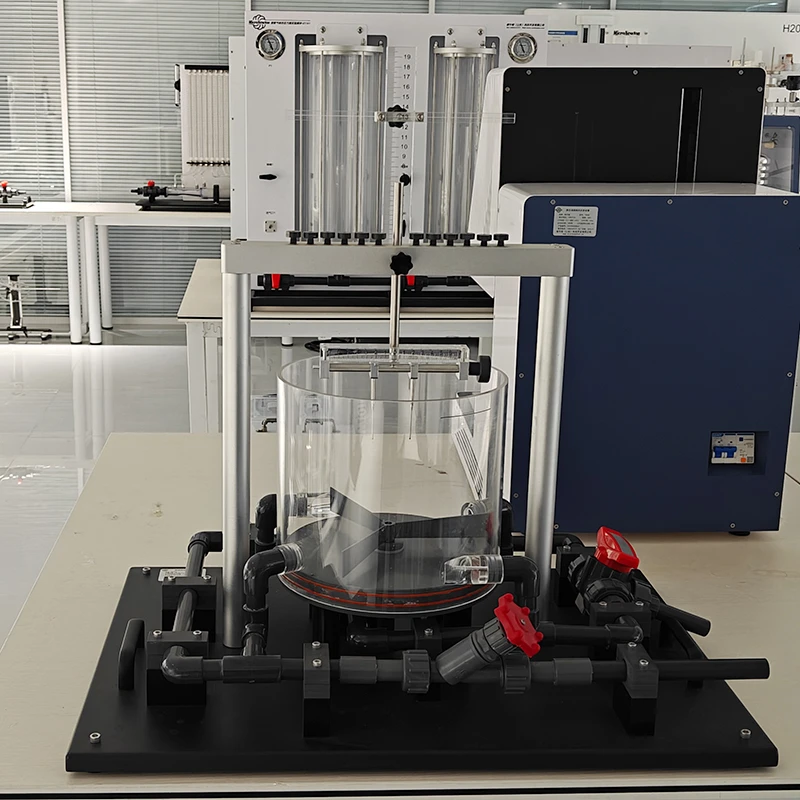

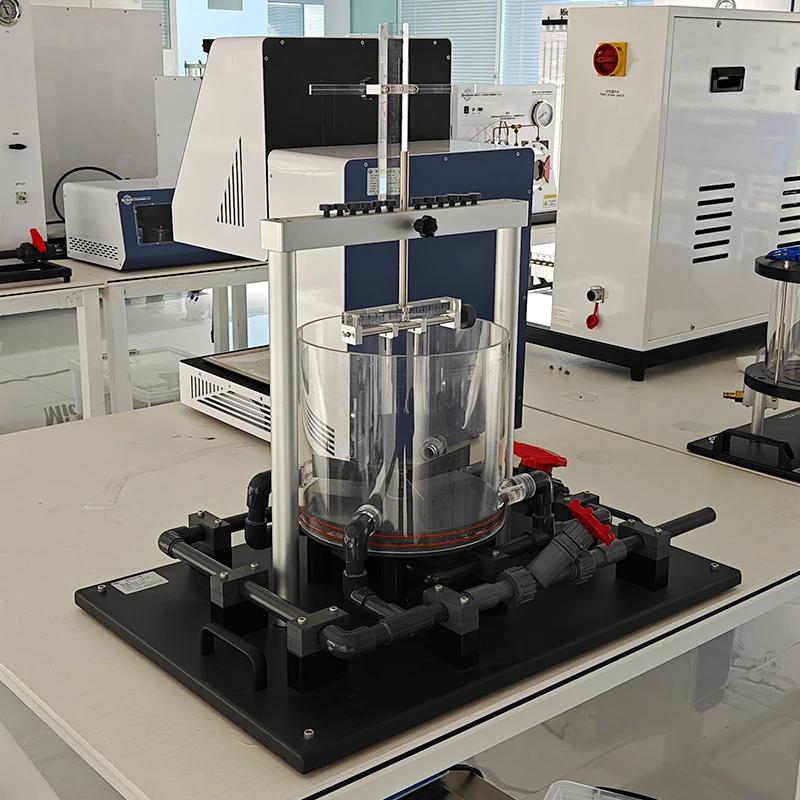

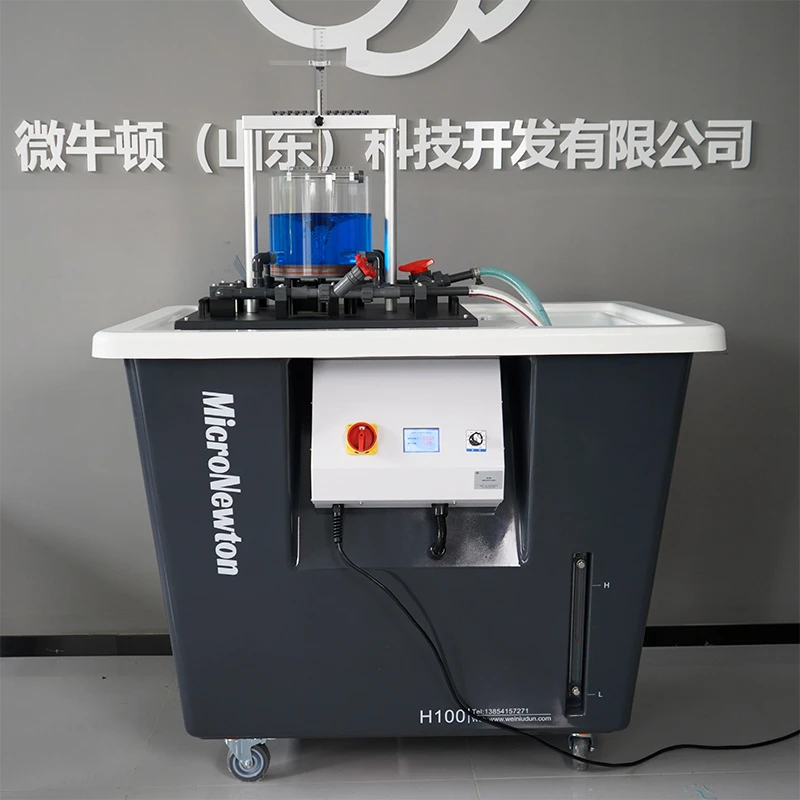

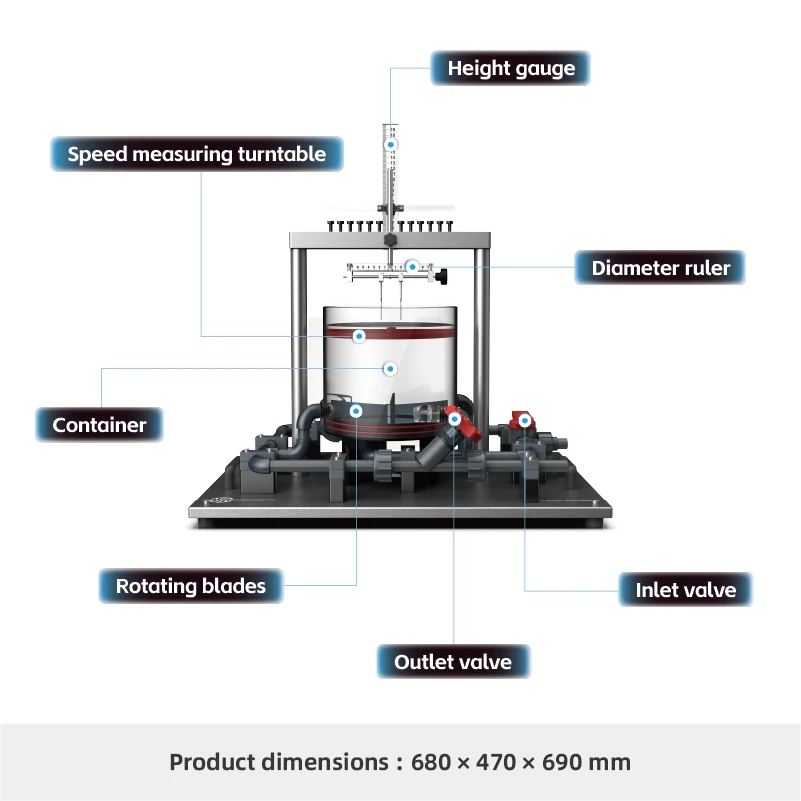

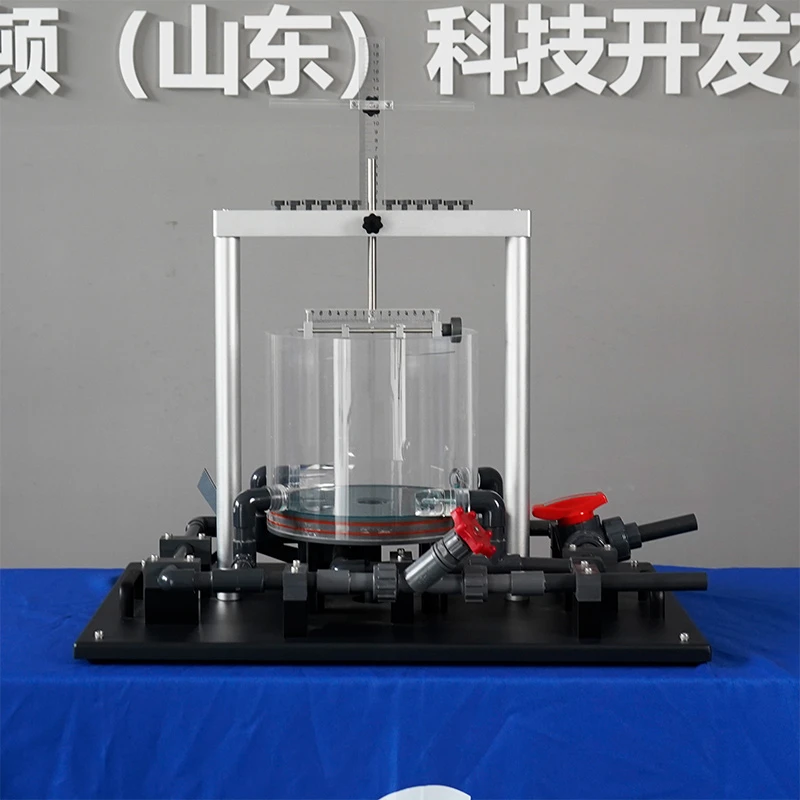

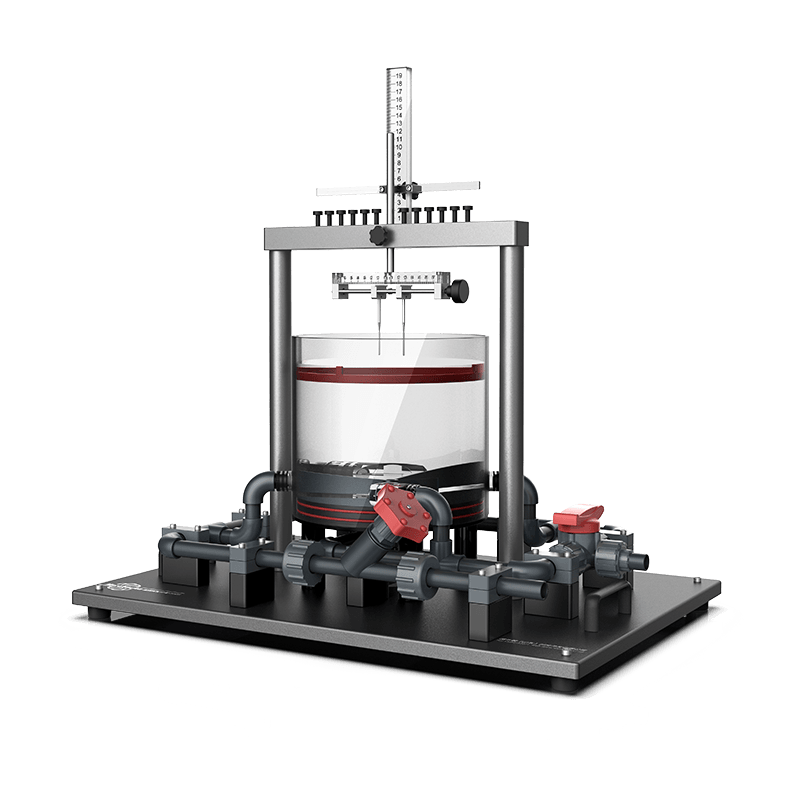

The apparatus features a rotating mechanism and water level probes, with the main water tank made of fully transparent material. When connected to the H100 Basic Fluid Mechanics Experimental Bench, it allows direct observation of forced and free vortex phenomena. Using the water level probes, users can plot the surface profile of the liquid where the vortex is formed.
Share:
Added to cart successfully
Experimental Functions
1.Observe the law of mutual conversion between static pressure head and dynamic pressure head.
2.Demonstrate the pressure distribution along the flow path when water passes through a Venturi tube and an orifice plate
3.Show the application of Bernoulli's equation in incompressible fluids.
4.Compare the pressure drop differences of three different flowmeters.
5.Calibrate the flow coefficients of Venturi flowmeters and orifice plate flowmeters.
6.Master the experimental measurement skills of flow parameters such as flow velocity, flow rate and pressure.
Product Attributes
|
Product Model |
H105 |
Product Name |
Vortex Experiment Device |
|
Main Materials |
Acrylic, 6061 Aluminum Alloy |
Dimensions |
680×470×690mm |
|
Product Weight |
18kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
