Fundamentals of Fluid Mechanics

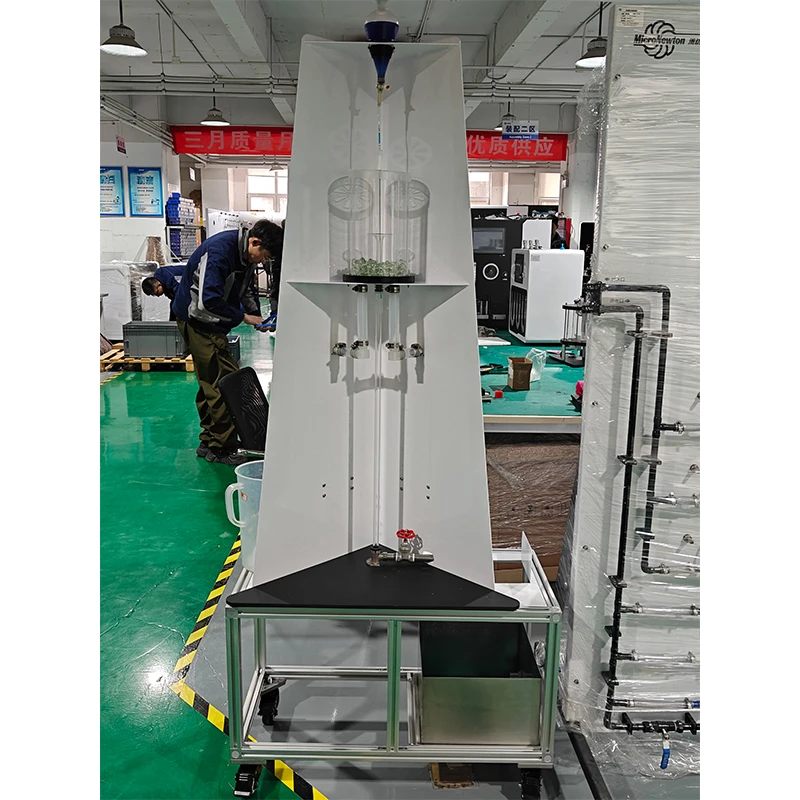

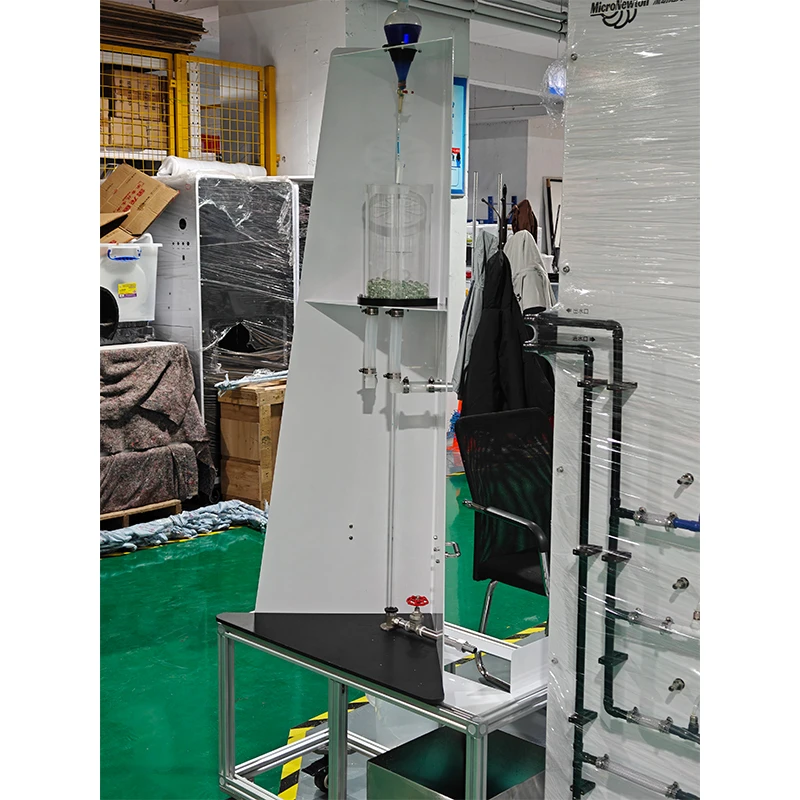

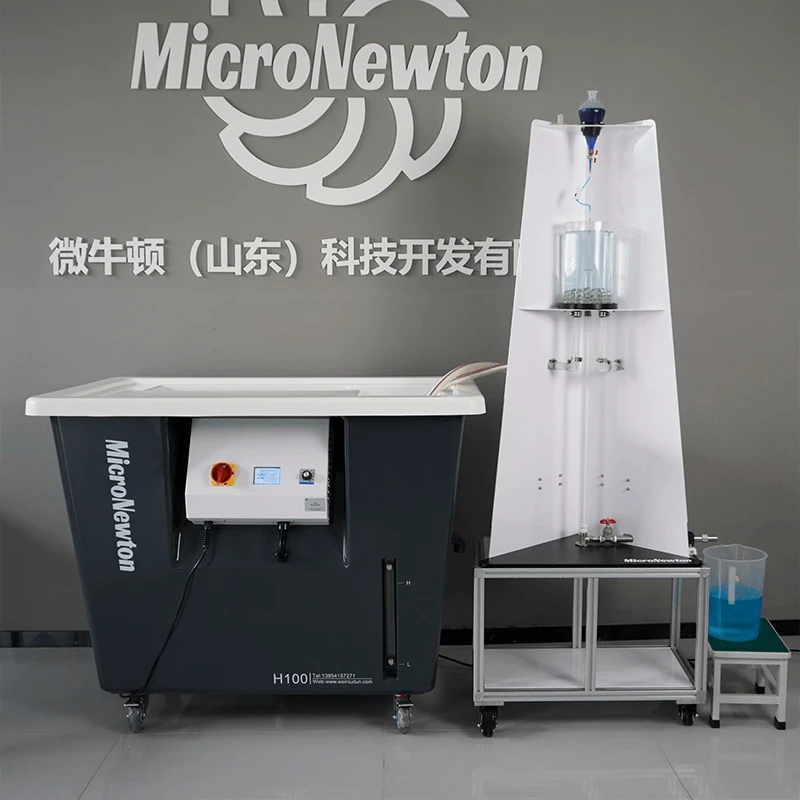

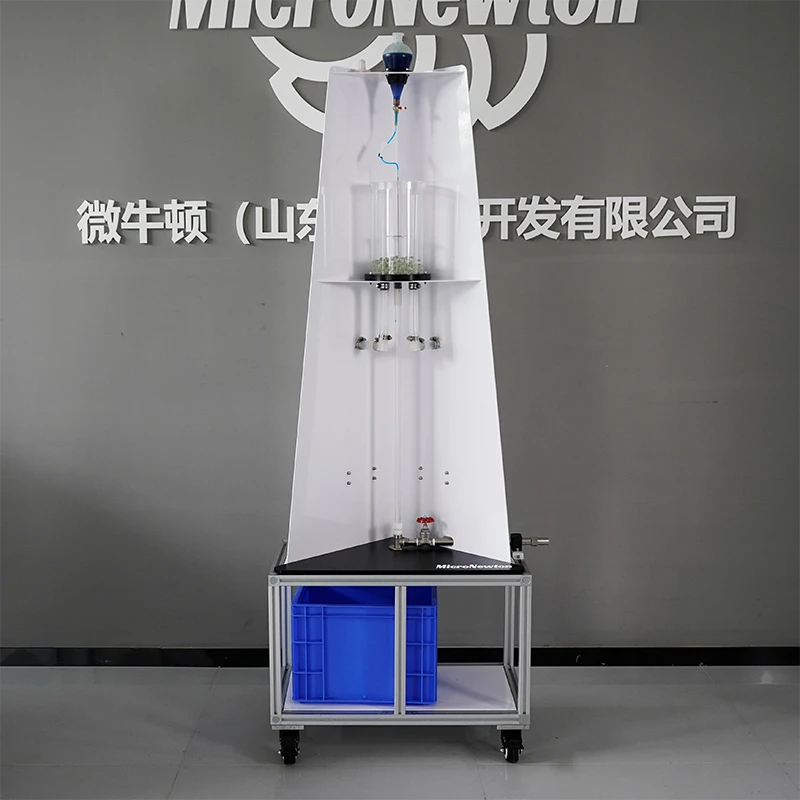

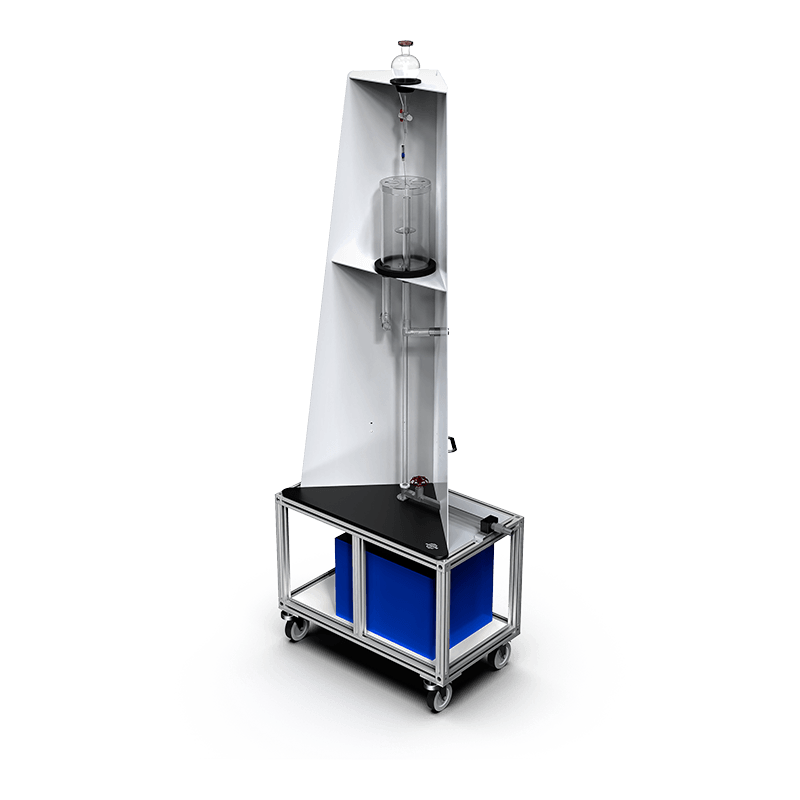

This product is designed to be used together with the H100 Basic Fluid Mechanics Experimental Bench to facilitate the understanding and experimental study of the Reynolds number in Fluid Mechanics. The apparatus features a fully transparent design, allowing visualization of laminar, transitional, and turbulent flow states through tracer flows and basic flow observation.
It enables measurement of the Reynolds number for each flow regime and allows verification of the Reynolds number ranges for laminar-to-turbulent and turbulent-to-laminar transitions. The experiment also helps users understand the effect of viscosity on flow behavior.
Share:
Added to cart successfully
Experimental Functions
1.Used to observe various flow patterns of liquids in motion.
2.Used to determine the relationship between flow patterns and the Reynolds number (Re), as well as the critical Reynolds number.
3.Used for experimental analysis of flow regime classification criteria in circular pipes.
4.Used to understand the method of using dimensionless parameters for experimental studies in fluid mechanics.
Product Attributes
|
Product Model |
H102 |
Product Name |
Reynolds Number Measurement Experimental Apparatus |
|
Main Materials |
Galvanized Sheet, Acrylic |
Dimensions |

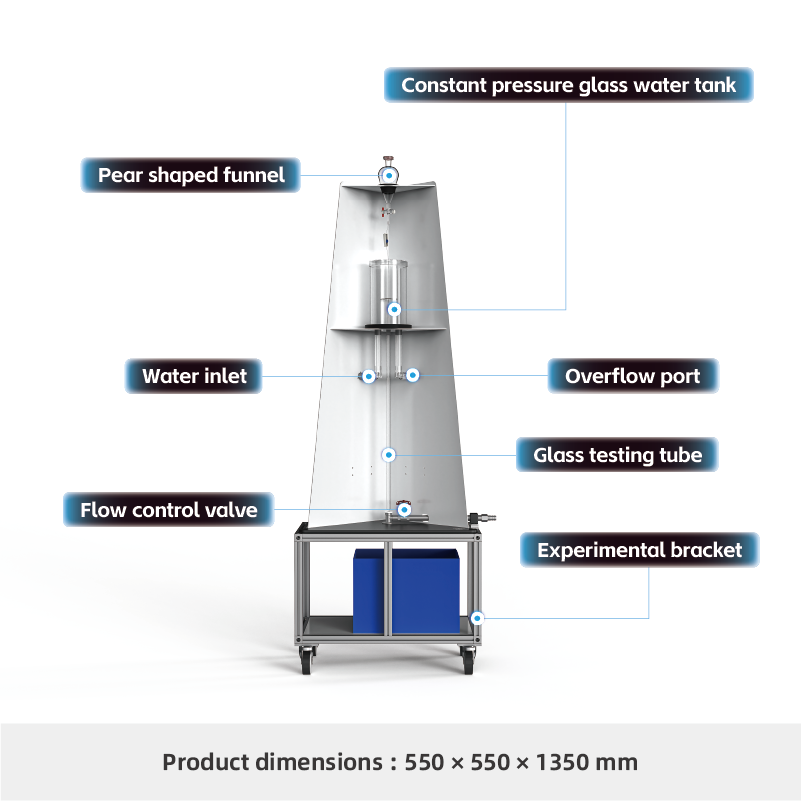

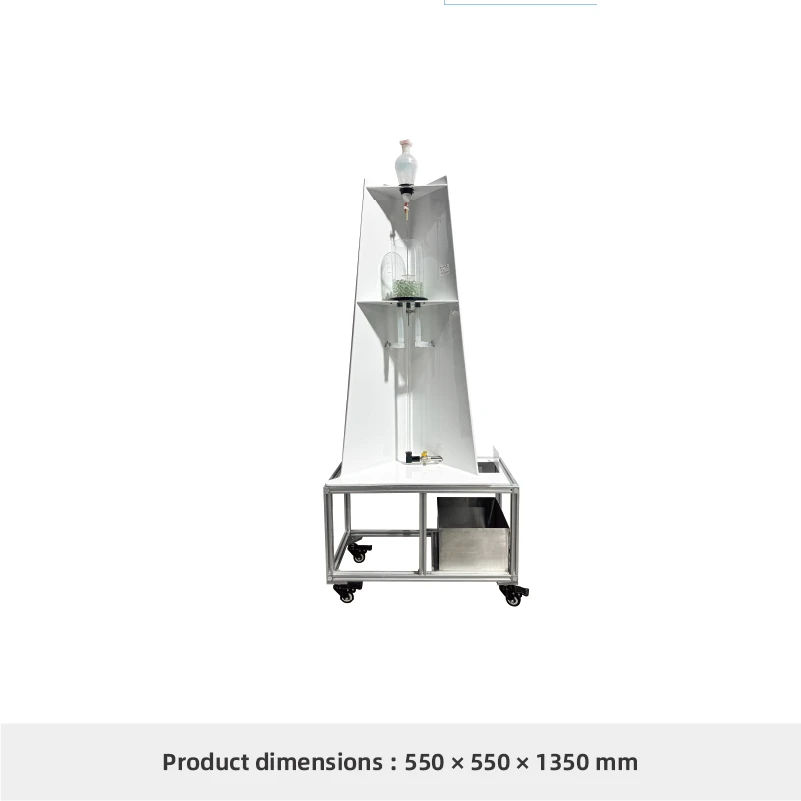

550×550×1350mm |
|
Product Weight |
Main Unit: 28 kg Frame: 15.5 kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Thermometer Dye Measuring Cup Stopwatch |
Optional Modules |
None |
