Fundamentals of Fluid Mechanics
This apparatus is mainly used to study the outflow characteristics of orifices with various shapes, including measuring parameters such as the coefficient of contraction, velocity coefficient, and discharge coefficient of small-orifice flow.

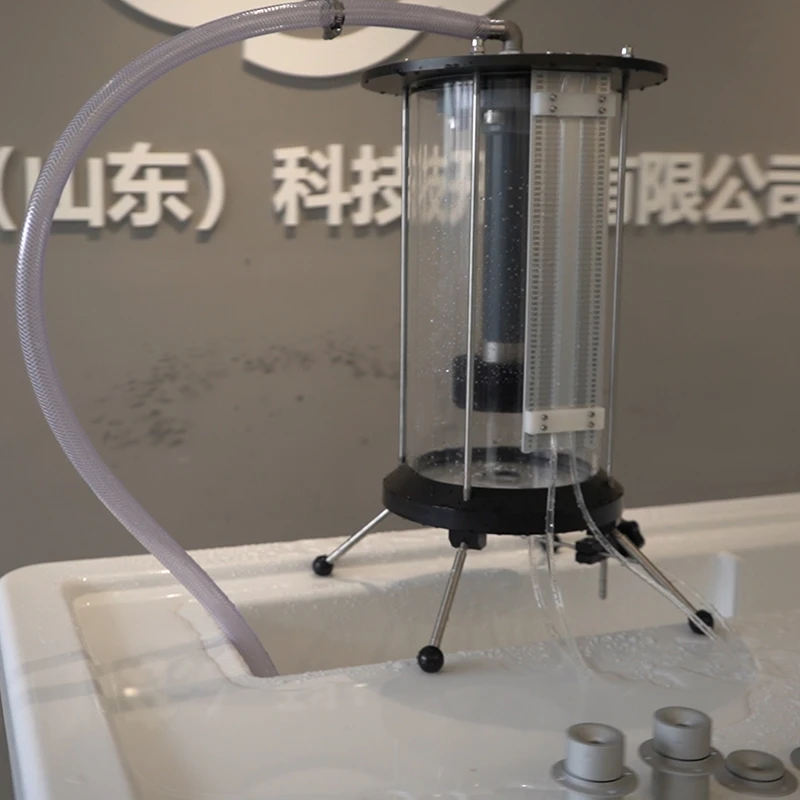

The main body of the device is a transparent glass container, which allows clear observation of changes in the water level. The flow rate and water level are regulated through the Basic Fluid Mechanics Experimental Bench. A multi-tube manometer is used to measure the total head and the pressure of the water flow after passing through the orifice. A vernier caliper is used to measure the jet diameter, and a traversing Pitot tube can be positioned at any point within the jet.
Share:
Added to cart successfully
Experimental Functions
1.Measure the coefficient of contraction and velocity coefficient of orifice flow.
2.Calculate the discharge coefficient.
3.Measure the actual discharge coefficient and compare it with the theoretical value.
4.Measure various coefficients at different flow velocities and study the effect of Reynolds number on these coefficients.
5.Study the outflow characteristics of different types of orifices.
Product Attributes
|
Product Model |
H110 |
Product Name |

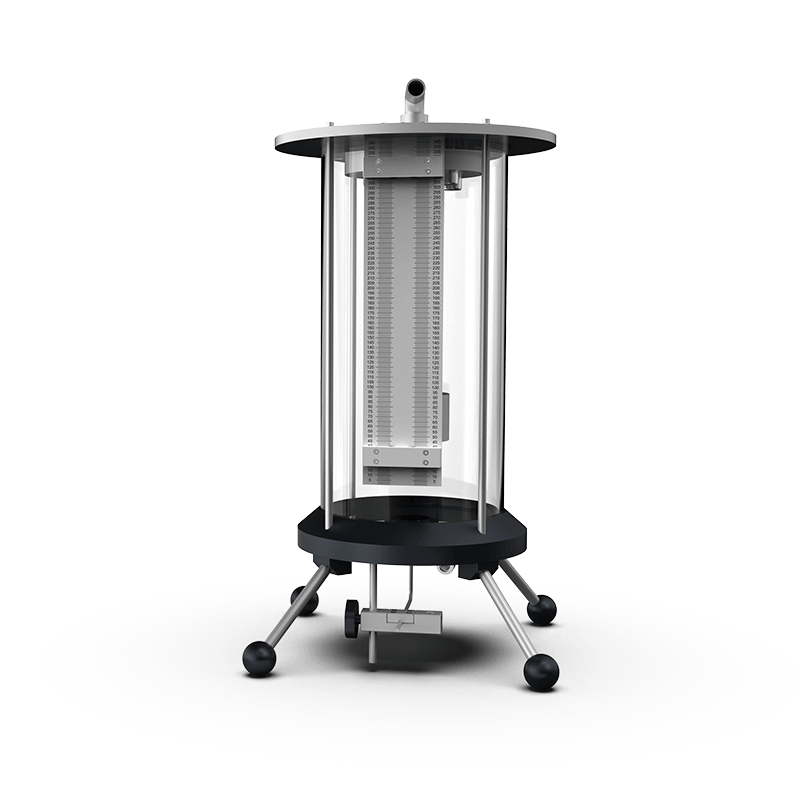

Orifice and Mouthpiece Comprehensive Experimental Apparatus |
|
Main Materials |
Acrylic, 6061 Aluminum Alloy |
Dimensions |
430×430×620mm |
|
Product Weight |
17.5kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Equipped with six interchangeable test specimens. |
Optional Modules |
None |
