Fundamentals of Fluid Mechanics
This product includes a constant head device, baffle plate, nozzle set, and Pitot tube. It can demonstrate the vertical flow and horizontal jet trajectory of water passing through different orifices (nozzles), enabling students to study the trajectory distribution of water jets when the nozzle is installed horizontally.
Share:
Added to cart successfully
Experimental Functions
1.Easily and intuitively plot the horizontal jet trajectory.
2.Directly measure the total head, head loss, and diameter of a vertical water jet.
3.Measure the coefficient of contraction and velocity coefficient of orifice flow.
4.Calculate the discharge coefficient.
5.Measure the actual discharge coefficient and compare it with the theoretical value.
6.Measure various coefficients at different flow velocities and study the effect of Reynolds number on these coefficients.
7.Study the outflow characteristics of different orifices.
Product Attributes
|
Product Model |
H111 |
Product Name |

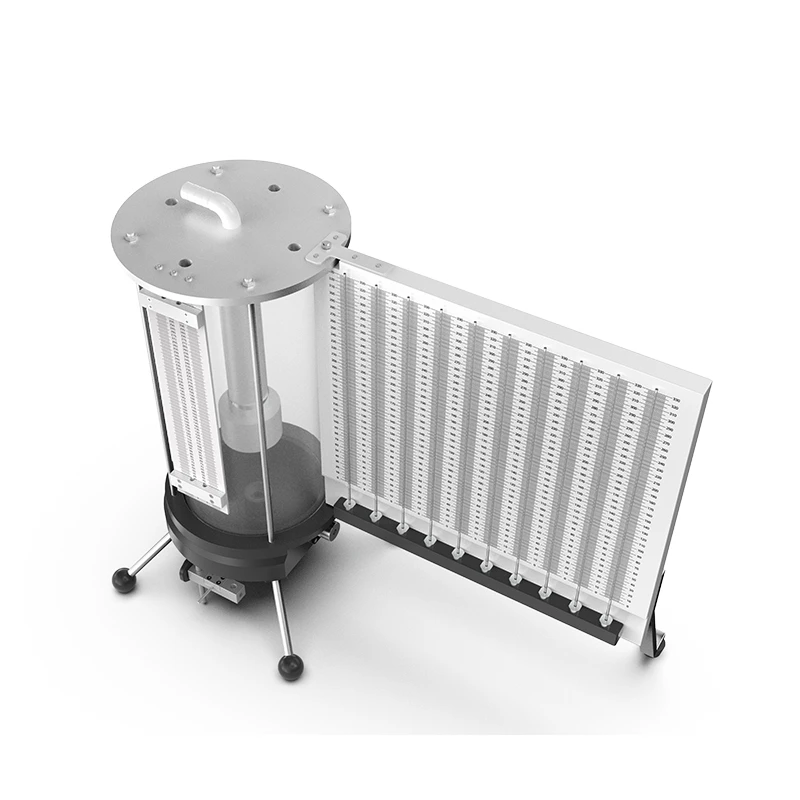

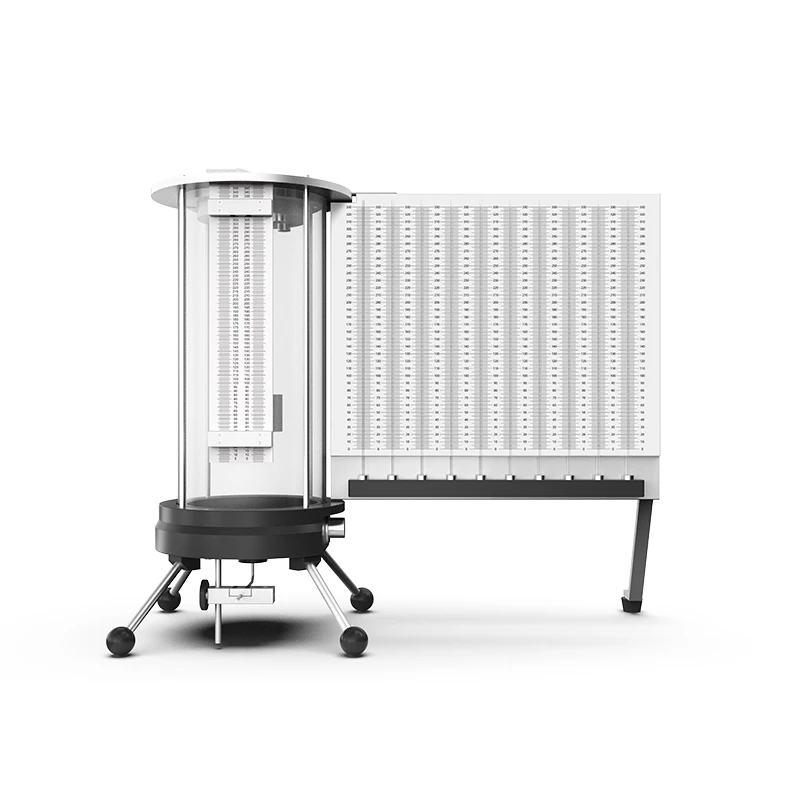

Nozzle and Jet Velocity Experimental Apparatus |
|
Main Materials |
Acrylic, 6061 Aluminum Alloy |
Dimensions |
730×330×640mm |
|
Product Weight |
35kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
1. Six types of orifice test specimens 2. Four types of nozzle test specimens |
Optional Modules |
None |
