Fundamentals of Fluid Mechanics
This apparatus is primarily used to study the impact forces and momentum changes of water jets or columns on various shapes of flat and inclined plates. It provides a foundation for deeper understanding and research of applications such as the working principles of cup-type water turbines.

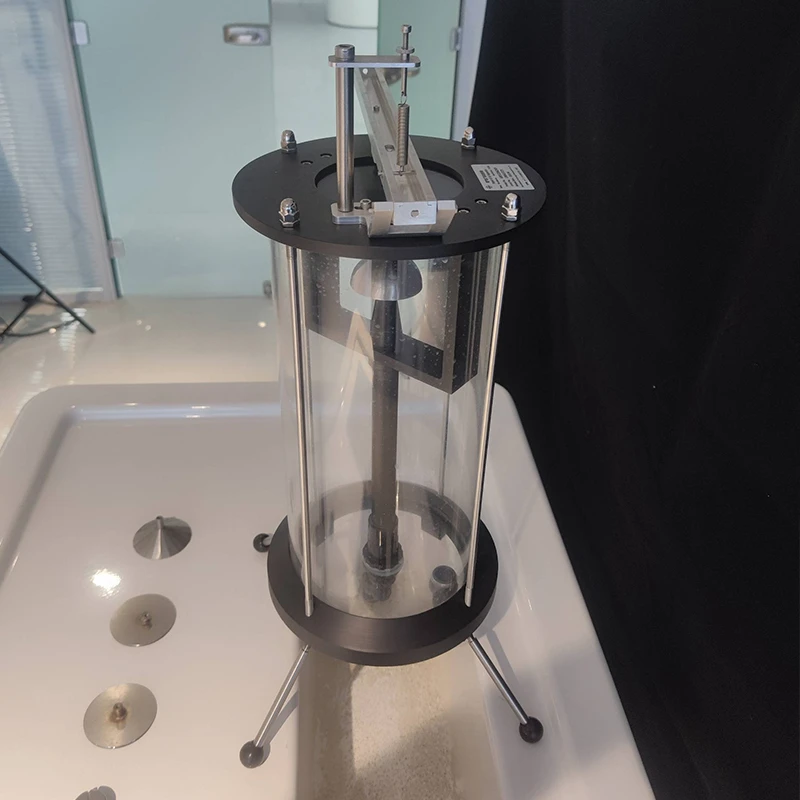

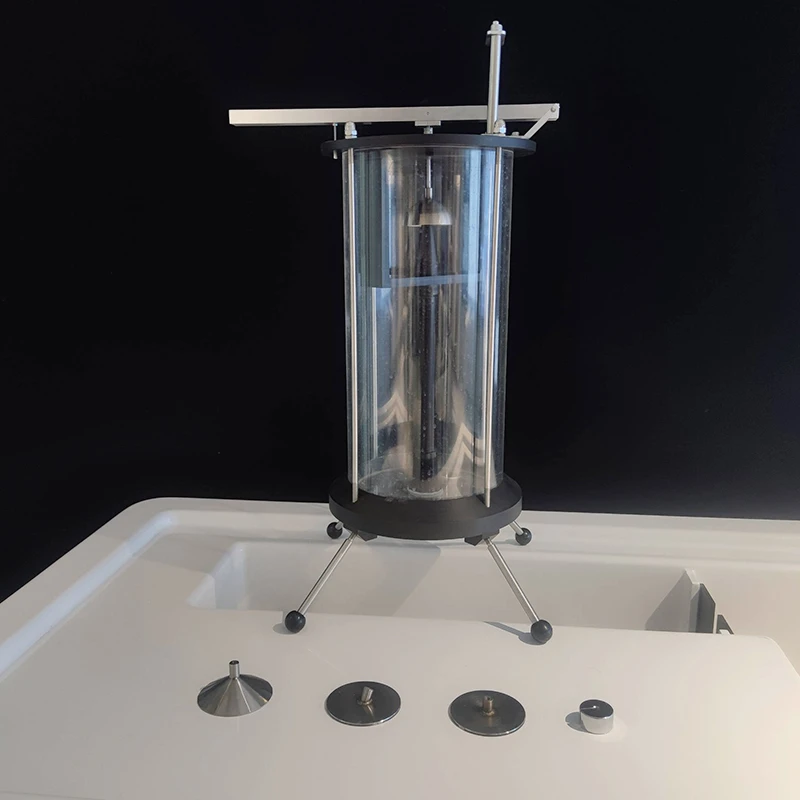

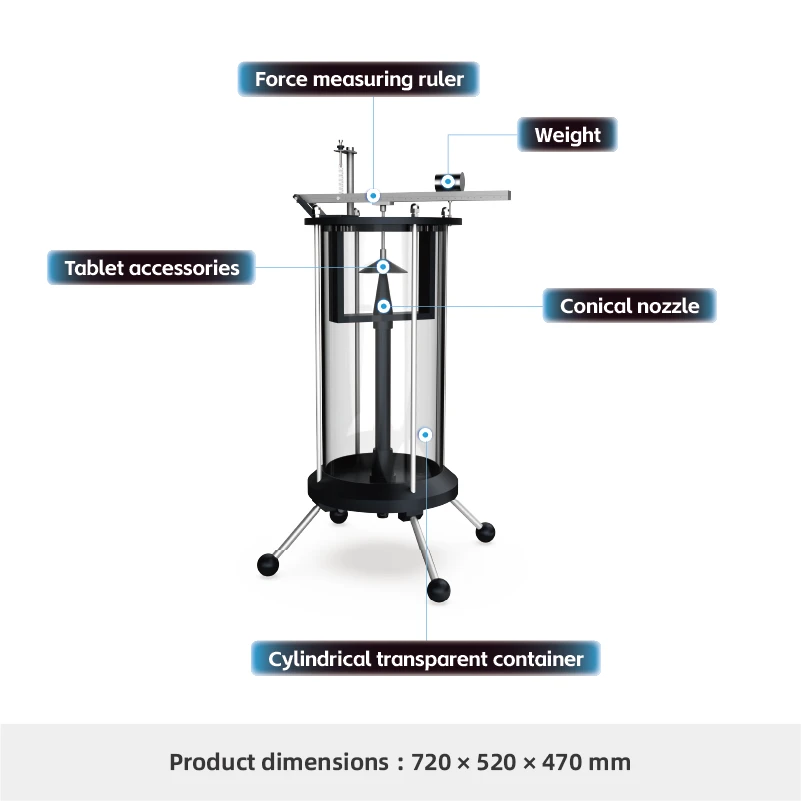

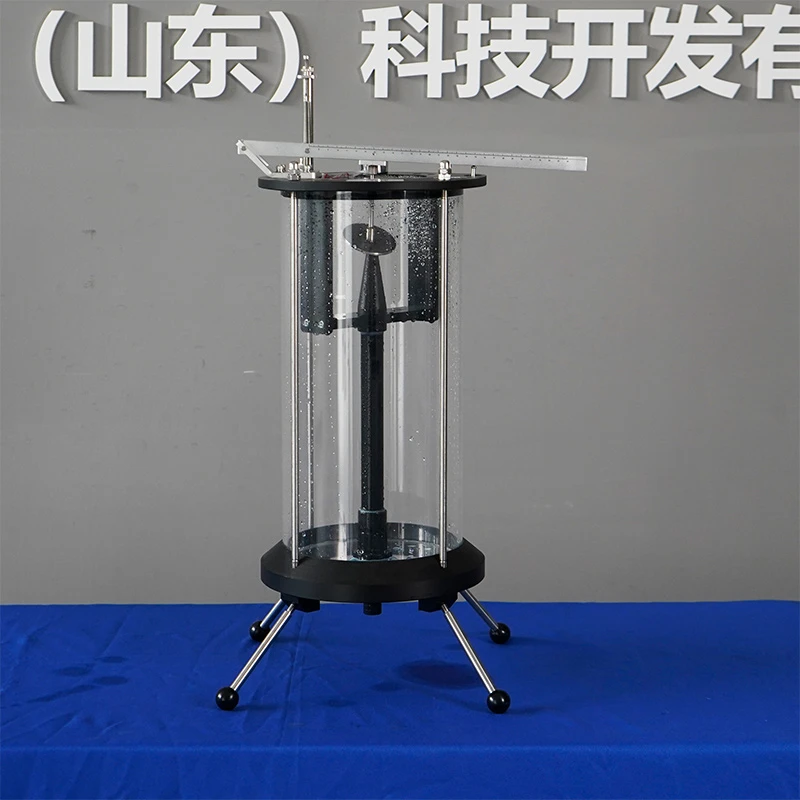

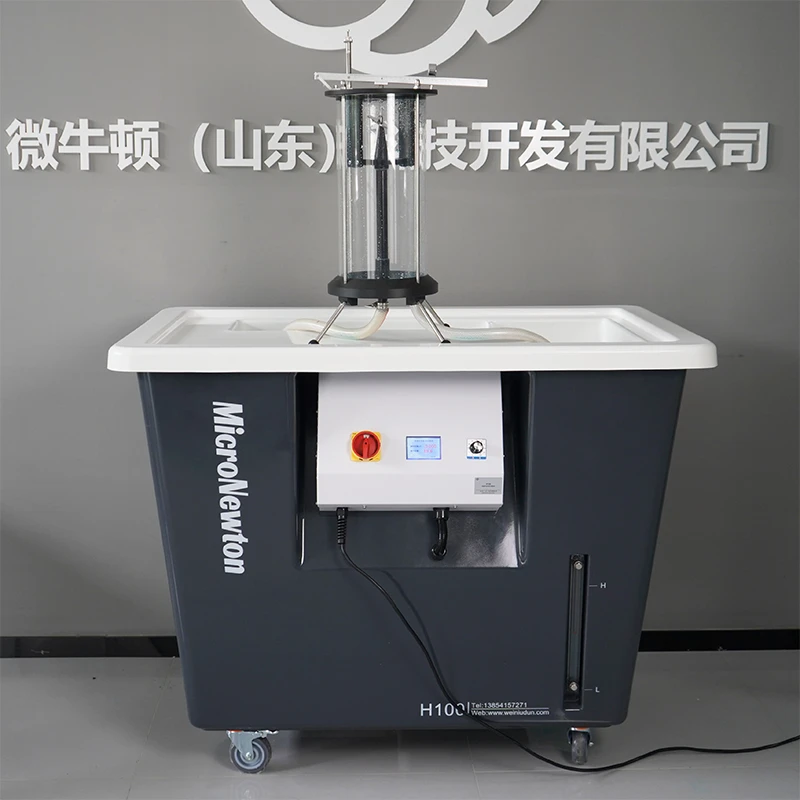

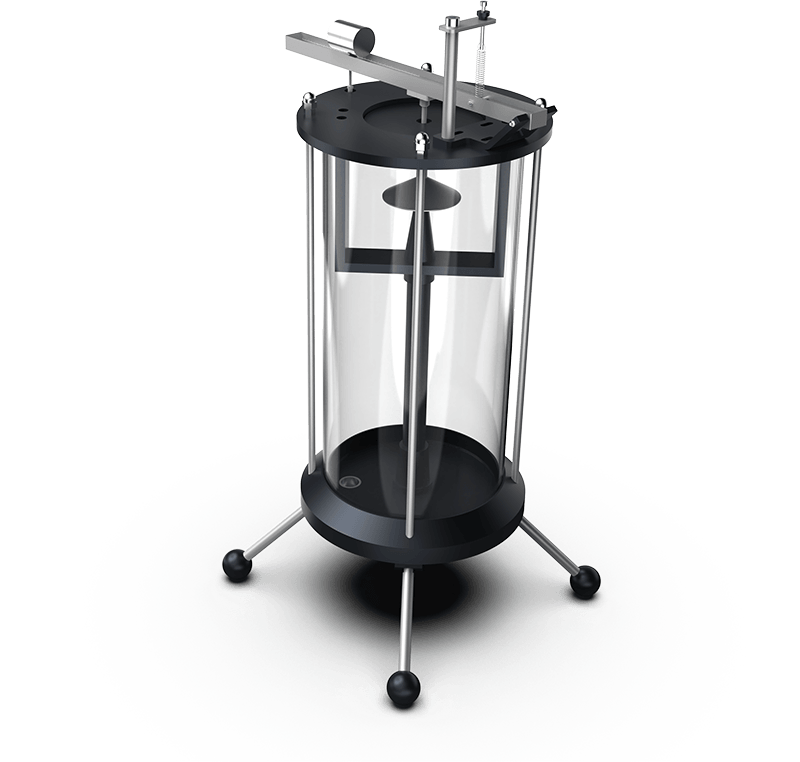

The main body of the device is a transparent cylindrical glass container, equipped with vertically arranged conical nozzles and test plates. The nozzles are connected to the Basic Fluid Mechanics Experimental Bench to generate high-speed jets, while the test plates are connected to a dedicated force measurement device to measure the impact forces produced by the jets.
The bottom of the container includes a drain pipe that returns water to the experimental bench for circulation. All test plates are designed for quick installation and removal without the need for special tools.
Share:
Added to cart successfully
Experimental Functions
1.Study the impact forces and momentum changes of water jets or columns on various shapes of flat and inclined plates, and verify the steady-flow momentum equation.
Product Attributes
|
Product Model |
H108 |
Product Name |
Momentum Equation Experimental Apparatus |
|
Main Materials |
Acrylic, POM (Polyoxymethylene) |
Dimensions |
720×520×470mm |
|
Product Weight |
18kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
