Fundamentals of Fluid Mechanics

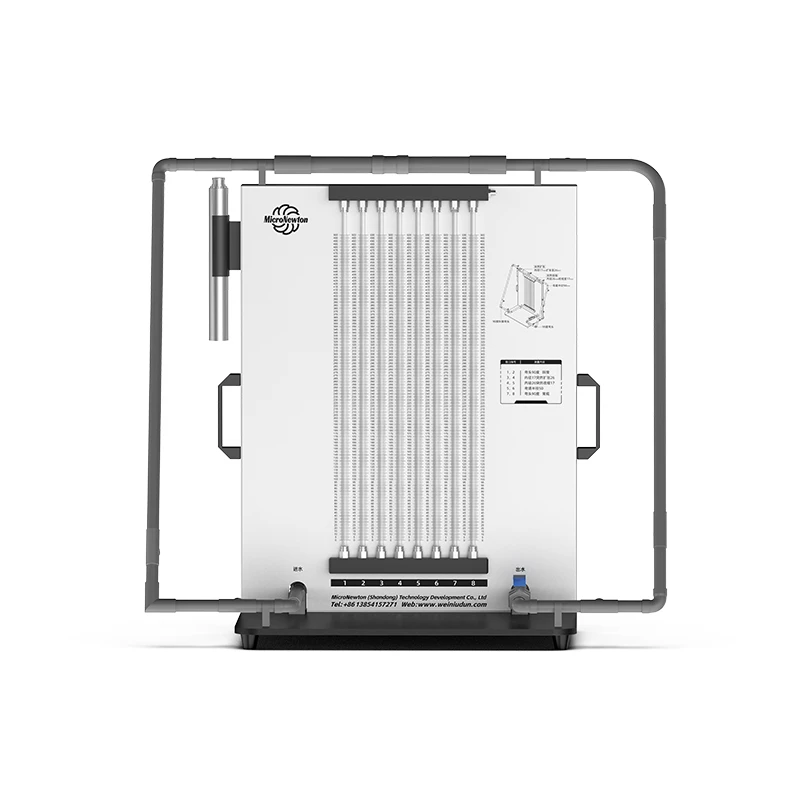

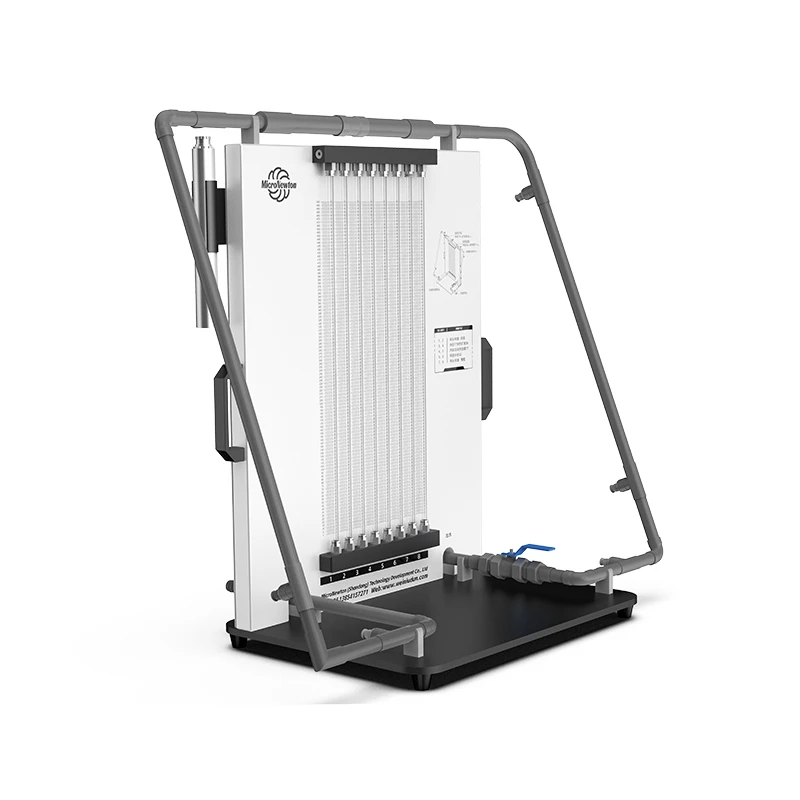

This product is mainly used to study the local head loss of water flow in pipelines, including pipelines and fittings of various structural types, such as: miter bends, right-angle bends, large-radius bends, sudden expansion pipes and sudden contraction pipes.

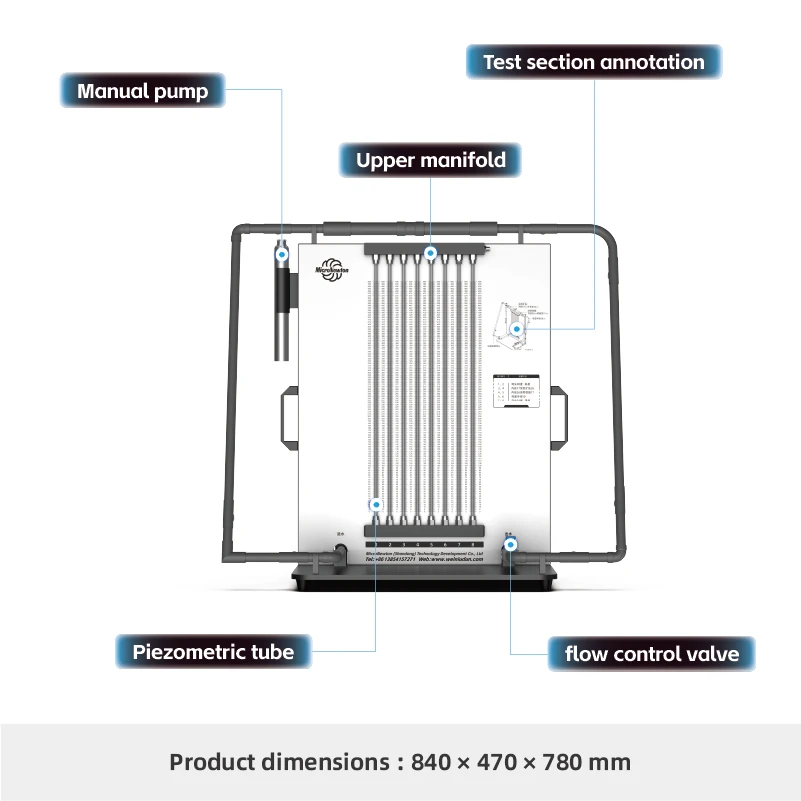

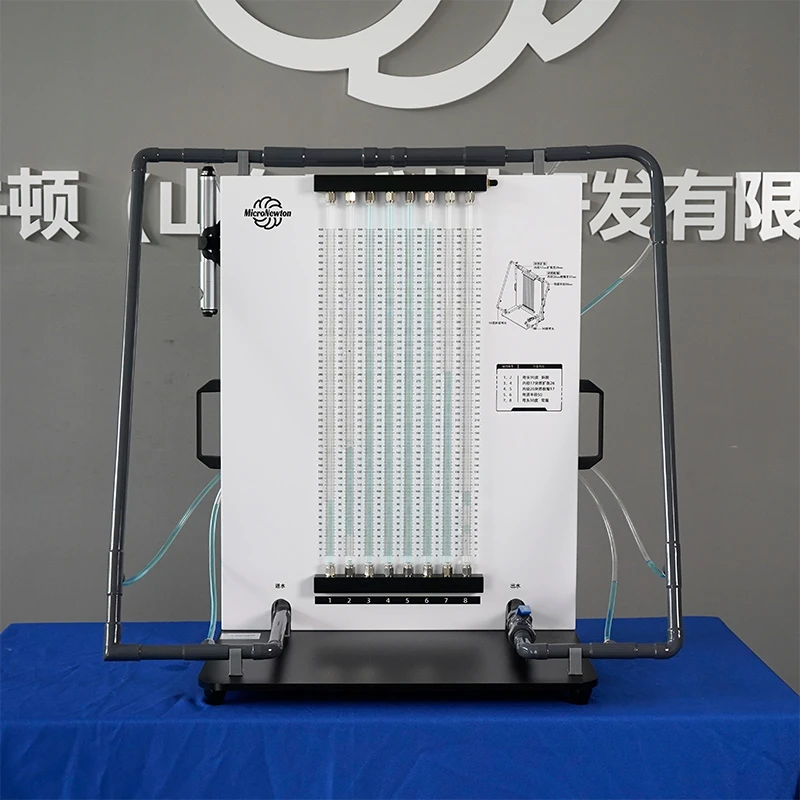

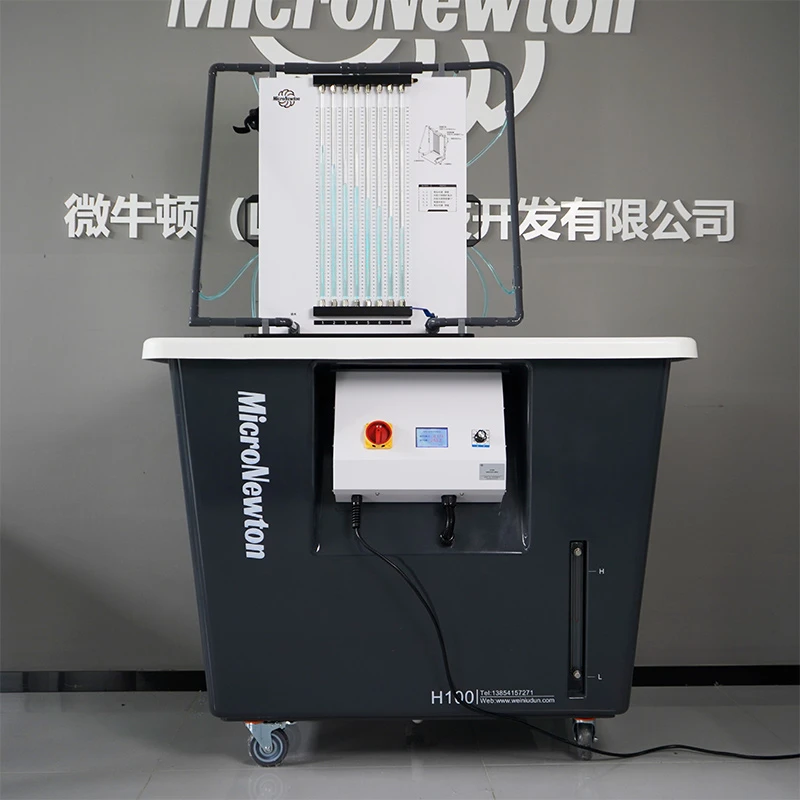

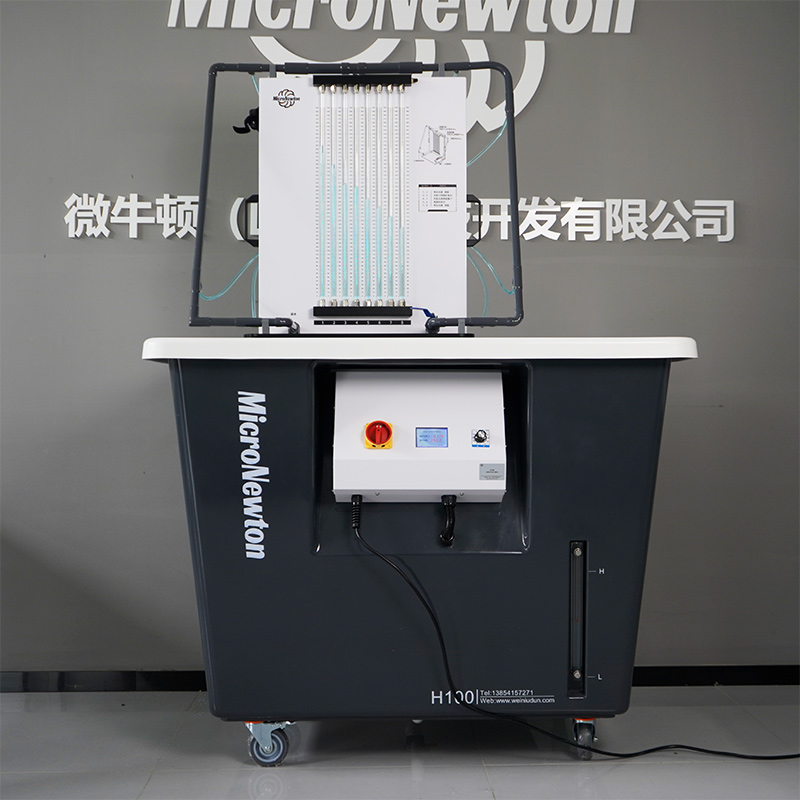

The equipment shall be used together with a basic fluid mechanics experiment bench to provide the water flow required for the experiment. The main body of the equipment consists of a recirculation pipe section and a multi-tube manometer. Pressure measuring points are distributed at various positions along the pipeline, and the pressure values at each measuring point are displayed by the multi-tube manometer on the back panel.
Share:
Added to cart successfully
Experimental Functions
1.Investigate the local losses in sudden expansion pipes.
2.Investigate the local losses in sudden contraction pipes.
3.Investigate the head losses at pipe elbows.
Product Attributes
|
Product Model |
H109 |
Product Name |
Local Loss Experimental Apparatus |
|
Main Materials |
Copper, Galvanized steel sheet |
Dimensions |
840×470×780mm |
|
Product Weight |
22kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
