Fundamentals of Fluid Mechanics
This apparatus is mainly used to demonstrate and study the working principles of several types of flowmeters, such as the Venturi flowmeter, orifice plate flowmeter, and rotor flowmeter, as well as the application of the Bernoulli equation in these flowmeters.
Share:
Added to cart successfully
Product Description
This apparatus is mainly used to demonstrate and study the working principles of several types of flowmeters, such as the Venturi flowmeter, orifice plate flowmeter, and rotor flowmeter, as well as the application of the Bernoulli equation in these flowmeters.

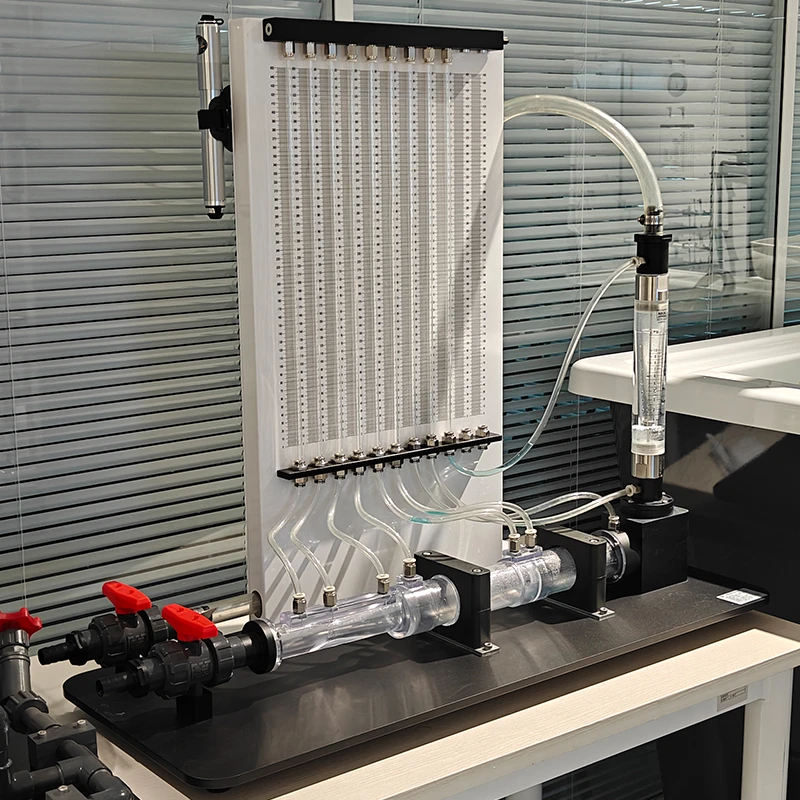

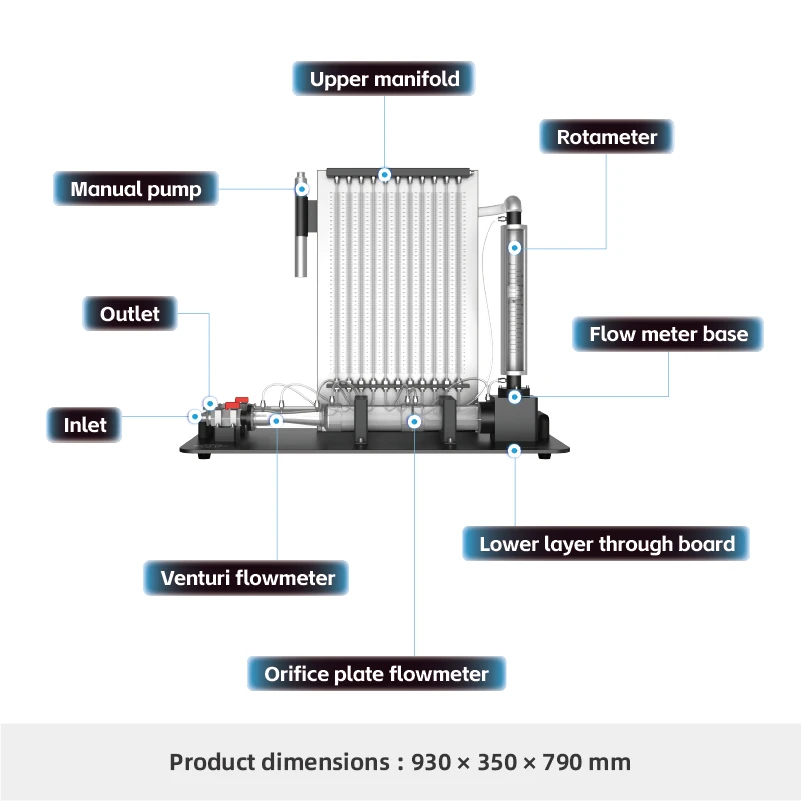

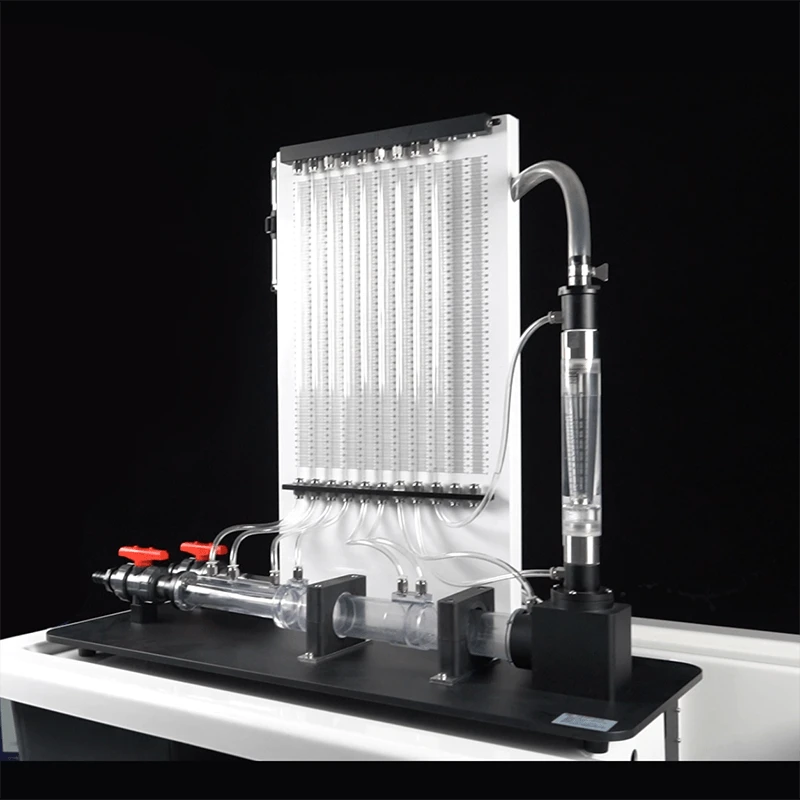

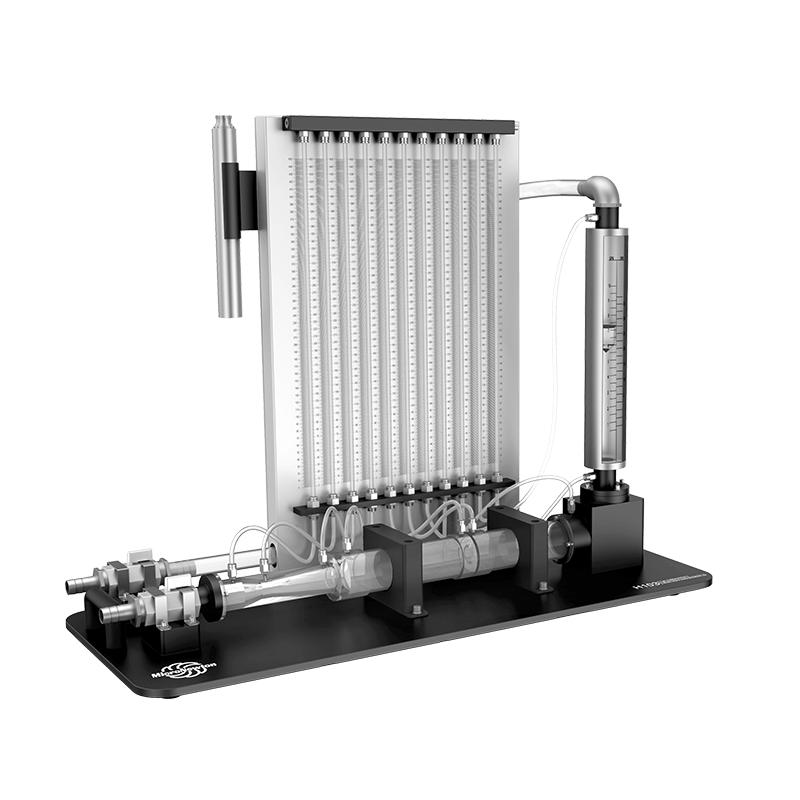

The main body of the apparatus consists of a horizontal pipeline equipped with valves, an orifice plate, a Venturi flowmeter, and pressure taps. In addition, a bent pipe connects to the rotor flowmeter, and all pressure taps are connected to a multi-tube manometer mounted on the back panel.

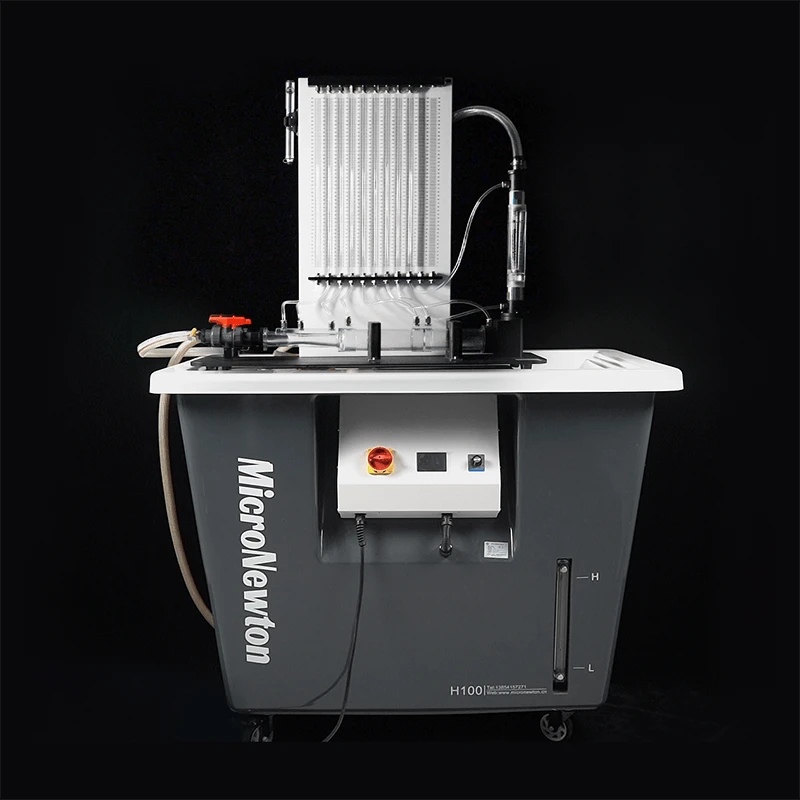

During experiments, the apparatus needs to be connected to the H100 Basic Fluid Mechanics Experimental Bench. The main pipeline and flowmeters are made of fully transparent materials, allowing observation of the fluid flow. The apparatus clearly demonstrates the pressure distribution along the pipeline for each type of flowmeter and facilitates analysis of pressure losses.
Experimental Functions
01
Observe the law of mutual conversion between static pressure head and dynamic pressure head.
02
Demonstrate the pressure distribution along the flow path when water passes through a Venturi tube and an orifice plate.
03
Show the application of Bernoulli's equation in incompressible fluids.
04
Compare the pressure drop differences of three different flowmeters.
05
Calibrate the flow coefficients of Venturi flowmeters and orifice plate flowmeters.
06
Master the experimental measurement skills of flow parameters such as flow velocity, flow rate and pressure.
Product Attributes
|
Product Model |
H103 |
Product Name |
Flow Measurement Experimental Apparatus |
|
Main Materials |
6061 Aluminum Alloy, Photosensitive Resin |
Specifications |
930×350×790mm |
|
Product Weight |
23.6kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
