Fundamentals of Fluid Mechanics

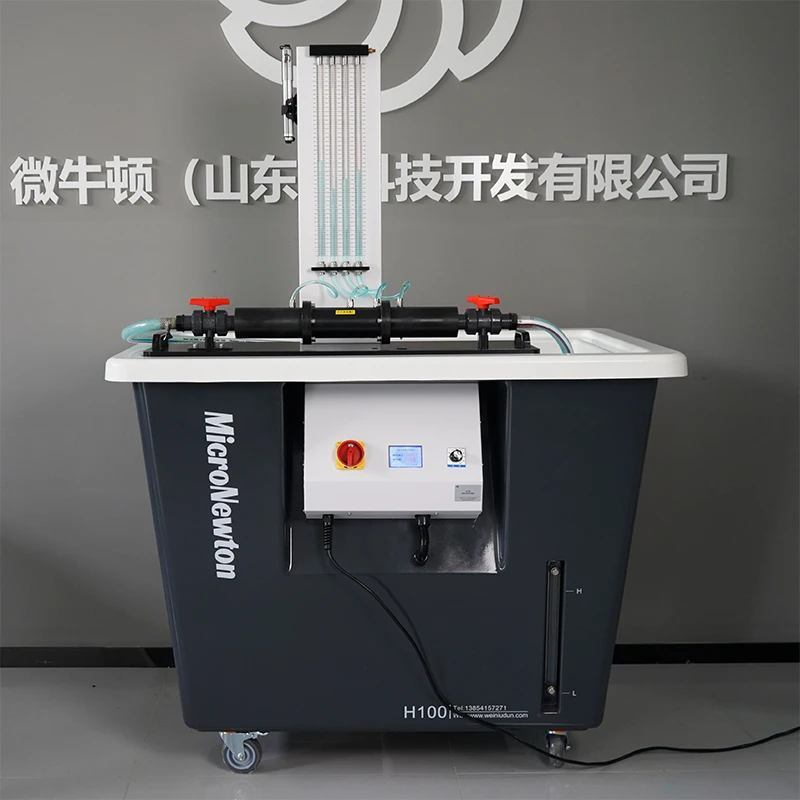

This device is a flow calibration experimental apparatus. It does not perform experiments on its own but is mainly used to calibrate the flow of other flowmeters. The apparatus must be used together with the H100 Basic Fluid Mechanics Experimental Bench to provide the water flow required for experiments.

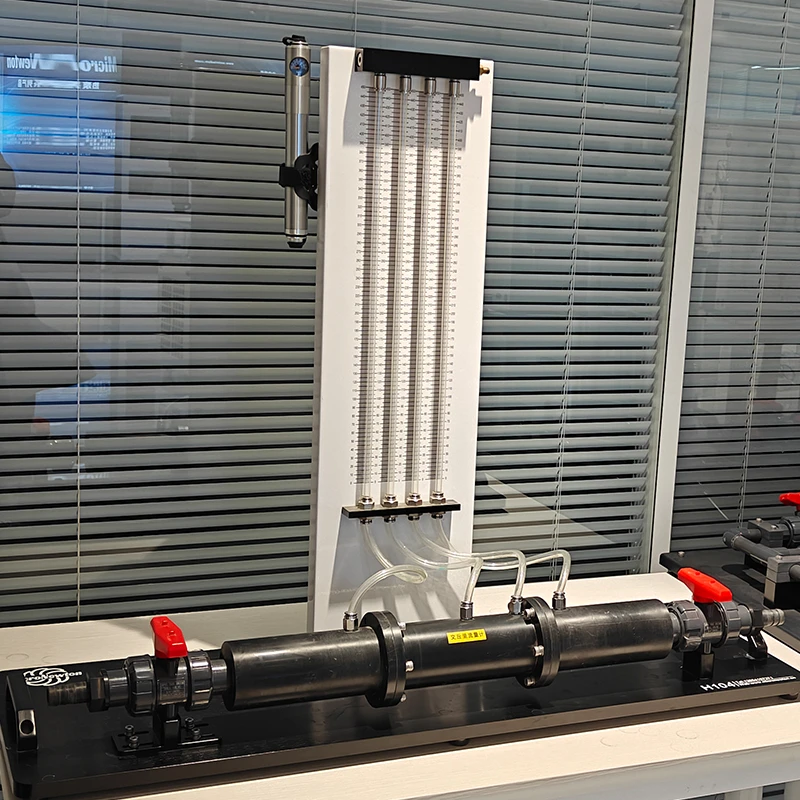

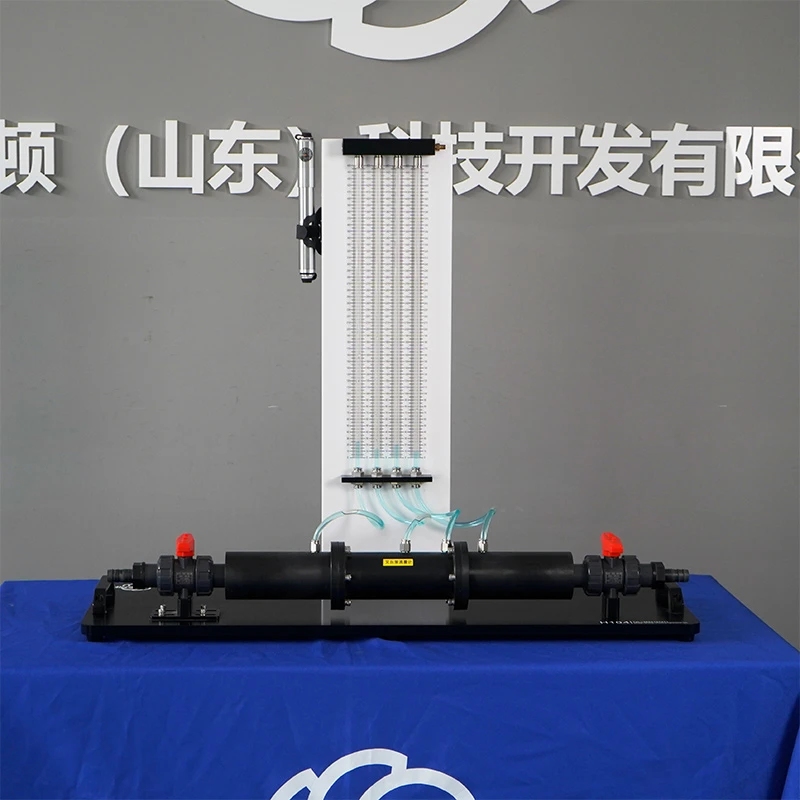

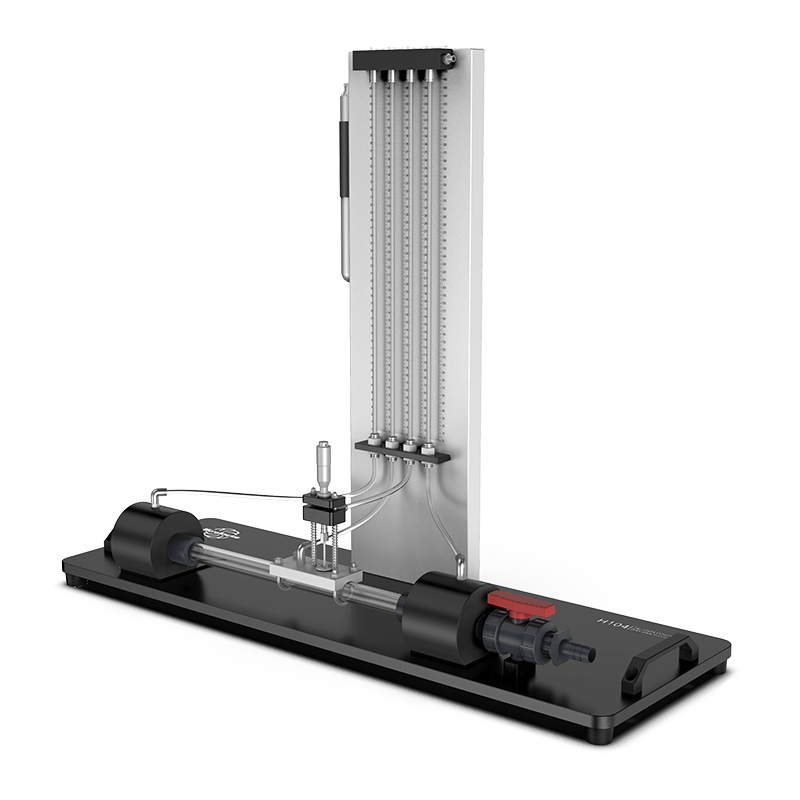

The main body of the device includes connectors for the flowmeters to be calibrated and a multi-tube manometer on the back panel (with a total of four tubes). The apparatus provides four flowmeter attachments for calibration, including: Venturi flowmeter, orifice flowmeter, nozzle flowmeter, and Pitot tube flowmeter.

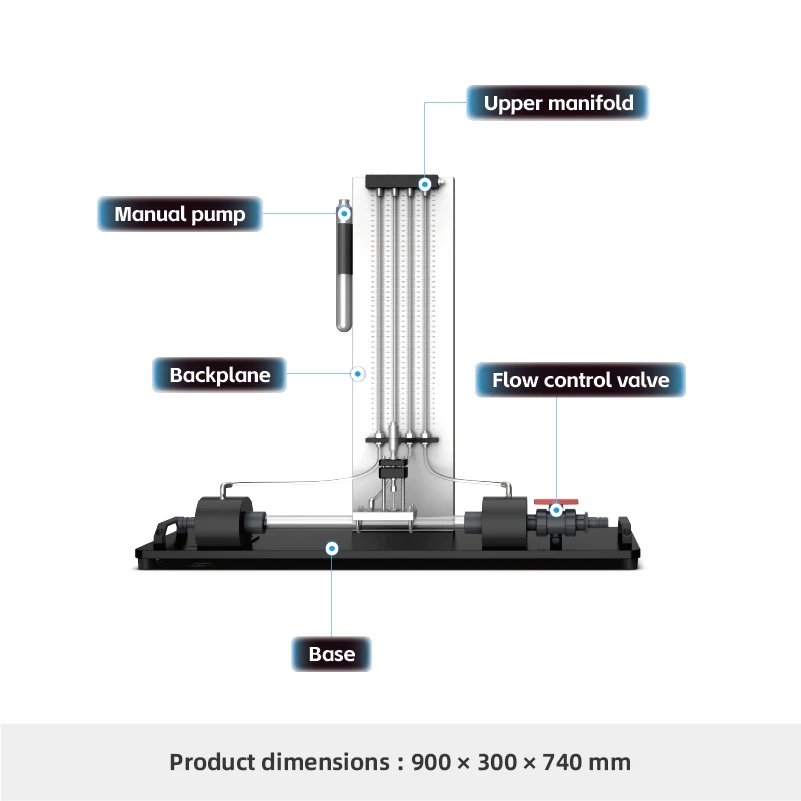

The device features a unique “quick-switch” flow adapter design with pressure connections. It uses a multi-tube manometer to display overall pressure changes and includes a manual pump and an intake manifold with an air valve to extend the measurement range.
Share:
Added to cart successfully
Experimental Functions
1.Can be used to measure the flow rate of different flowmeters.
2.Can be used to measure and analyze the pressure distribution along the pipeline when water flows through different flowmeters.
3.Can be used to calibrate the flow coefficients corresponding to different flowmeters.
4.Helps develop proficiency in experimentally measuring fluid parameters such as velocity, flow rate, and pressure.
Product Attributes
|
Product Model |
H104 |
Product Name |
Flow Calibration Experimental Apparatus |
|
Main Materials |
POM(Polyoxymethylene), 6061 Aluminum Alloy |
Dimensions |
900×300×740mm |
|
Product Weight |
22kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
|
Optional Modules |
None |
