Fundamentals of Fluid Mechanics

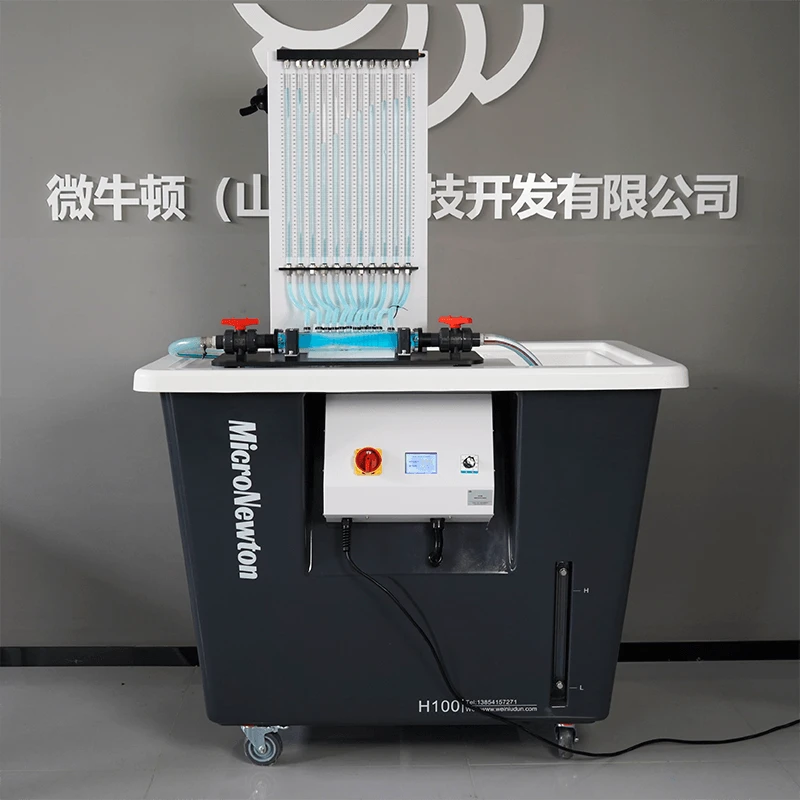

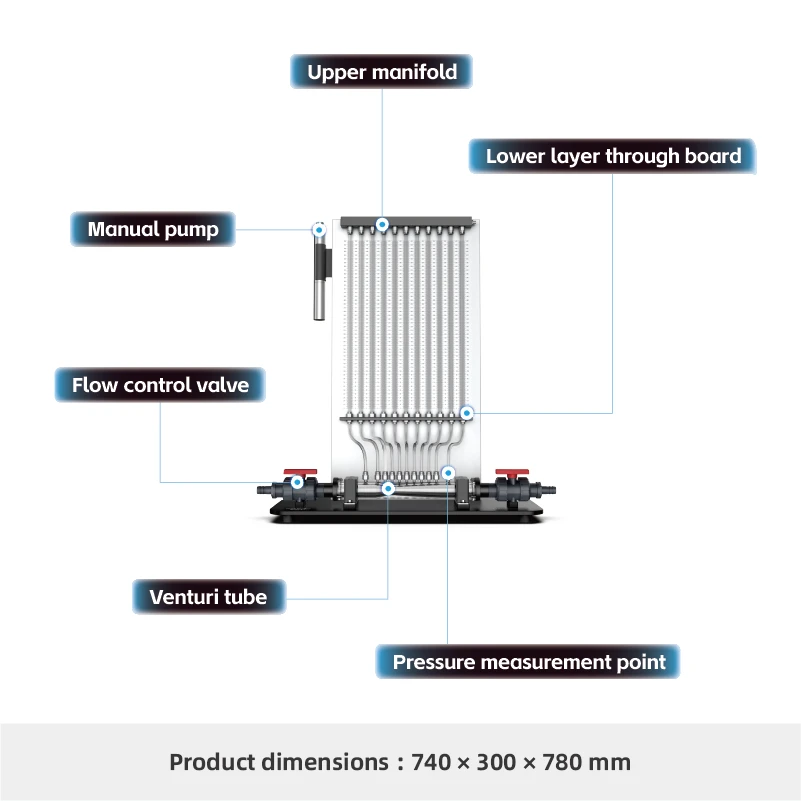

This product is designed to be used together with the H100 Basic Fluid Mechanics Experimental Bench to support the study and experimental investigation of the Bernoulli equation and the continuity equation in Fluid Mechanics. The water circulation is provided by the H100 experimental bench through a self-circulating system, making operation convenient and efficient.

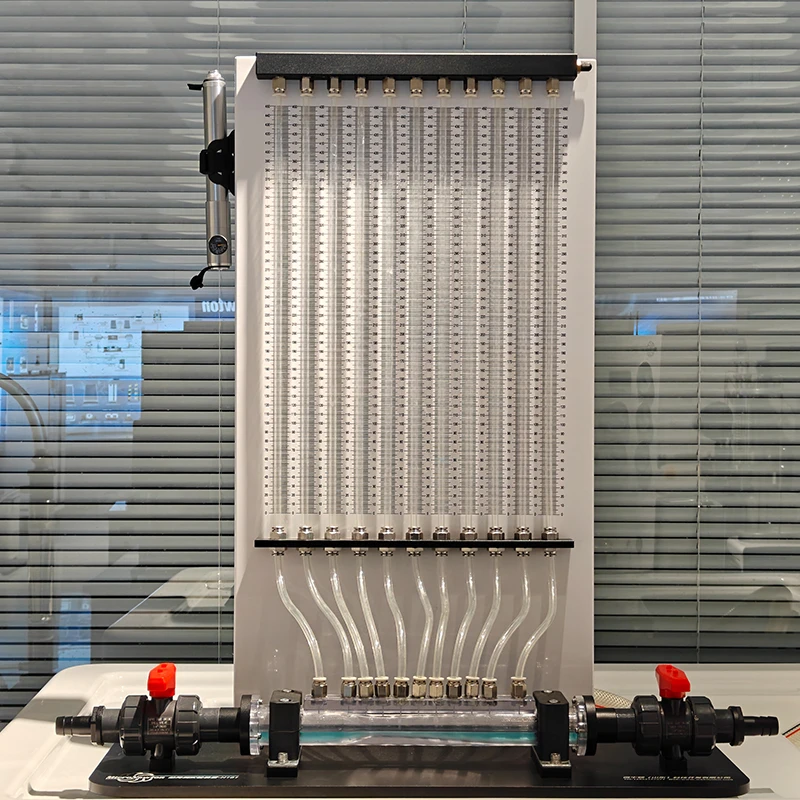

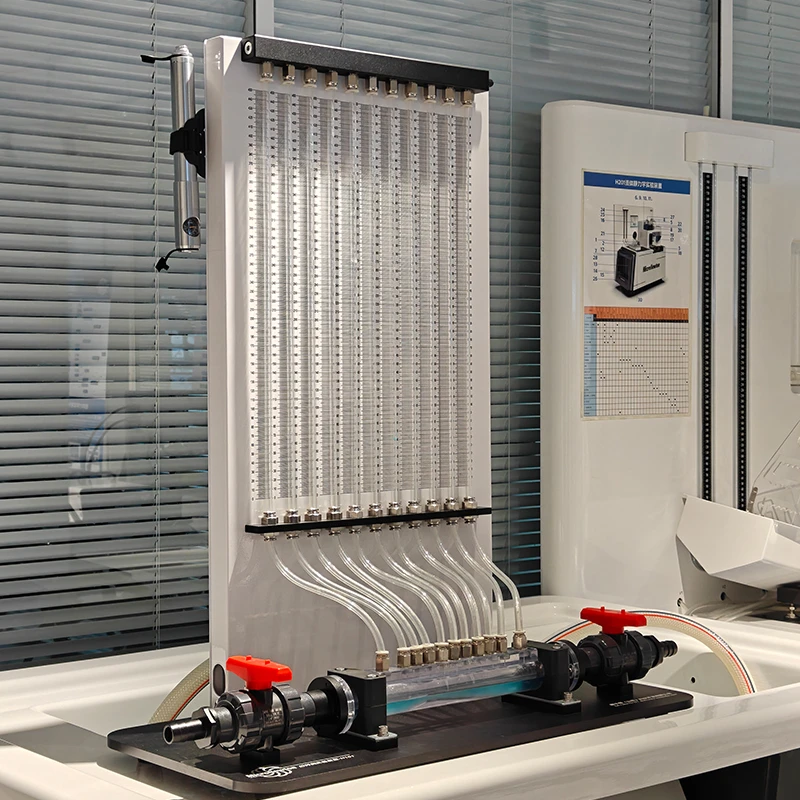

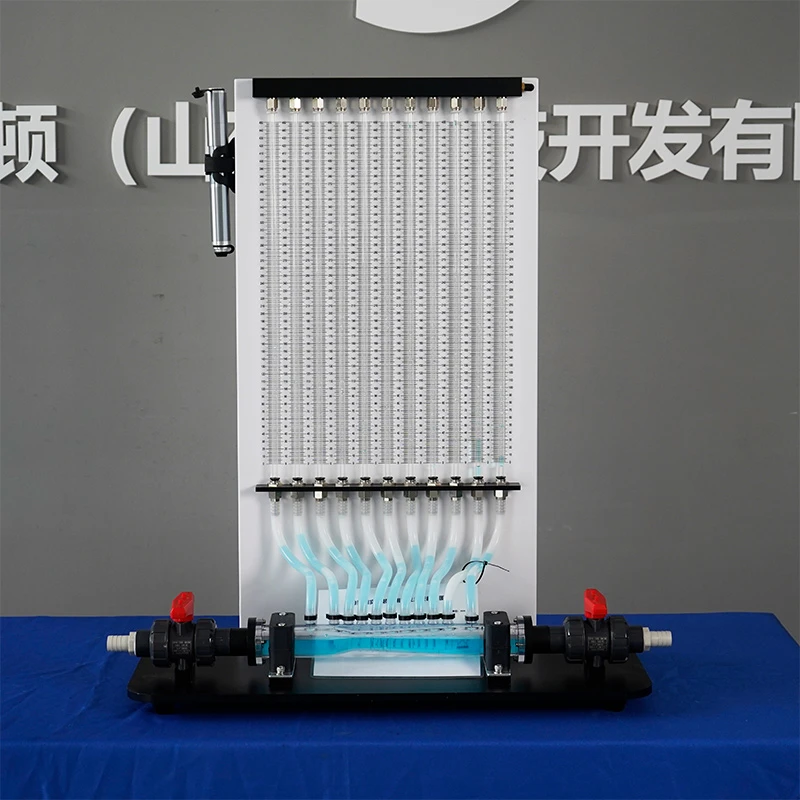

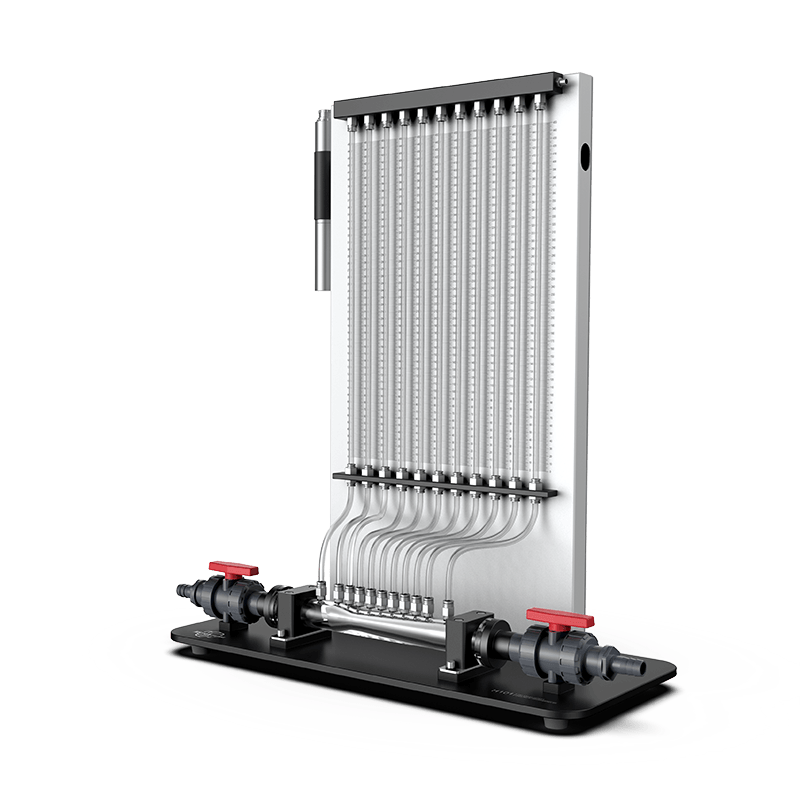

The Venturi tube in the module is transparent and visually accessible, allowing users to directly observe the pressure distribution trend along the tube. It also enables the measurement and calculation of the Venturi tube flow coefficient. The module is lightweight, making it convenient for teaching demonstrations and laboratory experiments.
During the experiment, the pressure at the inlet cross-section and the pressure at the throat must be measured. The flow rate is continuously adjusted, and measurements are repeated under different flow conditions
Share:
Added to cart successfully
Experimental Functions
1.Used to study the physical and geometric meanings of the Bernoulli equation.
2.Used to study the application of the Bernoulli equation in a Venturi tube model.
3.Used to observe the pressure distribution of fluid flowing through a Venturi tube.
4.Used to understand the concept of the flow coefficient and learn how to calibrate the flow coefficient of a Venturi flowmeter.
5.Used to verify the energy equation of steady flow.
6.Used to develop experimental skills in measuring fluid parameters such as velocity, flow rate, and pressure.
Product Attributes
|
Product Model |
H101 |
Product Name |
Bernoulli Experiment Apparatus |
|
Main Materials |
6061 Aluminum Alloy, Photosensitive Resin |
Dimensions |
740×300×780mm |
|
Product Weight |
16.9kg |
Operating Environment |
Room temperature, relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
