Fundamentals of Engineering Thermodynamics
This product is based on the theoretical knowledge of water and water vapor thermodynamic processes from Engineering Thermodynamics and Fundamentals of Thermal Engineering. It can be used in conjunction with a basic thermodynamics experimental bench, and it can also operate independently.
The apparatus is used to study the pressure–temperature relationship of water and steam by measuring the saturated steam temperature corresponding to a series of saturated pressures and plotting the P–T relationship curve. It provides experimental verification of the pressure–temperature relationship of water and steam.
Share:
Added to cart successfully
Experimental Functions
1.Observe the boiling process of water under different pressures.
2.Measure the pressure and temperature of saturated water under normal atmospheric pressure and at 10 bar pressure.
3.Compare the measured results with standard steam tables to understand the property variations of saturated water and saturated steam.
Product Attributes
|
Product Model |
ET105 |
Product Name |

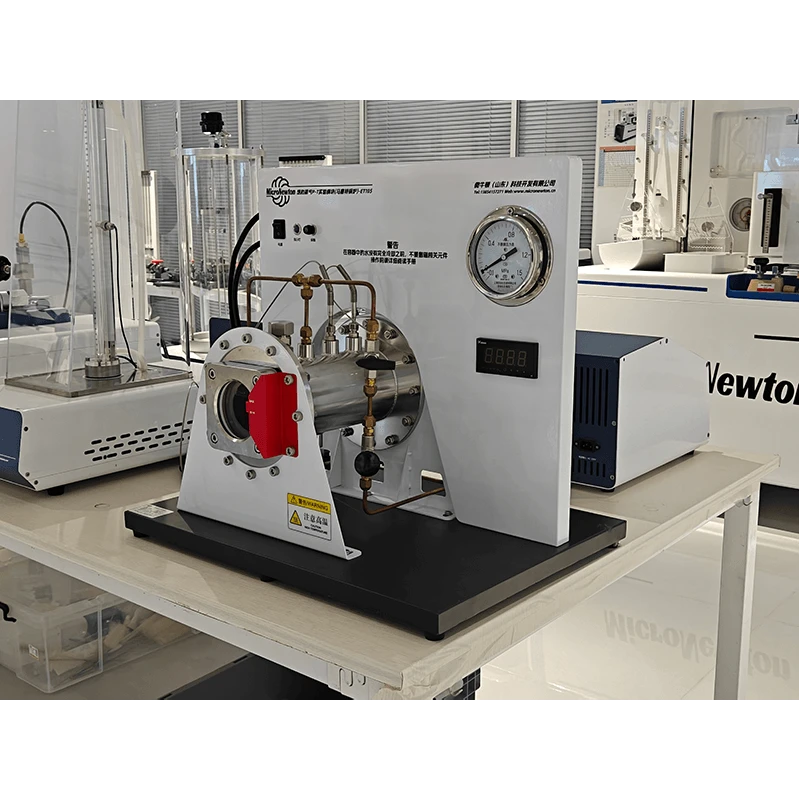

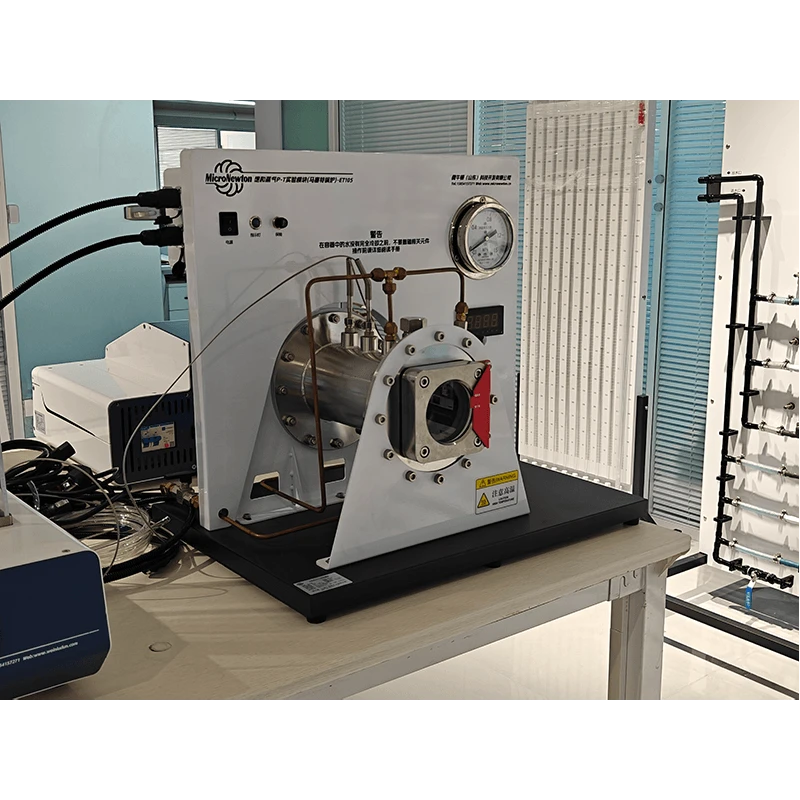

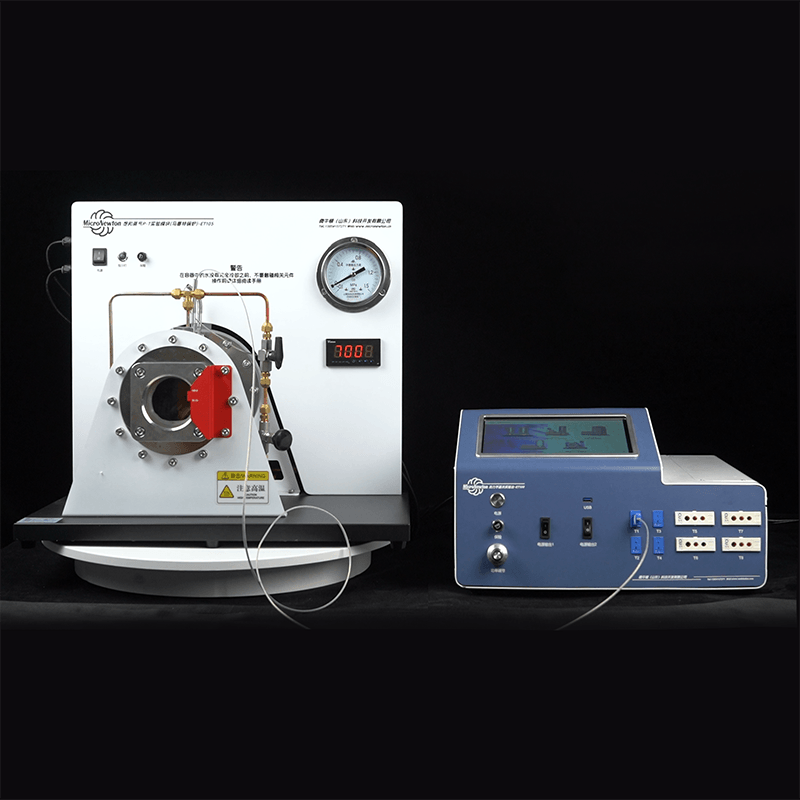

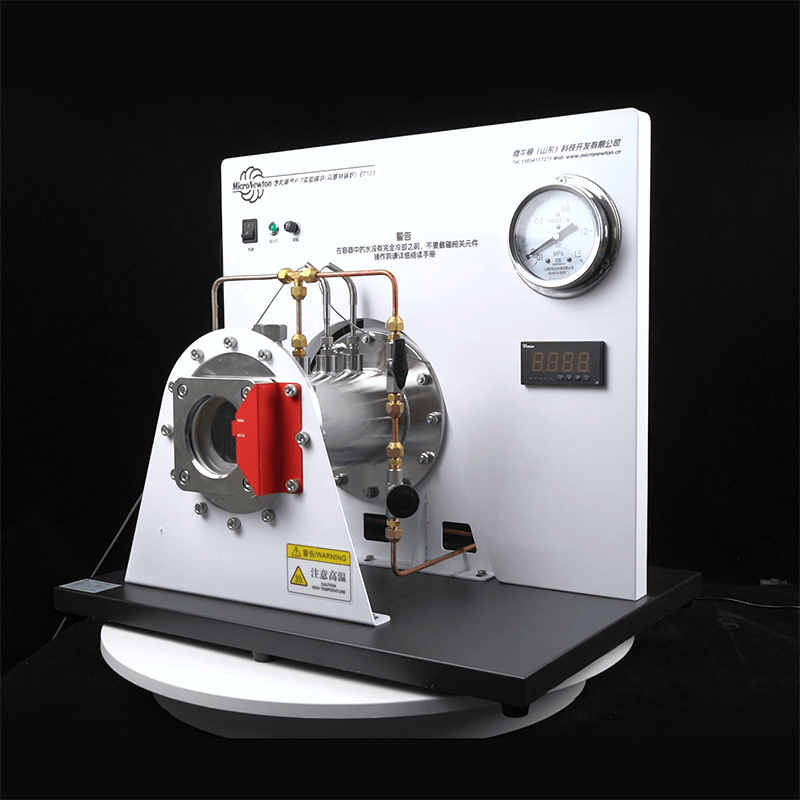

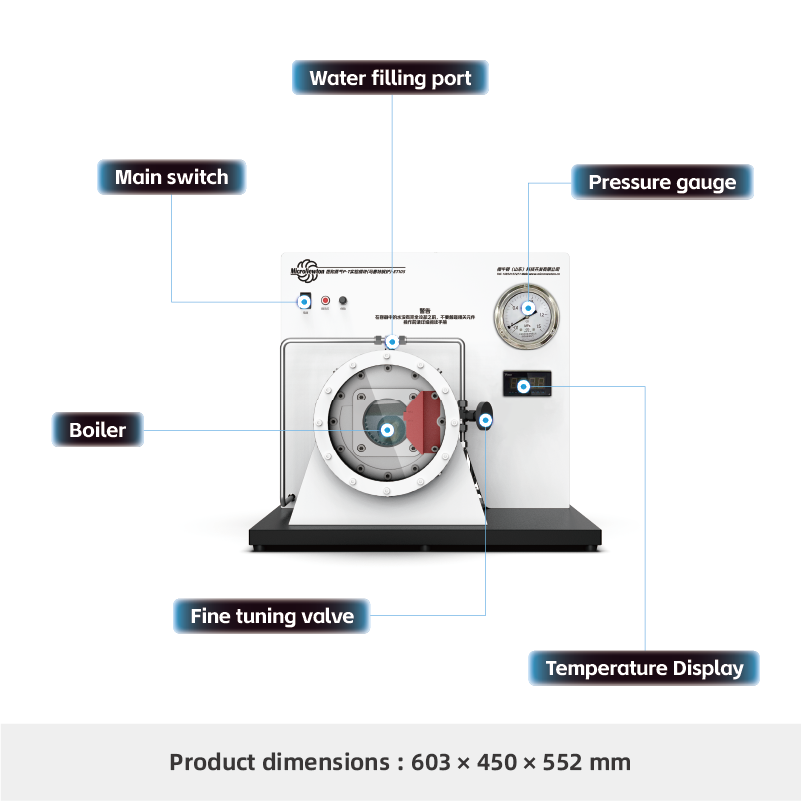

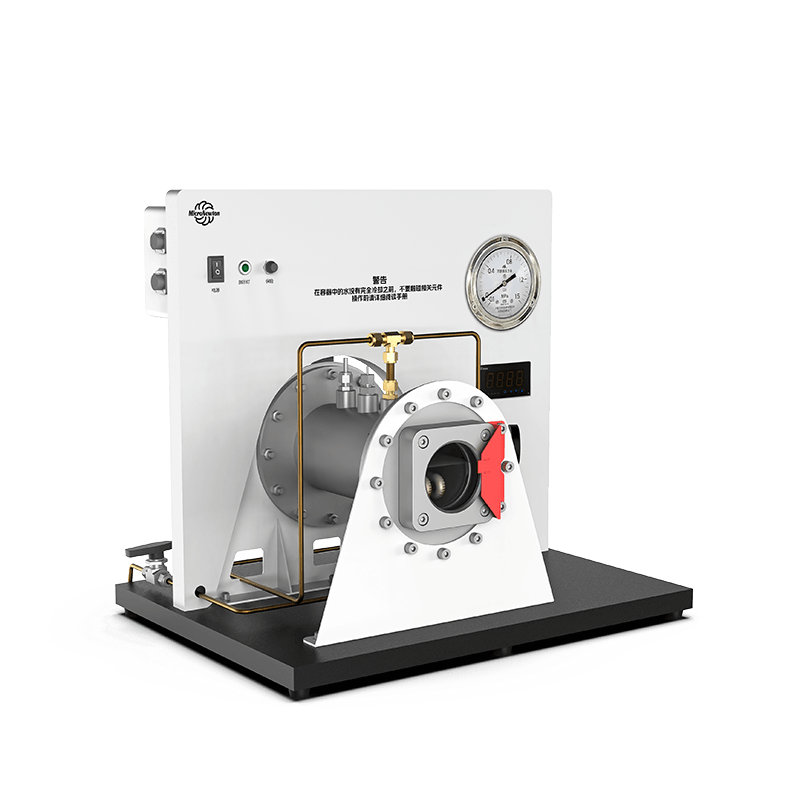

Saturated Steam P–T Experimental Apparatus |
|
Main Materials |
Galvanized Steel Plate, 304 Stainless Steel, Brass |
Dimensions |
605 × 450 × 550 mm |
|
Product Weight |
34.8 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
None |
