Fundamentals of Engineering Thermodynamics

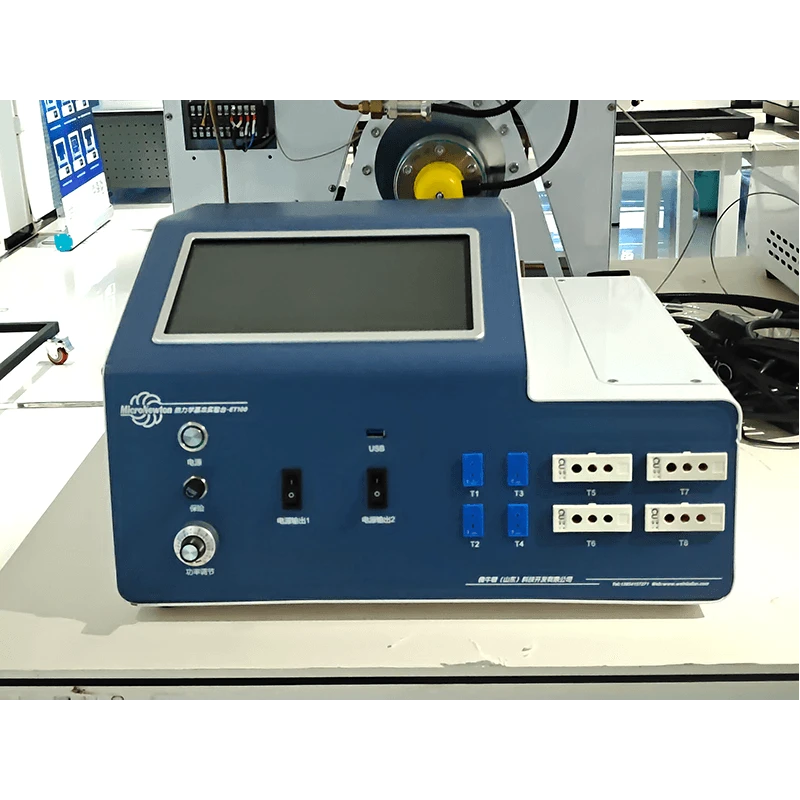

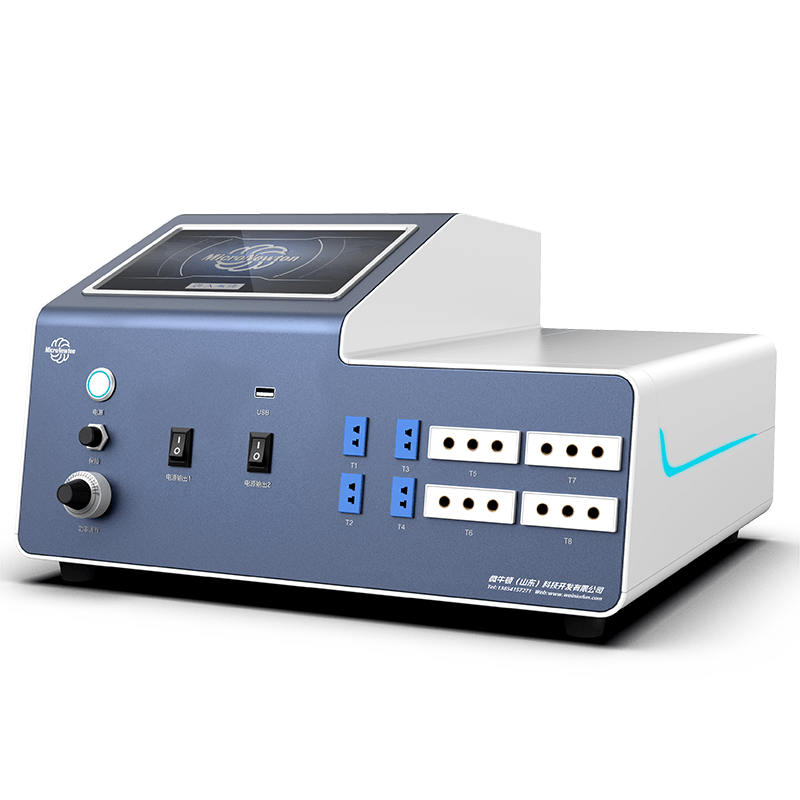

This product is a fundamental experimental platform designed to work with various modules in the EngineeringThermodynamics series. It provides functions such as data acquisition, display, storage, and power output regulation.
The system can collect parameters including temperature, pressure, current, voltage, power, and flow rate. In addition to being used with compatible thermodynamics experimental modules, it can also serve as an independent data acquisition and control tool for extended thermal experiments.
Share:
Added to cart successfully
Experimental Functions

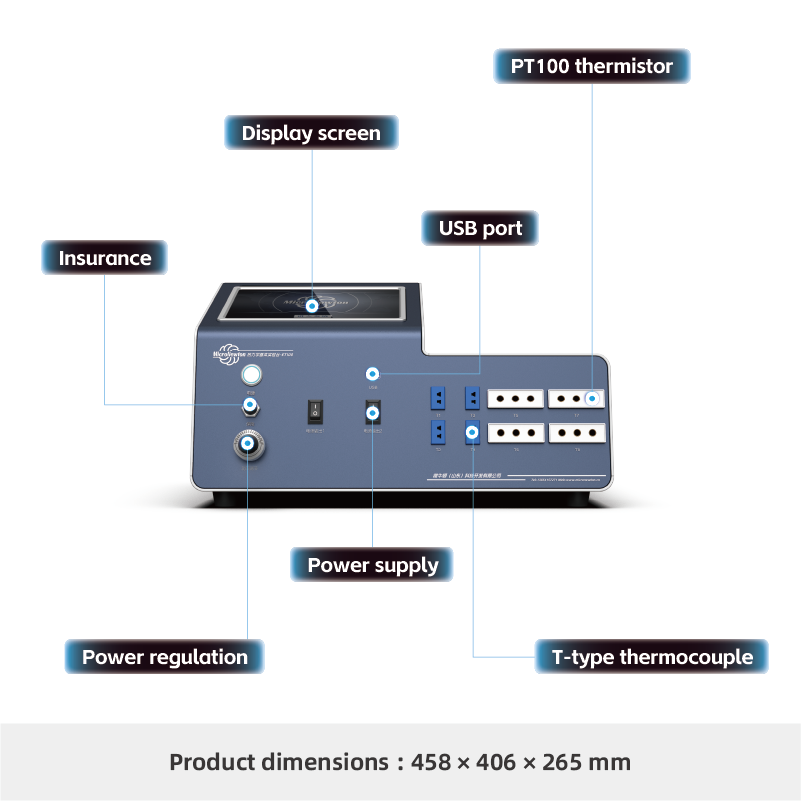

1.The experimental bench is equipped with a built-in display screen featuring touch control for function adjustment, with audio feedback support.
2.It includes five built-in thermodynamics experimental module models (expandable), each providing internal schematic diagrams, measurement point distributions, and real-time data visualization, with dynamic curve display and support for Excel data export.
3.Supports full-function operation (output, input, data acquisition, and adjustment) for all compatible thermodynamics experimental modules.
4.In addition to use with thermodynamics modules, it can also function as an expandable data acquisition system for temperature and pressure measurement, data storage, and data output in related thermal experiments.
Product Attributes
|
Product Model |
ET100 |
Product Name |
Basic Thermodynamics Experimental Bench |
|
Main Materials |
Galvanized Steel Plate |
Dimensions |
455 × 380 × 250 mm |
|
Product Weight |
15.1 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
Single-phase three-wire, 220V ±5%, 50Hz/60Hz 110V ±5%, 50Hz/60Hz |
||
|
Required Modules |
None |
Optional Modules |
None |
