Product Description

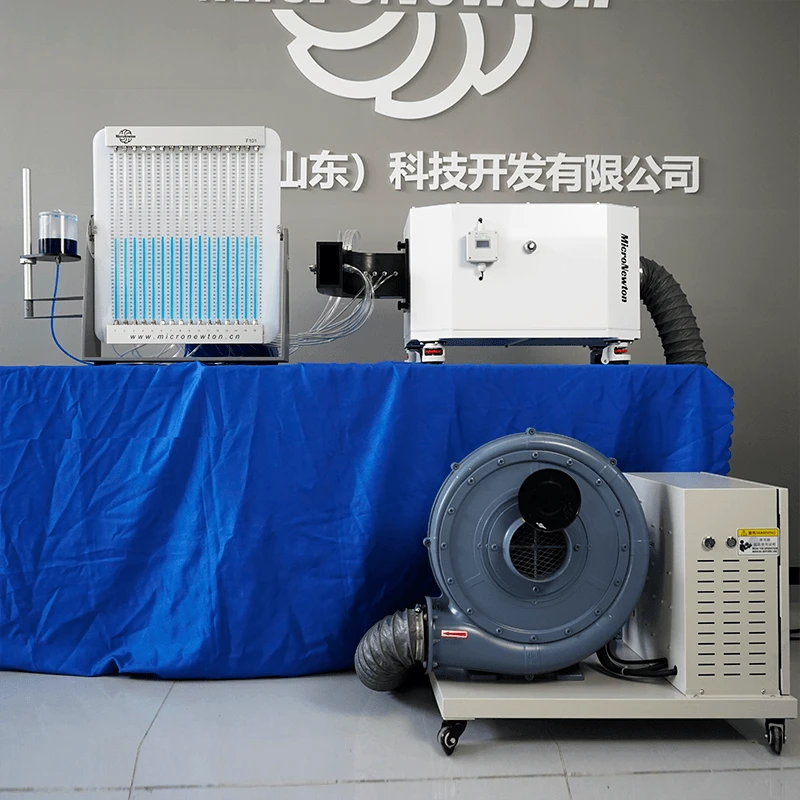

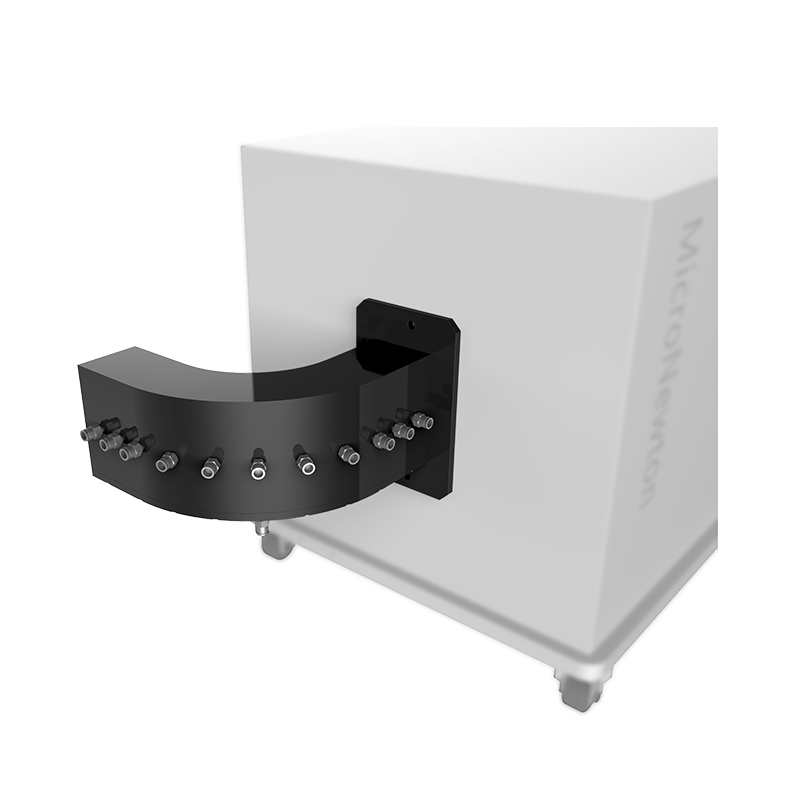

This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench and the Multi-Tube Manometer Experimental Module. It is intended for studying the flow characteristics of airflow through a square-section bend pipe in aerodynamics.

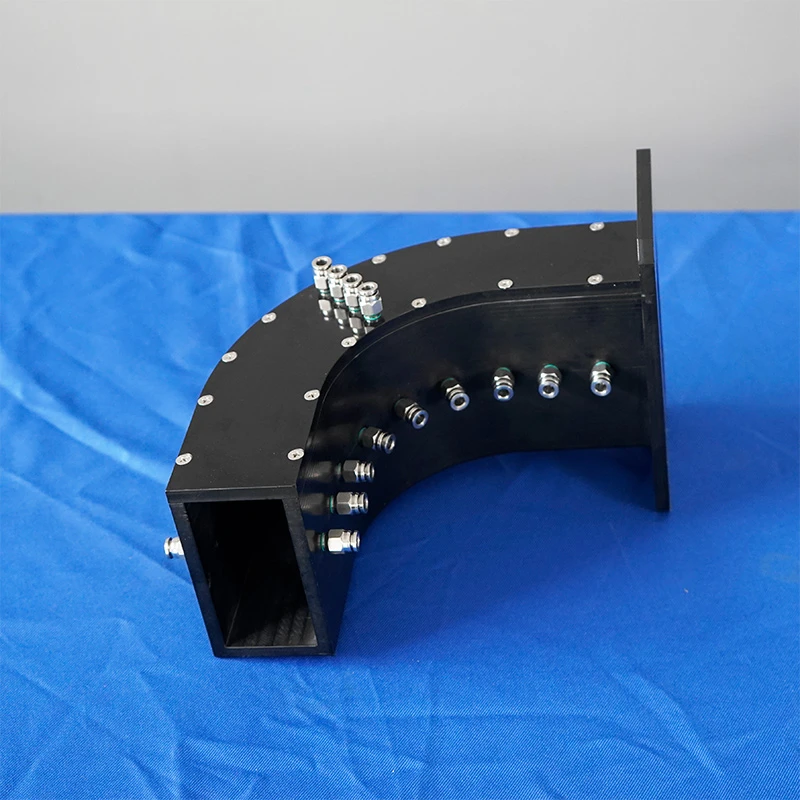

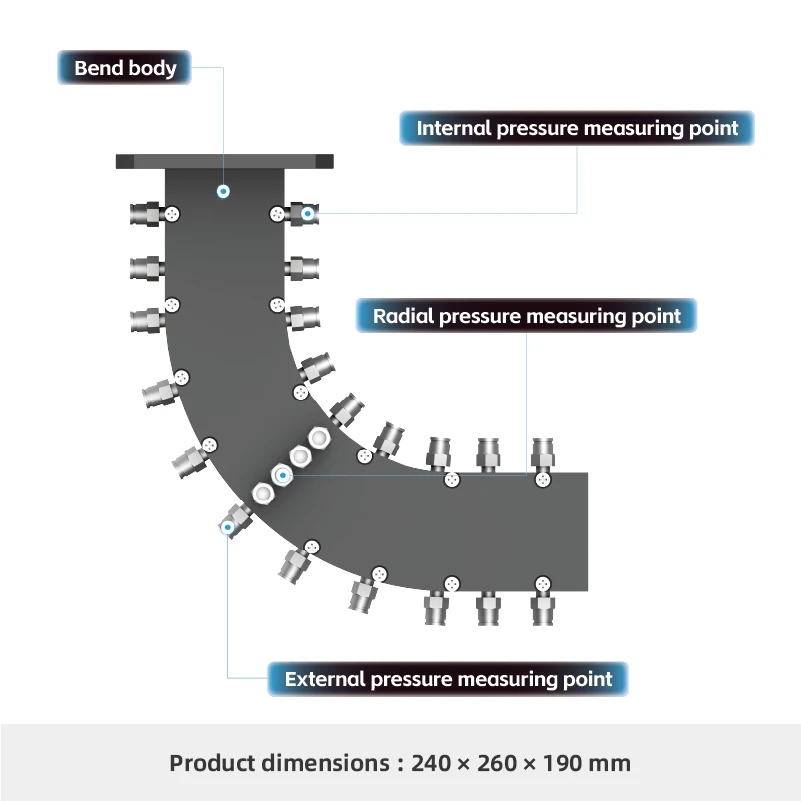

The module consists of a square-section bent pipe equipped with pressure tapping points distributed along both the inner and outer walls. When used with the multi-tube manometer, it enables measurement of pressure distribution along the flow direction on both sides of the bend.
This allows investigation of boundary layer behavior within the bend, evaluation of pressure losses, and calculation of the loss coefficient (K).
Experimental Functions
01
Measure pressure distribution along the inner and outer walls of the square bend pipe.
02
Study radial pressure distribution and compare with predicted vortex velocity distribution to verify flow guidance effects.
03
Calculate the flow loss coefficient (K) for gas flow through the bend.
Product Attributes
|
Product Model |
F105 |
Product Name |
Square Bend Pipe Flow Experimental Module |
|
Main Materials |
Black POM |
Specifications |
260 × 190 × 240 mm |
|
Product Weight |
1.5 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
