Fundamentals of Aerodynamics

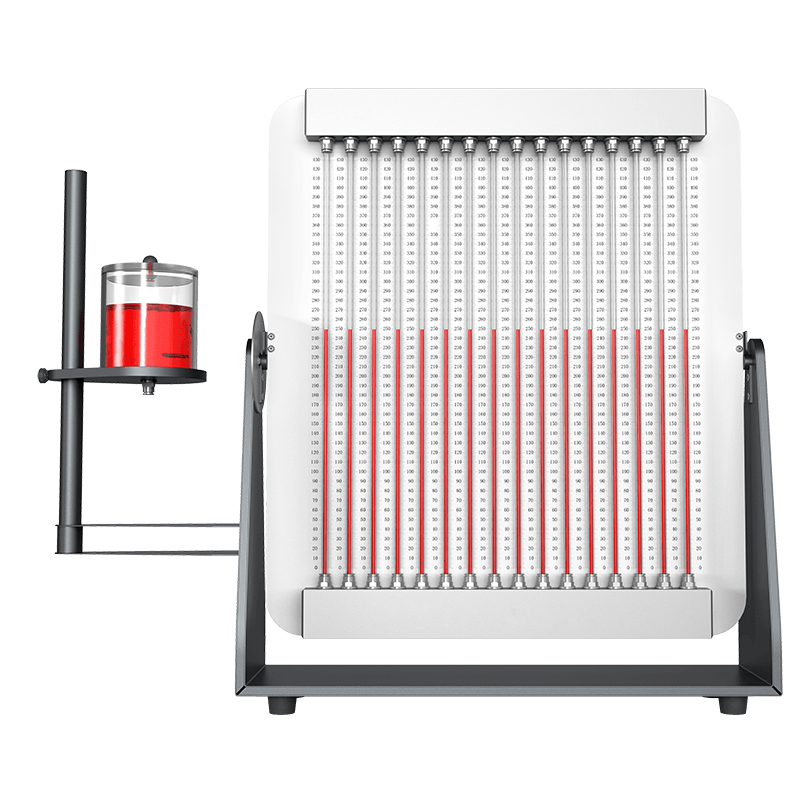

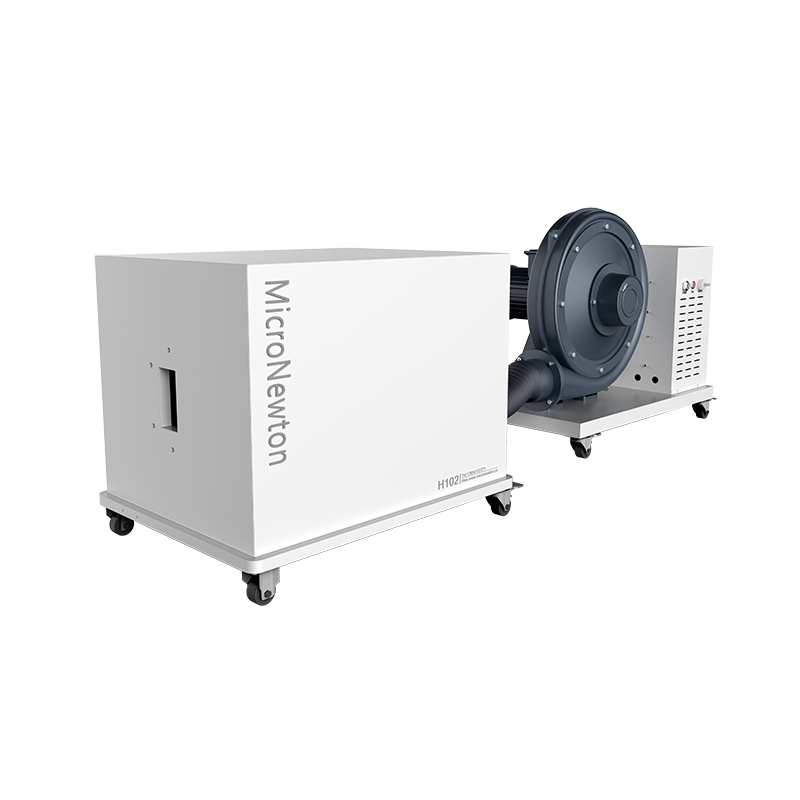

This product is designed to be used together with a Basic Aerodynamics Experimental Bench and a multi-tube manometer. It is an experimental module for studying and analyzing the frictional resistance (pressure loss) in gas transmission pipelines in Aerodynamics.

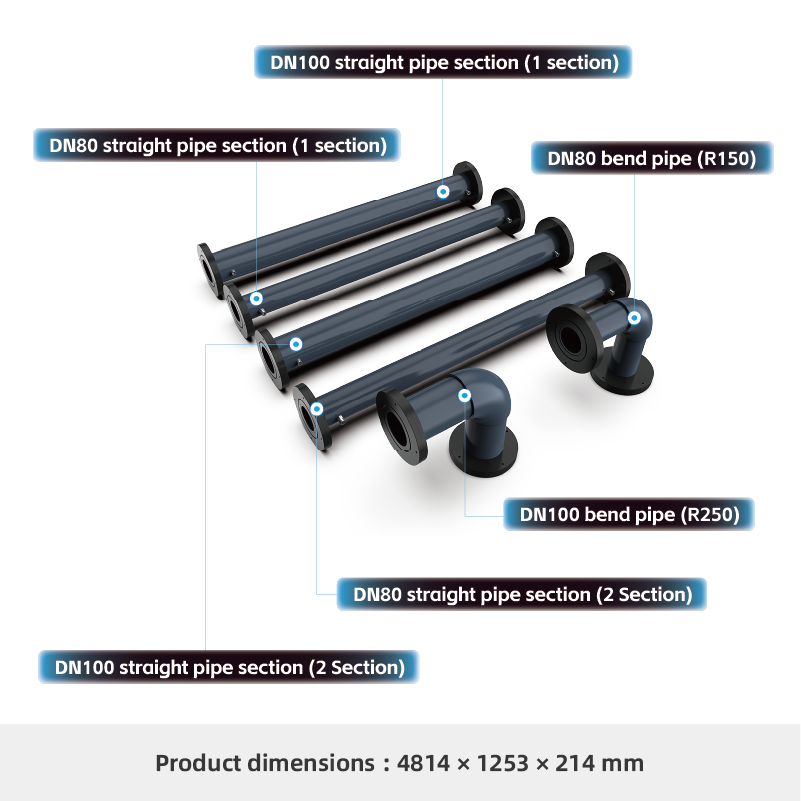

The system includes straight pipes with different diameters, elbow pipes, and pipes with various inlet geometries. Both ends of the pipeline can be connected to static pressure measuring devices to measure pressure losses caused by pipe wall friction and sudden changes in flow direction under different flow velocities and pipe diameters.
Share:
Added to cart successfully
Experimental Functions
1.Study the pressure distribution along the pipeline.
2.Measure and analyze frictional pressure losses in pipelines.
3.Investigate local pressure losses caused by fittings such as elbows.
4.Analyze factors affecting pipeline resistance, including pipe diameter, surface roughness, and flow velocity.
Product Attributes
|
Product Model |
F109 |
Product Name |
Pipe Friction Loss Experimental Module |
|
Main Materials |
UPVC |
Dimensions |
4700 × 1200 × 214 mm |
|
Product Weight |
18kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Equipped with 6 interchangeable test specimens |
Optional Modules |
None |
