Fundamentals of Aerodynamics

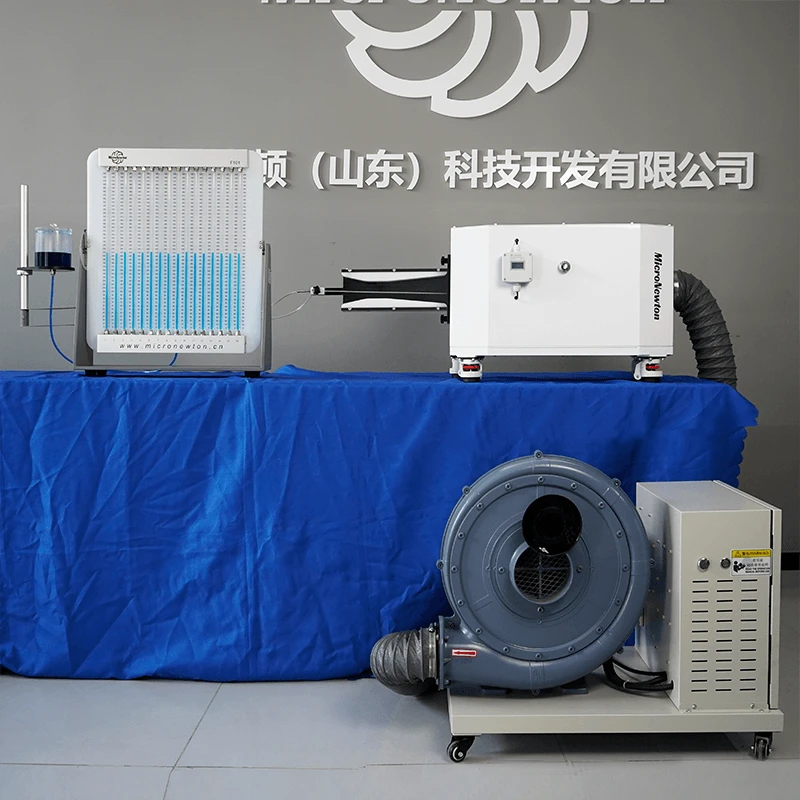

This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench. It is suitable for aerodynamics experiment modules requiring pressure measurement and visualization.

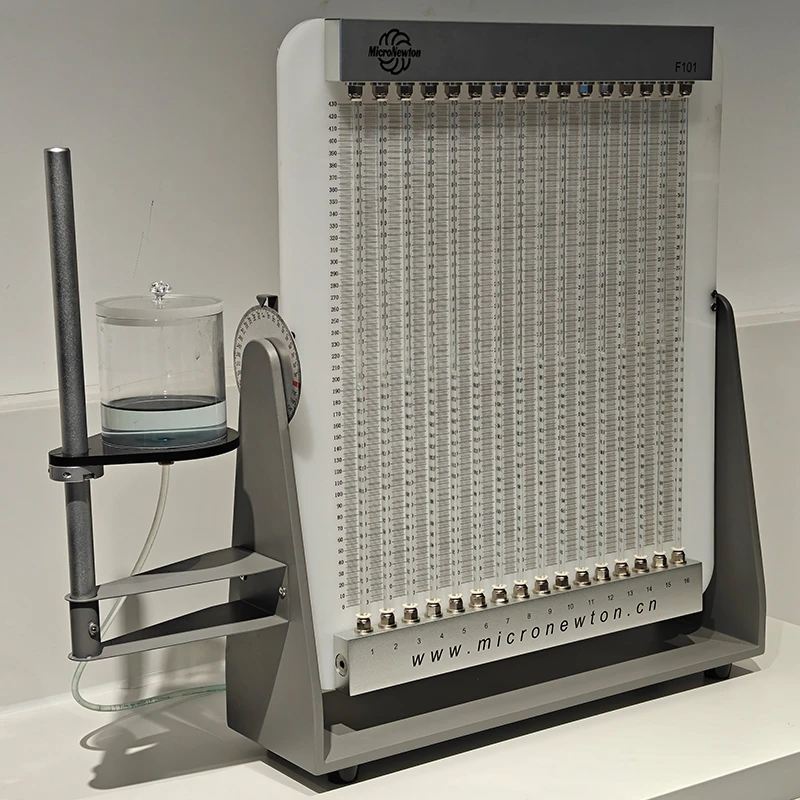

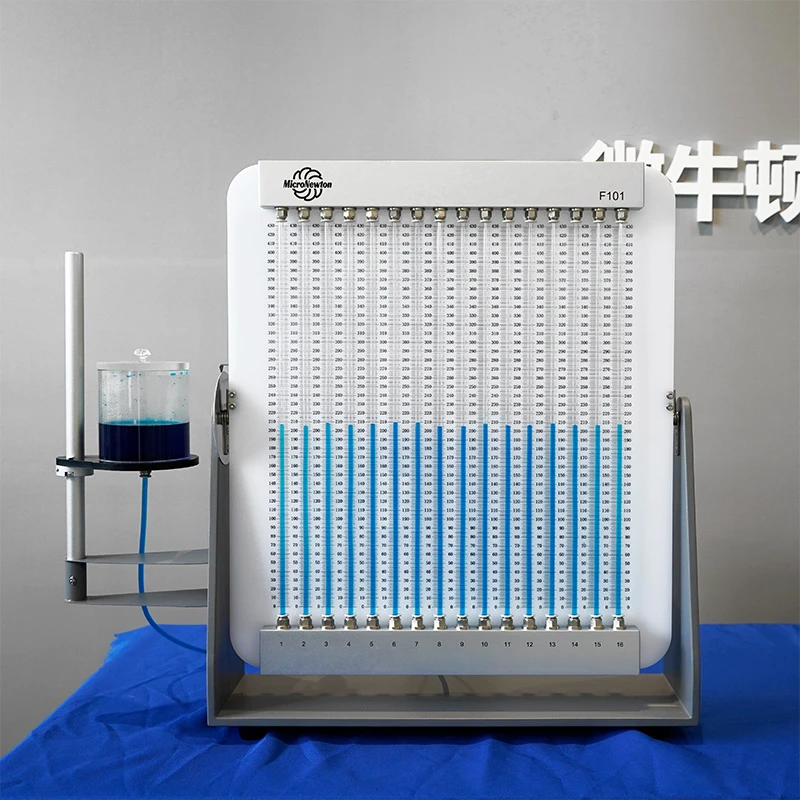

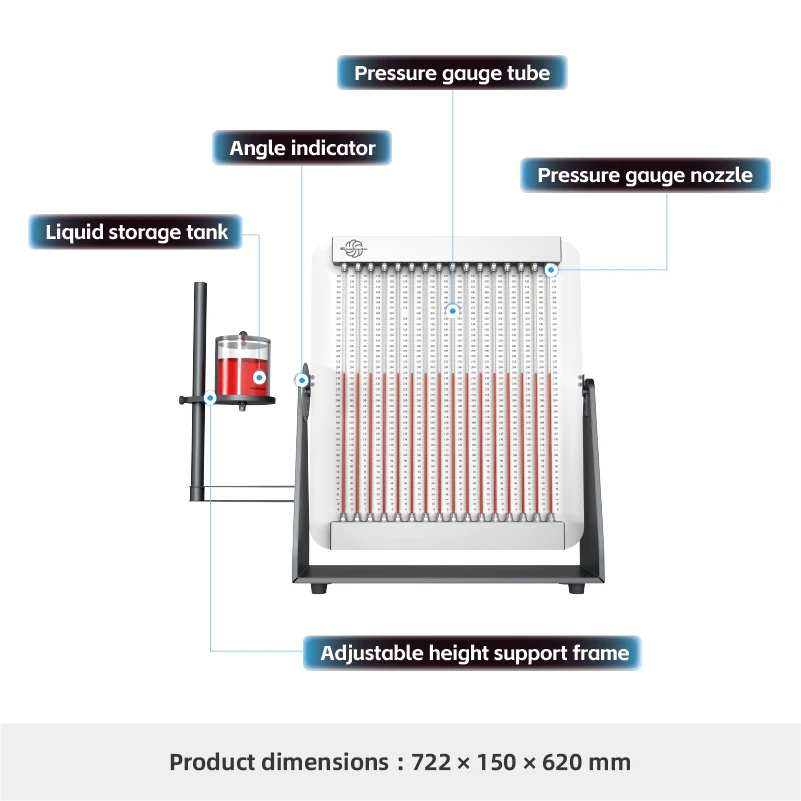

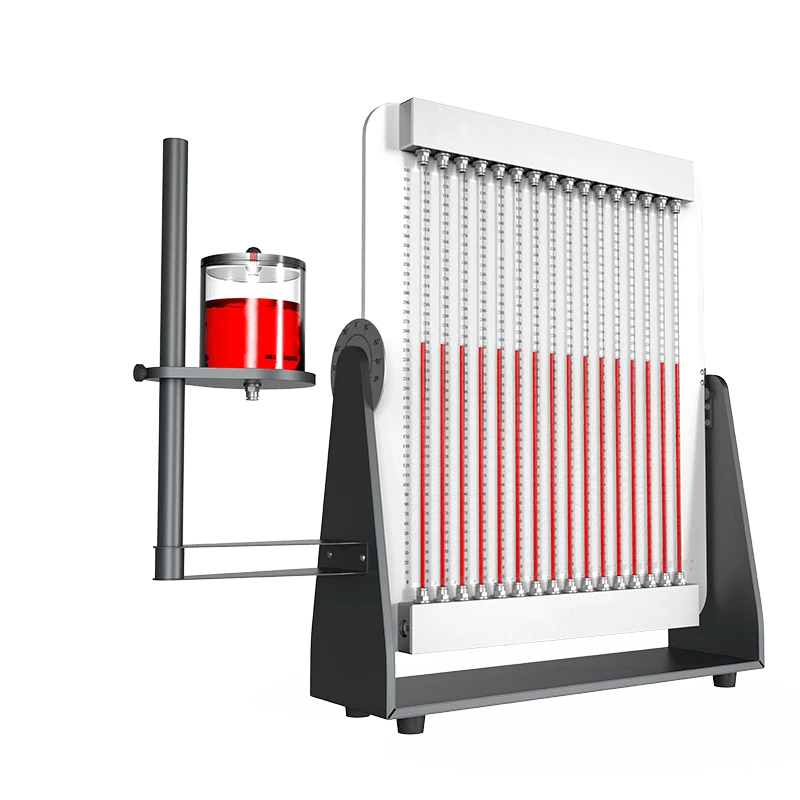

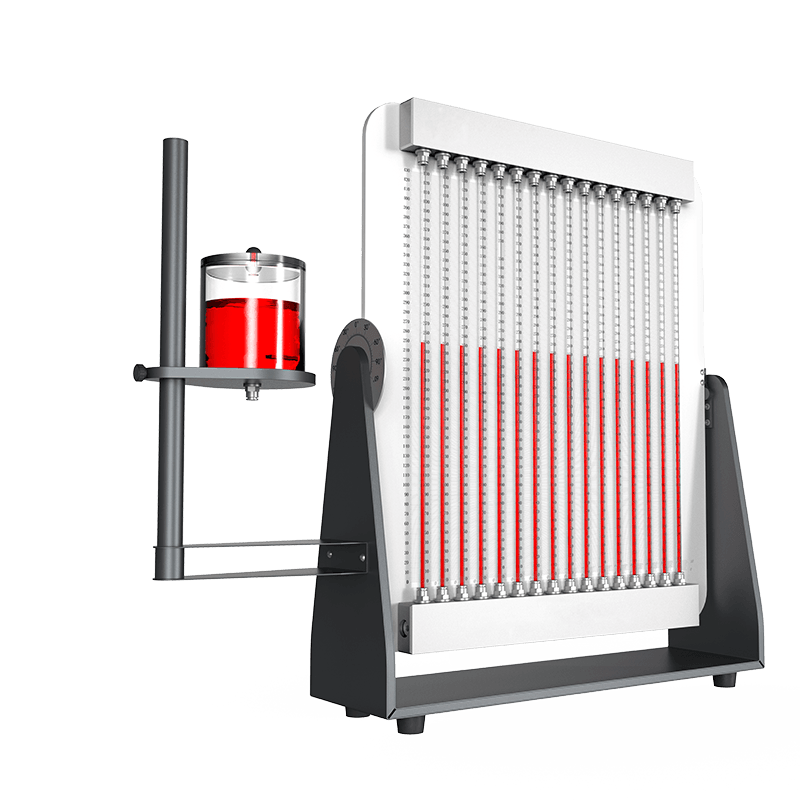

The module is a classical liquid manometer, consisting of pressure measuring tubes, a liquid reservoir, and an adjustable angle support frame. The working fluid can be water or oil, offering easy operation and intuitive readings. Measurement accuracy can be improved by increasing the inclination angle.
The device features 16 independent channels, enabling simultaneous measurement of multiple pressure points, including relative pressure and differential pressure. In addition to aerodynamics applications, it can also be extended to other compatible pressure measurement experiments.
Share:
Added to cart successfully
Experimental Functions
1.Measure pressure at various test points in aerodynamics experiment modules.
2.Perform general pressure and differential pressure measurements for other compatible experimental setups.
Product Attributes
|
Product Model |
F101 |
Product Name |
Multi-Tube Manometer Experimental Module |
|
Main Materials |
Galvanized steel sheet, 6061 aluminum alloy, acrylic |
Dimensions |
730 × 150 × 640 mm |
|
Product Weight |
9.7kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
