Fundamentals of Aerodynamics

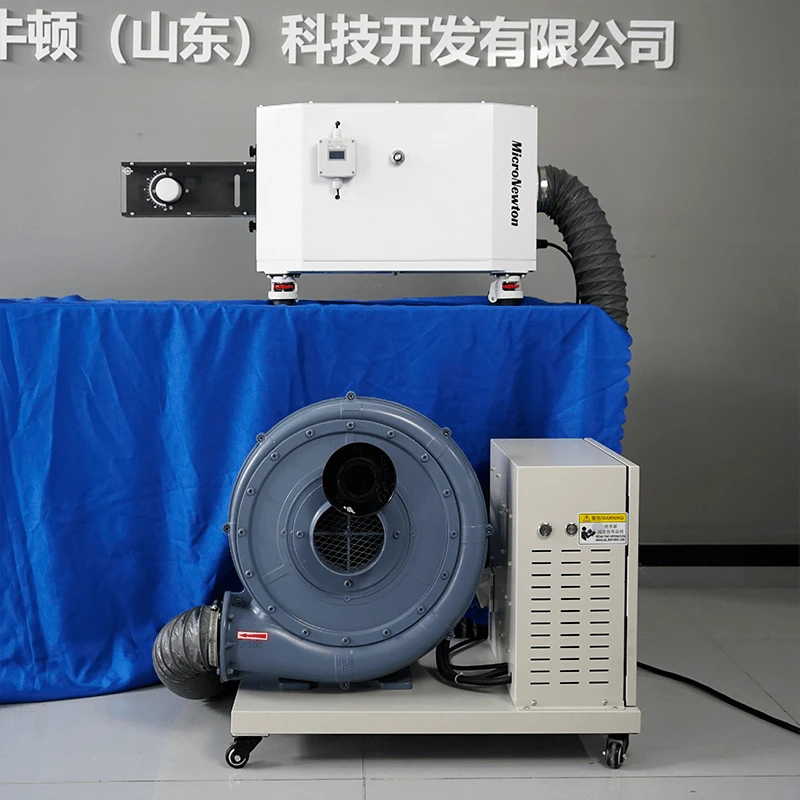

This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench (F100). It is intended for visualizing airflow patterns in aerodynamics experiments.

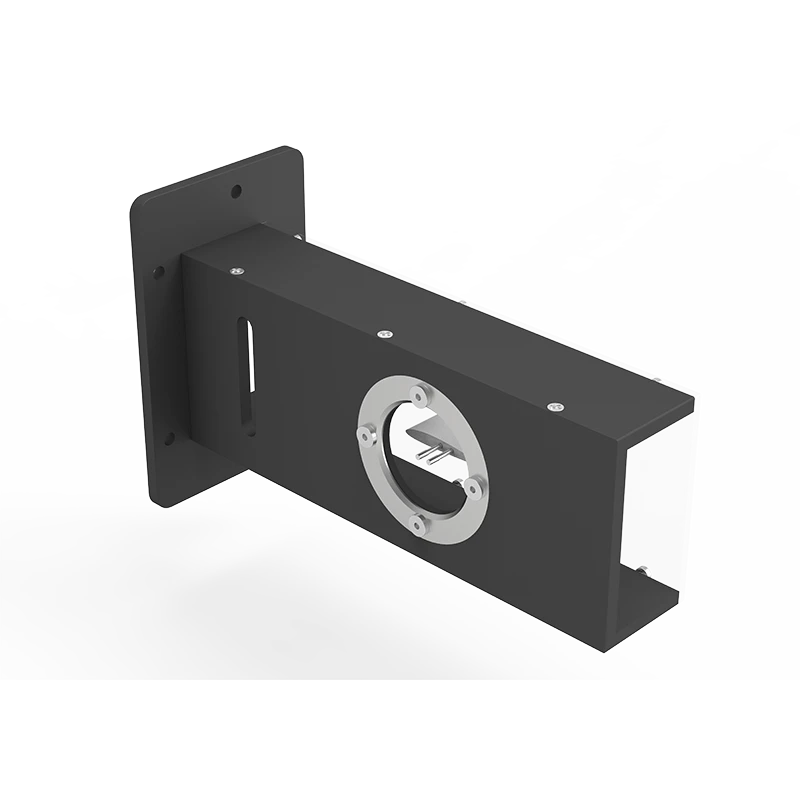

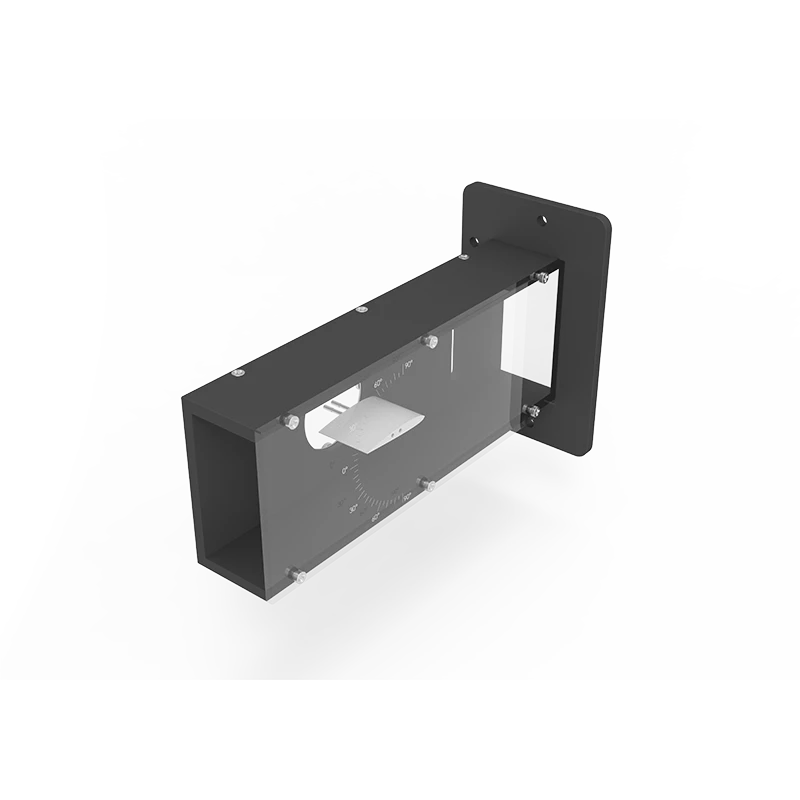

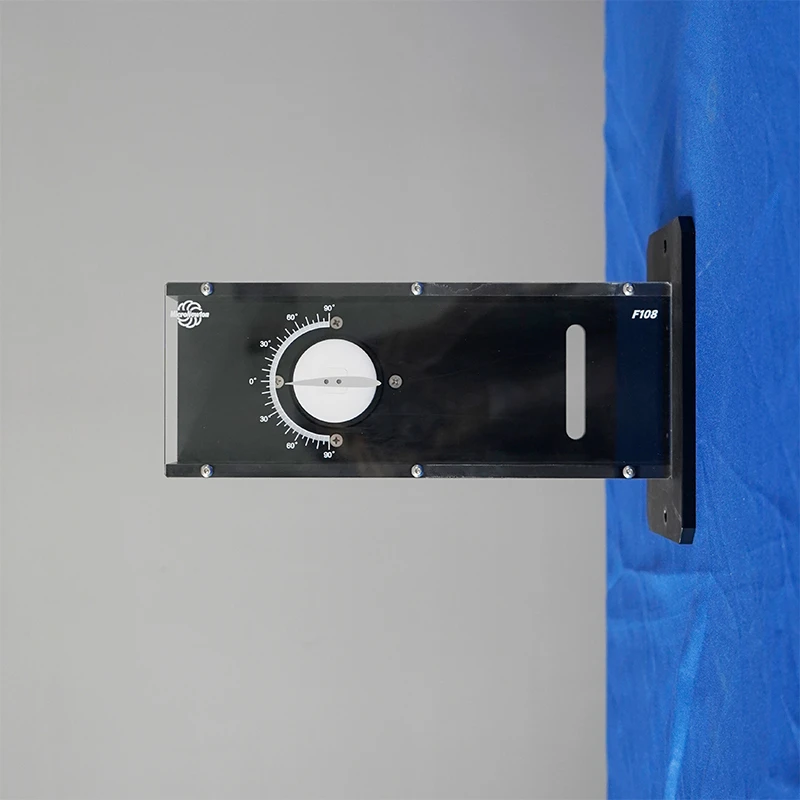

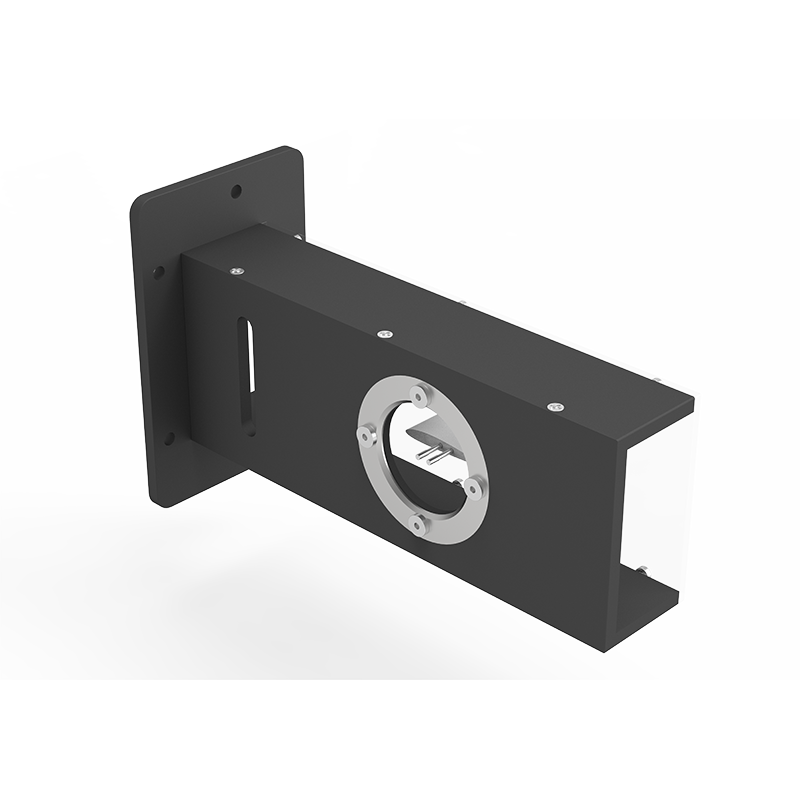

The module consists of a semi-transparent rectangular flow channel, a transparent acrylic cover, and various interchangeable test models. The channel can accommodate different flow bodies, including flat plates, airfoil models, cylinders, and triangular prisms.
When used with an optional smoke generator, visible smoke is introduced into the airflow. As the smoke passes over the test models, it clearly reveals flow patterns, streamline behavior, separation, and wall attachment (Coandă effect), allowing intuitive observation of aerodynamic phenomena.
This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench (F100). It is intended for visualizing airflow patterns in aerodynamics experiments.
The module consists of a semi-transparent rectangular flow channel, a transparent acrylic cover, and various interchangeable test models. The channel can accommodate different flow bodies, including flat plates, airfoil models, cylinders, and triangular prisms.
When used with an optional smoke generator, visible smoke is introduced into the airflow. As the smoke passes over the test models, it clearly reveals flow patterns, streamline behavior, separation, and wall attachment (Coandă effect), allowing intuitive observation of aerodynamic phenomena.
Share:
Added to cart successfully
Experimental Functions
1.Visualize airflow patterns and flow behavior around different objects.
Product Attributes
|
Product Model |
F108 |
Product Name |
Flow Visualization Experimental Module |
|
Main Materials |
Photosensitive resin, black POM, acrylic |

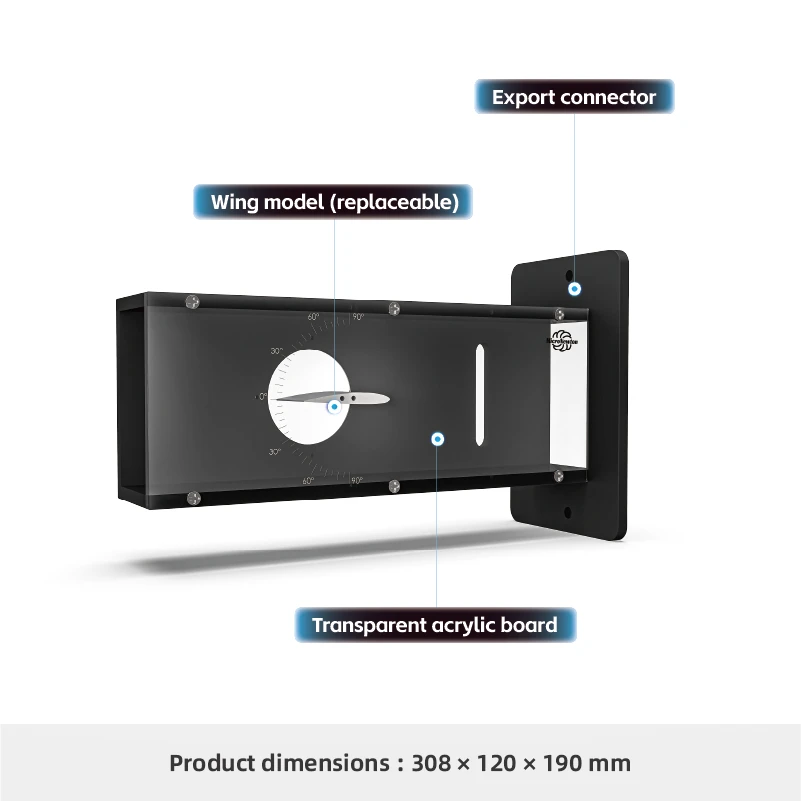

Dimensions | 308 × 120 × 190 mm |
|
Product Weight |
1.65 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None | ||
|
Required Modules |
None |
Optional Modules |
Smoke generator |
