Fundamentals of Aerodynamics
This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench. It is intended for studying drag force characteristics of flow around bodies in aerodynamics.

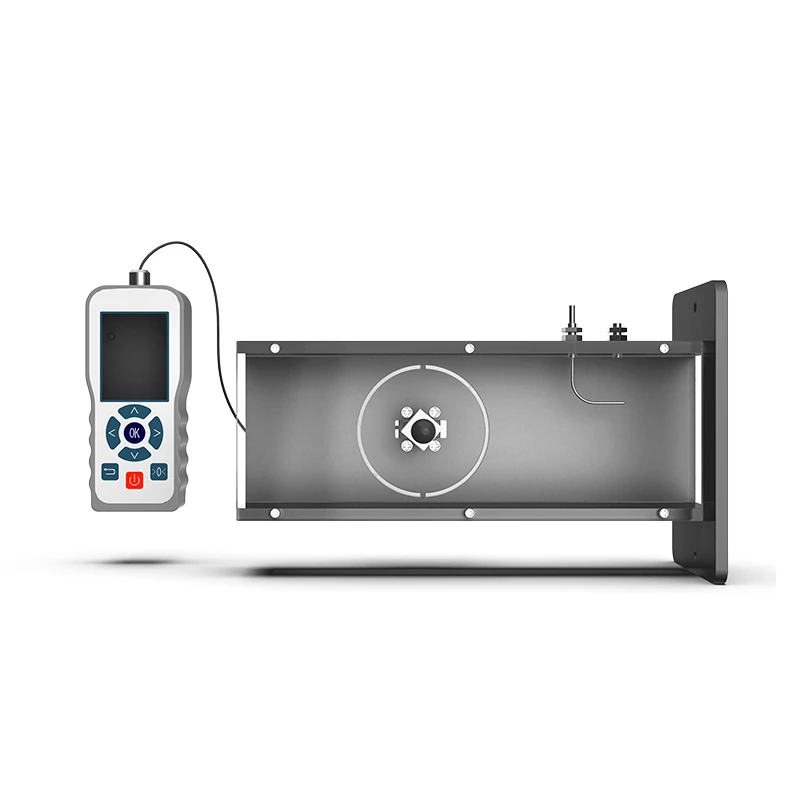

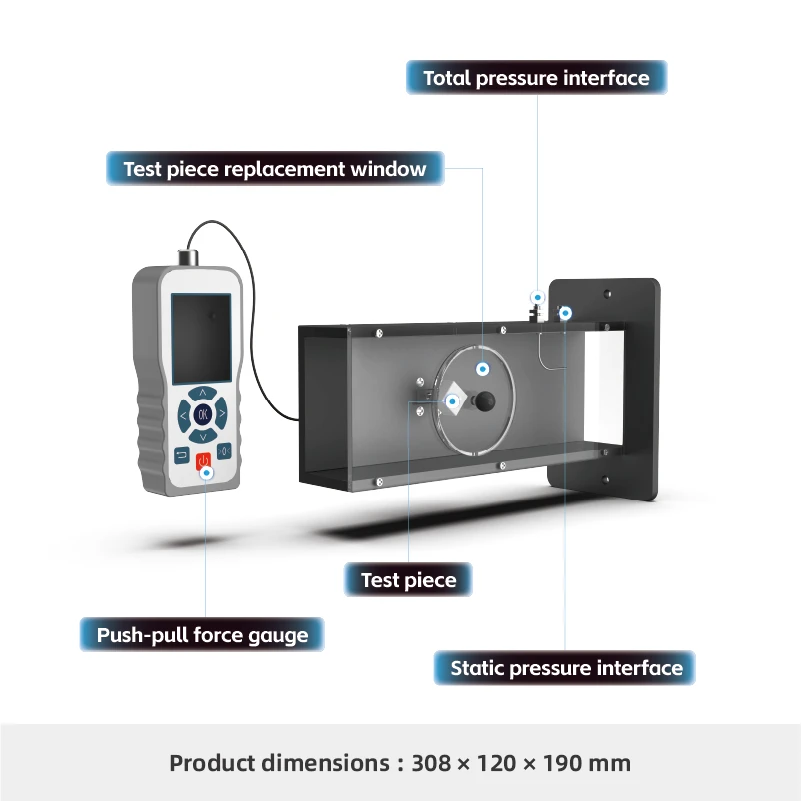

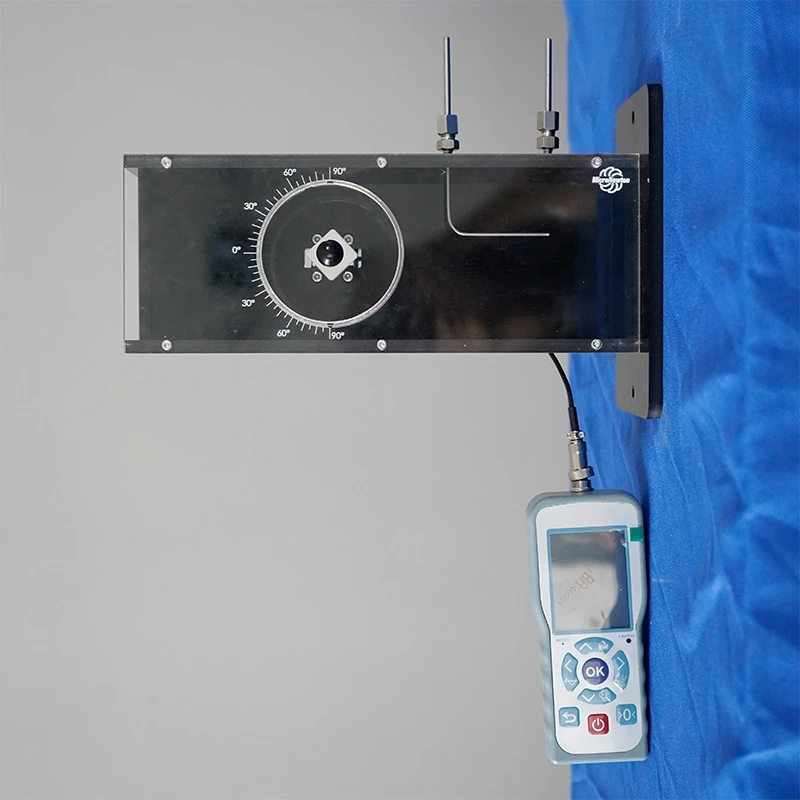

The module consists of a semi-transparent rectangular short flow channel, connected to the aerodynamics bench via an outlet connector. Interchangeable test models can be placed داخل the channel to investigate flow behavior around different geometries.
The system supports three different methods for measuring drag force under varying airflow velocities. It enables comprehensive analysis of pressure distribution, boundary layer effects, and drag force generation for different shapes.
Share:
Added to cart successfully
Experimental Functions
1.Learn the use of a Pitot tube and understand the influence of probe position on measurement results.
2.Study and analyze pressure distribution on the surface of a cylinder in crossflow.
3.Measure drag force caused by the boundary layer around a cylinder using a tension gauge.
4.Measure and analyze surface pressure distribution of cylindrical models using a multi-tube manometer.
Product Attributes
|
Product Model |
F107 |
Product Name |
Drag Force Analysis Experimental Module |
|
Main Materials |
Photosensitive resin, POM, transparent acrylic |
Dimensions |
|
|
Product Weight |
1.2 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
Rectangular block, cylinder, triangular prism, airfoil model, cone, blunt body test specimens |
Optional Modules |
None |
