Fundamentals of Aerodynamics

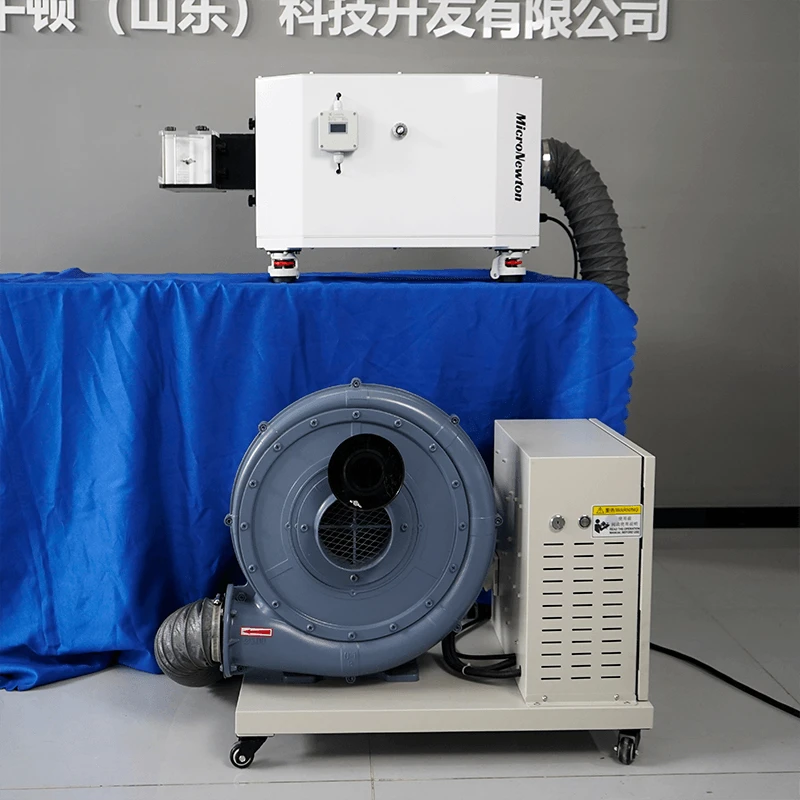

This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench. It is intended for studying the flow characteristics associated with the Coandă effect (wall attachment effect) in aerodynamics.

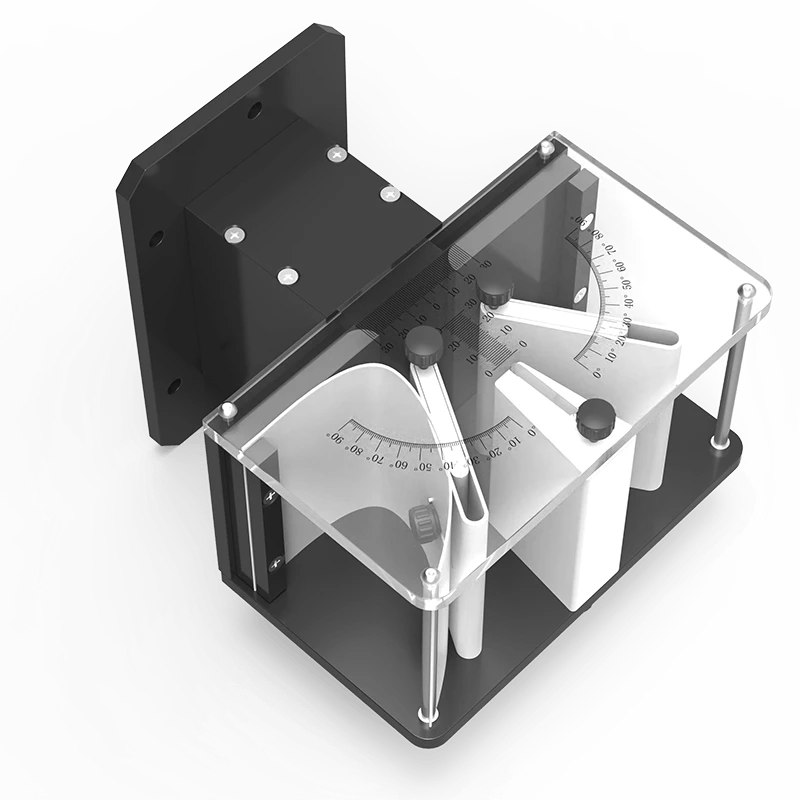

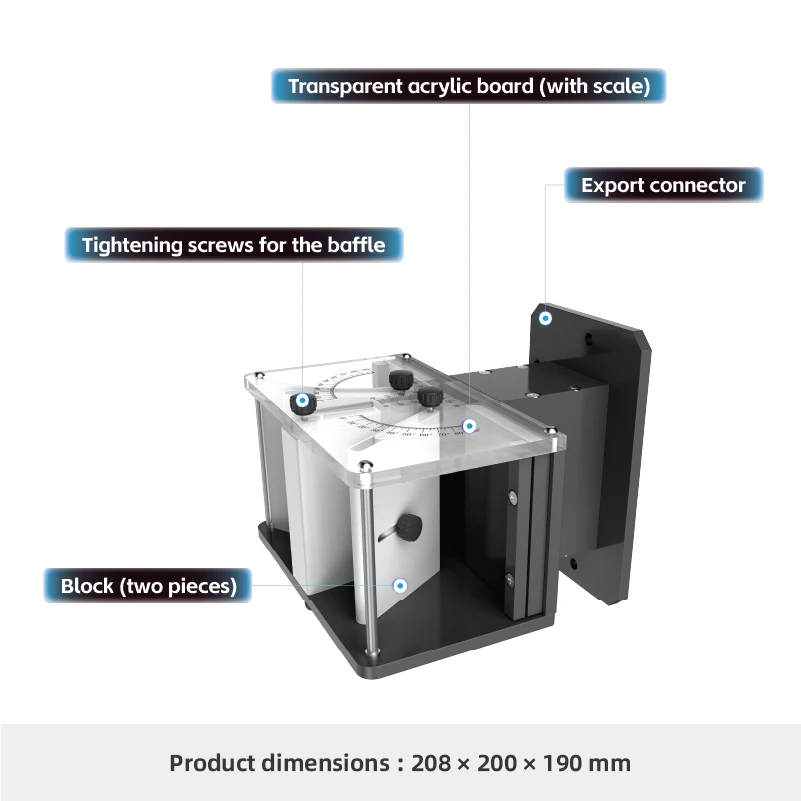

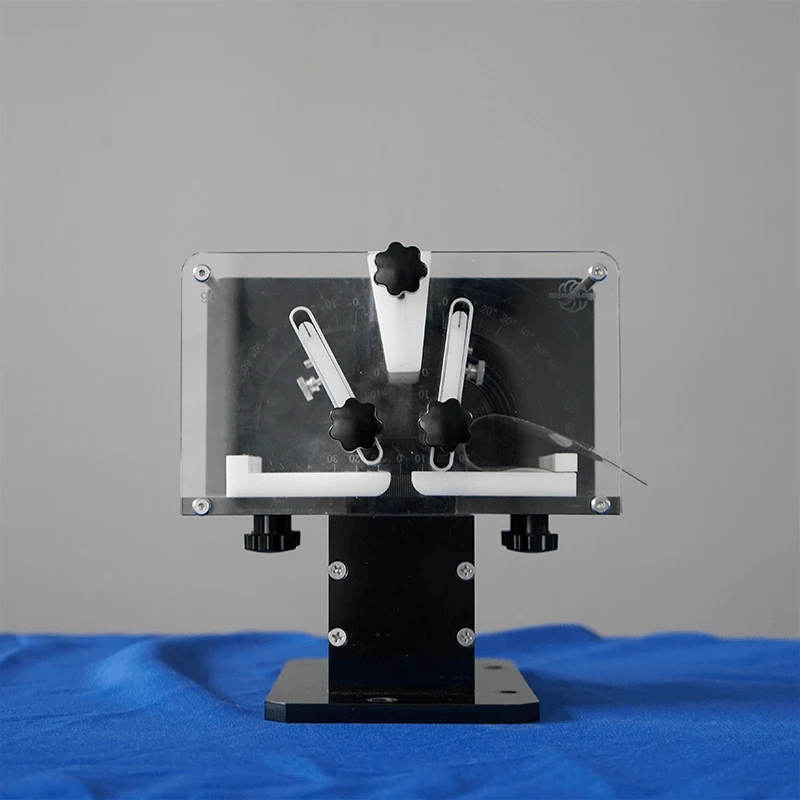

The module features a semi-transparent rectangular flow channel, which is connected to the aerodynamics bench via an outlet connector. Inside the channel is a Y-shaped dual-wall flow path, with an adjustable opening size and a centrally positioned splitter plate. The axial position, angle, and offset distance of the splitter plate can be adjusted and read via scale markings.
This setup enables investigation of two-dimensional airflow behavior and the Coandă effect, where a fluid jet attaches itself to a nearby surface during flow.
Share:
Added to cart successfully
Experimental Functions
1.Observe the Coandă effect formed by airflow around surfaces and analyze influencing factors.
2.Plot characteristic curves based on offset distance and angle, and analyze the Coandă effect behavior.
Product Attributes
|
Product Model |
F106 |
Product Name |
Coanda Effect Experimental Module |
|
Main Materials |
POM, aluminum alloy, transparent acrylic |
Dimensions |
190 × 200 × 208 mm |
|
Product Weight |
1.85 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
Case Studies
Integrated Thermal Fluids and Energy Laboratory at Zhejiang University of Technology
Flight Demonstration Wind Tunnel at Shandong University
Multi Energy Complementary Experimental Platform at Hebei University
Statically Determinate Beam Section Internal Force Testing Apparatus Delivered to Jining Vocational and Technical College
Self Developed Compression Bar Stability and Stress Testing Apparatus Delivered to Shandong Polytechnic University
