Fundamentals of Aerodynamics

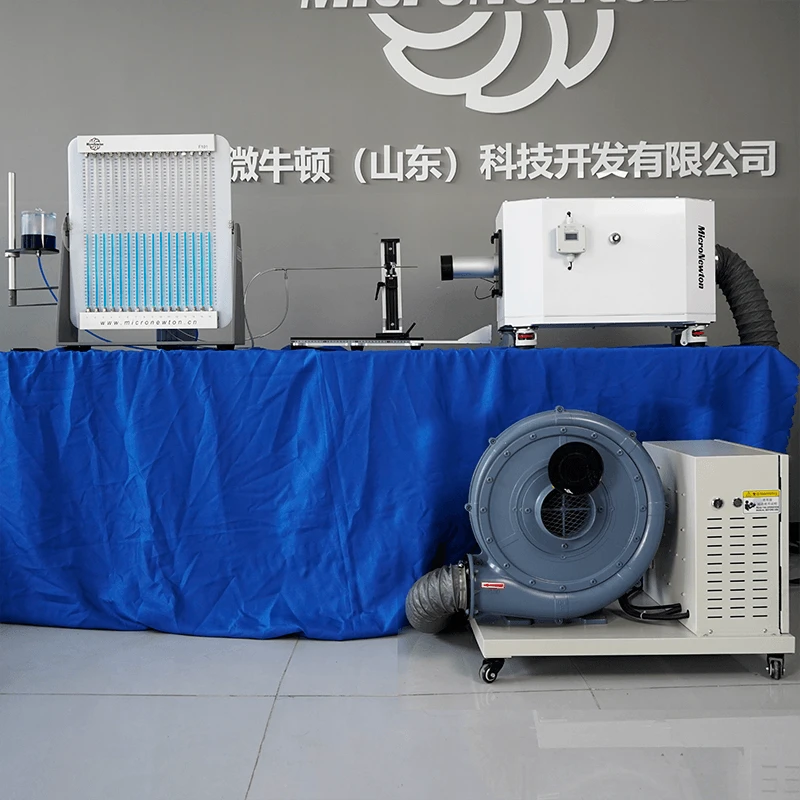

This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench and the Multi-Tube Manometer Experimental Module. It is intended for studying the flow characteristics of airflow inside a circular pipe, with a focus on turbulent flow behavior.
Share:
Added to cart successfully
Product Description
This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench and the Multi-Tube Manometer Experimental Module. It is intended for studying the flow characteristics of airflow inside a circular pipe, with a focus on turbulent flow behavior.

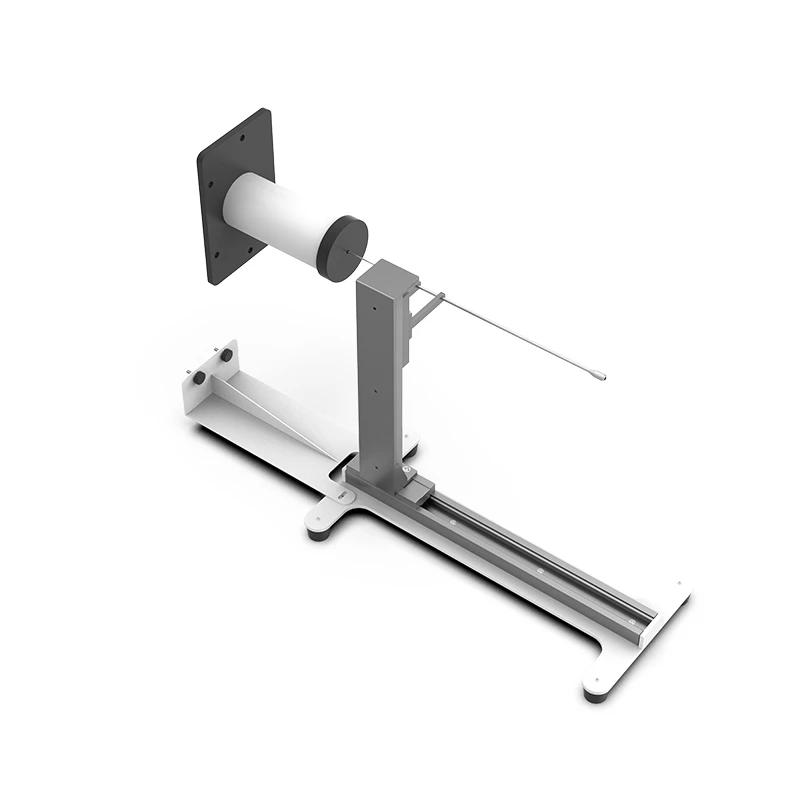

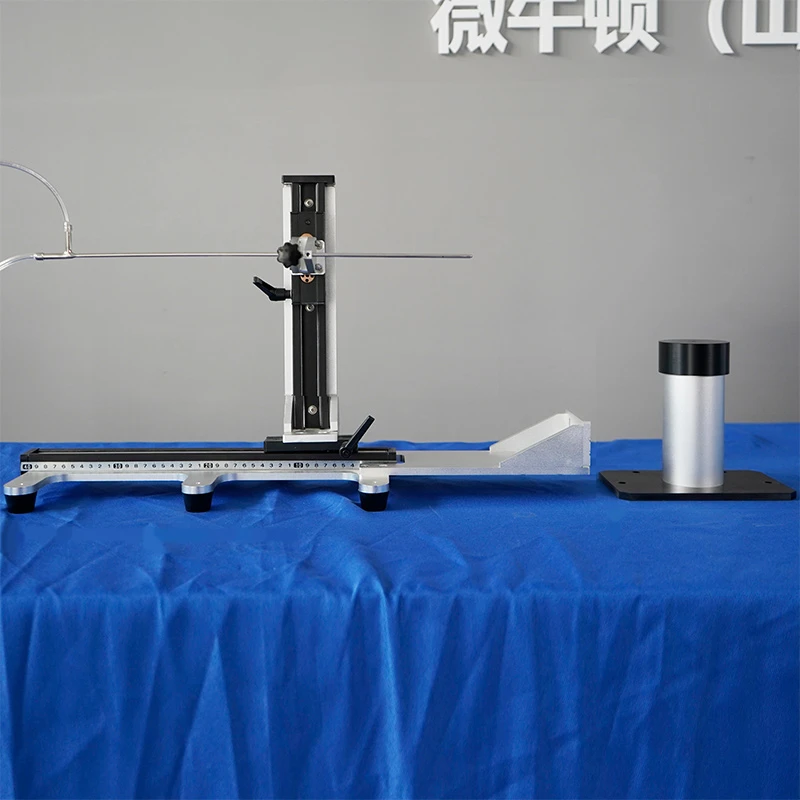

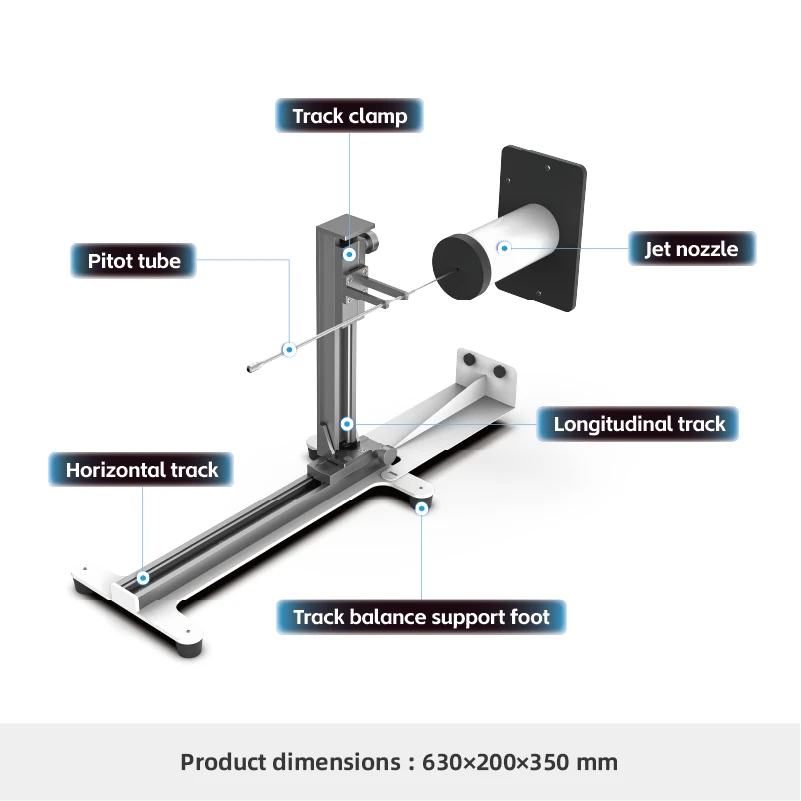

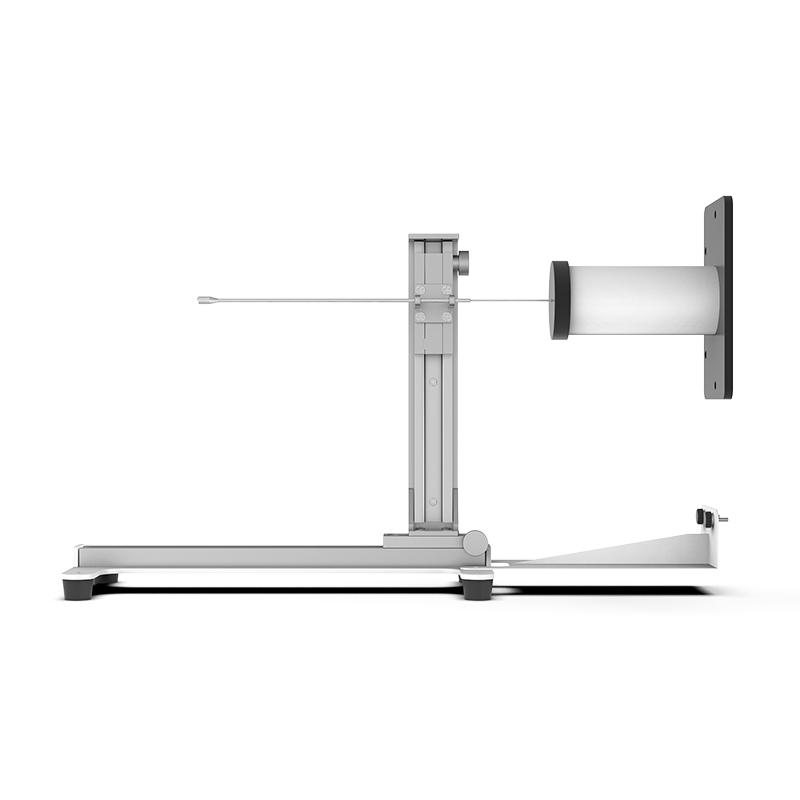

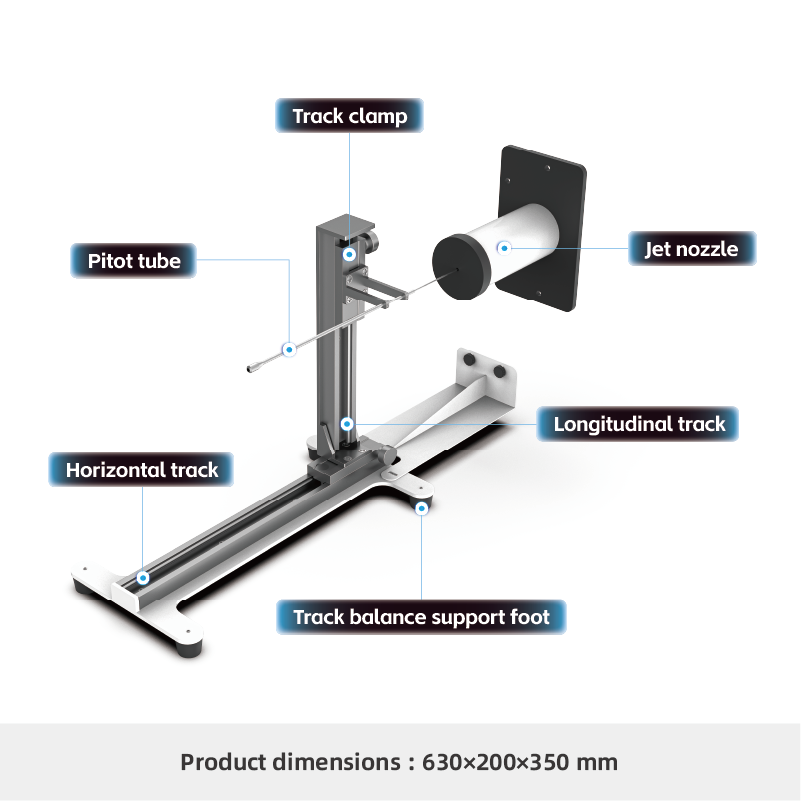

The module consists of a metal circular pipe, with a sharp-edged outlet inside the straight section to promote turbulent flow formation. A Pitot tube is mounted on a measuring frame and can be moved both horizontally and vertically within the pipe.
In combination with the multi-tube manometer, the system allows measurement of axial pressure distribution along the pipe centerline, as well as investigation of boundary layer behavior along the inner wall. It also enables plotting of velocity profiles within the pipe flow field and estimation of frictional pressure losses.
A central positioning device is included to facilitate accurate and repeatable measurements.
Experimental Functions
01
Study pressure and velocity distribution along the centerline of airflow in a circular pipe.
02
Investigate velocity distribution at different axial positions.
03
Analyze radial velocity profiles, mass flow rate variation, and kinetic energy distribution.
04
Study the boundary layer distribution along the inner wall of the pipe.
Product Attributes
|
Product Model |
F104 |
Product Name |
Circular Pipe Turbulent Flow Experimental Module |
|
Main Materials |
Galvanized steel sheet, black POM, aluminum alloy |
Specifications |
630 × 230 × 380 mm |
|
Product Weight |
5.05 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
