Fundamentals of Aerodynamics

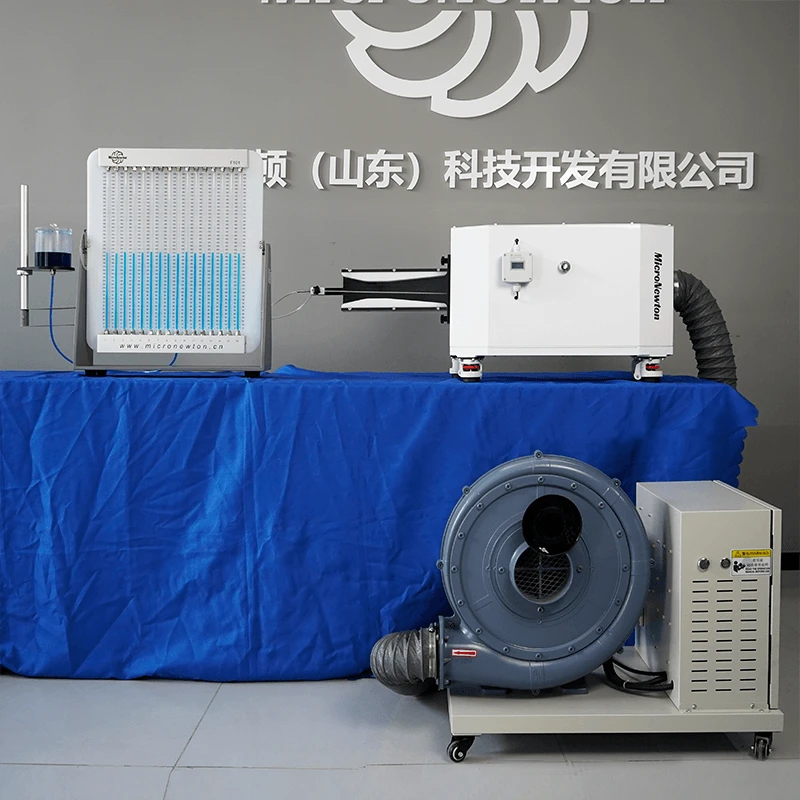

This product is designed to be used in conjunction with the Basic Aerodynamics Experimental Bench and the Multi-Tube Manometer Experimental Module. It is intended for studying and demonstrating the application of the Bernoulli equation in aerodynamics.

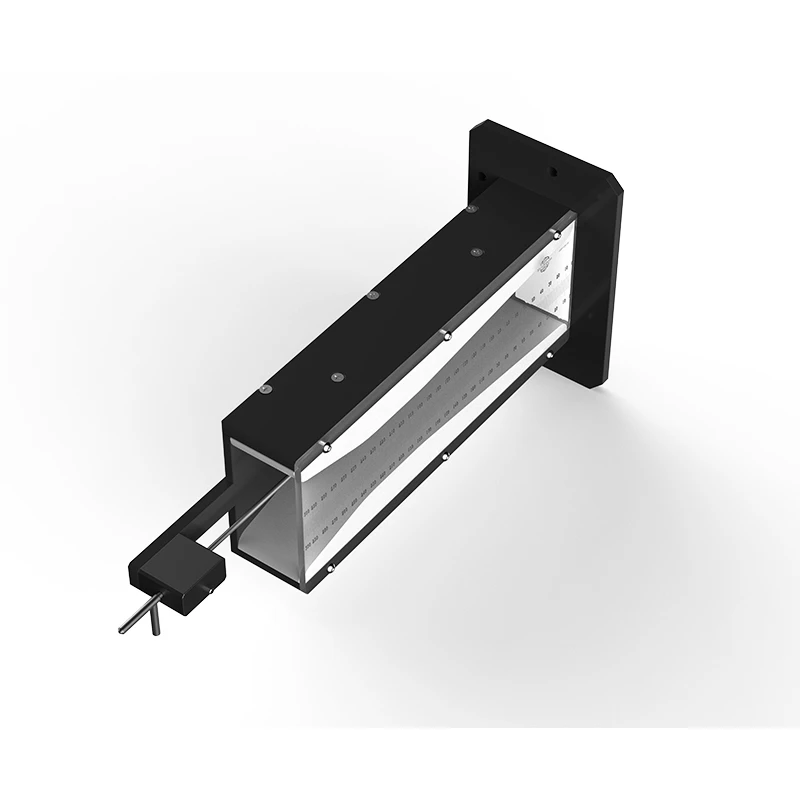

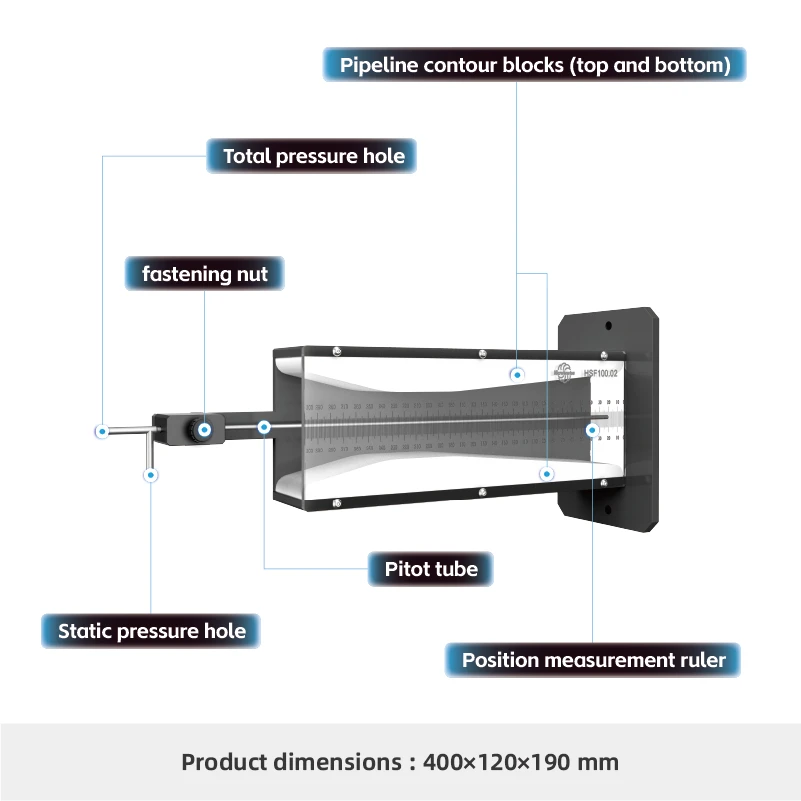

The device consists of a Venturi model and an adjustable Pitot tube. The Pitot tube can be moved along the centerline of the flow channel to measure pressure distribution at different airflow velocities. Pressure readings are obtained באמצעות the multi-tube manometer.
This module is primarily used to analyze pressure variations of airflow through a Venturi channel, enabling a clear and intuitive verification of the Bernoulli equation. It also helps users learn how to operate a Pitot tube. Combined with geometric parameters, it allows for the calculation of air velocity and flow rate.
Share:
Added to cart successfully
Experimental Functions
1.Study and verify the Bernoulli equation.
2.Learn the use of a Pitot tube and perform airflow velocity measurements.
3.Measure pressure distribution along the Venturi flow channel.
Product Attributes
|
Product Model |
F102 |
Product Name |
Bernoulli Equation Experimental Module |
|
Main Materials |
Black POM, transparent acrylic |
Dimensions |
190 × 120 × 450 mm |
|
Product Weight |
2.1 kg |
Operating Environment |
Room temperature, Relative humidity ≤ 85% |
|
Input Power Supply |
None |
||
|
Required Modules |
None |
Optional Modules |
None |
